Supports long-distance fiber connections to aggregation switches or control room networks
Supports IEEE 802.3af/at PoE with up to 30 W per port and up 240 W total PoE power budget
Built-in surge protection on copper ports helps reduce the risk of damage from electrical surges
IP30-rated metal housing supports deployment in industrial and outdoor environments. Certified to CE Class A, VCCI Class A, FCC Class A, IC, BSMI, and RCM EMI standards
Fanless design supports deployment in enclosed or low-airflow industrial environments.
Energy-Efficient Ethernet (EEE) reduces power consumption during periods of low network activity
The DIS-100G-10P includes eight PoE ports supporting IEEE 802.3af/at, delivering both power and data over a single Ethernet cable. Ports 1–4 can be configured to Extend Mode, supporting transmission distances of up to 250 meters at 10 Mbps, suitable for deployments such as surveillance cameras and remote edge devices.
With a total PoE power budget of up to 240 W and up to 30 W per port, the switch supports powering connected devices including cameras, access points, and IoT equipment. This helps simplify installation and allows more flexible device placement without requiring additional local power sources.

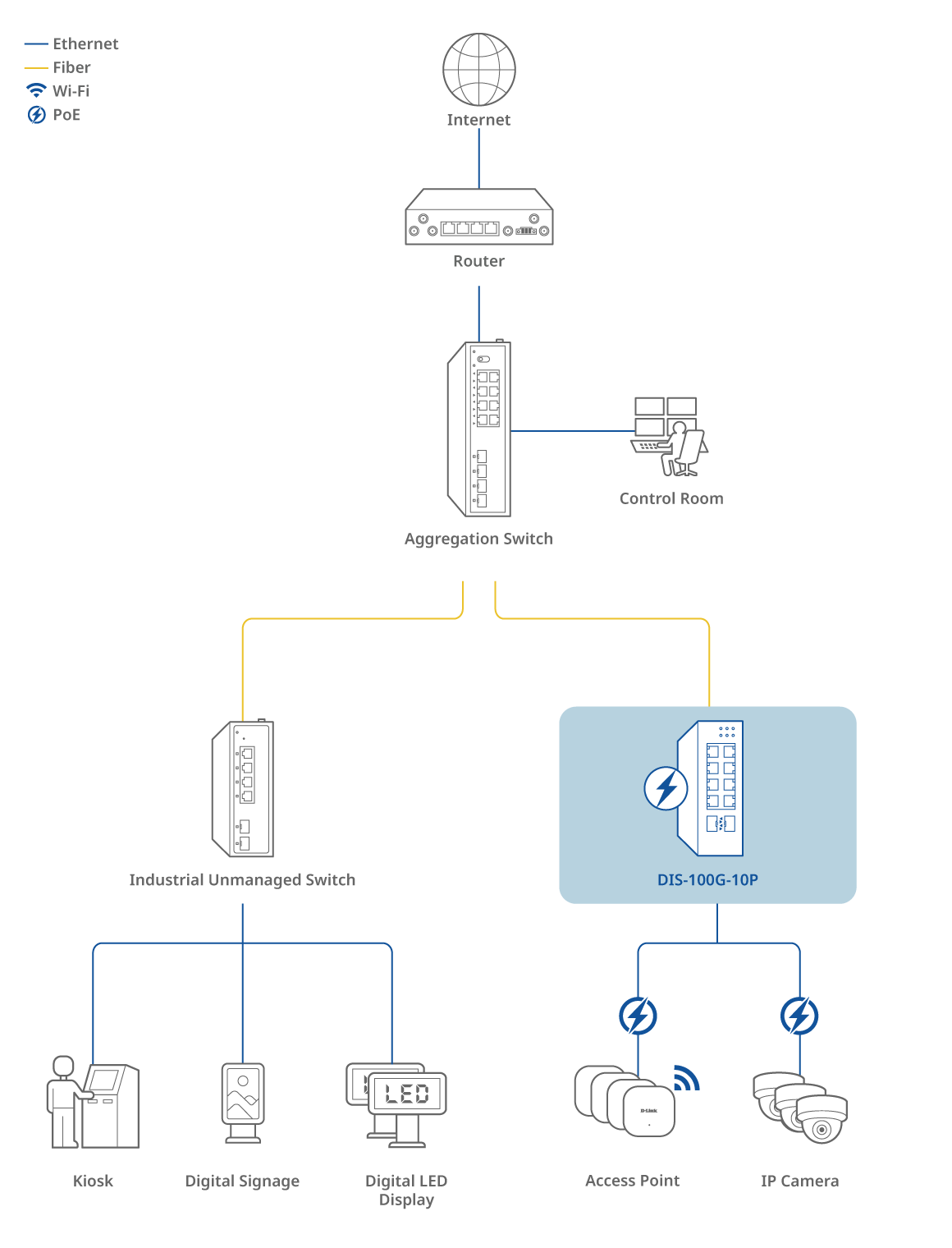

The DIS-100G-10P includes two 1GbE SFP ports that support fiber uplinks for long-distance connections to aggregation switches or central network infrastructure. Fiber cabling can extend connectivity beyond the distance limits of copper Ethernet, making it suitable for connecting remote sites or separate buildings.
Fiber connections also provide improved resistance to electromagnetic interference, help supporting consistent data transmission in industrial and infrastructure environments.
The DIS-100G-10P features a rugged industrial design suitable for deployment in outdoor enclosures, factory floors, and remote installations. Its IP30-rated metal housing supports durability in industrial cabinet and control panel environments.
The switch operates across a wide temperature range of -40°F to 167°F (-40°C to 75°C), supporting deployment in both cold and high-heat conditions. A fan-less design supports use in enclosed or low-airflow environments, while 6 kV surge protection on copper ports helps reduce the risk of damage from electrical surges.

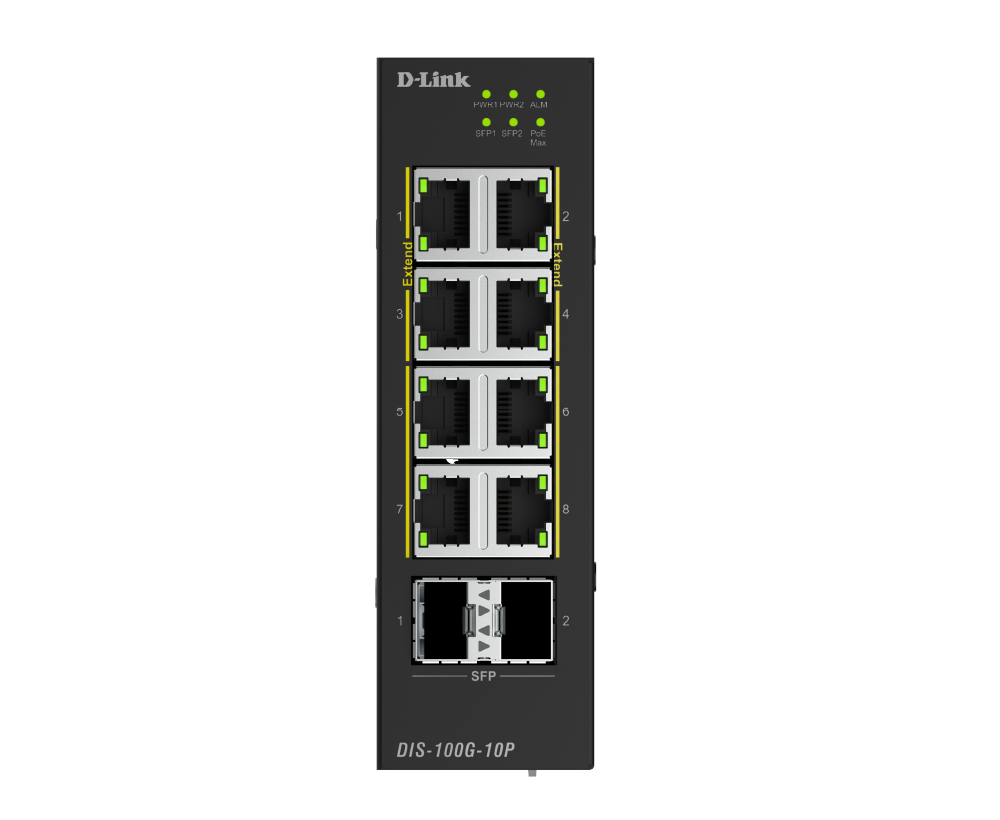

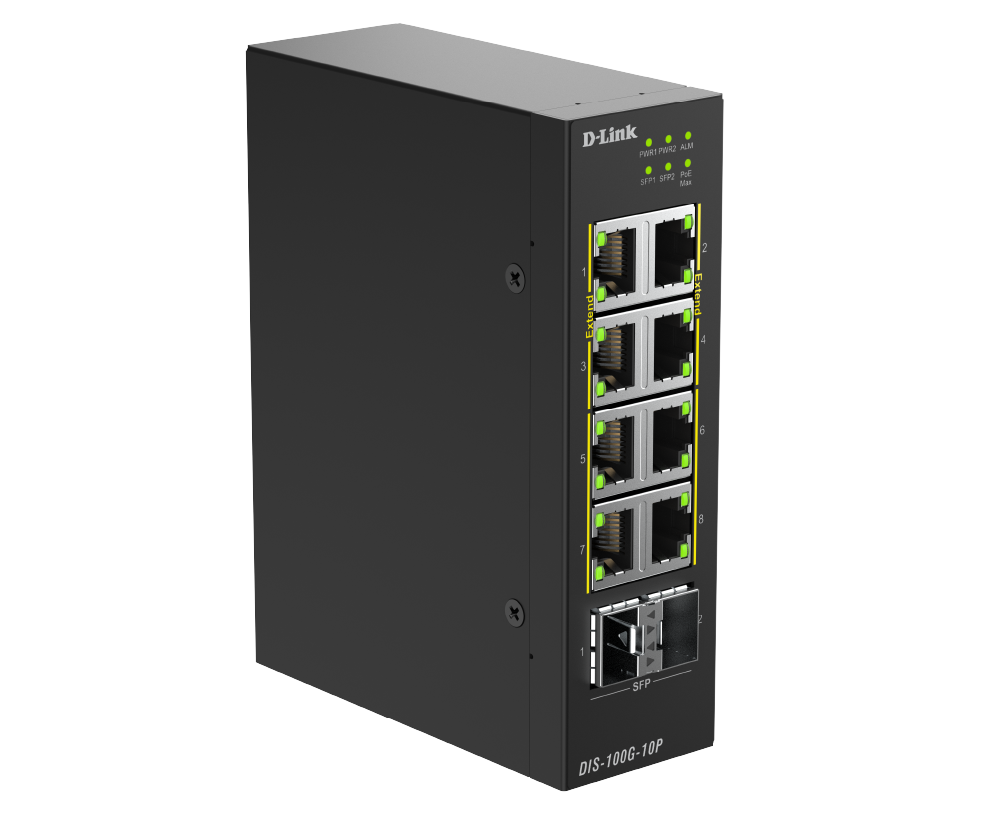

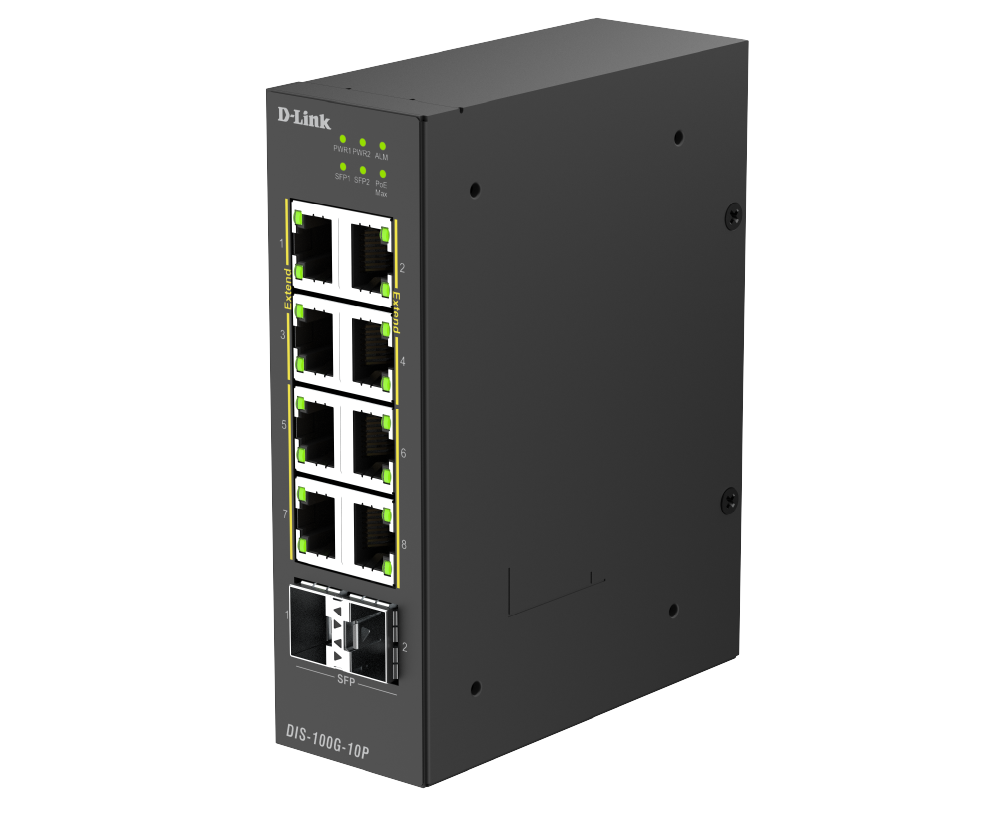

The DIS-100G-10P is an industrial unmanaged switch with eight 1 GbE PoE+ ports and two 1 GbE SFP uplink ports, supporting plug-and-play deployment at the edge. The SFP ports support long-distance fiber connections to aggregation switches or central network infrastructure, extending connectivity beyond the distance limits of copper Ethernet. With IEEE 802.3af/at PoE, up to 240 W total PoE budget, and support for PoE transmission up to 250 meters at 10 Mbps on ports 1–4, the DIS-100G-10P is designed for deployments such as surveillance cameras, wireless access points, and other powered edge devices
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Number of PoE Ports
|
8 |
|
PoE Power Budget
|
240 W |
|
PoE Ports
|
802.3at Long Range PoE |
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|

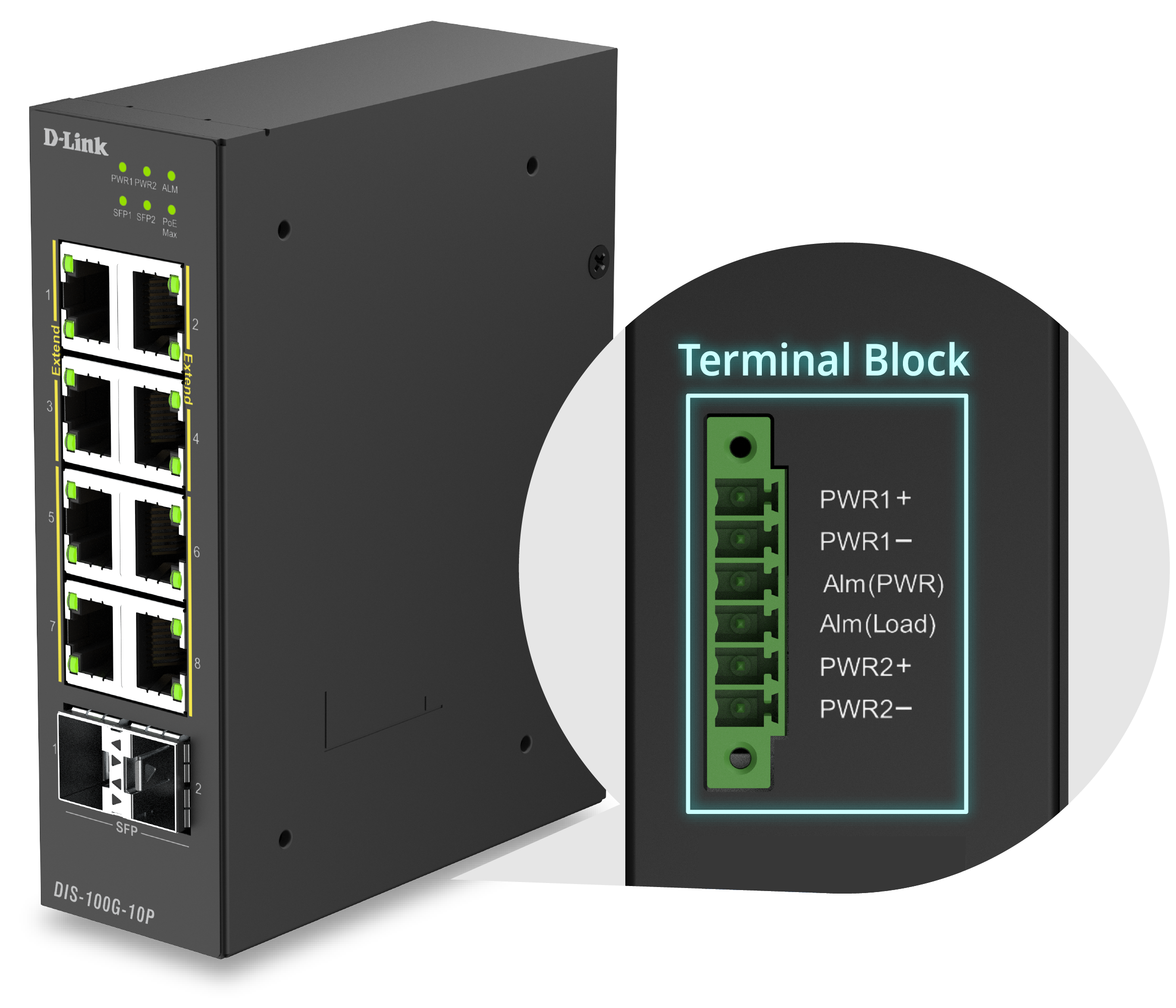

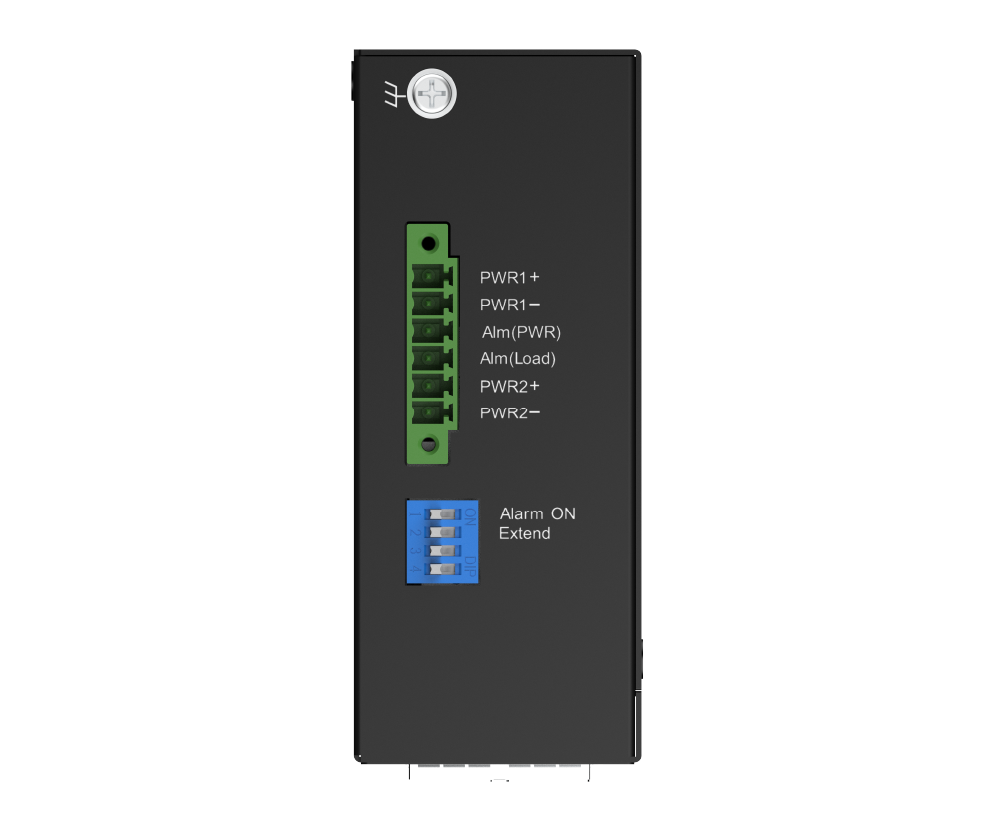

DC:48~57V Dual input |
