Supports long-distance fiber connections to aggregation switches or control room networks
Supports connection to two independent power sources to help reduce the risk of downtime
Built-in surge protection on copper ports helps reduce the risk of damage from electrical surges
IP30-rated metal housing supports deployment in industrial and outdoor environments. Certified to CE Class A, VCCI Class A, FCC Class A, IC, BSMI, and RCM EMI standards.
Fan-less design supports deployment in enclosed or low-airflow industrial environments.
Energy-Efficient Ethernet (EEE) reduces power consumption during periods of low network activity
The DIS-100G-06 features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

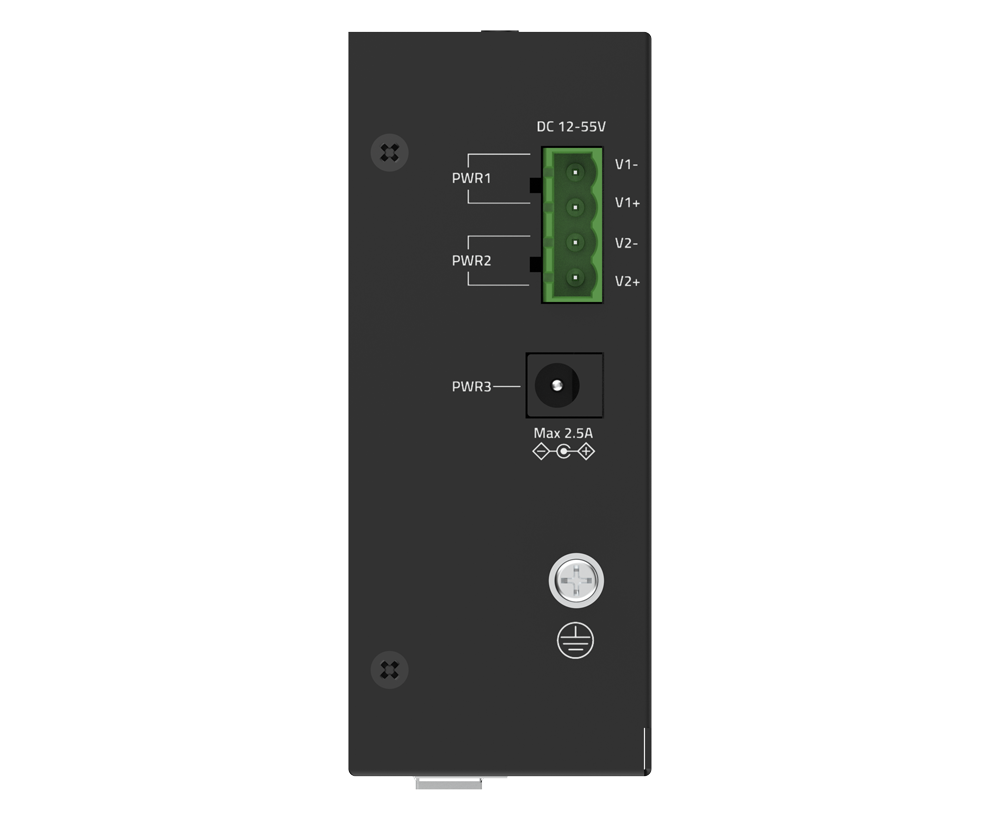

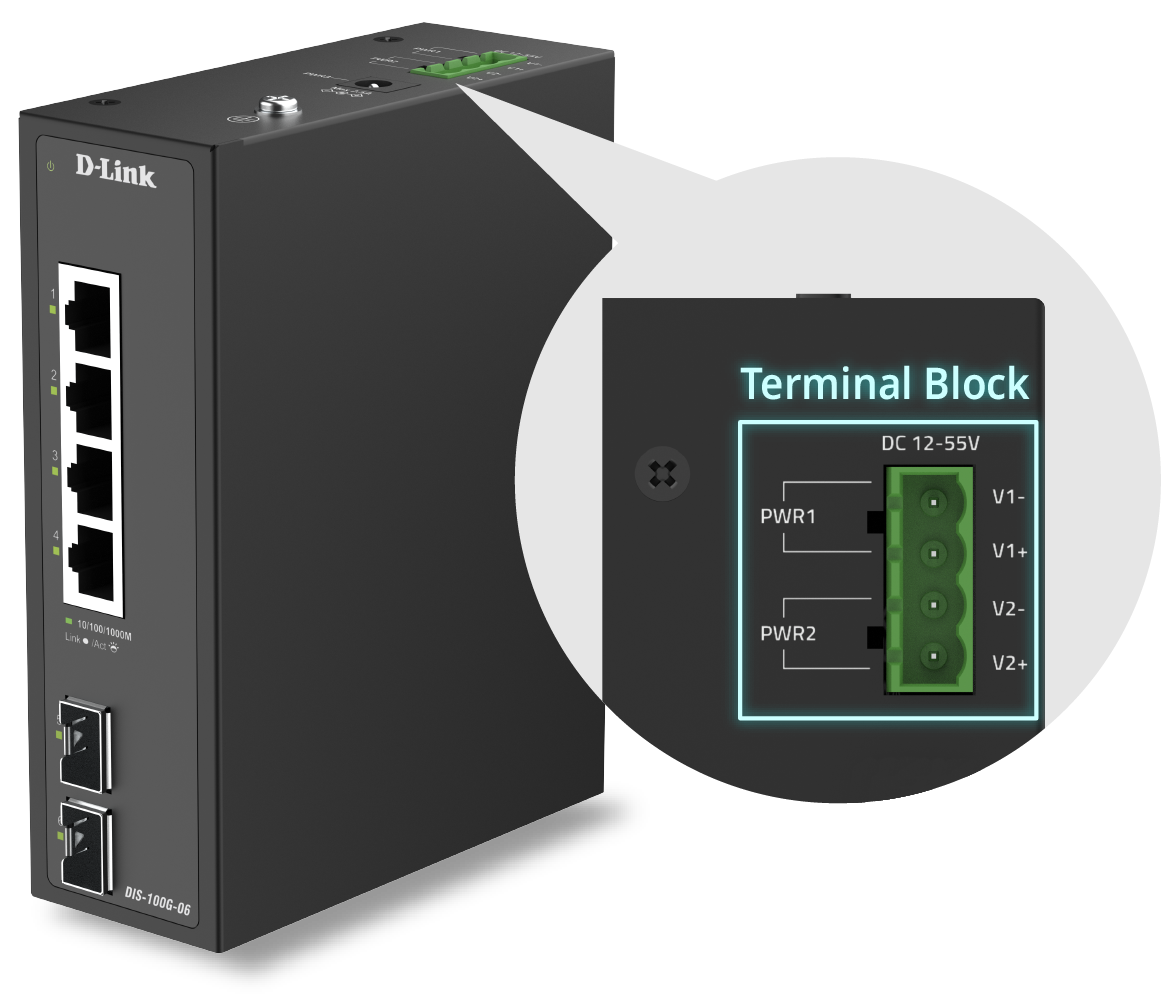

The DIS-100G-06 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection

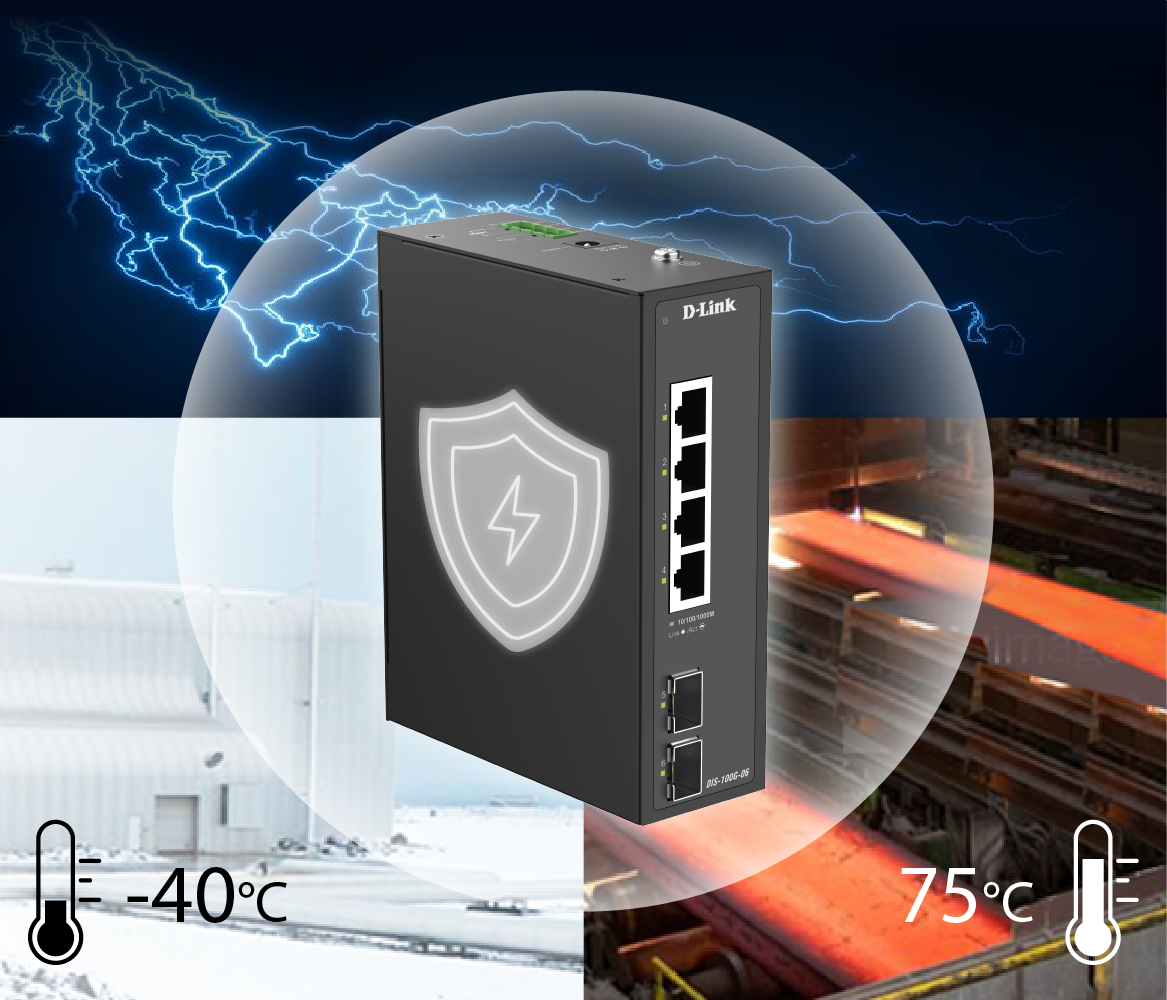

The DIS-100G-06 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

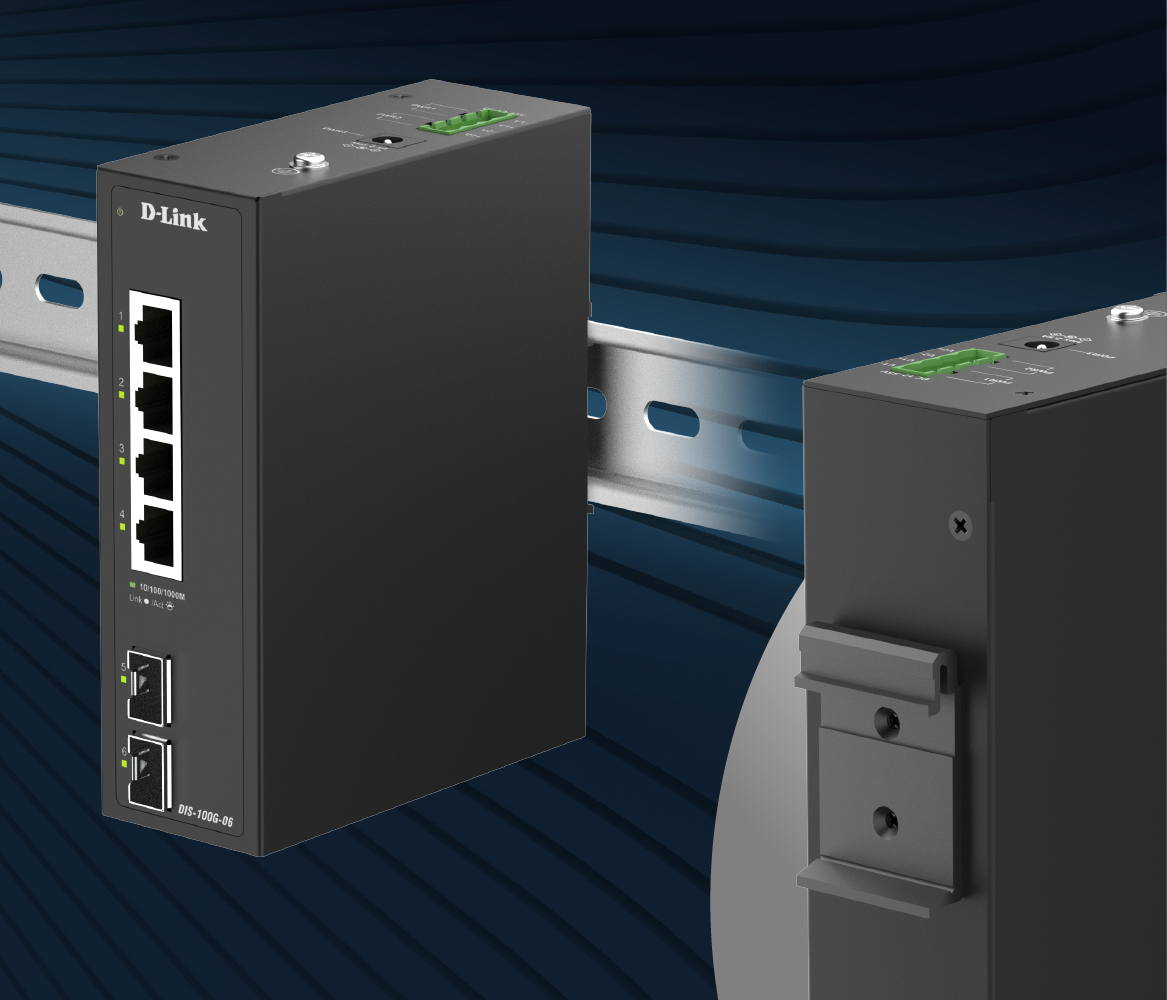

The DIS-100G-06 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organized installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.

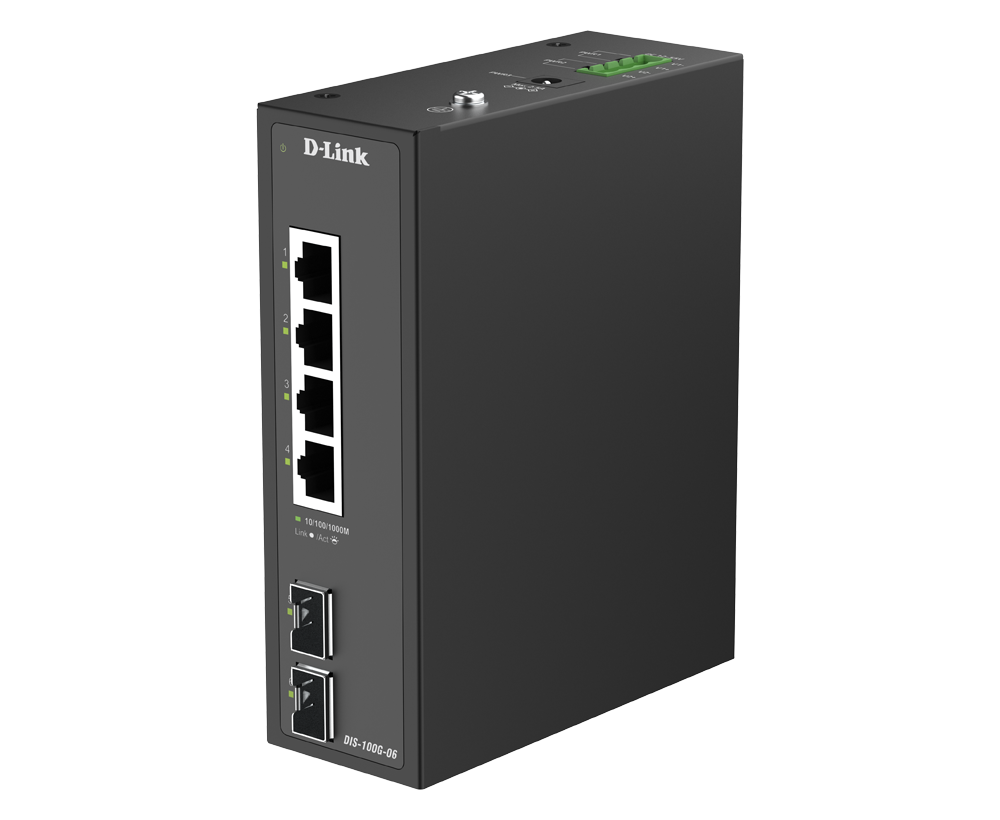

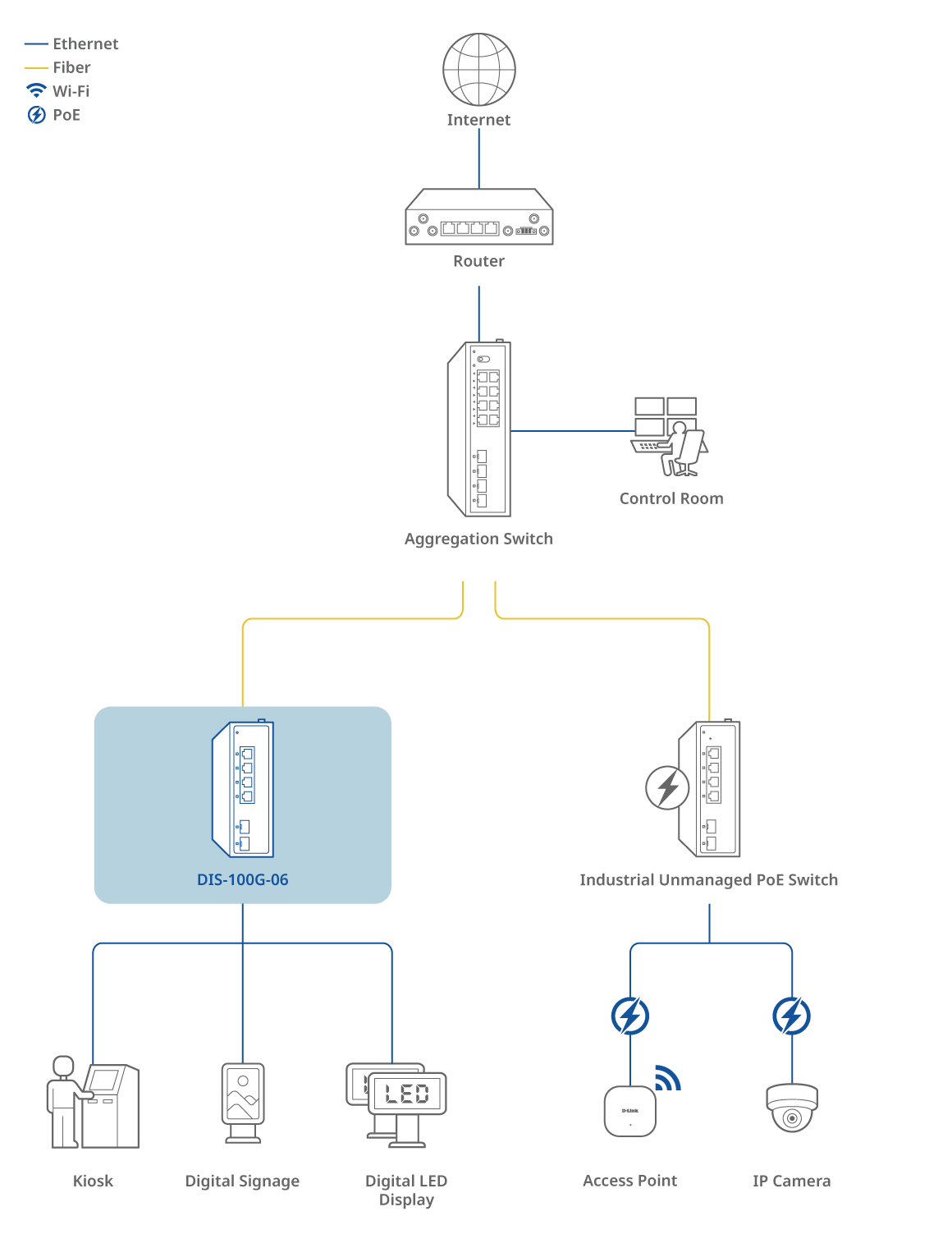

The DIS-100G-06 is an industrial unmanaged switch equipped with four 1G ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:12~55V Dual input |
|
Type of uplink ports
|
SFP |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
