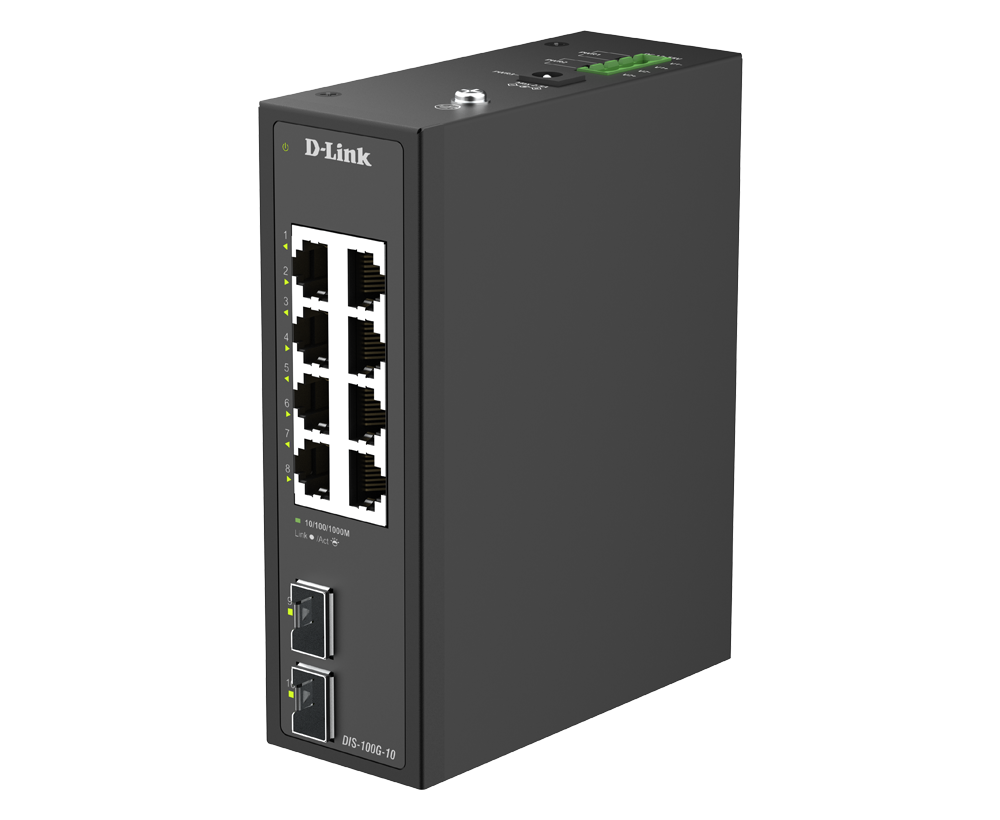

Industrial 10-Port Gigabit Unmanaged Ethernet Switch (8 Ports + 2 × 1 GbE SFP Uplinks)

DIS-100G-10

  • Product Status (DIS 100G 10_A1_Datasheet_v1 00_WW): Live
  • Built for Industrial Environments: Fan-less design, IP30-rated metal housing, and an operating temperature range from -40°F to 167°F (-40°C to 75°C) make the DIS-100G-10 well suited for industrial sites and outdoor cabinet deployments
  • Gigabit Connectivity for Edge Networks: 8 × Gigabit Ethernet ports support high-speed data transmission for surveillance systems, access points, and network-connected equipment
  • Fiber Uplink for Network Expansion: 2 × 1GbE SFP ports support long-distance fiber connections for uplinks to aggregation switches or control room networks
  • Dual Power Input for Redundant Power Design: Supports dual 9–36 VDC terminal block inputs inputs for redundant power connections to help maintain operation if one power source is interrupted
  • Simplified Industrial Deployment: Compact 5.43 × 4.25 × 1.73 in (138 × 108 × 44 mm) plug-and-play design with DIN-rail mounting support helps simplify installation in industrial cabinets and control enclosures
  • NDAA/TAA Sourcing Standards: Follows NDAA/TAA sourcing standards for public sector and enterprise projects
  • Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty (North America) and over 40 years of networking experience

    *     Power adapter is not included. Actual performance may vary depending on settings, cabling, temperature, network configuration, interfaces, connected devices, compatibility, environmental conditions, on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and are provided for informational purposes only.

Download the datasheet.

Where to buy
Fiber Uplink Connectivity

Supports long-distance fiber connections to aggregation switches or control room networks

Dual Power Input

Supports connection to two independent power sources to help reduce the risk of downtime

6kV Surge Protection

Built-in surge protection on copper ports helps reduce the risk of damage from electrical surges

Industrial-Grade Durability

IP30-rated metal housing supports deployment in industrial and outdoor environments. Certified to CE Class A, VCCI Class A, FCC Class A, IC, BSMI, and RCM EMI standards.

Fanless

Fan-less design supports deployment in enclosed or low-airflow industrial environments.

Green Ethernet

Energy-Efficient Ethernet (EEE) reduces power consumption during periods of low network activity

Long-Distance Fiber Connectivity

The DIS-100G-10 includes two 1GbE SFP ports that support fiber uplinks for longer-distance connections to aggregation switches or central network infrastructure. Fiber cabling can extend connectivity beyond the distance limits of copper Ethernet, making it well suited for connecting remote cabinets, separate buildings, or other distributed network locations.

Fiber connections also provide added resistance to electromagnetic interference, helping support more consistent data transmission in industrial and infrastructure environments.

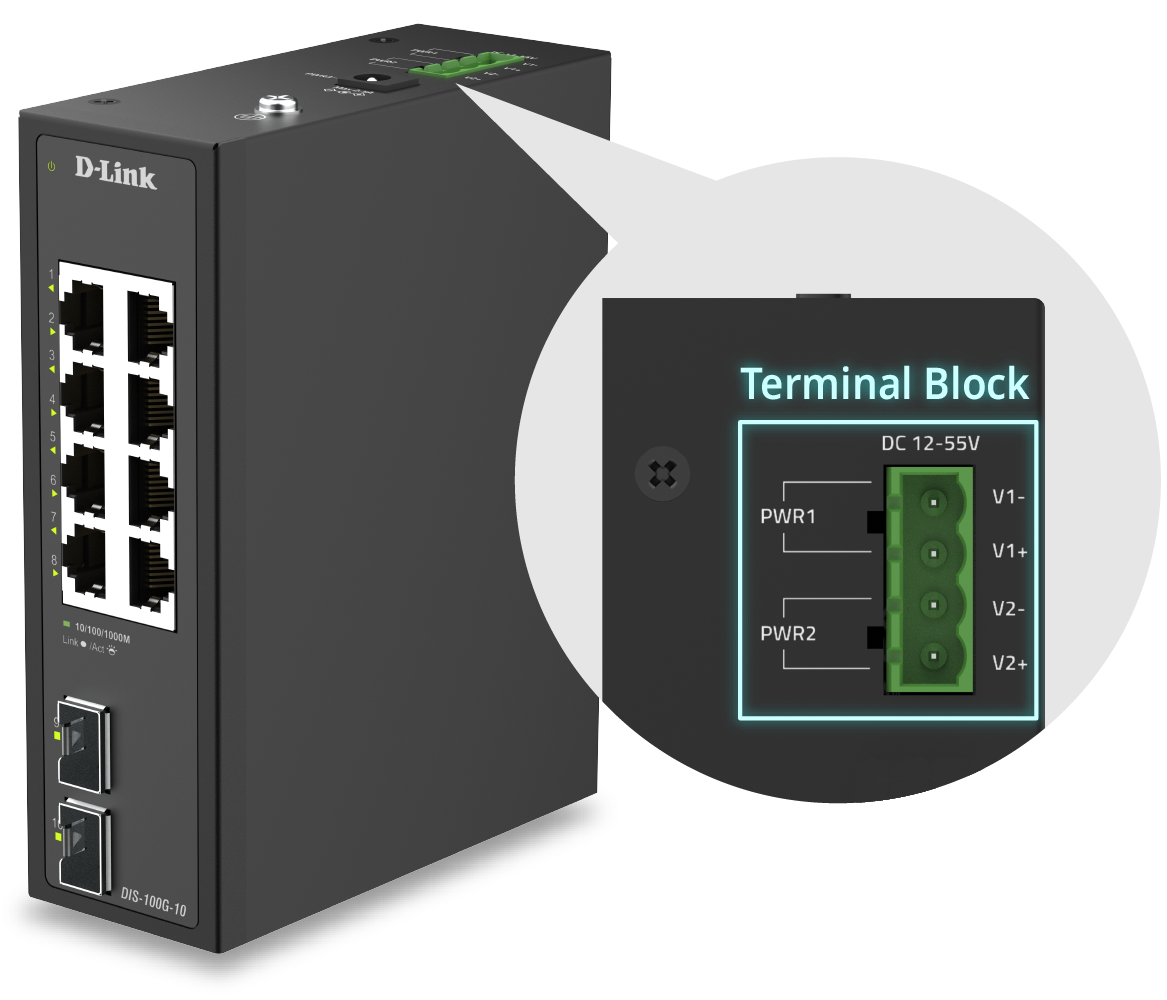

Power Redundancy for Critical Operations

The DIS-100G-10 supports dual 9–36 VDC terminal block inputs, allowing connection to two independent, customer-supplied DC power sources, such as separate power supplies or primary and backup circuits. If one power source is interrupted, the second can continue powering the switch, helping reduce the risk of network downtime in industrial environments.

Built for Demanding Industrial Environments

The DIS-100G-10 features a rugged industrial design suited for deployment in outdoor enclosures, factory floors, and remote installations. Its IP30-rated metal housing supports durability in industrial cabinets and control panel environments. The switch operates across a wide temperature range of -40°F to 167°F (-40°C to 75°C), supporting deployment in both cold and high-heat conditions. A fan-less design supports use in enclosed or low-airflow environments, while built-in 6 kV surge protection on copper ports helps reduce the risk of damage from electrical surges.

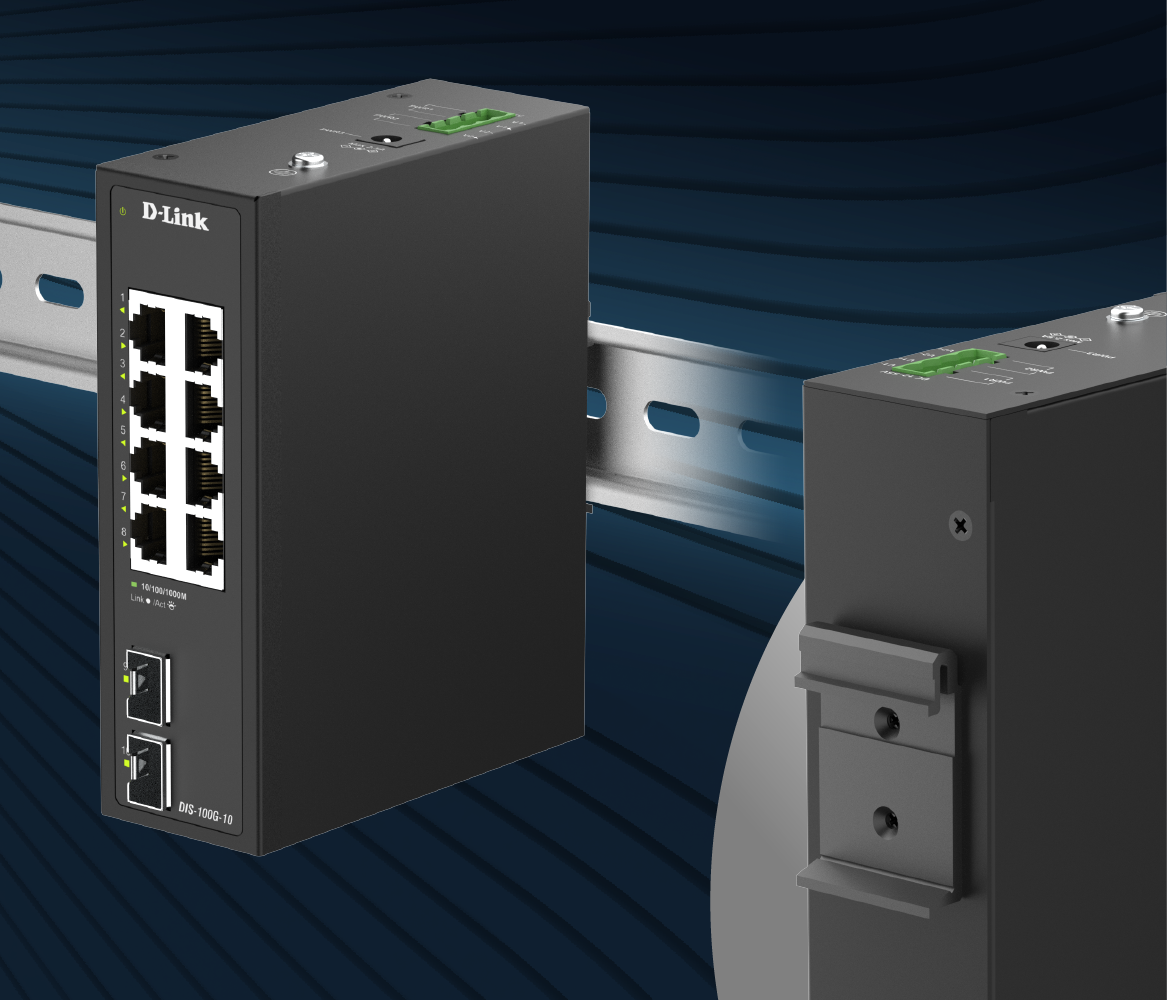

Efficient and Flexible Deployment

The DIS-100G-10 offers plug-and-play simplicity: just connect the cables and power it up, with no configuration required. Its compact 5.43 × 4.25 × 1.73 in (138 × 108 × 44 mm) design and DIN-rail mounting support space-saving, organized installation in industrial control cabinets and other equipment enclosures. This makes it well suited for fast, efficient deployment across a wide range of field applications.

Related Products

Industrial 10-Port Gigabit Unmanaged Ethernet Switch (8 PoE+ Ports + 2 × 1 GbE SFP Uplinks)
DIS-100G-10P
Find out more
Industrial 4-Port 1G + 2-Port 1G SFP Unmanaged Switch
DIS-100G-06
Find out more
Industrial 4-Port 1G PoE+ + 2-Port 1G SFP Unmanaged PoE Switch
DIS-100G-06P
Find out more

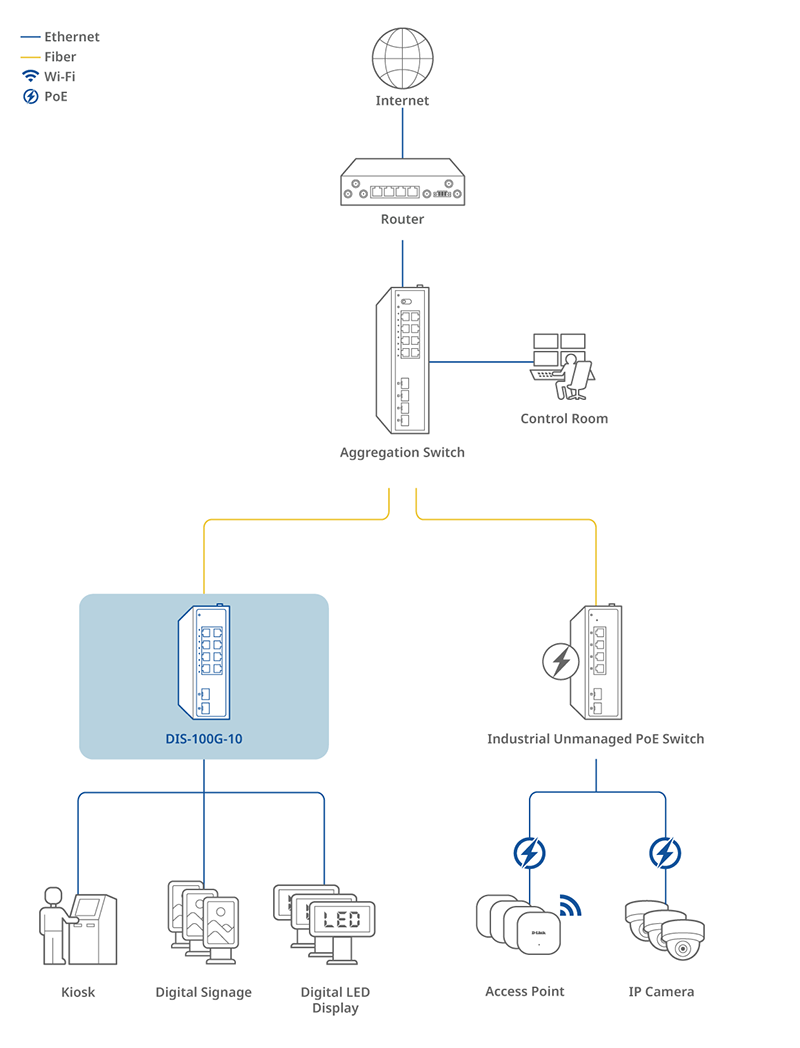

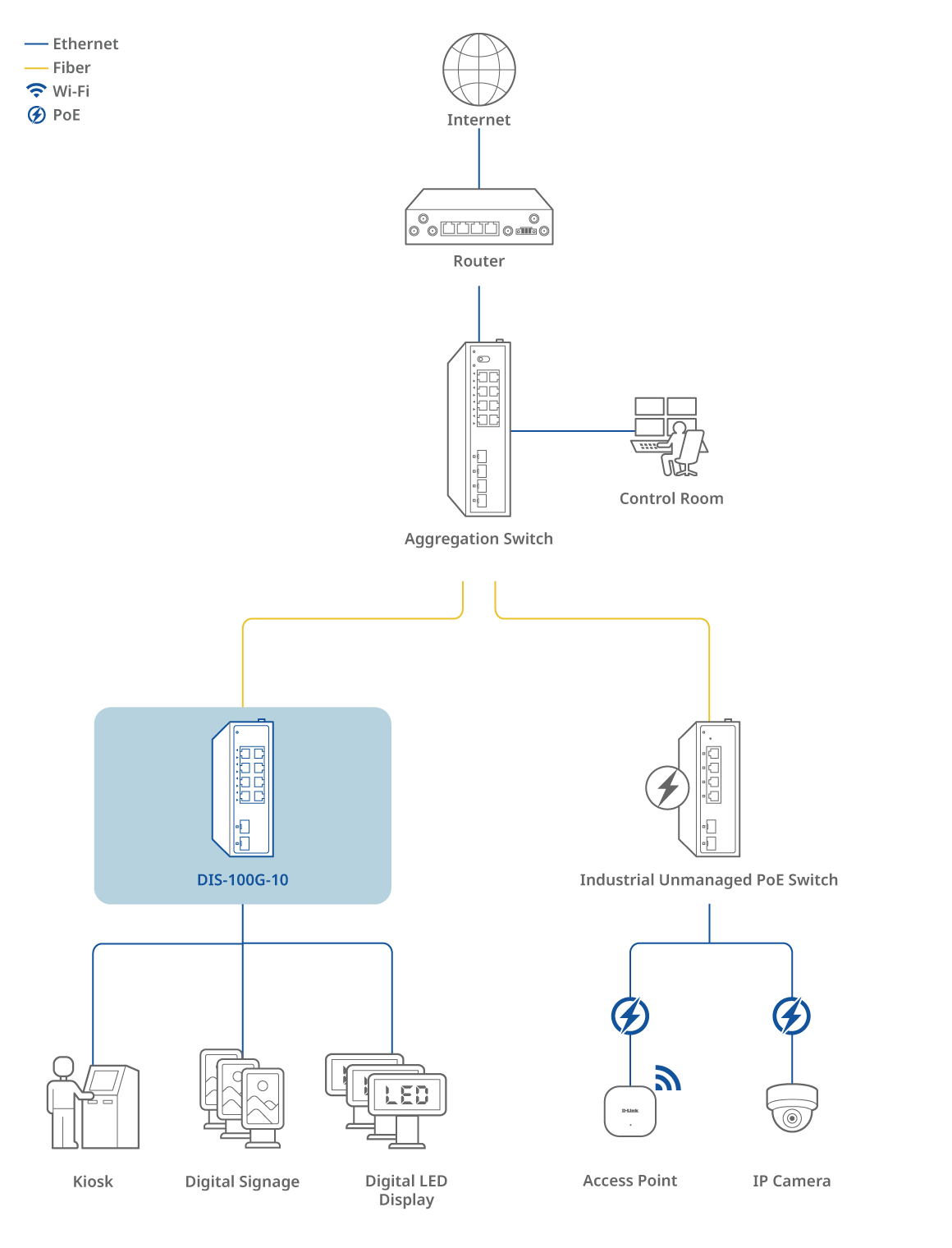

Connection Diagram

The DIS-100G-10 is an industrial unmanaged switch with eight 1 GbE ports and two 1 GbE SFP uplink ports, supporting plug-and-play deployment. The 1 GbE SFP ports support longer-distance fiber connections beyond the limits of traditional copper Ethernet cabling, making the switch well suited for connecting remote cabinets, separate buildings, and distributed infrastructure. This helps support consistent connectivity for applications such as kiosks, digital signage, LED displays, and other field deployments.

Business
Router

Learn More

4G/5G M2M Router

Learn More

Aggregation Switch

Learn More

Industrial
Switch

Learn More

Specification

Download the datasheet.

Category
Unmanaged Industrial Switches
Fanless
Supported
Installation
DIN-Rail
Operating Temperature
-40°-75°C
Surge Protection
6kV
802.3az EEE
Supported
Jumbo Frame
9K
Power Supply Type
DC:12~55V Dual input
