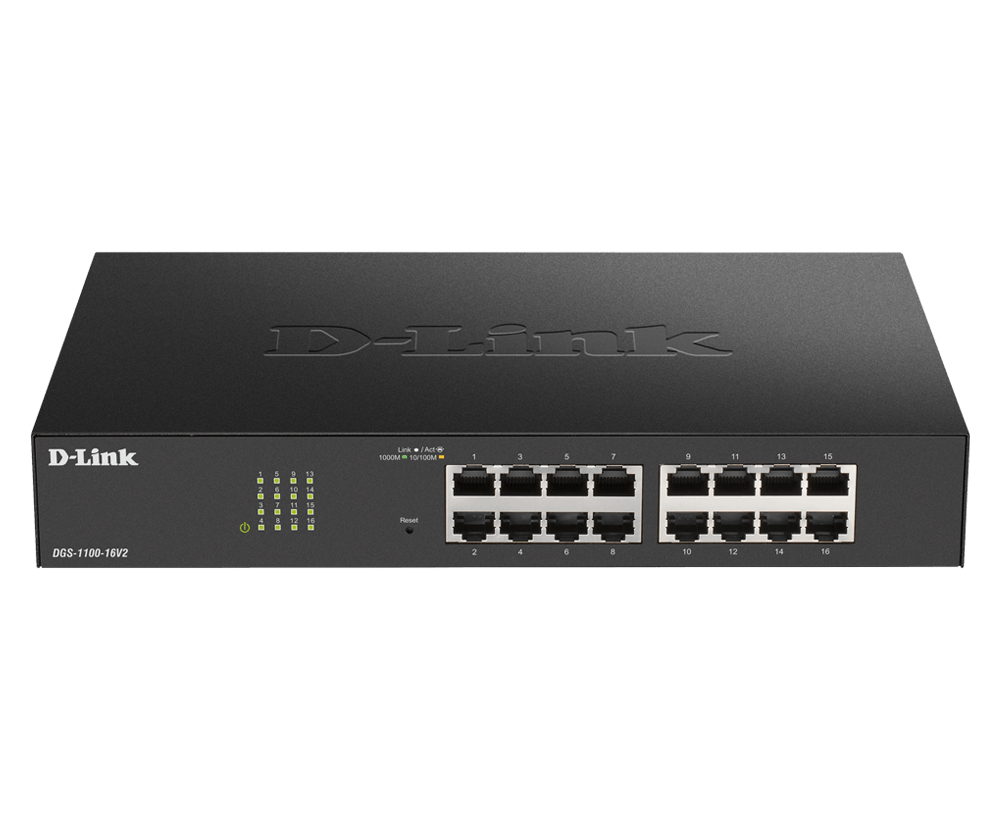

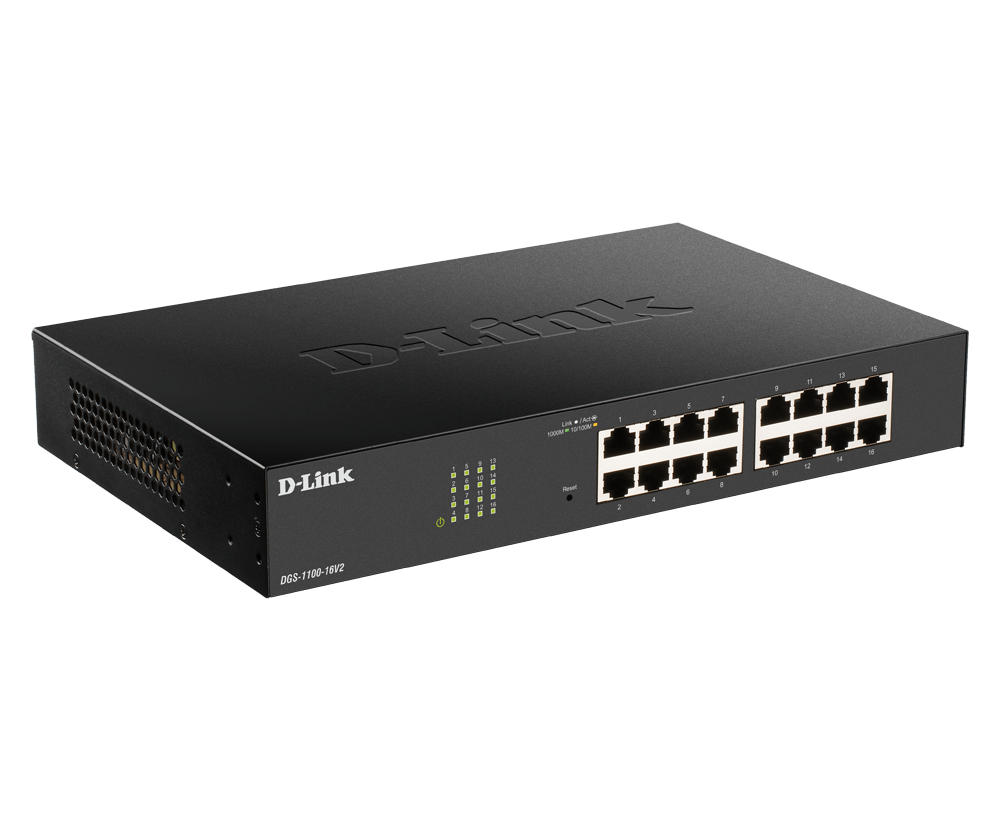

16埠 Gigabit Easy Smart簡易智慧網管交換器
DGS-1100-16V2
- Product Status: Live
- 16埠10/100/1000 Mbps 自動速率偵測
- 金屬外殼 無風扇靜音設計
- 支援19吋機架安裝
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative energy saving features are good for your budget, as well as the environment
Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity.
Green Technology
Innovative D-Link Green power saving features
Management Software
Supports DNA and D-View for remote setup and management
Easy to Use & Easy to Install

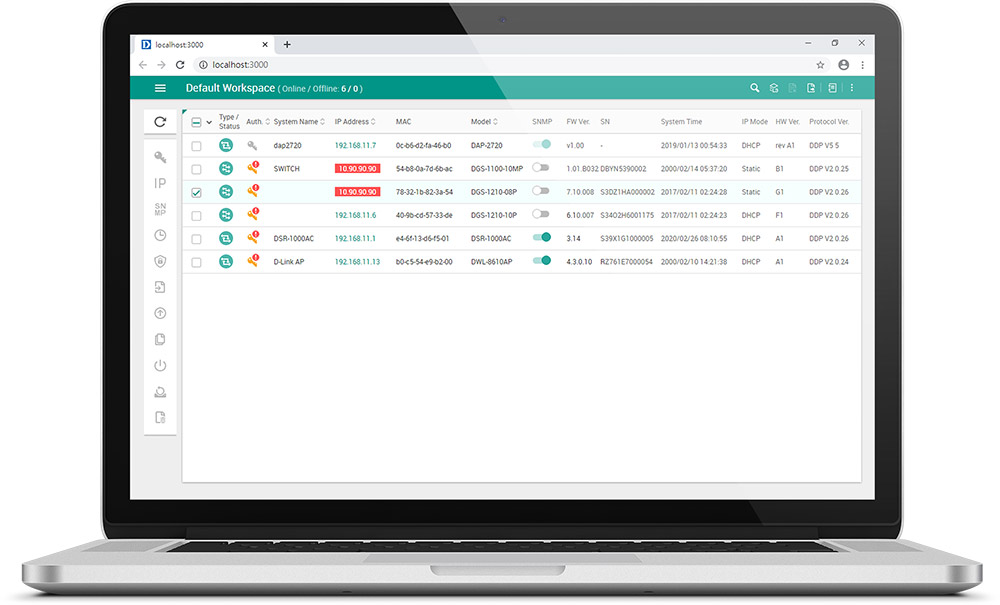

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, providing more protection from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

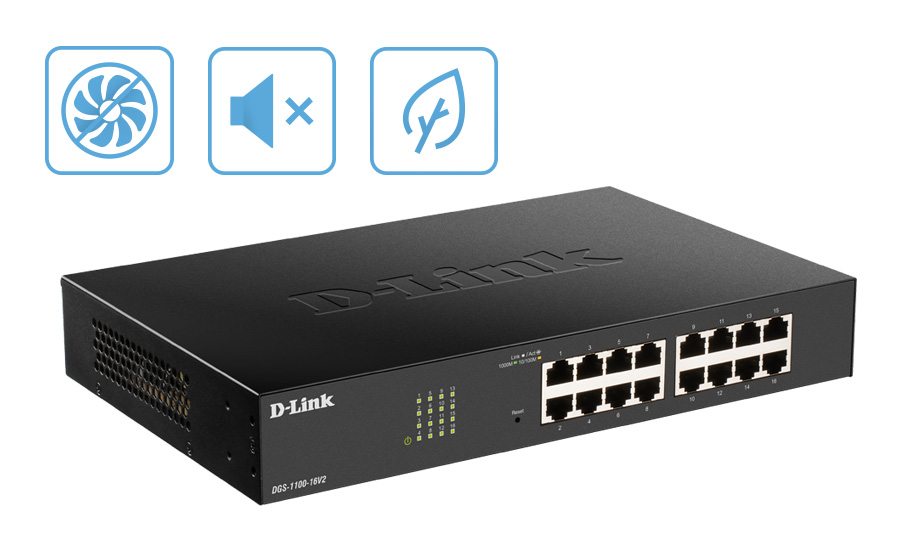

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

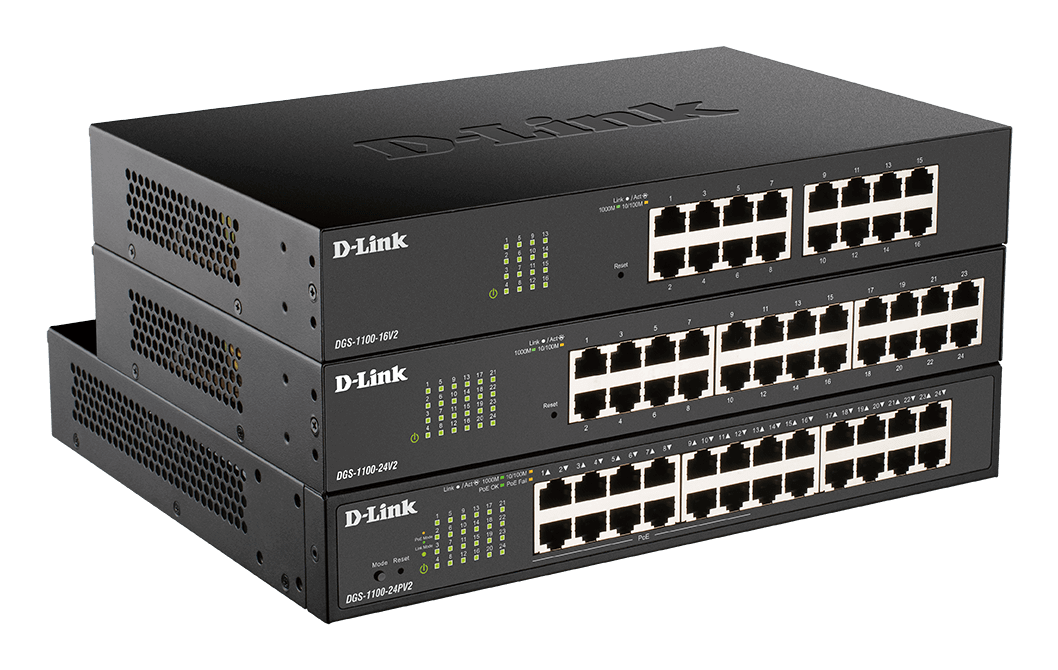

DGS-1100 Series
| Product |  DGS-1100-05V25-Port Gigabit Smart Managed Switch | DGS-1100-05PDV25-Port Gigabit PoE Smart Managed Switch and PoE Extender |  DGS-1100-08V28-Port Gigabit Smart Managed Switch |  DGS-1100-08PV28-Port Gigabit PoE Smart Managed Switch |  DGS-1100-16V216-Port Gigabit Smart Managed Switch |  DGS-1100-24V224-Port Gigabit Smart Managed Switch |  DGS-1100-24PV224-Port Gigabit PoE Smart Managed Switch |
|---|---|---|---|---|---|---|---|
| Interface |  | | | | 16 x 10/100/1000BASE-T ports | 24 x 10/100/1000BASE-T ports | 12 x 10/100/1000BASE-T PoE ports 12 x 10/100/1000BASE-T ports |
| Performance | |||||||
| Switching Capacity | | | | | | 48 Gbps | |
| Max. Packet Forwarding Rate | | | | | | 35.71 Mpps | |
| PoE | |||||||
| PoE Budget | | | | | | | 100 W (30 W max. per PoE port) |
產品規格
|
Interfaces
|
16 x 1000Base-T Auto MDI/MDIX 16 x 10/100/1000BASE-T |
|---|---|
|
Switching Capacity
|
32 Gbps |
|
Maximum Forwarding Rate
|
23.81Mpps |
|

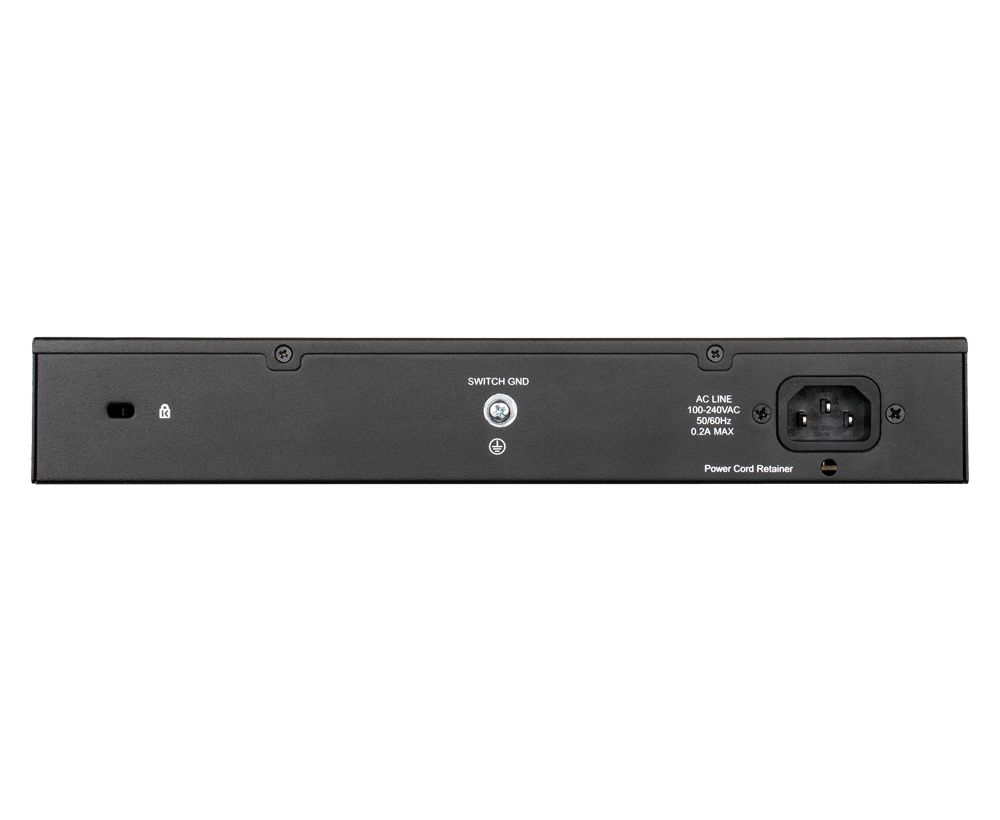

Power Input
|
AC:100 ~ 240 V |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
Comply with RoHS 6
|
Yes |
|
Power Saving
|
By Link Status By LED Shut-Off By Port Shut-Off By System Hibernation |
|
MAC Address Table Size
|
8000 |
|
Control
|
802.3x Flow |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Spanning Tree Protocol (STP)
|
IEEE 802.1D STP IEEE 802.1w RSTP |
|
Aggregation
|
8 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group |
|
Jumbo Frame
|
9,216 Bytes |
|
IGMP Snooping
|
Max 64 IGMP Snooping Groups |
|
VLAN
|
802.1Q VLAN Groups Port-based VLAN Voice VLAN Auto Surveillance VLAN Asymmetric VLAN |
|
Protection
|
Surge/Lightning Protection (AC Power Inet) 2KV |
|
Weight
|
1.27 Kg |
|
Dimensions
|
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in) |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: - 40 ~ 70 °C |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Operating Altitude
|
2000 m |
|
Max Power Consumption
|
10.1 W |
|
Maximum Heat Dissipation
|
34.46 BTU/hr |
|
Standby Power Consumption
|
3.4 Watts |
|
Acoustic
|
0 dB |
|
MTBF
|
710,519 hours |
|
CPU Speed
|
125MHz |
|
DRAM Size
|
128KBytes |
|
Flash Memory Size
|
16 MBytes |
|
Packet Buffer Size
|
4.1Mbits |
|
FAN
|
Fanless |
|
實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。 |
|
