8埠 Gigabit 桌上型無網管交換器
DGS-1008A / Fx
- Product Status (F1_v110WW): Live
Fast and Reliable Networking
The D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.

Conserve Energy
The 8-Port Gigabit Easy Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly
The 8-Port Gigabit Easy Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

產品規格
|

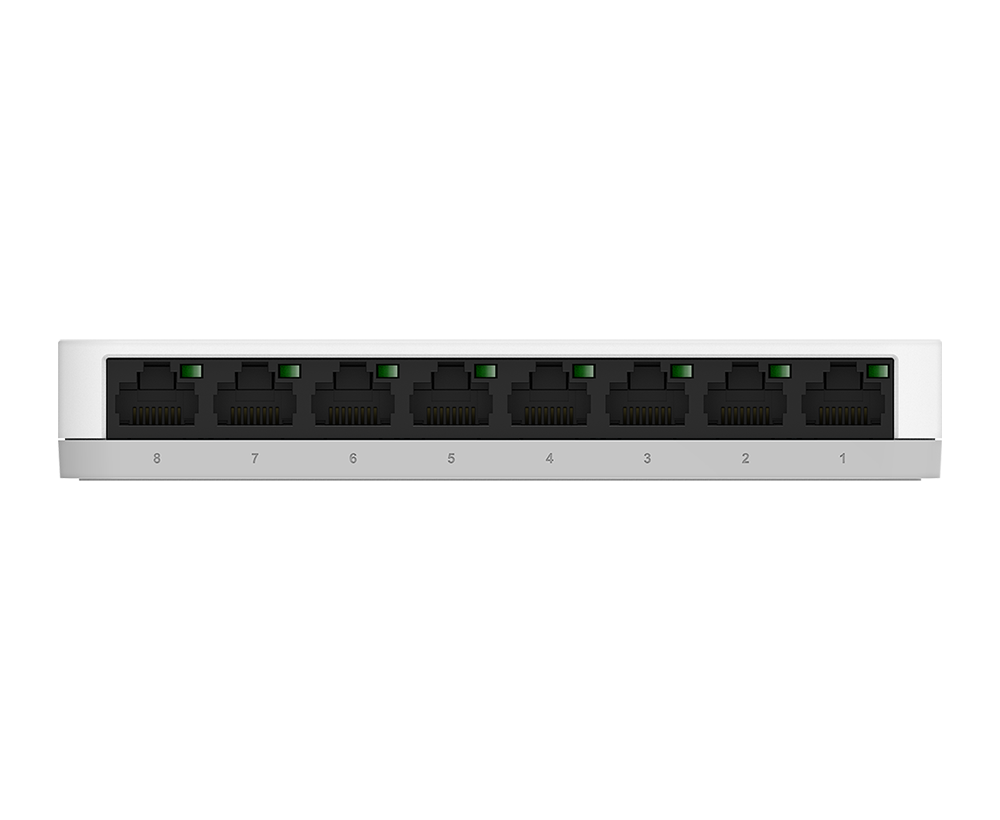

Interfaces
|
8 x 1000Base-T |
|---|---|
|
Auto MDI/MDIX
|
Yes |
|
Switching Capacity
|
16 Gbps |
|
Max. Packet Forwarding Rate
|
11.90 Mps |
|
Store & Forwarding Forwading
|
Yes |
|
Dimensions
|
130 x 79 x 22mm |
|
Weight
|
130 g |
|
Operating Temperature
|
0 ~ 40 °C |
|
Storage Temperature
|
- 10 ~ 70 °C |
|
Operating Humidity
|
0% ~ 95% RH |
|
Storage Humidity
|
0% ~ 95% RH |
|
Operating Altitude
|
2000m |
|
Maximum Power Consumption
|
4.80 W |
|
Standby Power Consumption
|
0.7 W |
|
Maximum Heat Dissipation
|
16.368 BTU/h |
|
MTBF
|
1,061,267 hours |
|
Power Input
|
AC:100 ~ 240 V |
|
Flash Memory Size
|
64KBytes |
|
Packet Buffer Size
|
192KBytes |
|
FAN
|
Fanless |
|
Comply with RoHS 6
|
Yes |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
Power Saving By Link Status
|
YES |
|
Power Saving By Cable Length
|
Yes |
|
MAC Address Table Size
|
4,000 |
|
Control
|
802.3x Flow |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Jumbo Frame
|
9,720 Bytes |
|
Surge/Lightning Protection
|
AC Power Inet: 1kV All Ethernet Ports: 1kV |
|
Air Discharge
|
8kV |
|
Switch intelligence
|
Unmanaged |
|
Contact Discharge
|
4kV |
|
實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件,僅供參考。規格如有變更,恕不另行通知。 |
|
