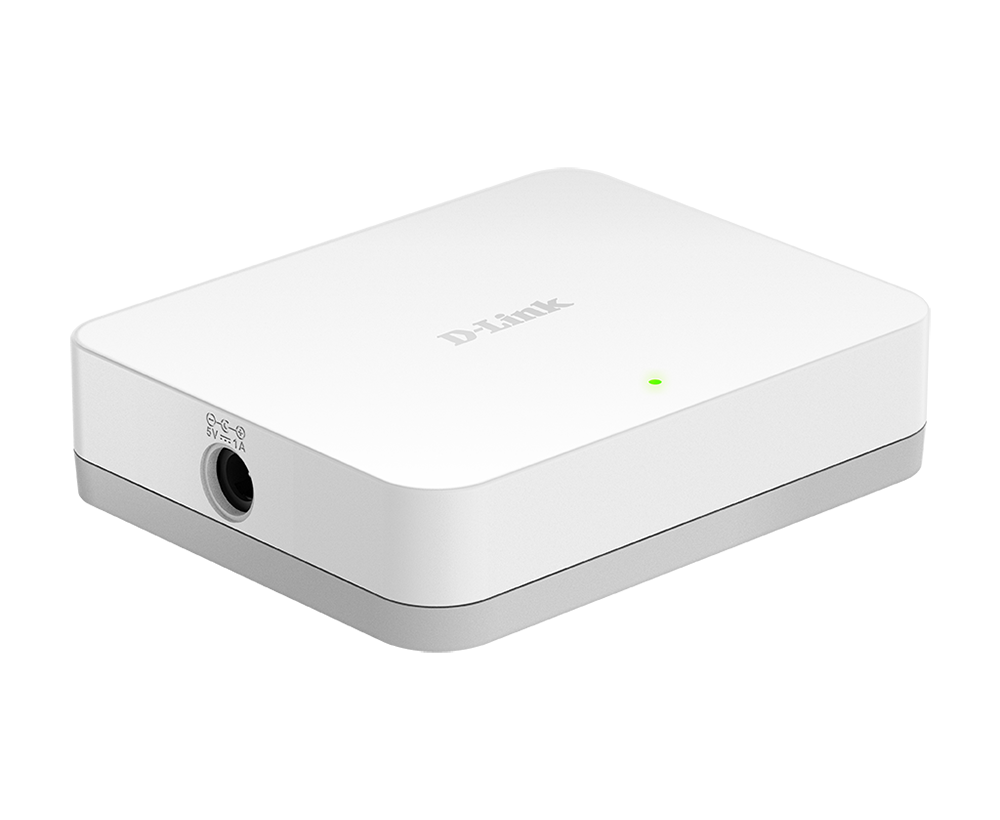

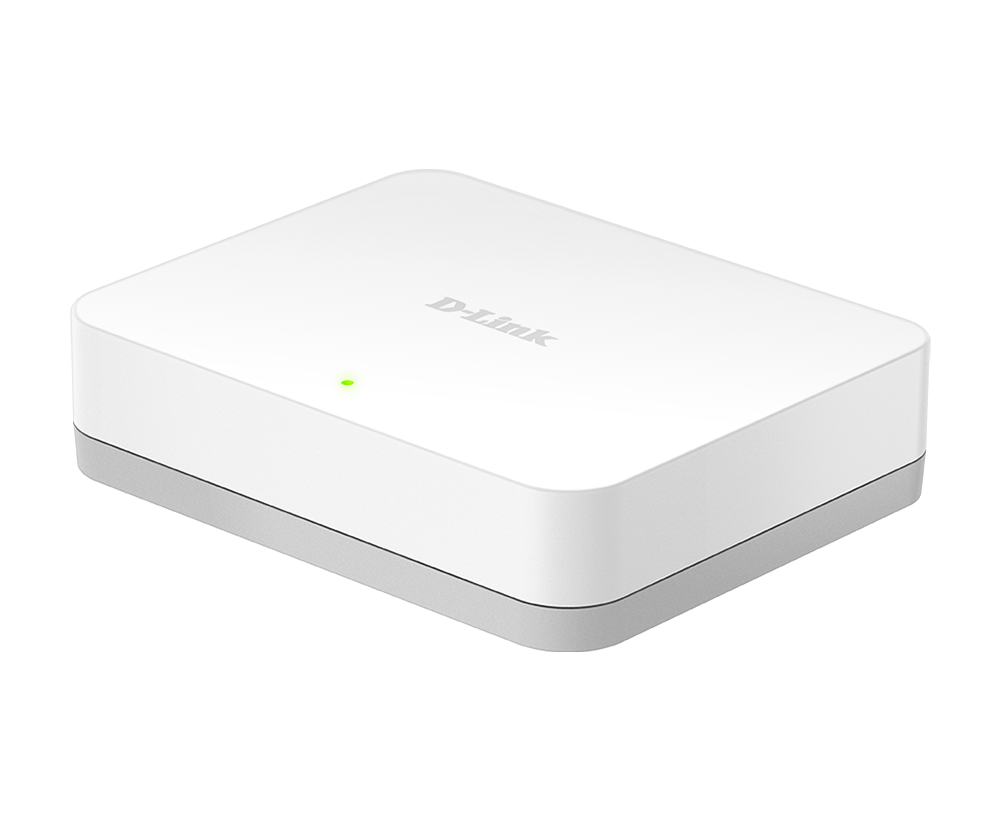

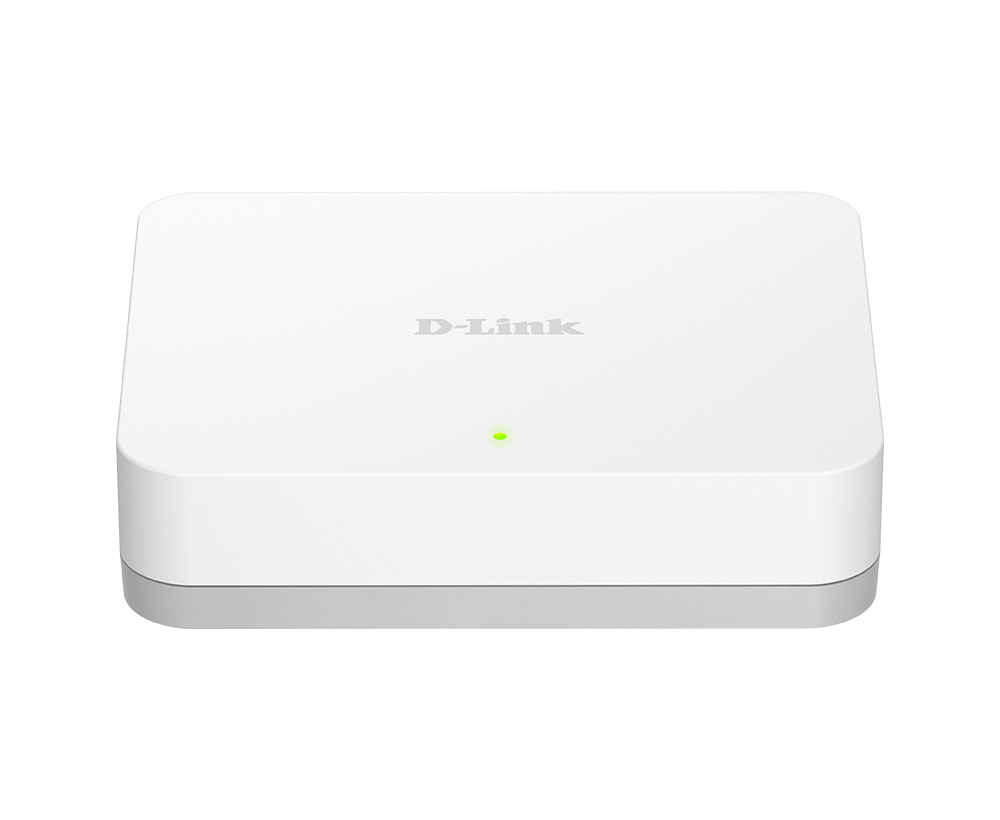

5埠 Gigabit 桌上型無網管交換器

DGS-1005A / Fx

  • Product Status (F1_v110WW): Live
  • 5 x 10/100/1000 Mbps 自動速率偵測
  • 具IGMP 支援MOD/IPTV
  • 內建流量控制和QoS
  • 隨插即用 體積輕巧 智慧節能
  • 具LED指示燈 無風扇靜音設計

型錄下載

Where to buy

數位時代來臨,高效能首選

The D-Link 5-Port Gigabit Unmanaged Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.

友善環境,綠色節能

The 5-Port Gigabit Unmanaged Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

隨插即用,輕鬆安裝上手

The 5-Port Gigabit Unmanaged Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

產品規格

Interfaces

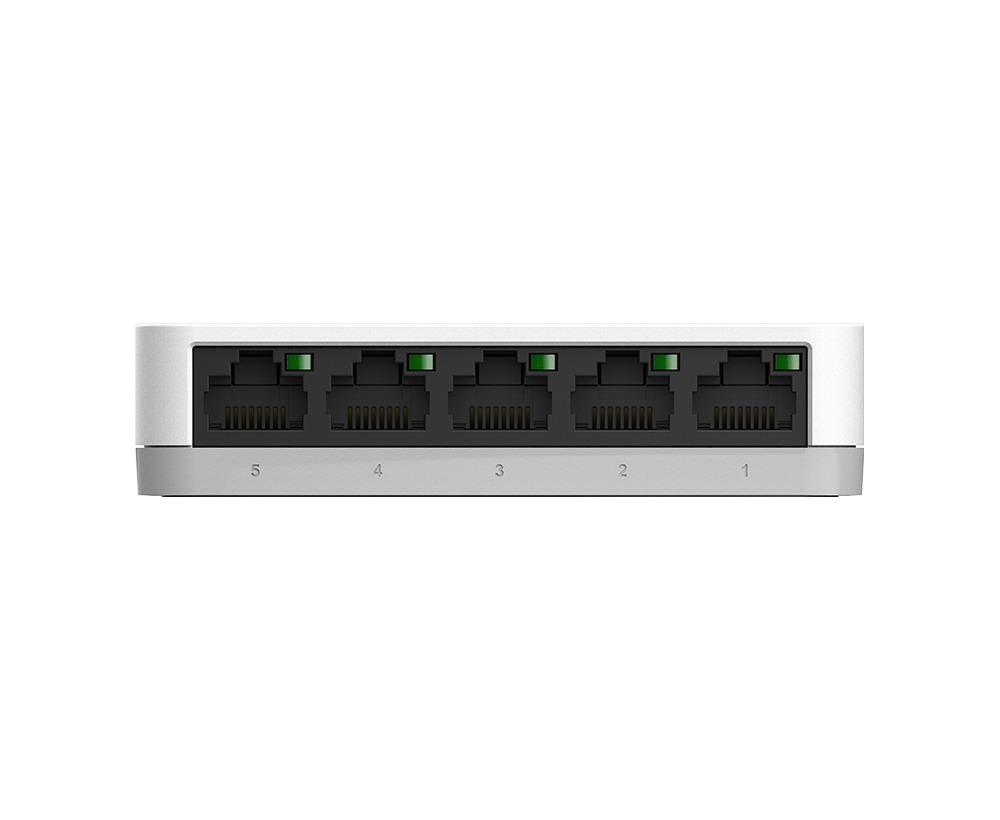

5 x 1000Base-T
Auto MDI/MDIX
Yes
Switching Capacity
10 Gbps
Max. Packet Forwarding Rate
7.44 Mpps
Store & Forwarding Forwading
Yes
Dimensions
91 x 73 x 22mm
Weight
800 g
Operating Temperature
0 ~ 40 °C
Storage Temperature
- 10 ~ 70 °C
Storage Humidity
0% ~ 95% RH
Operating Humidity
0% ~ 95% RH
Operating Altitude
2000m
Maximum Power Consumption
3.90 W
Air Discharge
8kV
Surge/Lightning Protection
AC Power Inet: 1kV
All Ethernet Ports: 1kV
Jumbo Frame
9,720 Bytes
Head-of-line (HOL) Blocking Prevention
Yes
Control
802.3x Flow
MAC Address Table Size
4,000
Power Saving By Cable Length
Yes
Power Saving By Link Status
YES
Energy Efficiency Ethernet (EEE)
Yes
Comply with RoHS 6
Yes
FAN
Fanless
Packet Buffer Size
128KBytes
Flash Memory Size
64KBytes
Power Input
AC:100 ~ 240 V
MTBF
1,152,221 hours
Maximum Heat Dissipation
13.299 BTU/h
Standby Power Consumption
0.6 W

實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件,僅供參考。規格如有變更,恕不另行通知。
