BE11000三頻PoE無線基地台
DAP-E9560
- Product Status (v110 WW): Live
- Wi-Fi 7 BE11000 三頻高速連接
- 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit 連接埠
- 採用 802.3bt PoE 供電，USB-C 連接口
- 最大支援頻道頻寬 (320MHz)
- 4096-QAM – 速度比 Wi-Fi 6 快 20%
- 靈活使用多種運作模式
- WPA3 加密增強 Wi-Fi 安全性
- 可自訂使用者存取的Captive Portal
- Multi-Link Operation(MLO)多重連接模式提升連接穩定性
- 透過 Nuclias 網路控制器集中管理
增強所有應用的效能
Wi-Fi 7 減少干擾並提升無線網路的效能，使其適用於各種使用環境和應用，例如遠端辦公、視訊會議、大檔案傳輸、串流媒體、AR/VR 和雲端服務存取。

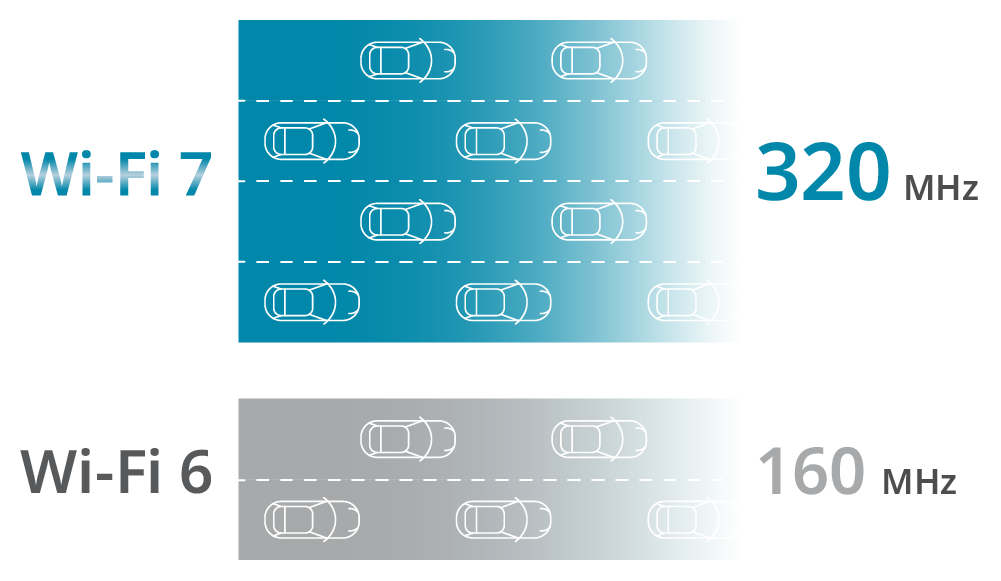

頻寬翻倍從 160 MHz 提升至 320 MHz

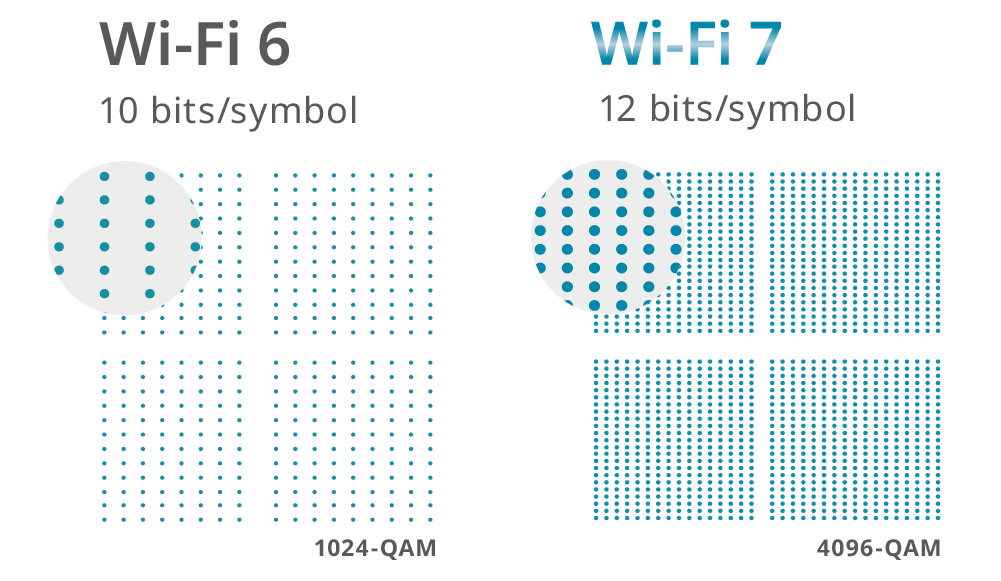

4096 QAM - 資料傳輸速度比 Wi-Fi 6 提升 20%

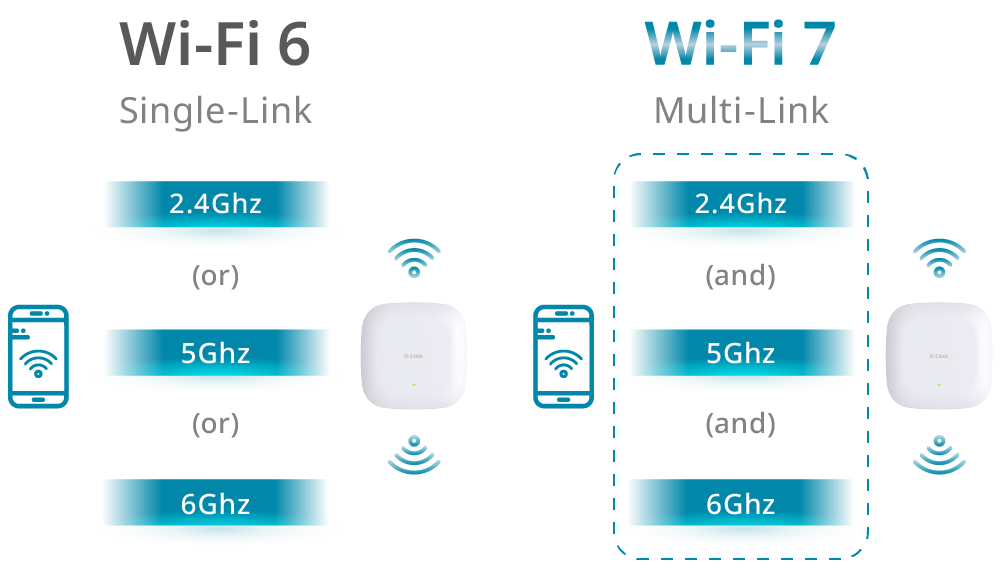

Multi-Link Operation (MLO) - 提升速度和穩定性

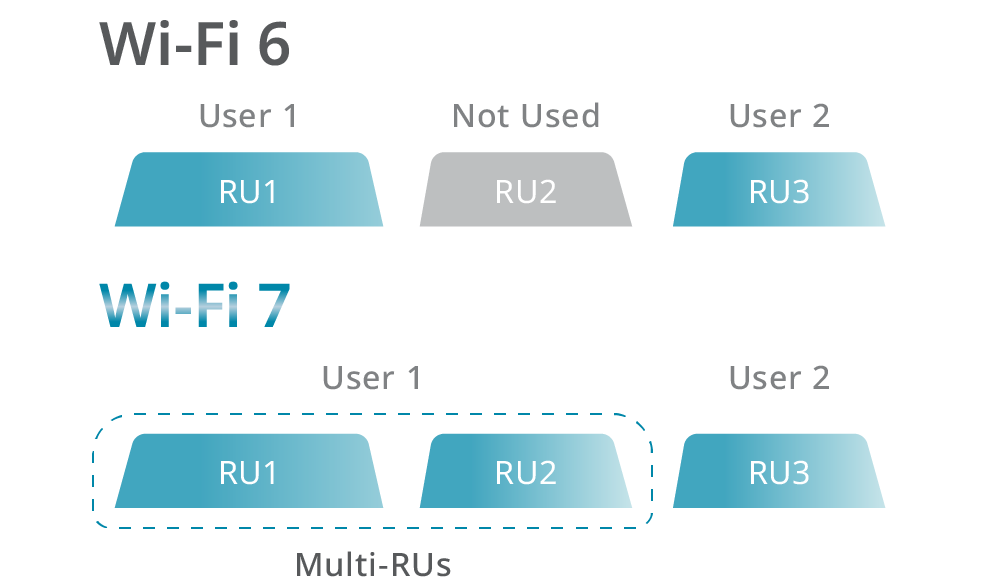

Multi-RUs – 可更有效地利用頻道頻寬

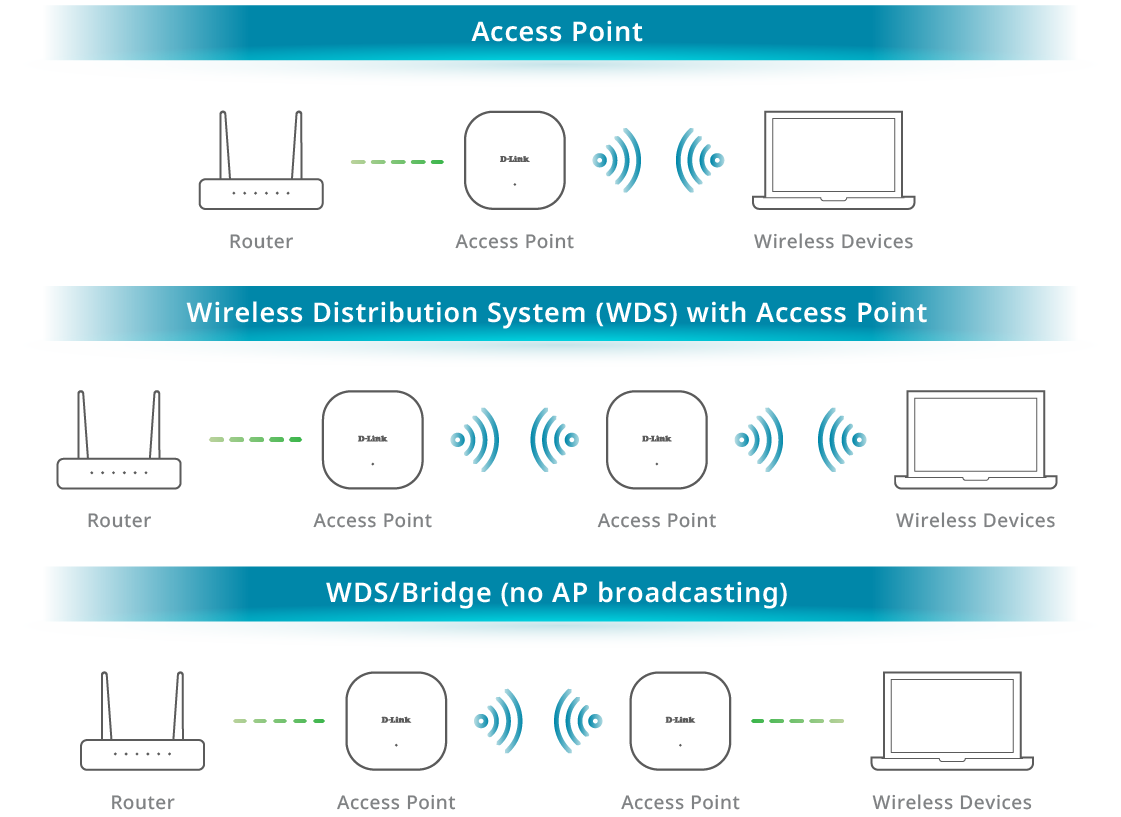

多種操作模式
．Access Point(AP)
．Wireless Distribution System (WDS) with AP
．WDS/Bridge

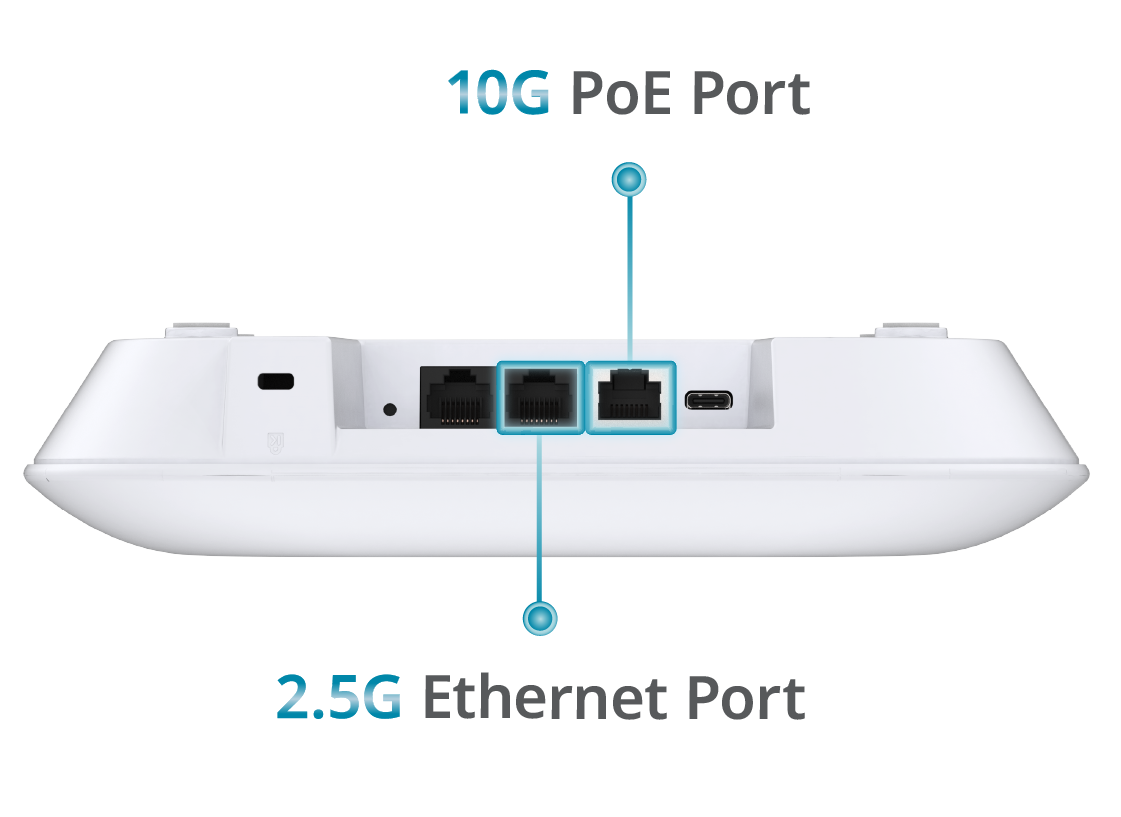

優化有線連接性能，具備10G PoE 和 2.5G 連接埠
DAP-E9560 配備高速 10G PoE 連接埠和 2.5G 連接埠，確保卓越的有線連接和靈活的上行鏈路選項。這種先進的設計最大限度地提高了企業級環境的有線吞吐量，充分發揮 Wi-Fi 7 的超高速潛力，並支援高密度、高效能部署。

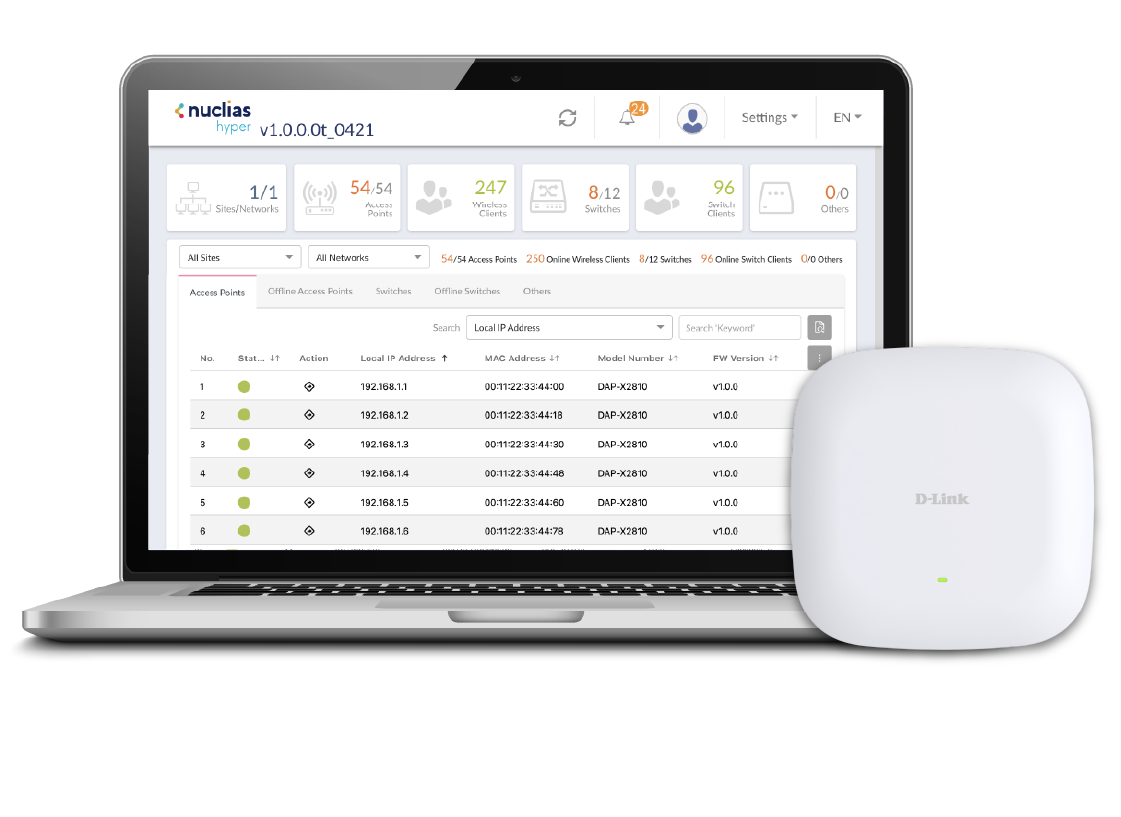

Centralized Network Control Made Simple
The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.

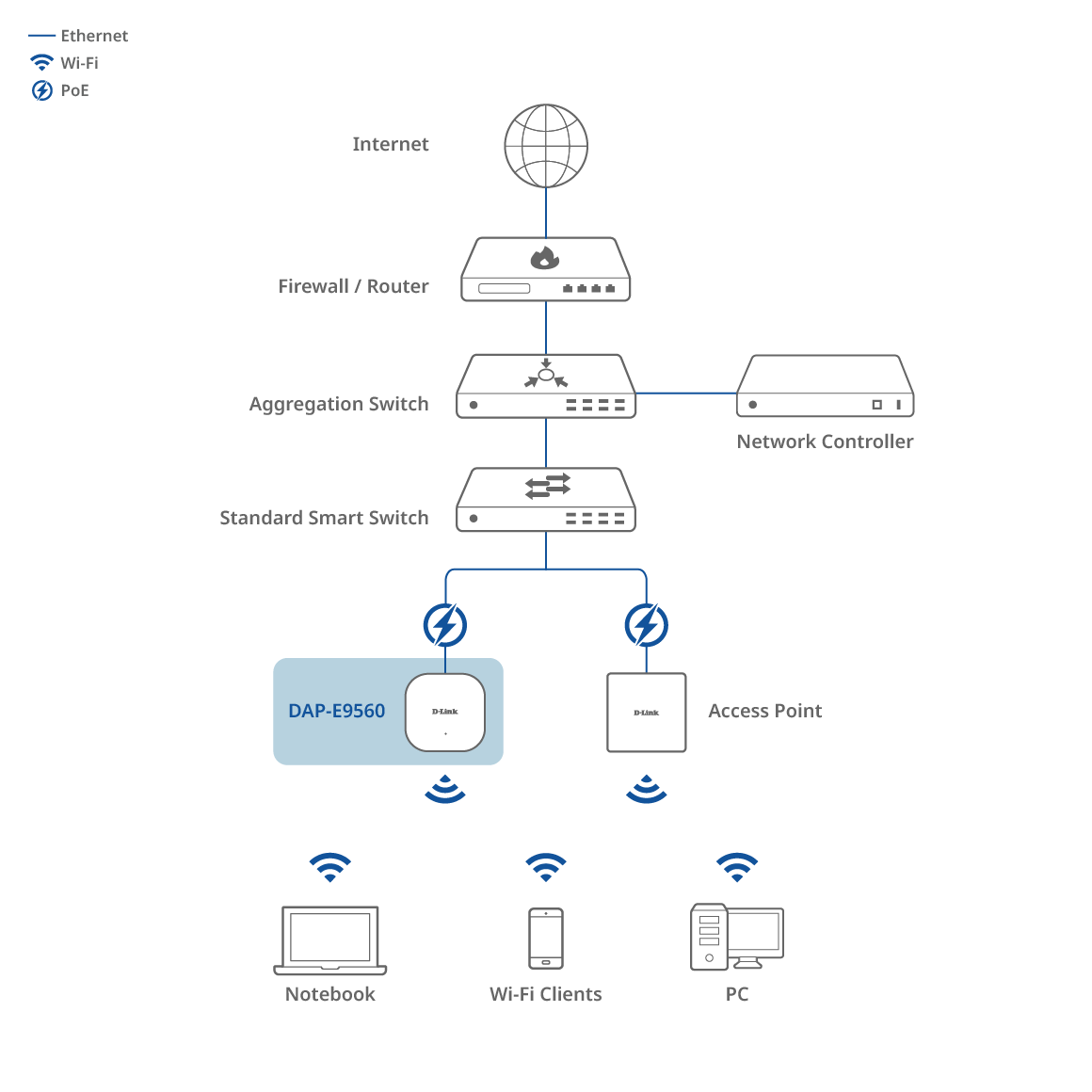

Connection Diagram
DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.
Business Router
Aggregation Switch
Network Controller
Standard Smart Switch
Access Point
Related Products
Applications
SME (Enterprise)
Department Store (Business)
Transnational University (Education)

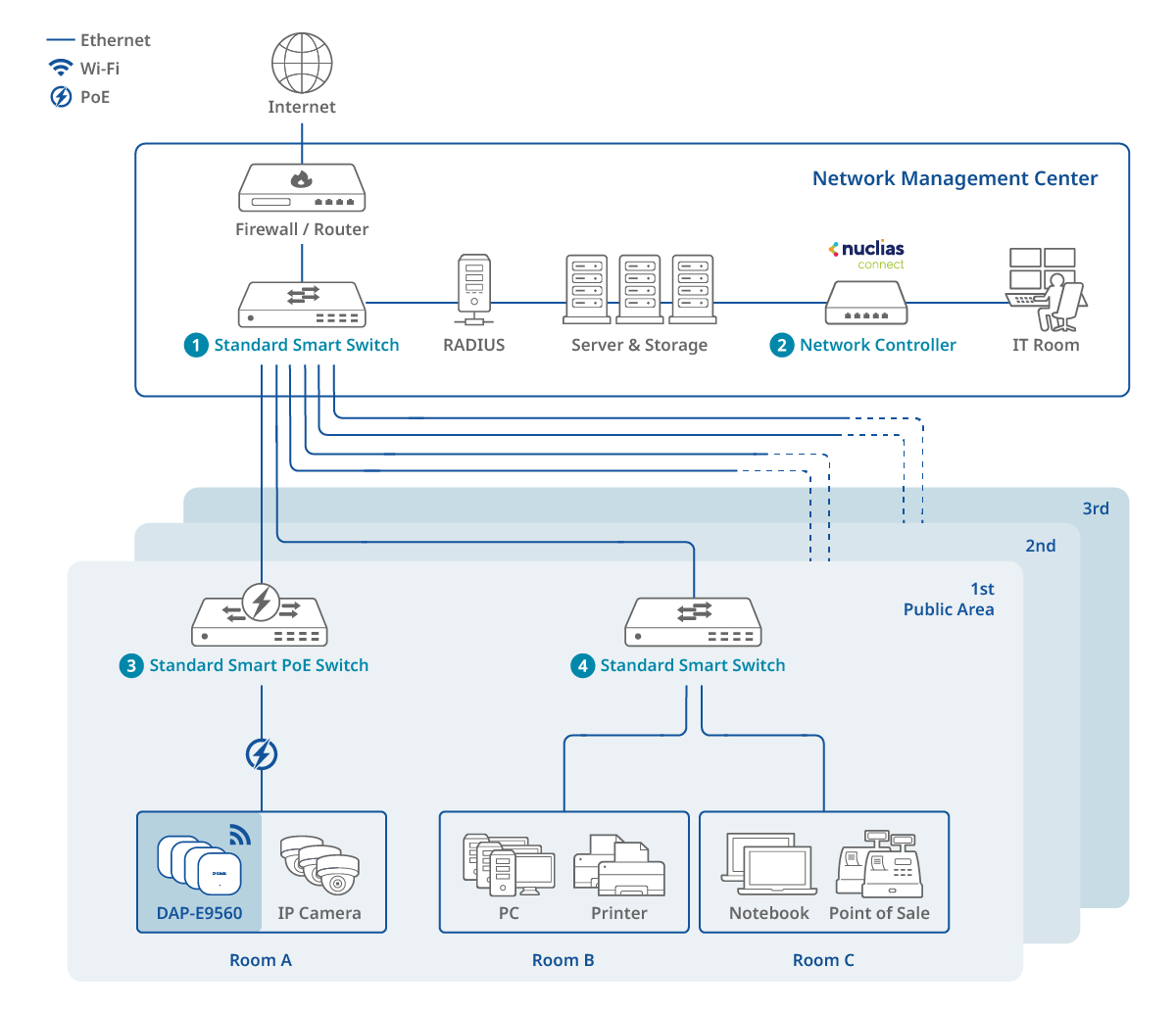

SME (Enterprise)
User benefits :
- Smooth video calls and collaboration
- Stable performance for many devices
- Fast roaming across floors
- Enhanced your productivity
- Secure access with WPA3 and VLANs
Learn more :
- Standard Smart Switch : DXS-1210-12SC
- Network Controller : DNH-1000
- Standard Smart PoE Switch : DXS-1250-28YP
- Standard Smart Switch : DMS-1250-18
Department Store (Business)
- Rapid fault recovery for reliable performance
- Comprehensive security to protect critical data
- Supports long-distance connectivity
- VLAN and QoS to optimize the learning experience
Learn more :
- Aggregation Switch : DXS-3130-32S
- Network Controller : DNC-5000
- Standard Smart PoE Switch : DXS-1250-28YP
- Stackable Smart Switch : DGS-1530 Series

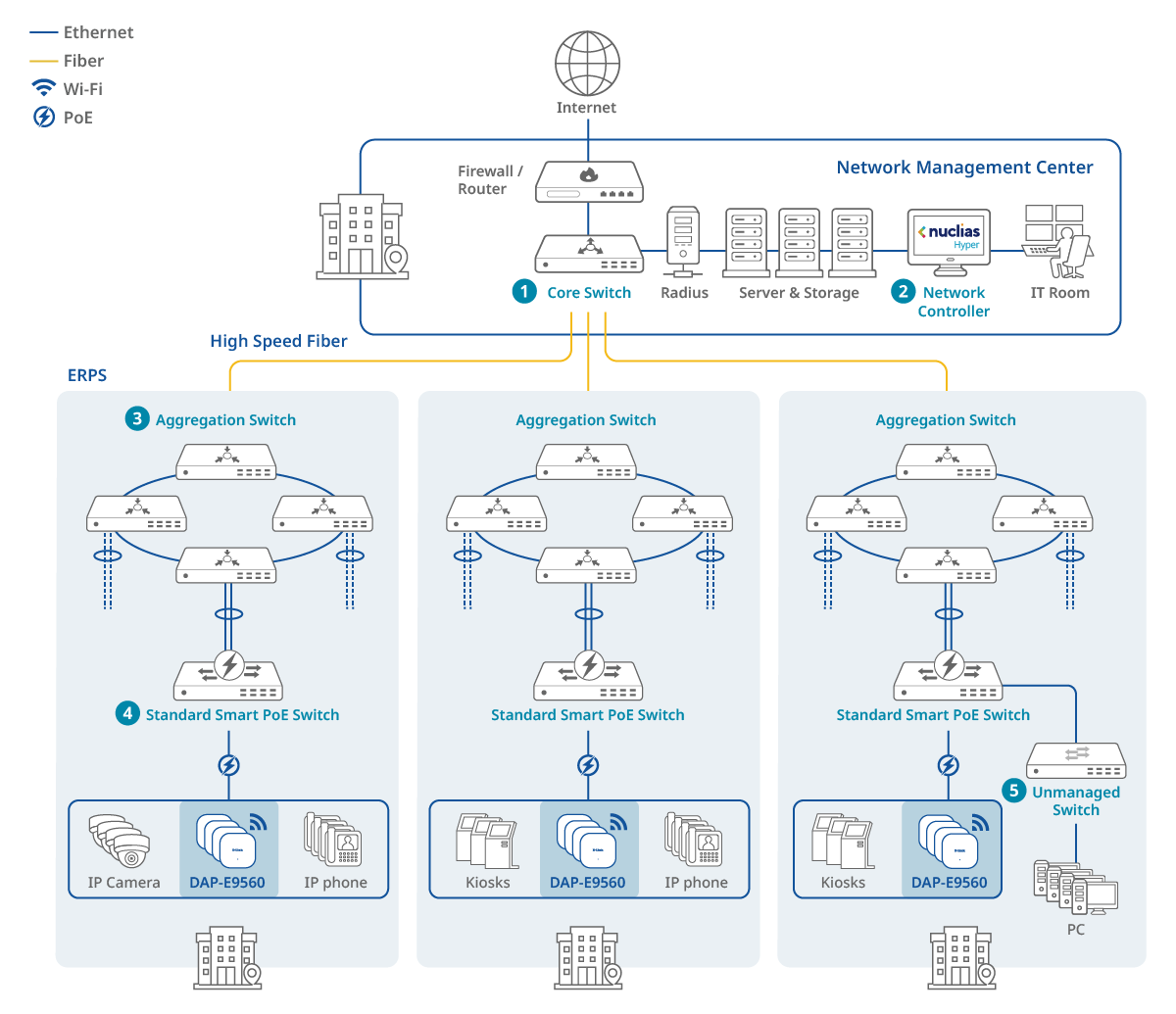

Transnational University (Education)
- Reliable performance in high-density areas
- Low latency for online learning and research
- Fast roaming between buildings
- Supports AR/VR and 4K applications
- Secure access for all user groups
Learn more :
- Core Switch : DXS-3610-54S
- Network Controller : DNC-5000
- Aggregation Switch : DXS-3130-32S
- Standard Smart PoE Switch : DXS-1250-28YP
- Unmanaged Switch : DMS-1024
產品規格
|
Interfaces
|
1 x 10-Gigabit Ethernet PoE LAN port 1 x 2.5-Gigabit Ethernet LAN port |
|---|---|
|
Antenna type
|
2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas 2 x 6 GHz internal antennas |
|
IEEE Standard
|
IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/an IEEE 802.3bt PoE |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server |
|
Operating Frequency
|
2.4 - 2.483 GHz 5_925 7_125 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Device Management
|
Web (HTTP/HTTPS) Telnet/SSH Nuclias Network Controller SNMP |
|
Dimensions
|
223 x 223 x 46.7 mm (W x D x H) |
|
Power Input
|
802.3bt or 20V/2.25A |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Console Port
|
RJ-45 console port |
|
Power Supply Type
|
USB Type-C |
|
實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。 |
|
