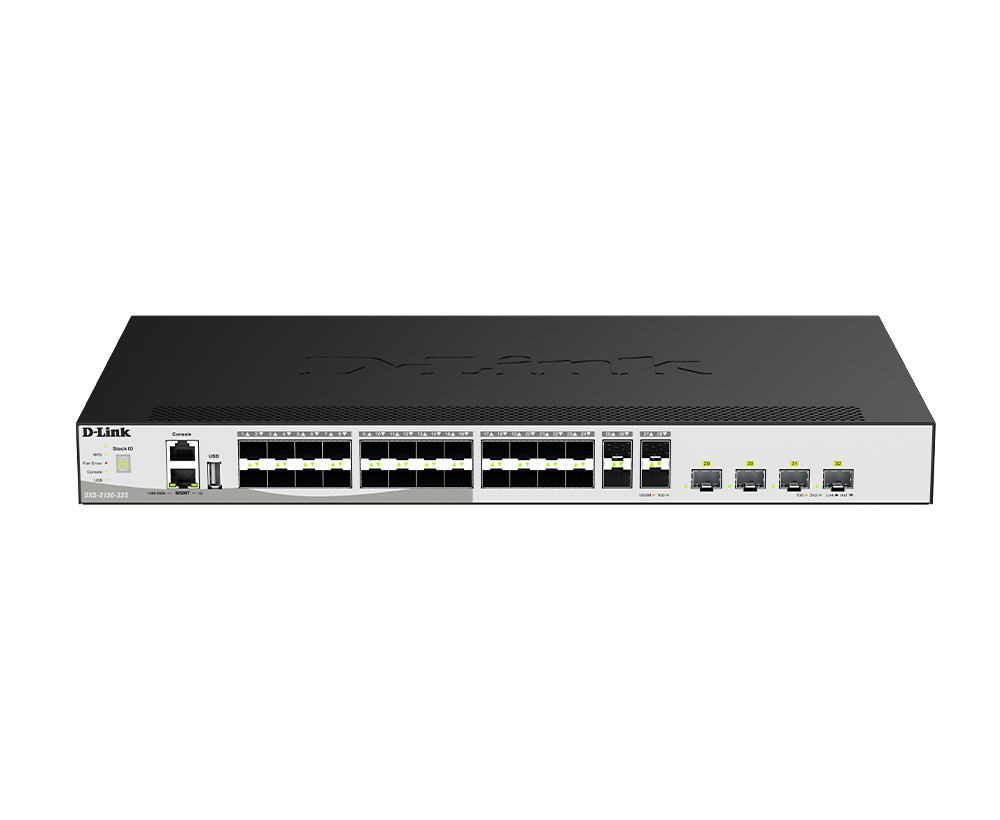

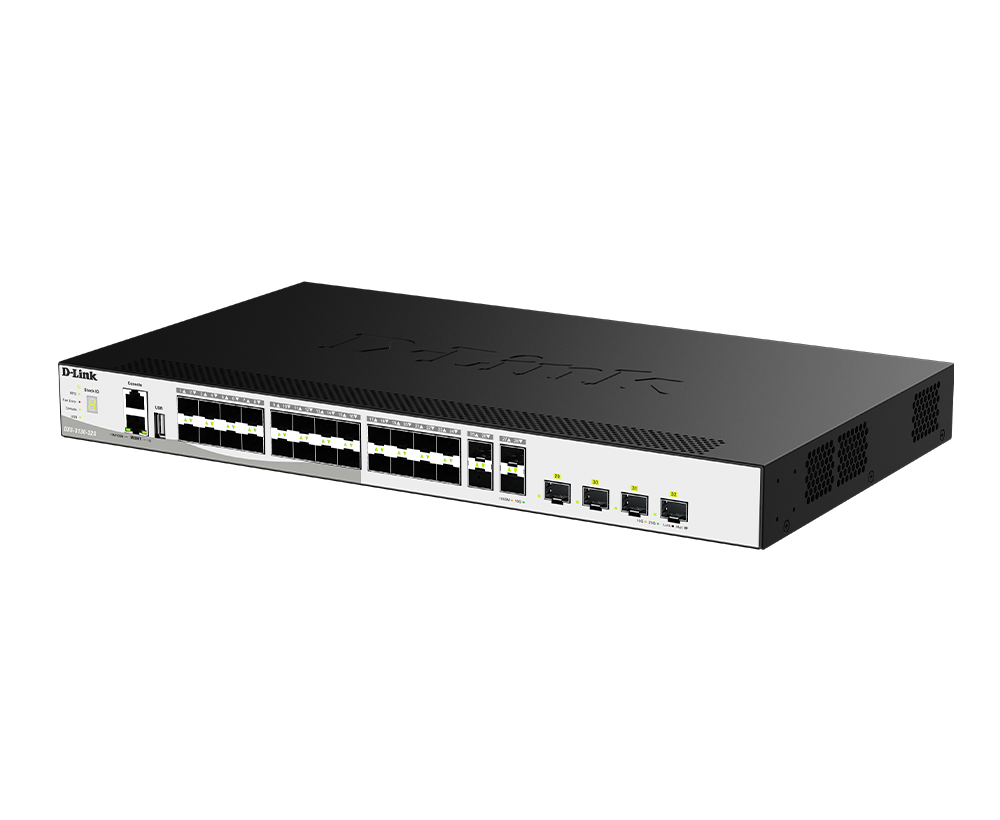

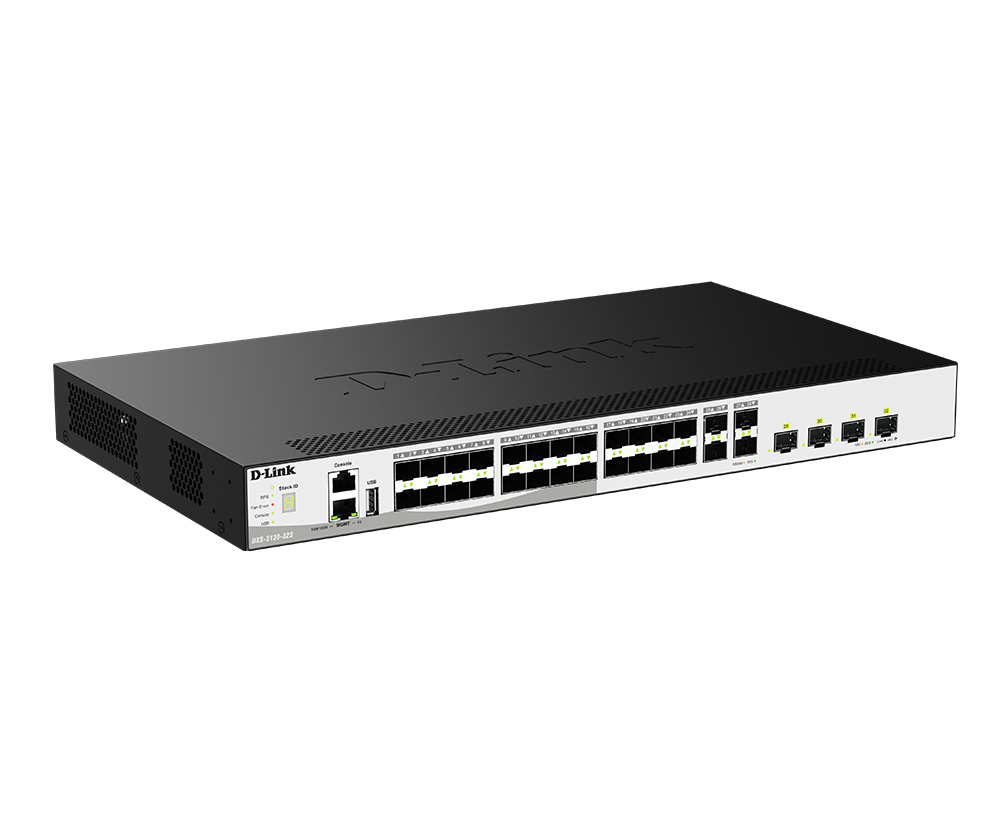

32-Port 10G Layer 3 Stackable Aggregation Managed Fiber Switch
DXS-3130-32S
- Product Status (A1_v100WW): Live
- 28 Ports 10G/multi-Gigabit for downlink
- 4 Ports 10/25G SFP28 for uplink
- Physical stack of up to 9 units via four 25G ports
- 200 Gbps per-device physical stacking bandwidth
- Ethernet Ring Protection Switching (ERPS)
- RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
- Support 802.1X and Web/MAC-based access control
- IEEE 802.1ag for Connectivity Fault Management
- Green features for reduced power consumption
- Manage through the Nuclias Network Controller
Where to buy
User Benefits
Versatile Traffic Management
Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency
Simplified Management
The SIM feature enables managing multiple switches as a virtual stack with a single IP, supporting diverse management tools
Boosted Network Reliability
AC or DC RPS options ensure uninterrupted operation and boost switch reliability by preventing power disruptions
Advanced Security for Access
Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment
High Availability and Scalability
Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy
Efficient Layer 3 Routing
Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination
High-Speed Versatile Switching
Featuring flexible combinations of 10G SFP+ and 10GBase-T downlink ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic. The full optical interface design optimizes speed and handles heavy traffic.
Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

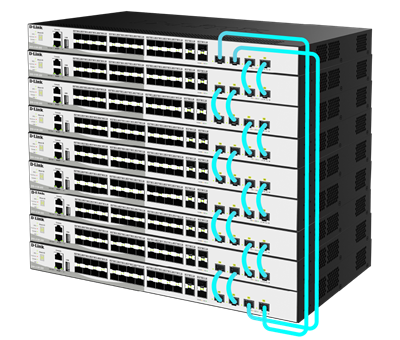

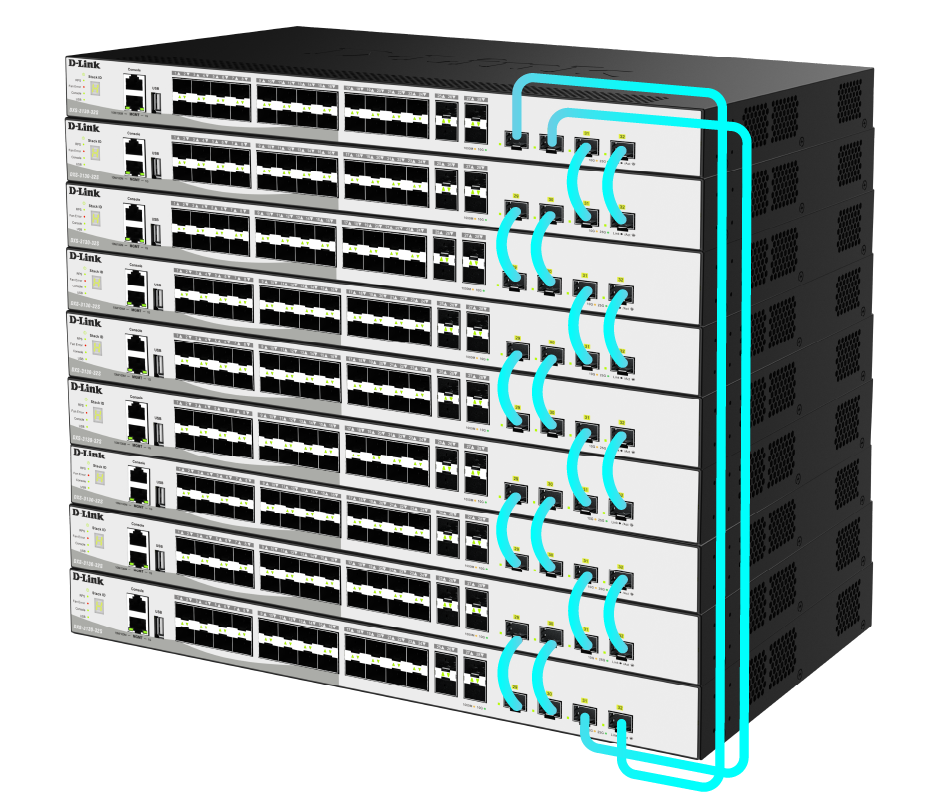

Unified the Power, Stack for Success
Scale your network with the DXS-3130 series by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

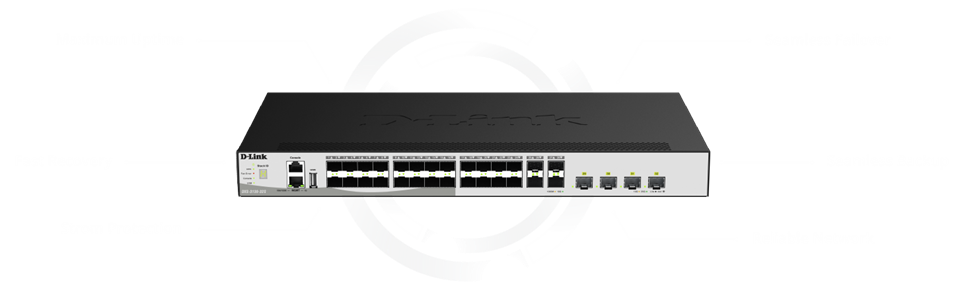

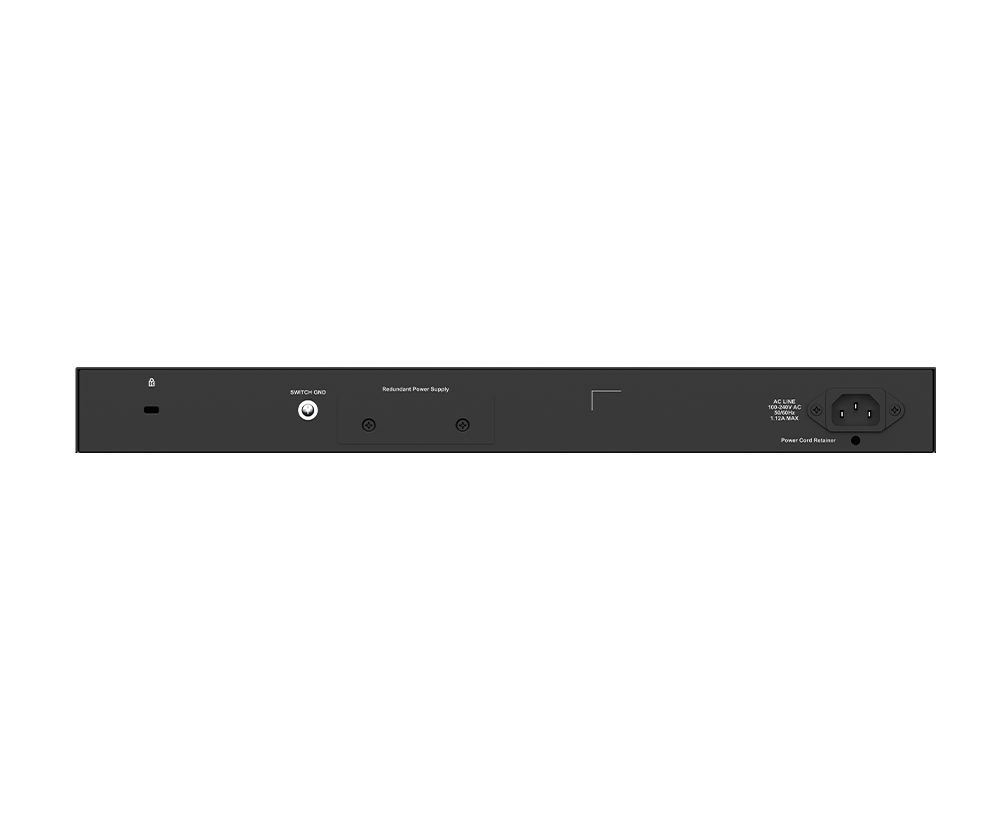

Built for Unbreakable Networks
The DXS-3130-32S ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loopback detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
Optimized Performance for Critical Services
The DXS-3130-32S switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
Advanced QoS/CoS
Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications
IGMP/MLD Snooping
Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency
ISM VLAN
Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network
Related Products

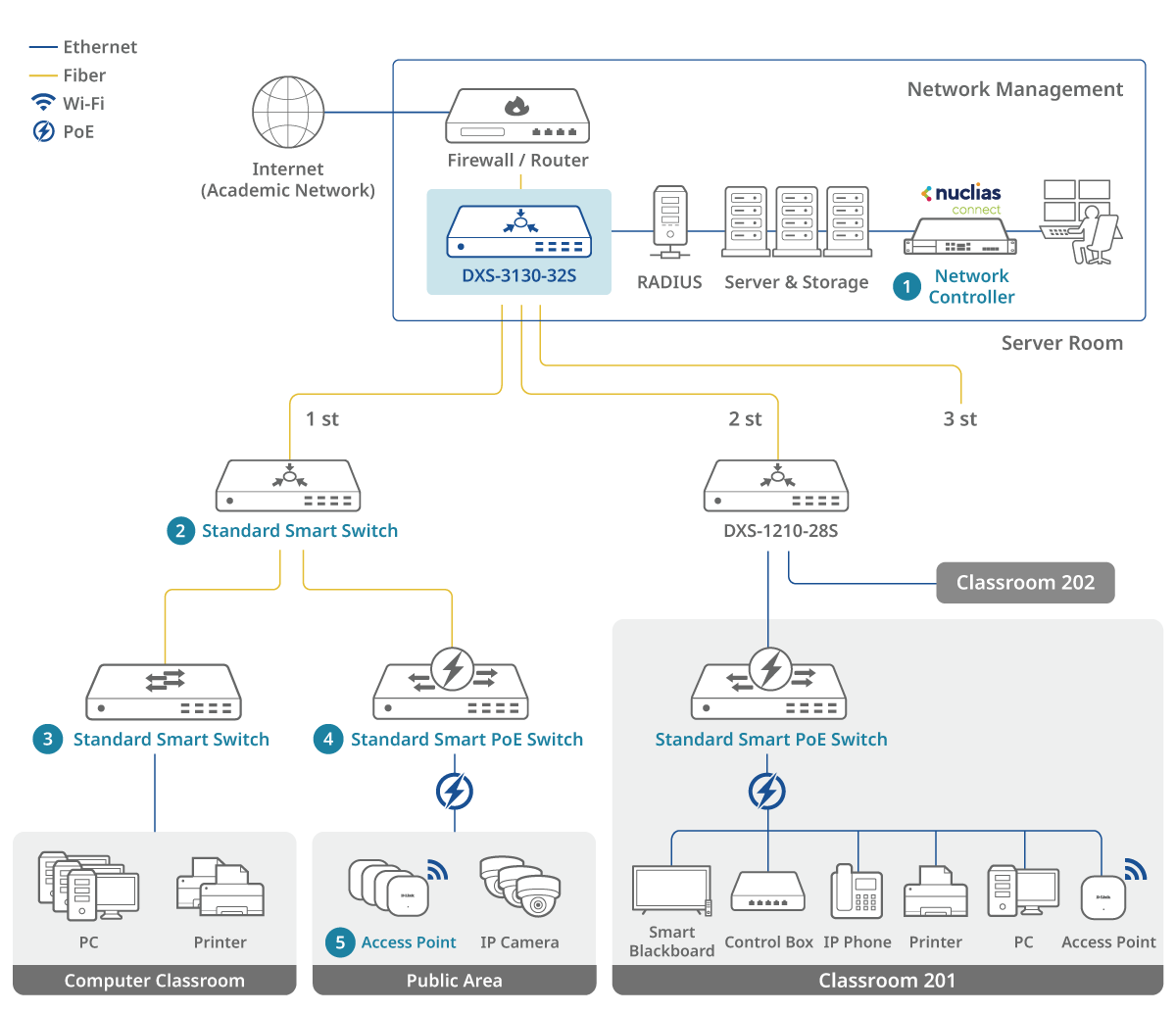

K-12 School (Education)
User benefits :
- VLAN and QoS for smarter traffic control
- Scalable design to grow network demands
- Easy management for streamlined administration
- Advanced security to protect against threats
Learn more :
- Network Controller : DNH-1000
- Standard Smart Switch : DXS-1210-28S
- Standard Smart Switch : DMS-1250-18
- Standard Smart PoE Switch : DMS-1250-18P
- Access Point : DAP-X3060

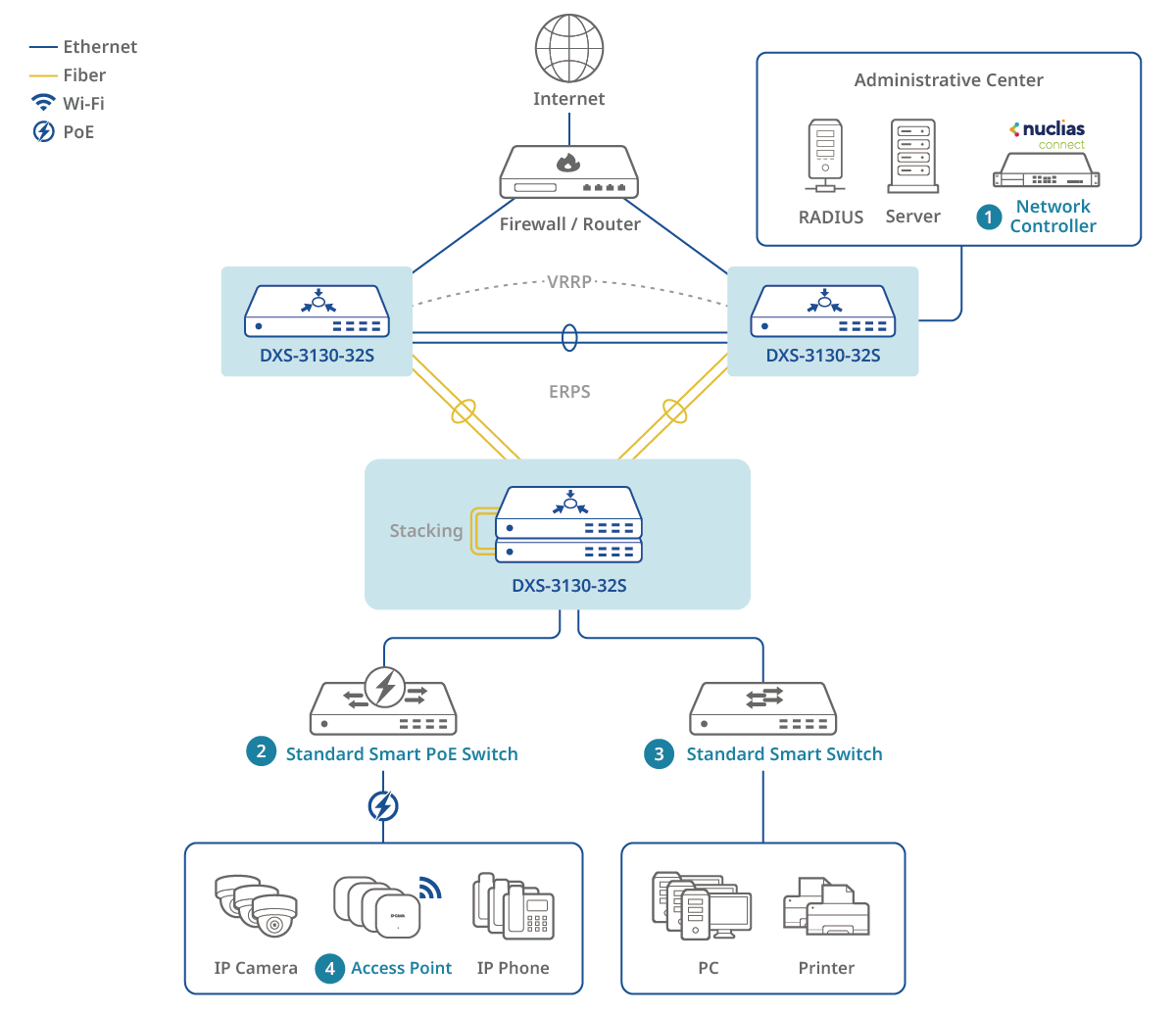

Office (Enterprise)
- Router offloading to boost efficiency
- Fast recovery for always-on connectivity
- Strong security to protect critical data
- Smart traffic Control for efficient data flow
Learn more :
- Network Controller : DNH-3000
- Standard Smart PoE Switch : DXS-1250-28YP
Standard Smart Switch : DXS-1210-12TC
Access Point : DAP-E9560

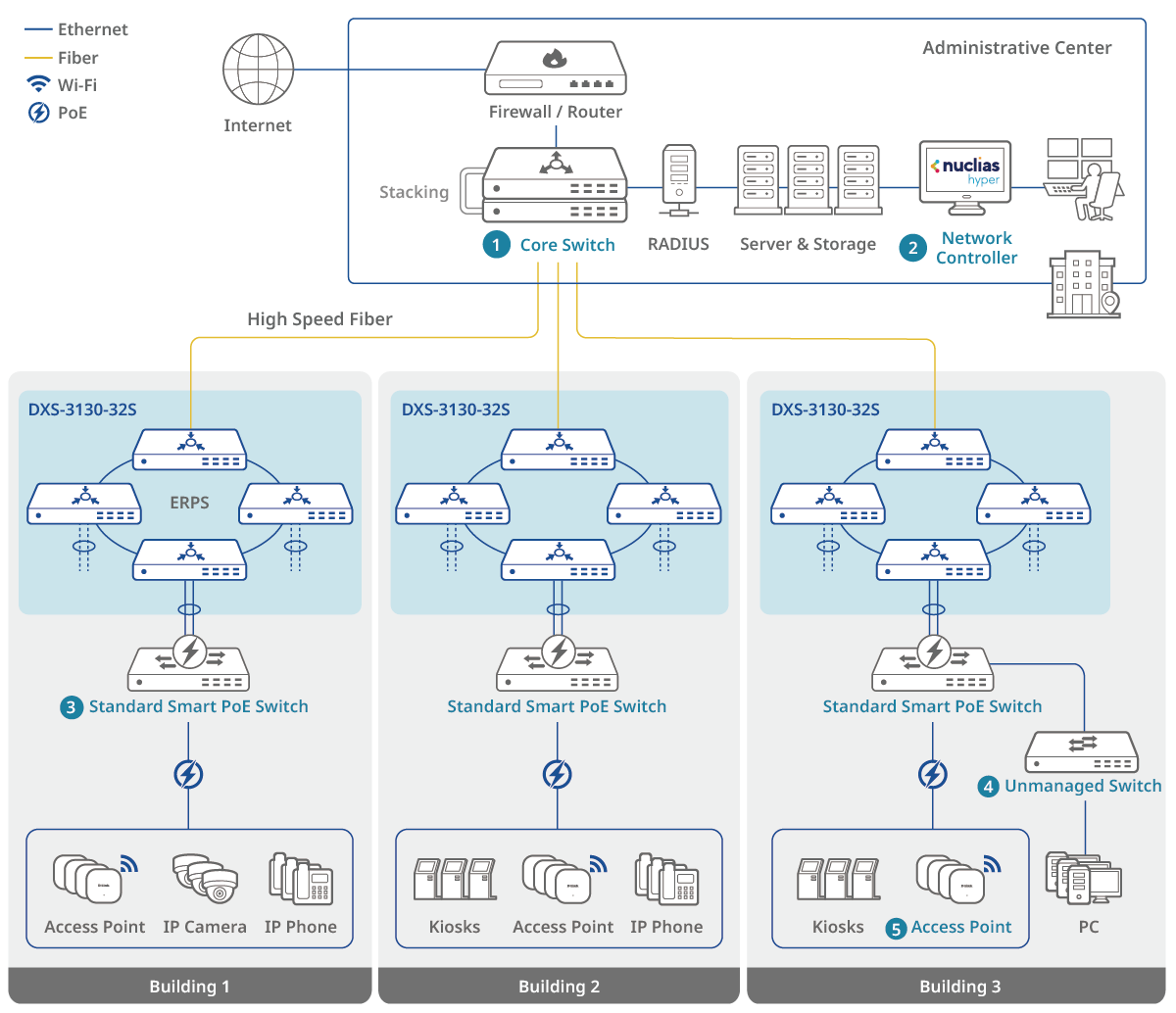

High-Rise Community (Buildings)
- Easy maintenance to minimize downtime
- 10G speed to handle growing bandwidth demands
- Strong security for reliable protection
- Scalable design for seamless expansion
Learn more :
- Core Switch : DQS-3630-56S ( Coming Soon )
- Network Controller : DNC-5000
Standard Smart PoE Switch : DMS-1250-18P
Unmanaged Switch : DMS-1016
Access Point : DAP-X3060
Specification
|
Interfaces
|
28 x 10GE SFP+ 4 x 10/25G SFP28 |
|---|---|
|
Switch Capacity
|
760 Gbps |
|
Max. Packet Forwarding Rate
|
560.44 Mpps |
|
Max Power Consumption
|
66.5W |
|
Dimensions
|
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
|
FAN
|
3 x Smart fans |
|
Operating Temperature
|
0 to 50 °C (32 to 122 °F) |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Operating Humidity
|
10% to 90% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
Yes |
|
Power Supply Type
|
Internal |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
