Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency
24 PoE ports support up to 60 W each, with a 790 W budget expandable to 1440 W—ideal for 10G PoE devices

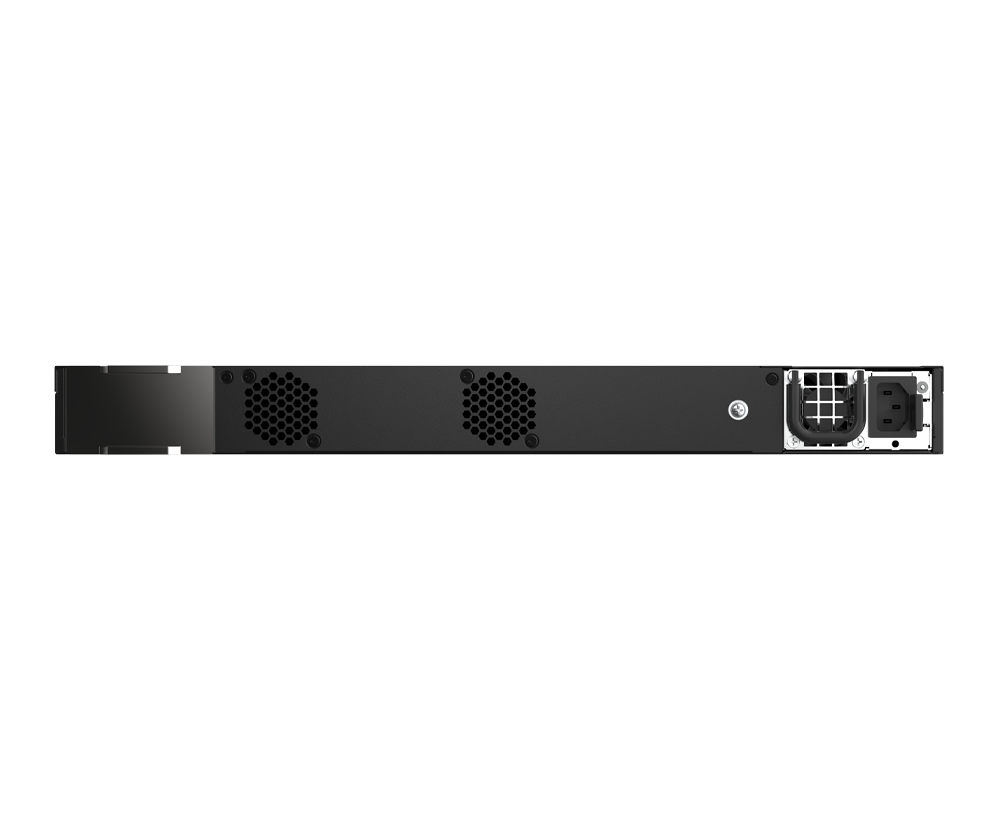

Two hot-swappable power modules enable 1+1 redundancy and load sharing for uninterrupted power and reliability
Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment
Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy
Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination

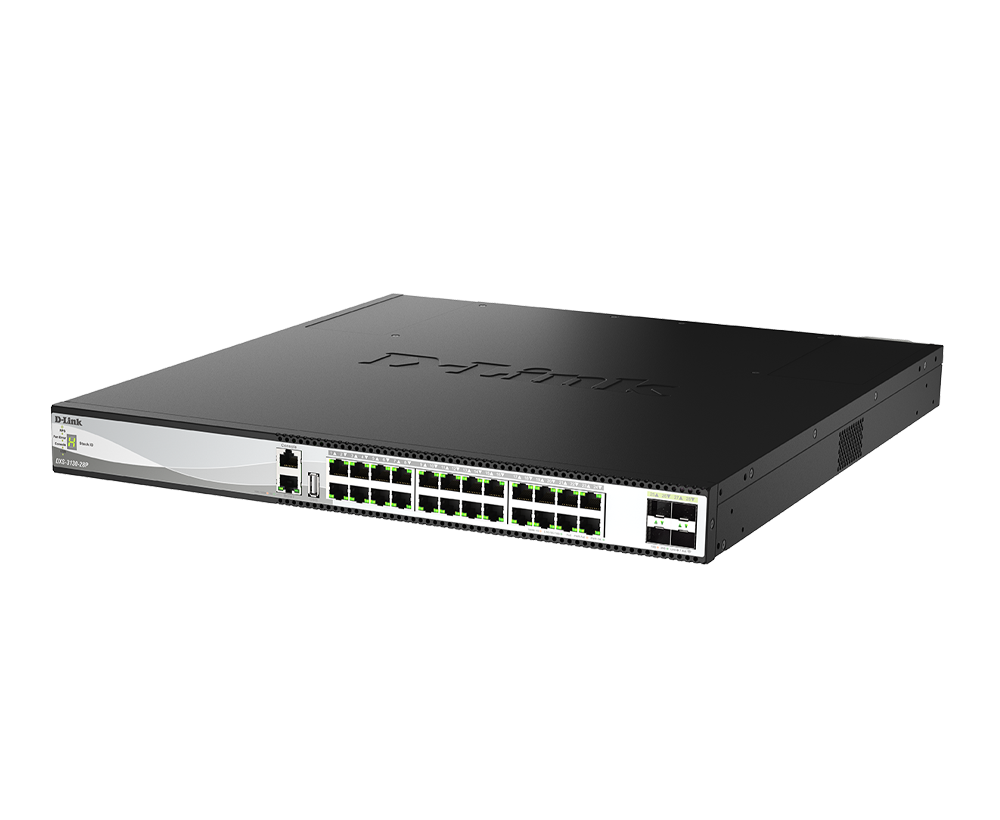

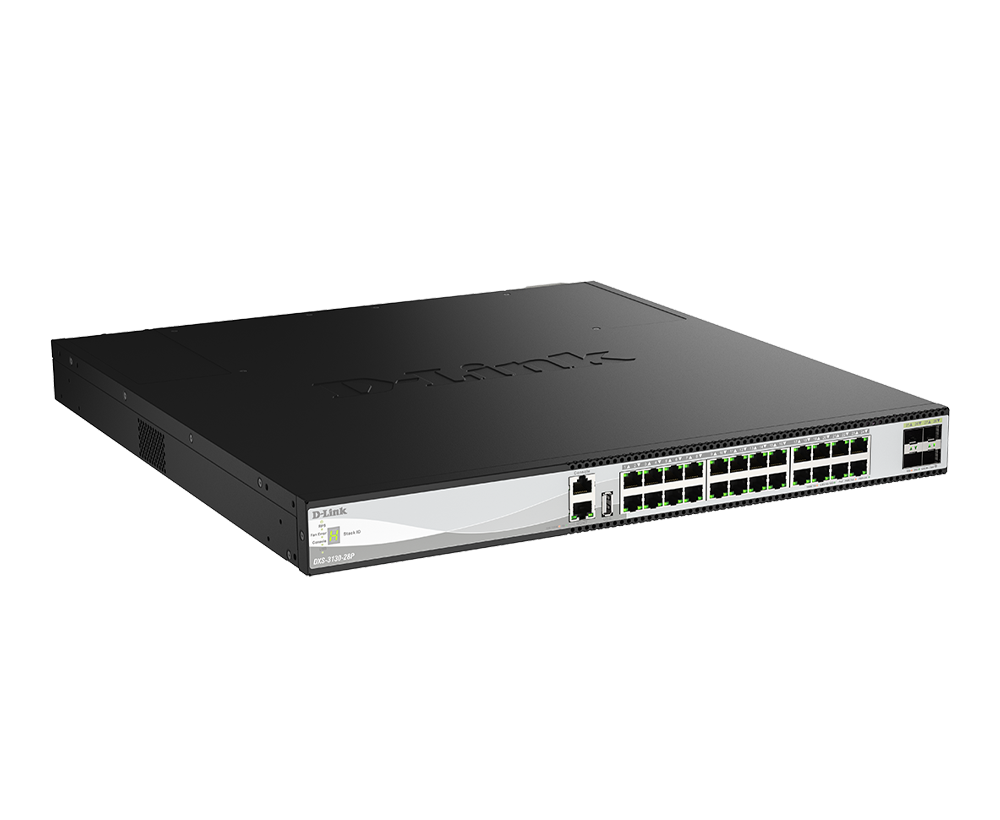

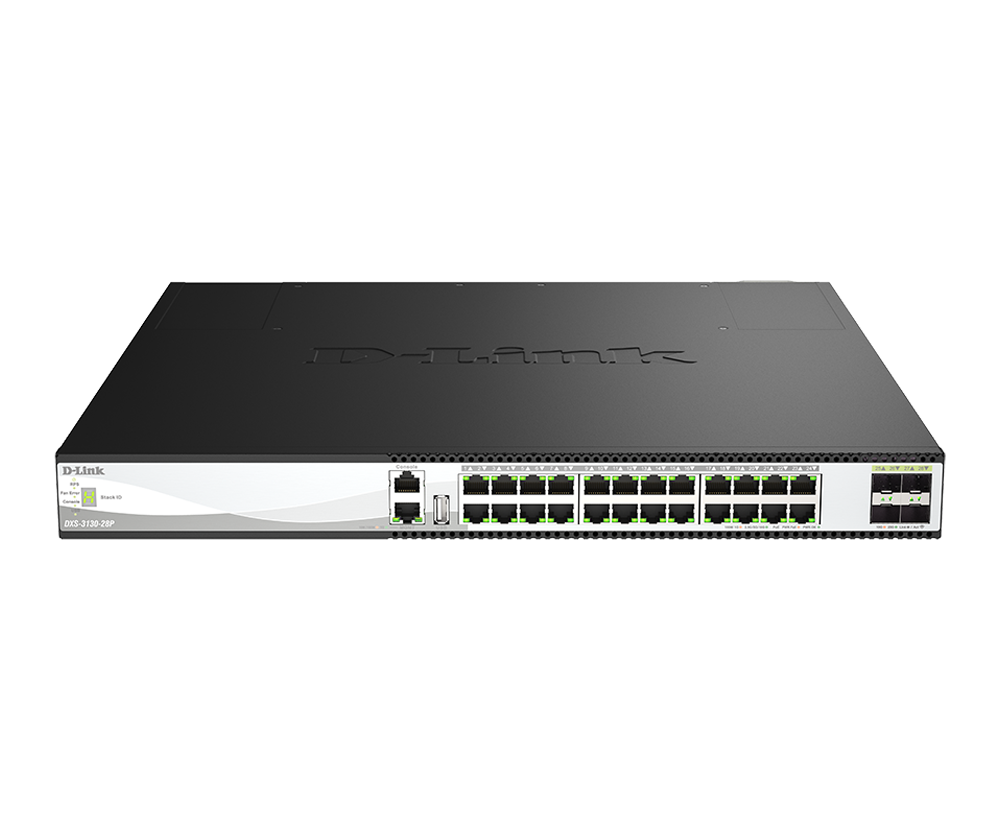

Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.

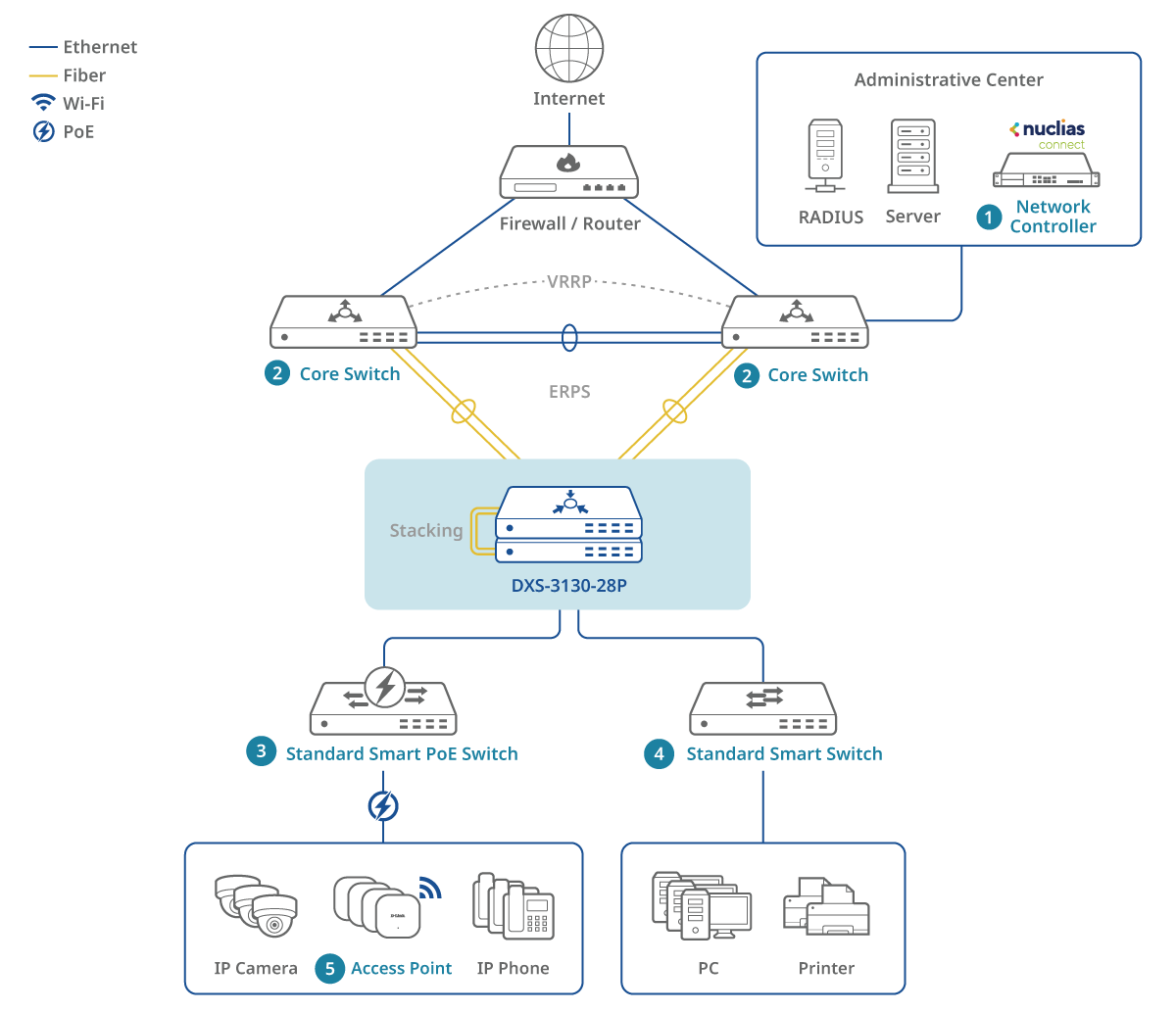

Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

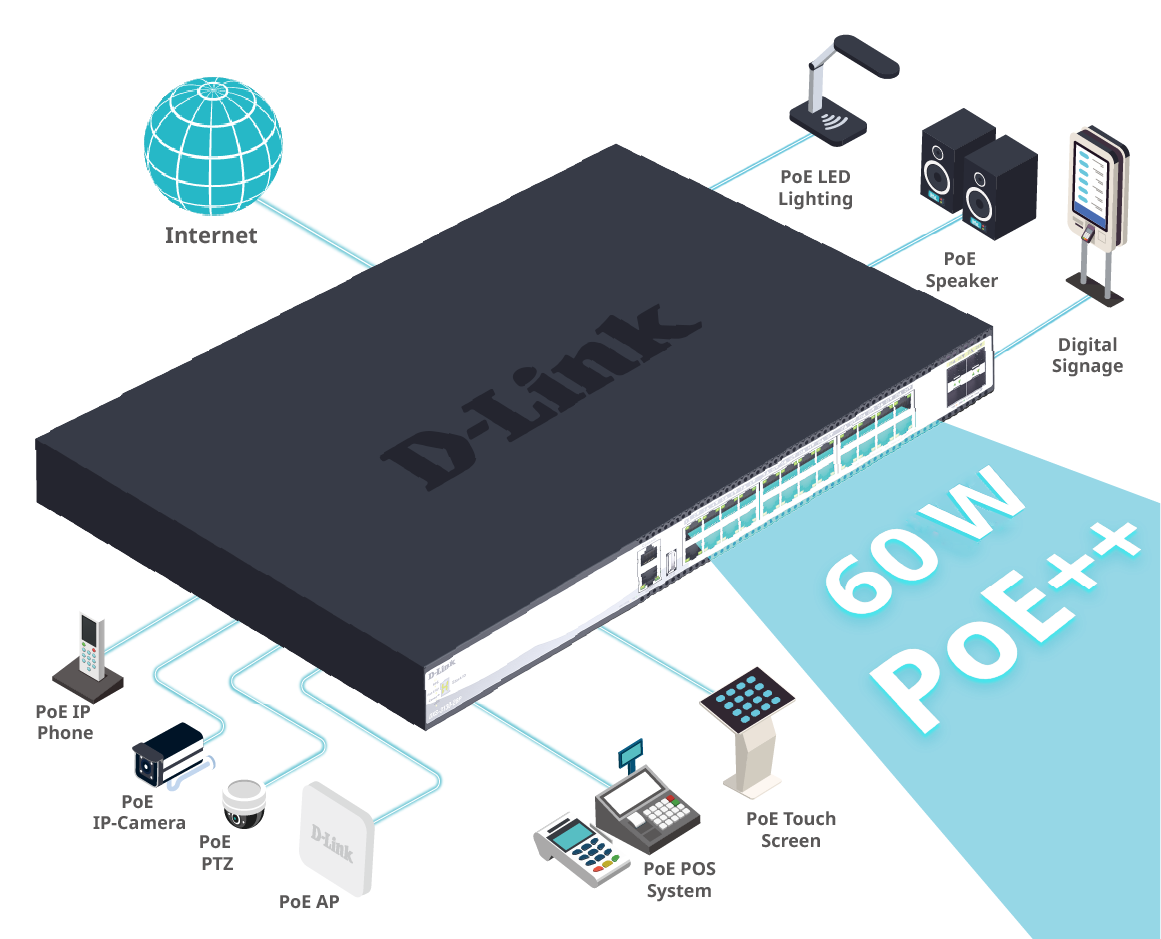

The DXS-3130-28P supports 802.3af/at/bt PoE standards, delivering up to 60 W per port with Perpetual and Fast PoE.
The DXS-3130-28P offers a 790 W PoE budget, expandable to 1440 W with dual power supplies powering more devices with ease.
PoE enables simple deployment of IP cameras, APs, and VoIP phones over standard Ethernet, reducing the need for separate electrical wiring.
Maintains power to connected devices during Power Sourcing Equipment (PSE) switch reboots
Delivers power to connected devices quickly, without waiting for the switch operating system to fully boot
PD-Alive auto-reboots unresponsive IP devices to ensure continuous operation and monitors their status

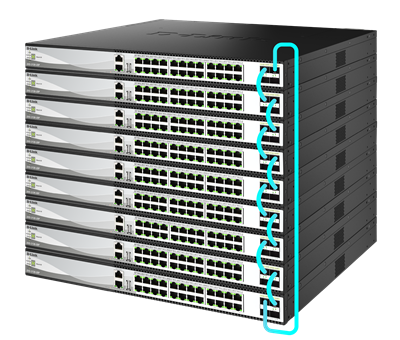

Scale your network with the DXS-3130-28P by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

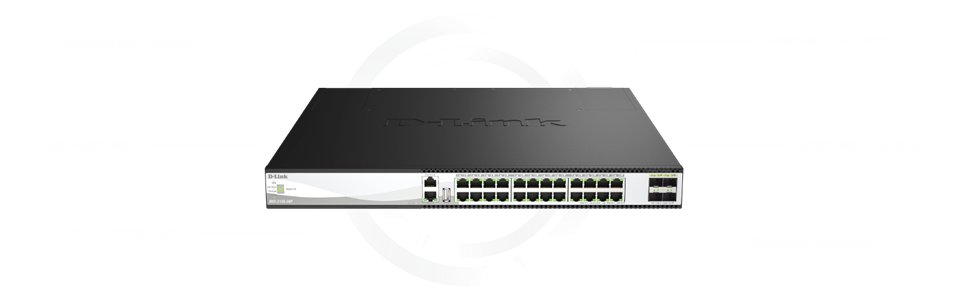

The DXS-3130-28P ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
The DXS-3130-28P switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications
Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency
Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network
User benefits :
Learn more :
Learn more :
Standard Smart Switch : DXS-1250-28Y ( Coming Soon )
Access Point : DAP-E9560 ( Coming Soon )
Learn more :
Standard Smart PoE Switch : DMS-1250-18P
Unmanaged Switch : DMS-1016
Access Point : DAP-X3060
|
Interfaces
|
24 x 10GE PoE++ 4 x 10/25G SFP28 |
|---|---|
|
Switch Capacity
|
680 Gbps |
|
Max. Packet Forwarding Rate
|
505.92 Mpps |
|
PoE Standards
|
IEEE 802.3af/at/bt |
|
PoE Power Budget
|
790 W |
|
Max Power Consumption
|
1008.1 W |
|
Dimensions
|
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
|
Weight
|
6.48 kg (14.29 lbs) |
|
Surge Protection
|
IEC61000-4-5 6kV surge protection on all Ethernet ports |
|
FAN
|
2 x Smart fans |
|
Operating Temperature
|
0 to 50 °C (32 to 122 °F) |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Operating Humidity
|
10% to 90% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
Supported
|
|
Power Supply Type
|
Internal |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
