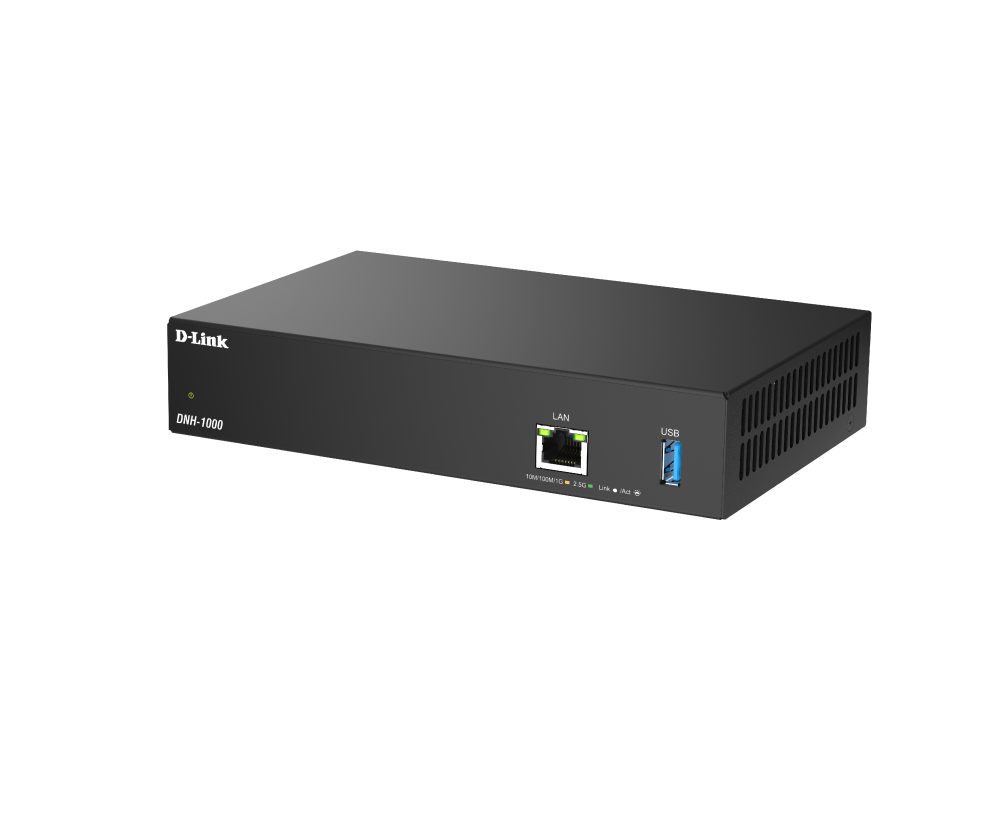

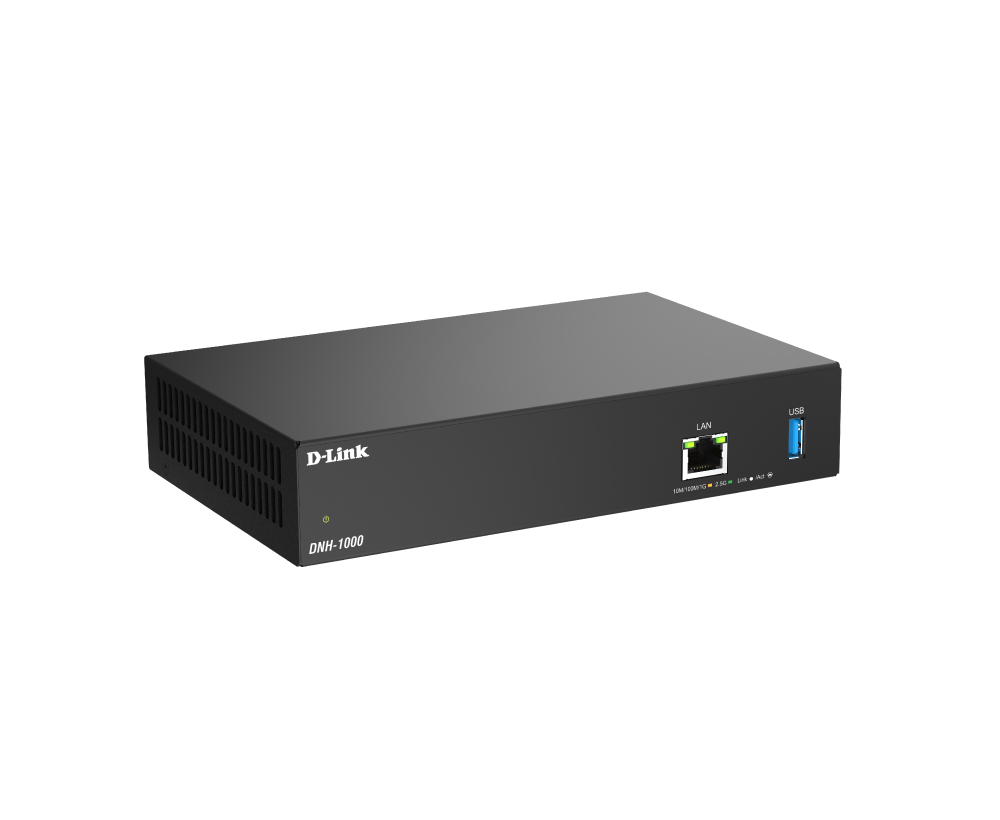

Nuclias Network Controller
DNH-1000
- Product Status (A1_Datasheet_v1.00(WW)): Live
- Supports up to 500 total connected devices
- Centralized management for switches and APs
- 2.5GbE high-speed LAN ports connectivity
- Real-time system status monitoring and alerts
- USB 3.0 port for external backup storage
- Web-based management accessible remotely
- Online firmware upgrades for APs and switches
- Multi-tenant and role-based admin control
Where to buy
User Benefits
Centralized Device Management
Enables centralized device management, automated configurations, and simultaneous firmware updates for efficient network operations.
Role Based Administration
Allows network administrators to assign role-based access levels and permissions while enabling localized control for specific network segments.
Online Firmware Upgrade
Enables remote firmware upgrades, ensuring the latest features, security patches, and performance improvements without manual intervention.
Traffic Reporting and Analytics
Provides advanced traffic analytics, real-time insights, and customizable reports for optimized network performance.
Advanced VLAN Segmentation and Access Policies
Enhances network security and efficiency with VLAN access control, enabling administrators to segment networks, prioritize traffic, and enforce tailored policies.
Auto RF & Bandwidth Optimization
Optimizes wireless performance with Auto RF and Bandwidth Optimization, ensuring optimal connectivity and minimal interference.
Multi-SSID and Captive Portal Authentication
Supports Multi-SSID and Captive Portal, allowing separate networks for user groups with secure, customizable login options for guests and employees.
Real-Time Monitoring and Alerts
Monitor real-time network status, generate reports, and receive instant alerts from a centralized dashboard.

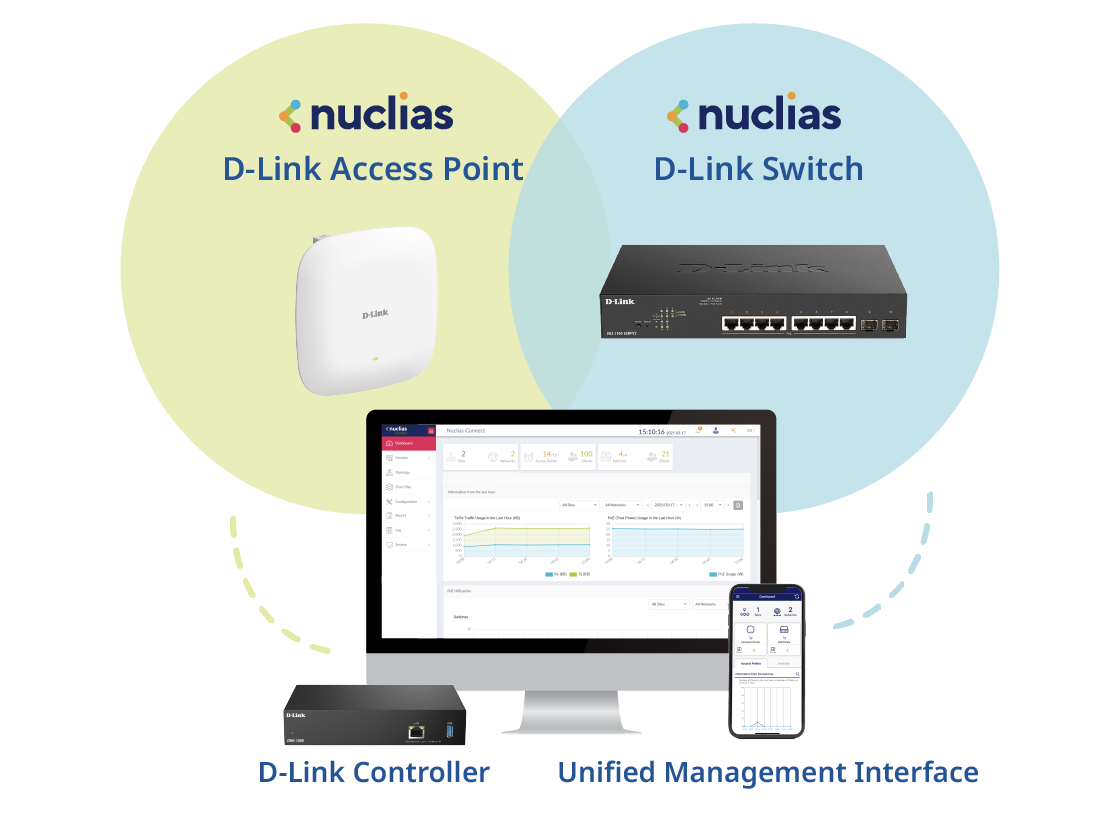

Centralized Management for APs and Switches
The Nuclias Network Controller centrally manages up to 500 devices via a unified interface. It enables configuration of SSID, VLAN, RF, and firmware updates to reduce downtime and manual effort. With role-based access and compatibility with Nuclias APs and switches, it ensures secure, scalable, and efficient network operations.

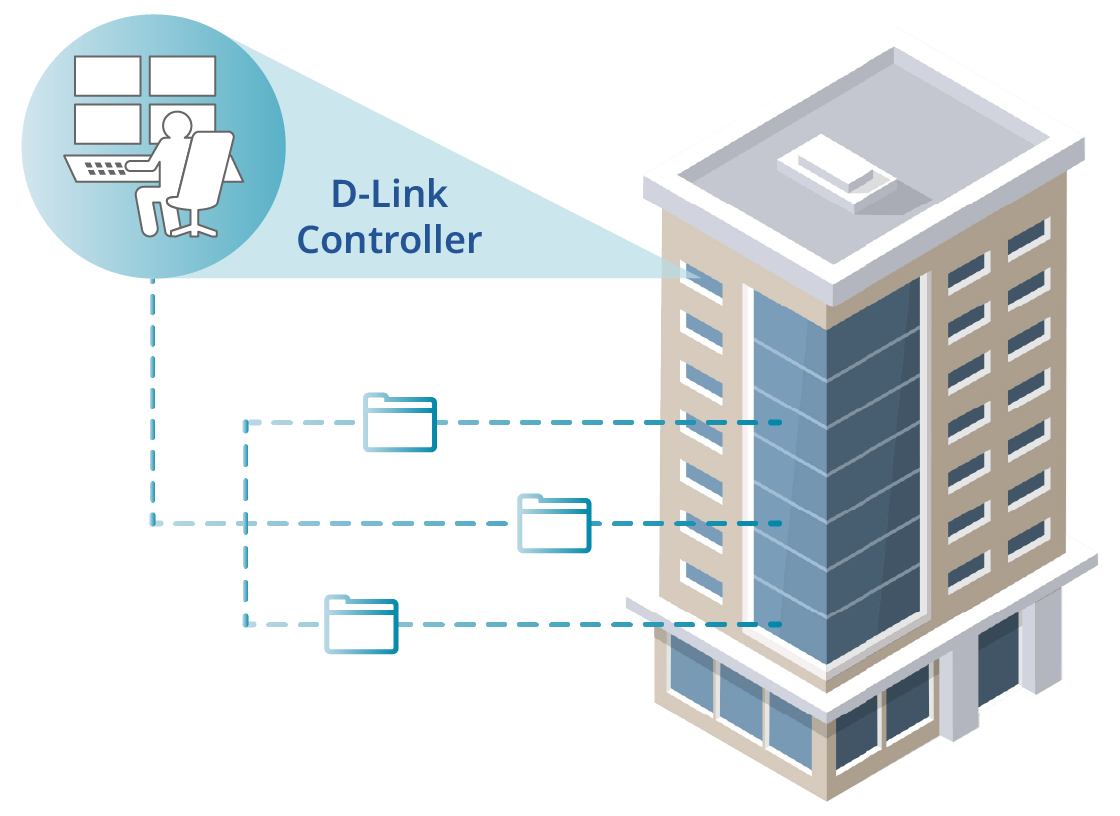

Batch Configuration for Streamlined Network Management
Effortlessly apply settings, updates, and security policies across multiple APs and switches, reducing manual effort and ensuring consistency. Automate SSID, VLAN, RF optimization, scheduling, and wireless resource allocation to optimize network performance, while streamlining IPv4 ACL, access policies, port settings, and SNTP configurations for enhanced security and reliability.

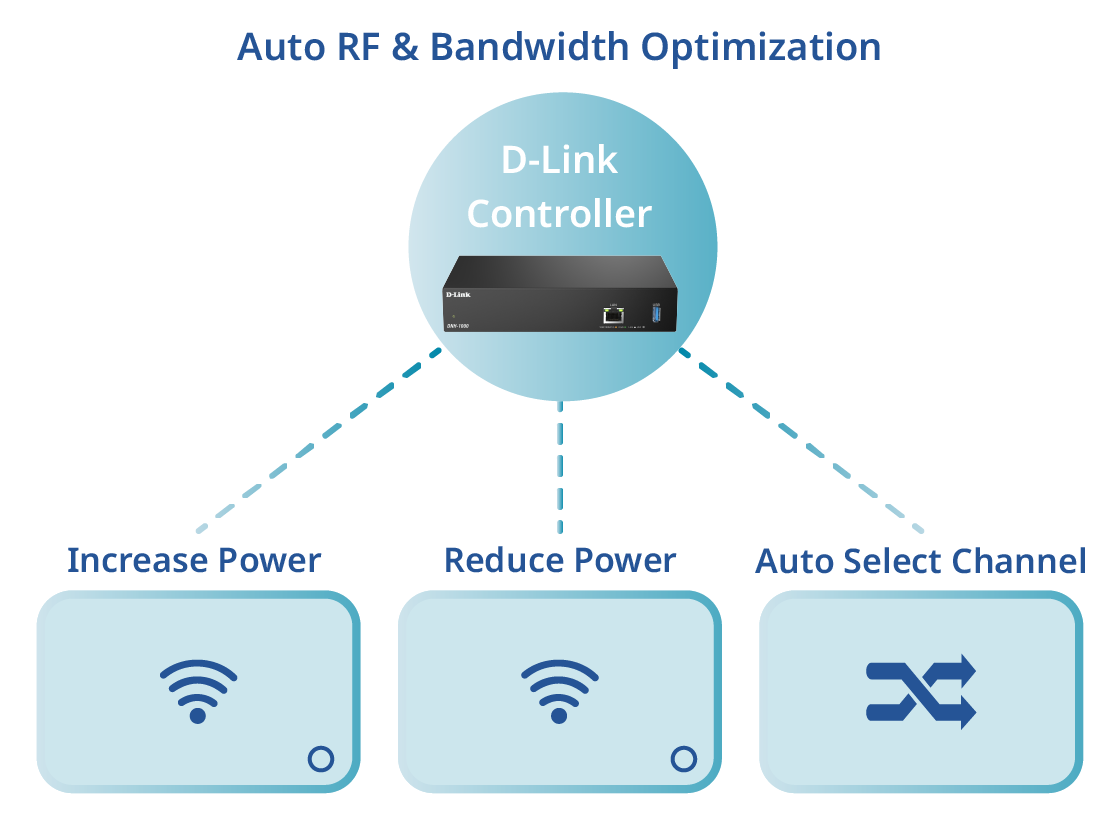

Auto RF for Stable Connectivity
Enhances wireless performance with Auto RF Management, which dynamically adjusts channel and power levels based on real-time interference and traffic conditions to reduce signal interference and maintain stable connectivity. Bandwidth Optimization enables efficient allocation of bandwidth across devices to ensure optimal connectivity.
Real-Time Monitoring for Smarter Network Management
Get complete network visibility with real-time monitoring of APs and switches. Instantly view client counts, traffic, channel use, PoE status, and event logs. Monitor signal quality, client data, and switch activity — including IP, MAC, VLAN, port info, and PoE usage — with built-in tools for port control and VLAN settings. Traffic and performance reports reveal peak usage, top APs, PoE consumption, and error trends. Comprehensive logs and real-time alerts ensure security and system stability.
Deployment & Monitoring with the Nuclias Connect App
Effortlessly deploy and monitor your network with the Nuclias Connect app. Simplify device setup, track real-time performance—all from the convenience of your mobile device.

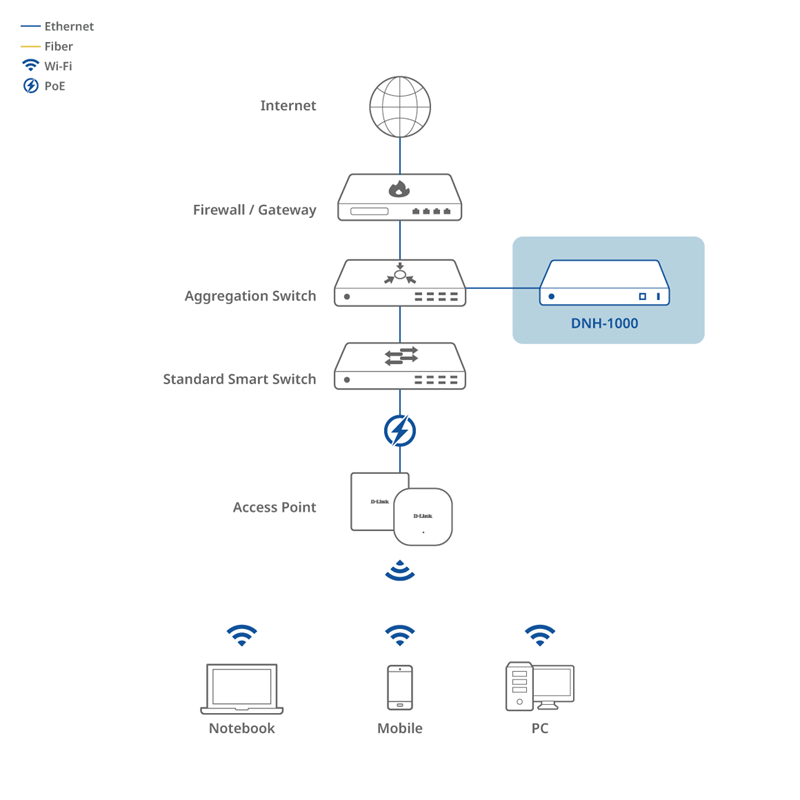

Diagram
With the DNH Nuclias Network Controller series, you can easily centralize the management of D-Link's AP and switches , offering more convenient and graphical interface-based centralized monitoring.

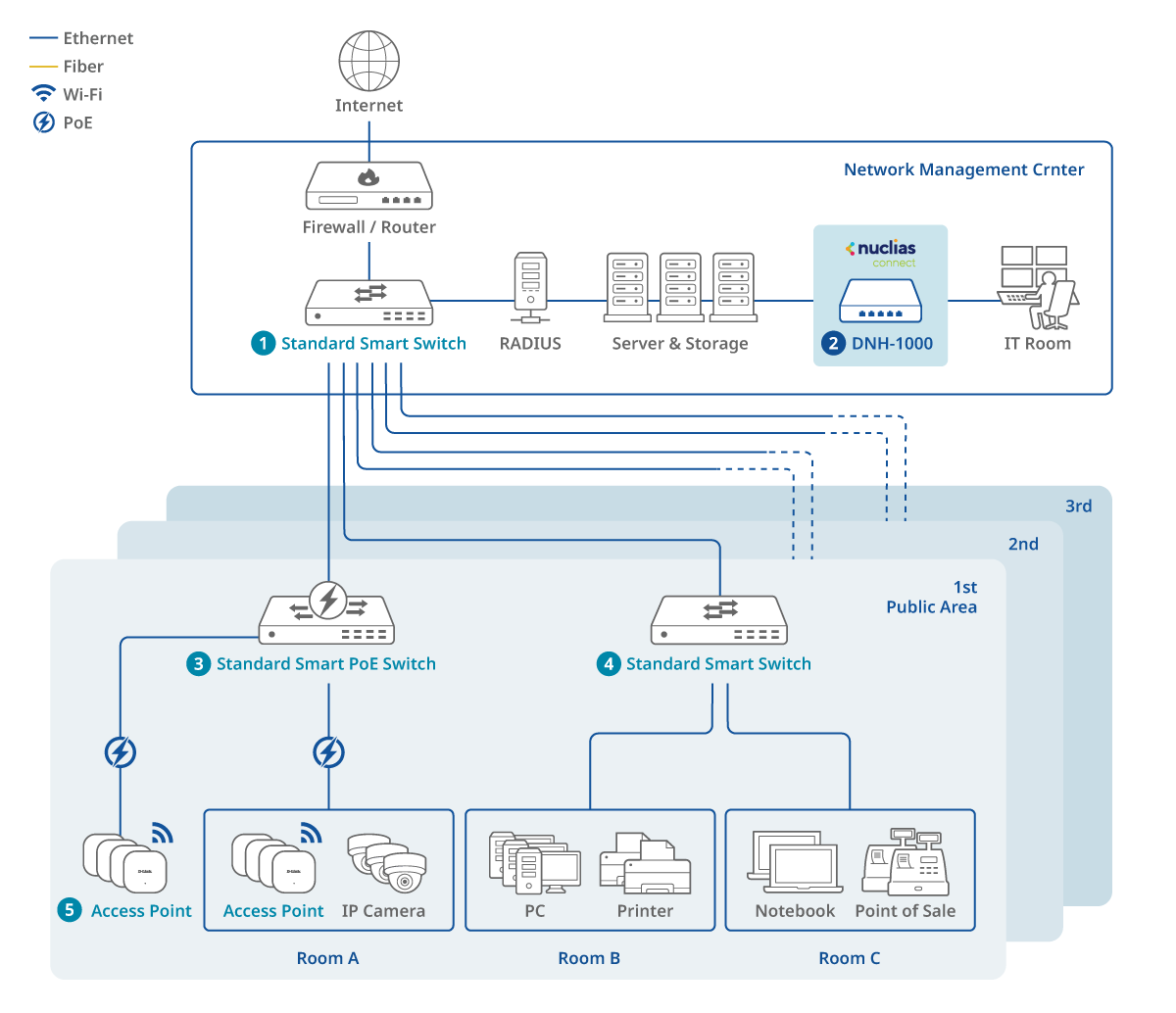

SME (Enterprise)
User benefits :
- Monitor up to 500 devices through one unified management interface
- Easy-to-use GUI with guided setup simplifies initial configuration
- QoS support ensures smooth voice, video, and data communication
- Works with 2.5G/10G/25G switches and Wi-Fi 6/7 for fast networking
- VLAN and access control boost security and optimize traffic flow
- Delivers high-speed, reliable Wi-Fi 6 Dual Band for dense device environments
Learn more :
- Standard Smart Switch : DXS-1210-12SC
- Network Controller : DNH-1000
- Standard Smart PoE Switch : DMS-1250-18P
- Standard Smart Switch : DMS-1250-18
- Access Point : DAP-X3060

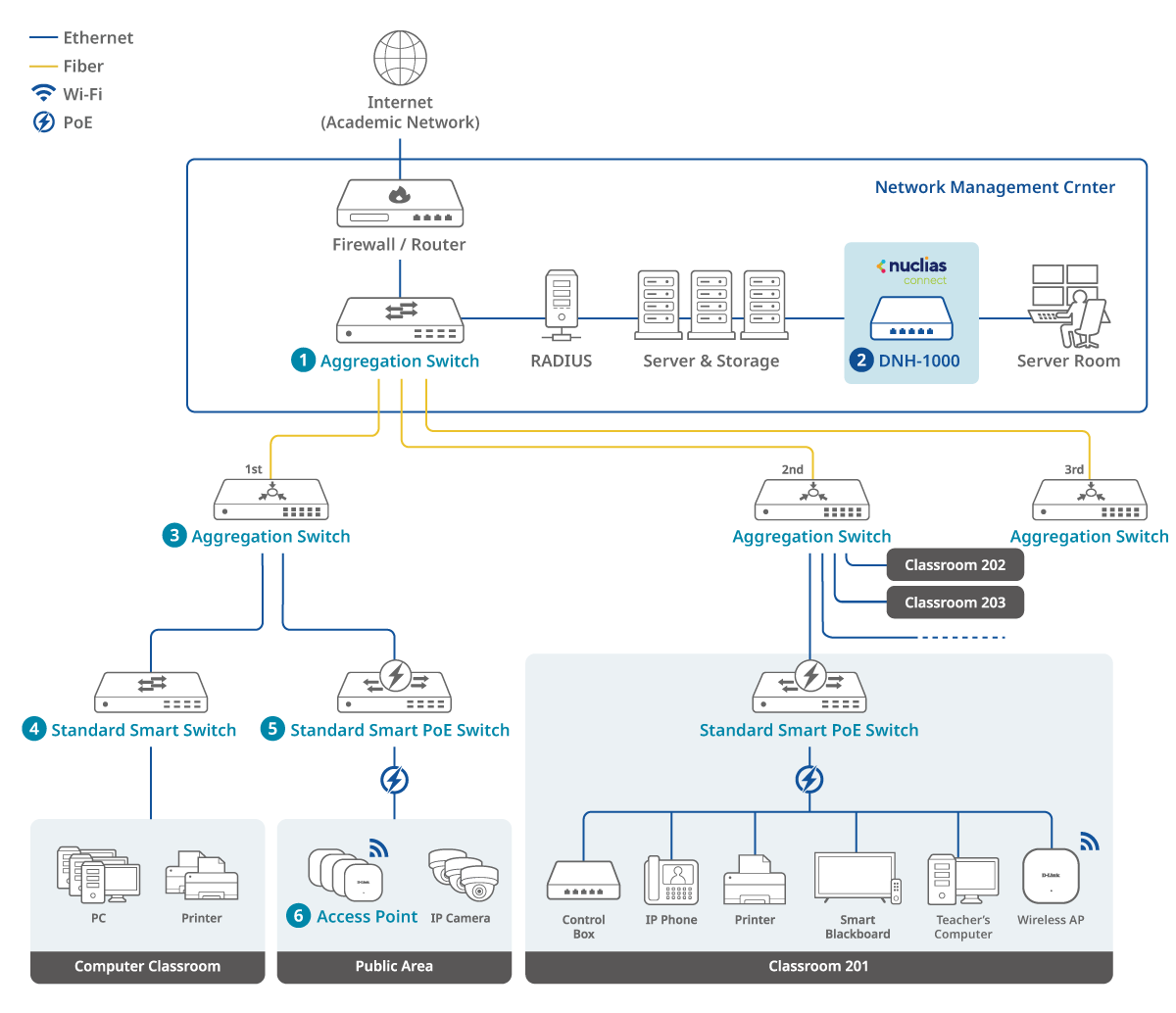

K12 School (Education)
User benefits :
- Ensure smooth media streaming with intelligent QoS traffic management
- Simultaneously deploy firmware updates to multiple connected devices
- Support user authentication via RADIUS server, passcode, MAC, or click-through
- Enable 802.1X authentication with fine-grained ACL access control
- Role-based access ensures secure and efficient network administration
- Delivers high-speed, reliable Wi-Fi 6 Dual Band for classrooms
Learn more :
- Aggregation Switch : DXS-3130-32S (Coming Soon)
- Network Controller : DNH-1000
- Aggregation Switch : DXS-3130-28
- Standard Smart Switch : DMS-1250-18
- Standard Smart PoE Switch : DMS-1250-18P
- Access Point : DAP-X3060
Specs
|

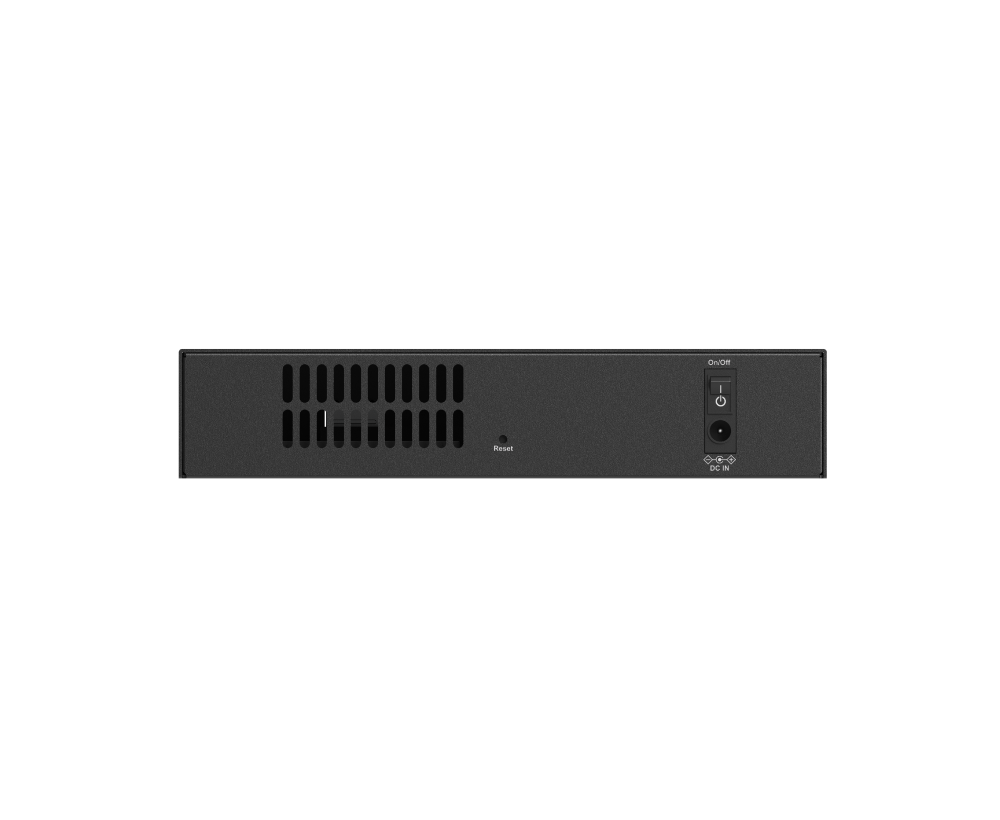

Device Interface
|
2.5G Ethernet Port x 1 USB 3.0 x 1 |
|---|---|
|
LED
|
Power/Status LAN |
|
Dimensions
|
190 x 120 x 38 mm |
|
Weight
|
640g |
|
Power Supply
|
External 12V/2A 100-240V AC-in |
|
Max Power Consumption
|
24 W |
|
MTBF
|
> 30,000 hours |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Storage Temperature
|
-20˚C to 70˚C (-4˚F to 158˚F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Management Scale
|
500 devices |
|
Network Type
|
Small/Medium Network |
|
Managed Device
|
All EAPs Nuclias Connect Aggregation and Edge Switches |
