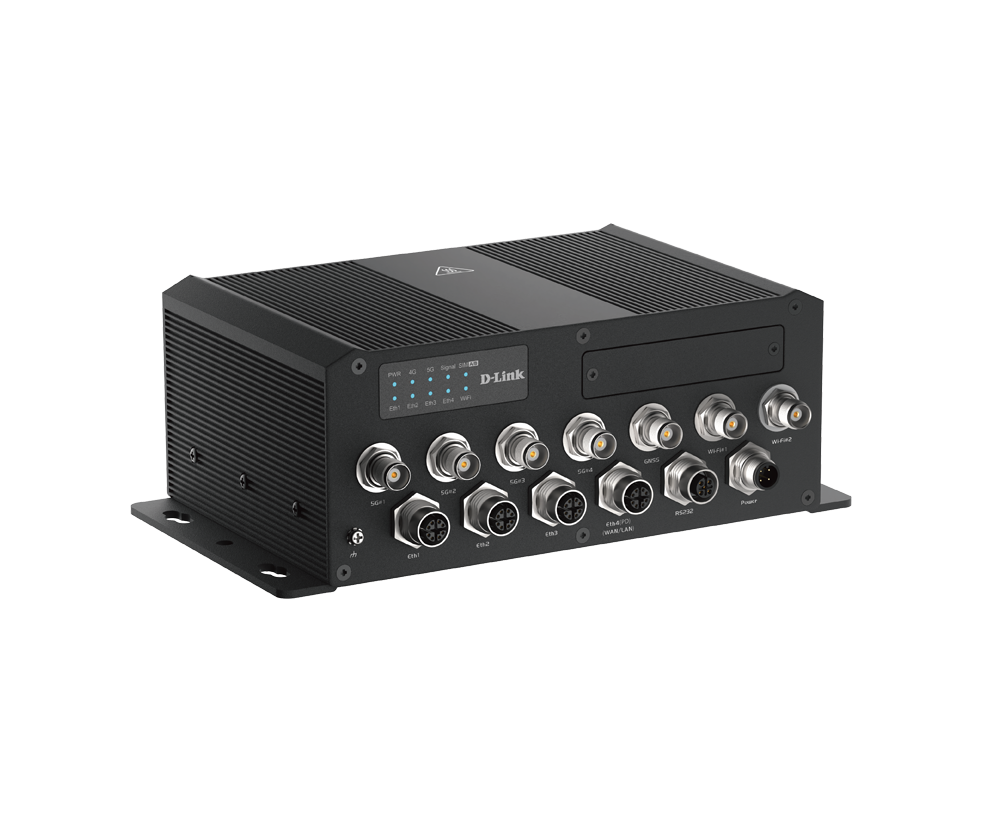

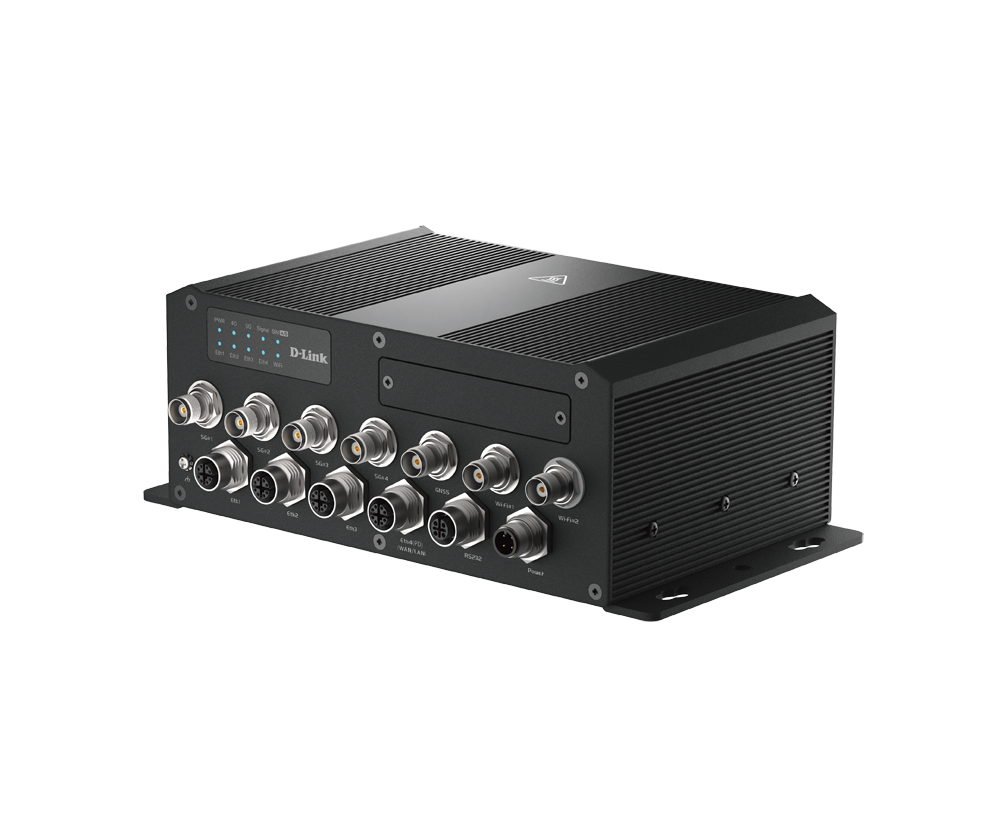

5G Transit Gateway

DTM-570-GS

  • Product Status (A1_v120ww): Live
  • 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
  • 4 x Gb Ethernet Ports(M12 X-Code)
  • Wi-Fi 6 AX1800 to connect multiple on-board devices
  • 1 x RS-232 (M12 A-coded)
  • 1 x USB port for device log information
  • GNSS for GPS/GLONASS
  • Durable zinc-plated steel case is corrosion-resistant to help ensure device longevity
  • -30 to 70°C operating temperature to resist harsh environments
  • Power Input: DC 18-75V (M12 A-coded), or through PoE (Eth4) (X-coded)

Shipping Globally | Coming Soon to North America


Download the datasheet.

Where to buy

User Benefits​

5G SA & NSA

Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.

Wi-Fi 6 AX1800

Enable high-speed in-vehicle Wi-Fi for seamless passenger and Wi-Fi equipments access and streamlined operations.​

Rugged M12 Connectors

Industrial-rated locking threads ensure on-board connections are protected from harsh elements.

Rail Related Certified

Compliant with EN45545, EN50155, and EN50121-3-2 to ensure reliability and safety in rail transportation.​

GPS Location

Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.

Wide Voltage Input Range

Safely accepts power input from various on-board power sources for convenient installation.​

​Enhanced Onboard Telematics and Infotainment

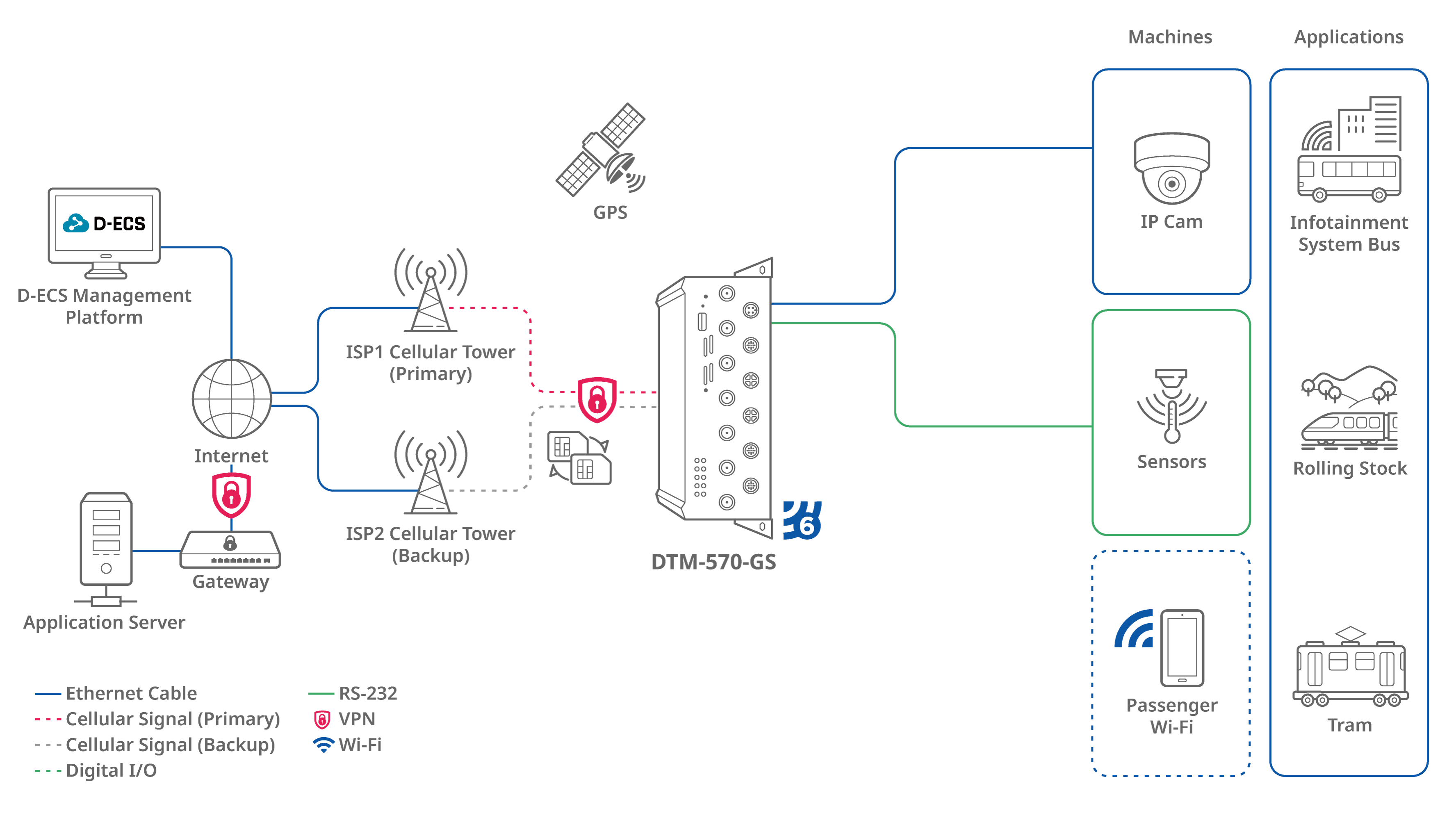

The DTM-570-GS 5G Transit Gateway supports advanced rail connectivity by linking onboard RS232 and Ethernet devices to the Internet over a high-speed 5G network. This enables real-time access to systems such as onboard surveillance and digital signage, helping enhance passenger safety monitoring and the operation of railway systems. It also supports timely station arrival updates on onboard displays, contributing to a more informed and connected travel experience.

Optimize Railway Operations with Location-Based Services​

The DTM-570-GS enhances railway operations with precise GPS location capabilities, supporting real-time asset tracking and more effective fleet utilization. By providing insight into train location and mileage, it helps operators improve routing decisions and service scheduling—contributing to greater efficiency and more consistent performance.

Robust Design for Rail Application

The DTM-570-GS 5G Transit Gateway is built to handle the challenges of rolling stock environments, aligning with EN45545, EN50155, and EN50121-3-2 rail standards. Its durable design features industrial-grade M12 connectors, a corrosion-resistant zinc-plated steel casing, and a wide voltage input range. These characteristics support stable M2M connectivity across varying conditions, including movement, temperature shifts, and humidity—making it a strong fit for rail applications that demand consistent and dependable performance.

1 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.​

Related Products

5G Transit Gateway​
DTM-550-G​
Find out more

Streamlined 5G Transit Connectivity for Rail Applications

The DTM-570-GS 5G Transit Gateway supports 5G NR and LTE connectivity for high-speed cellular uplinks in transit environments. With four Gigabit Ethernet M12/X-coded ports and Wi-Fi 6 AX1800 capabilities, it connects IP cameras, RS232 sensors, and other onboard devices—supporting a wide range of IoT applications across public transportation systems.

Its rugged construction, aligned with EN45545, EN50155, and EN50121-3-2 rail standards, makes it well-suited for use in buses, rolling stock, and trams. Designed to perform reliably in challenging conditions, the DTM-570-GS contributes to enhanced safety, connectivity, and efficiency for mobile infotainment and critical onboard systems.

Applications​

Tram

Provide fast Wi-Fi, real-time station updates, and advertising, to enhance commuter journey experiences.​

​Rapid Transit (Metro)

Enable real-time surveillance and monitoring for enhanced passenger safety with high-speed internet.​

Tourist Train

Enhance onboard entertainment, advertising, and shopping experiences ​to optimize the passenger journey.​

Rolling Stock

Supports internet connectivity for infotainment, passenger Wi-Fi, and real-time station notifications, helping enhance the travel experience and onboard engagement.

Specification

Download the datasheet.

Cellular
5G NR
SIM
Dual SIM
Number of Serial Ports
1 x RS-232(M12)
Ethernet Ports
4 x LAN (M12)
Ethernet Speed
10/100/1000 Mbps Ports
GNSS
GPS / GLONASS
Network
IPv4/v6
Port Forwarding
DHCP Server/Relay
VLAN
NAT
Bridge
Management
Web UI
SMS
D-ECS
PoE
PoE In
Number of PoE Ports
1
Power Input
DC 18V-75V , or through PoE (Eth4)(M12)
Storage
1 x USB
VPN
IPSec, OpenVPN, PPTP, L2TP, GRE
WireGuard
WAN
Cellular
Ethernet
Wi-Fi
Wi-Fi 6

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice.
