48 x 25G SFP28 and 8 x 100G QSFP28 ports deliver massive bandwidth for data-intensive workloads
SONiC-based open platform enables seamless integration, modular design, and long-term adaptability
Support BGP-EVPN, VxLAN, MC-LAG, VRF, OSPF and ECMP for L3 routing and resilient network operation
Enable VxLAN and EVPN to simplify network virtualization and deliver efficient multi-tenant segmentation
Automates routing, security, and QoS with RIP, OSPF, VLAN, and ACL – improving efficiency and reducing overhead

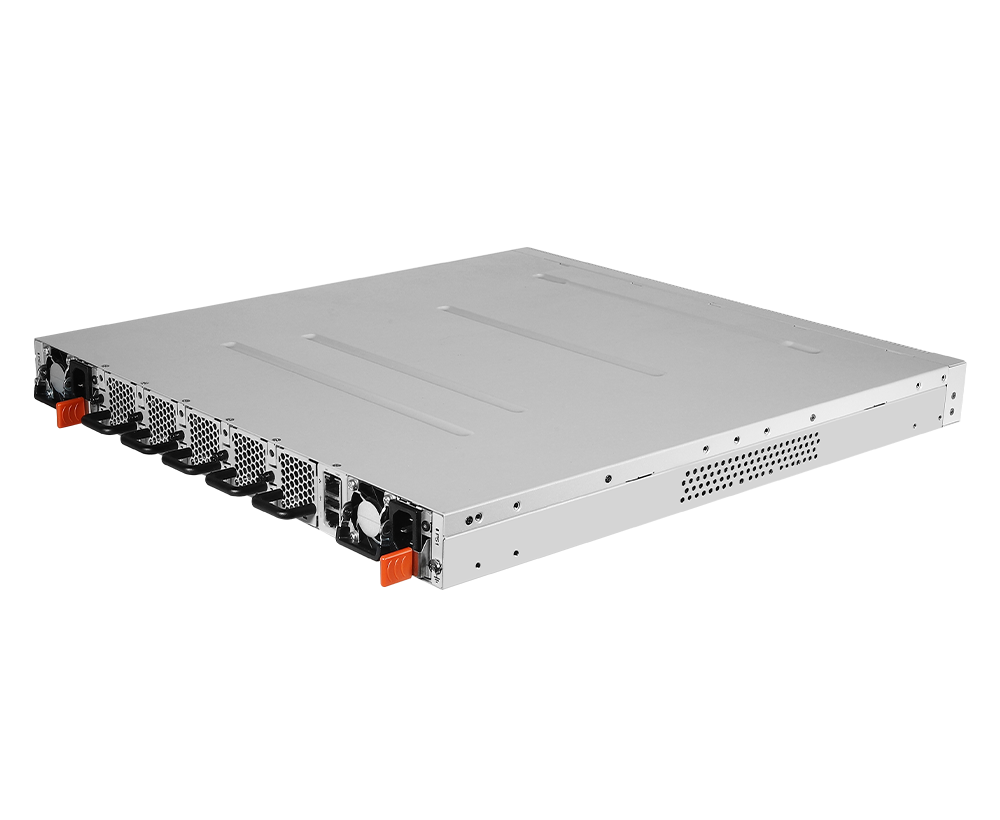

Front-to-back airflow, 1+1 hot-swappable PSUs, and N+1 fans ensure cooling and uptime reliability

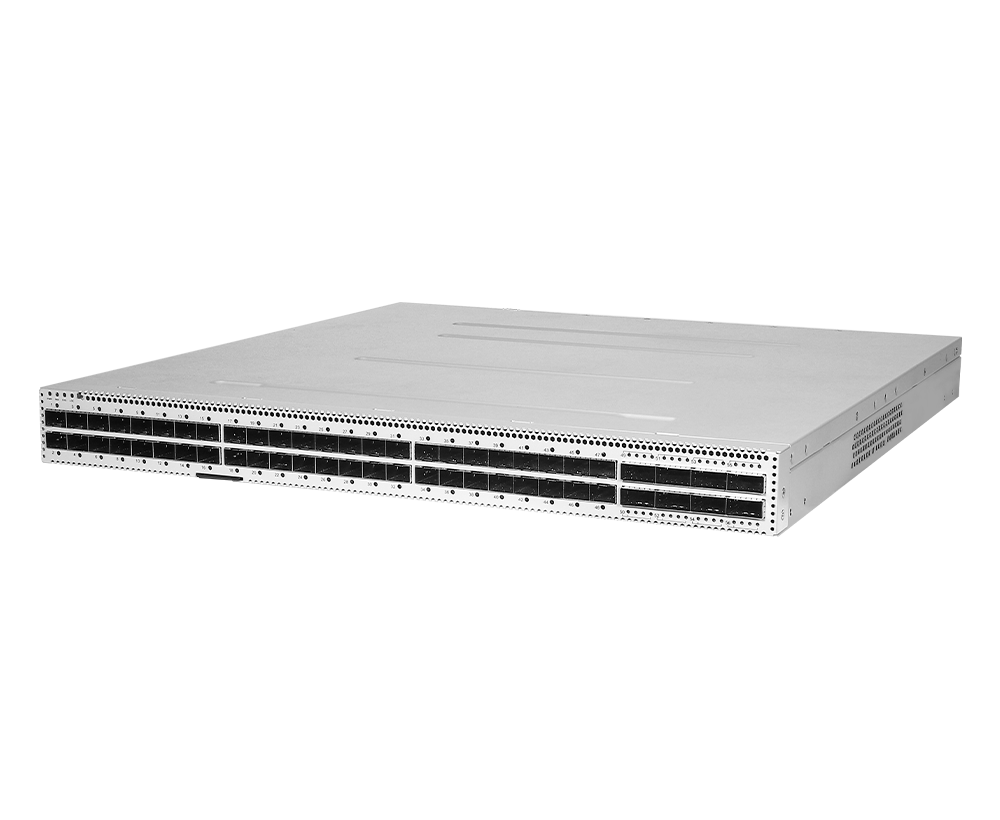

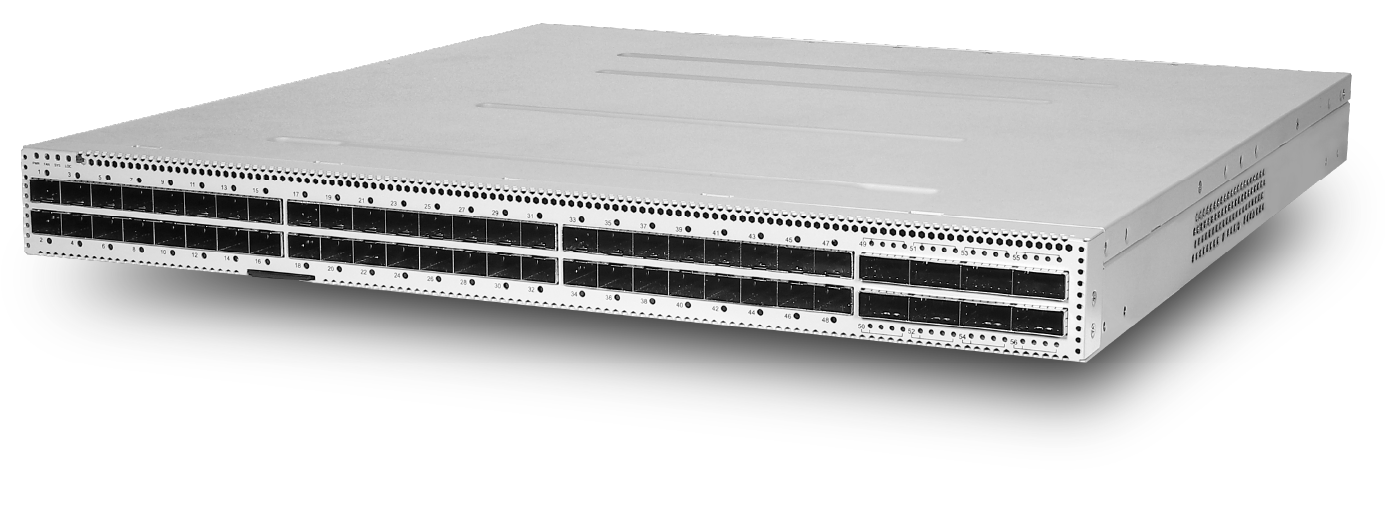

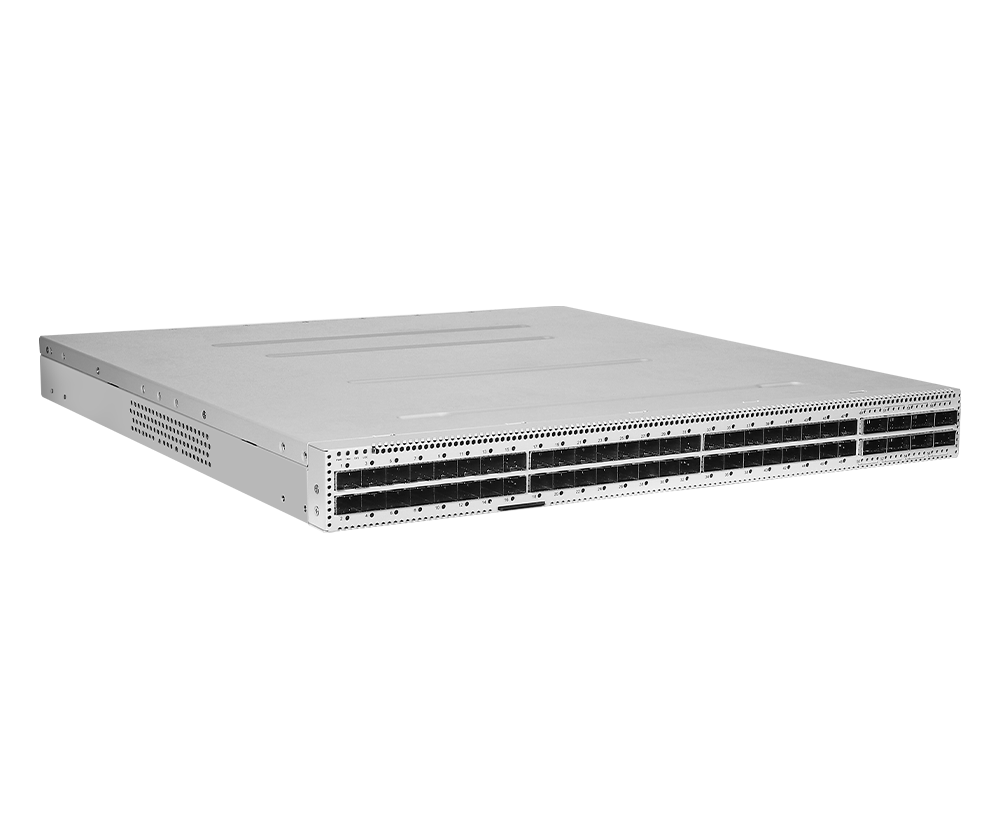

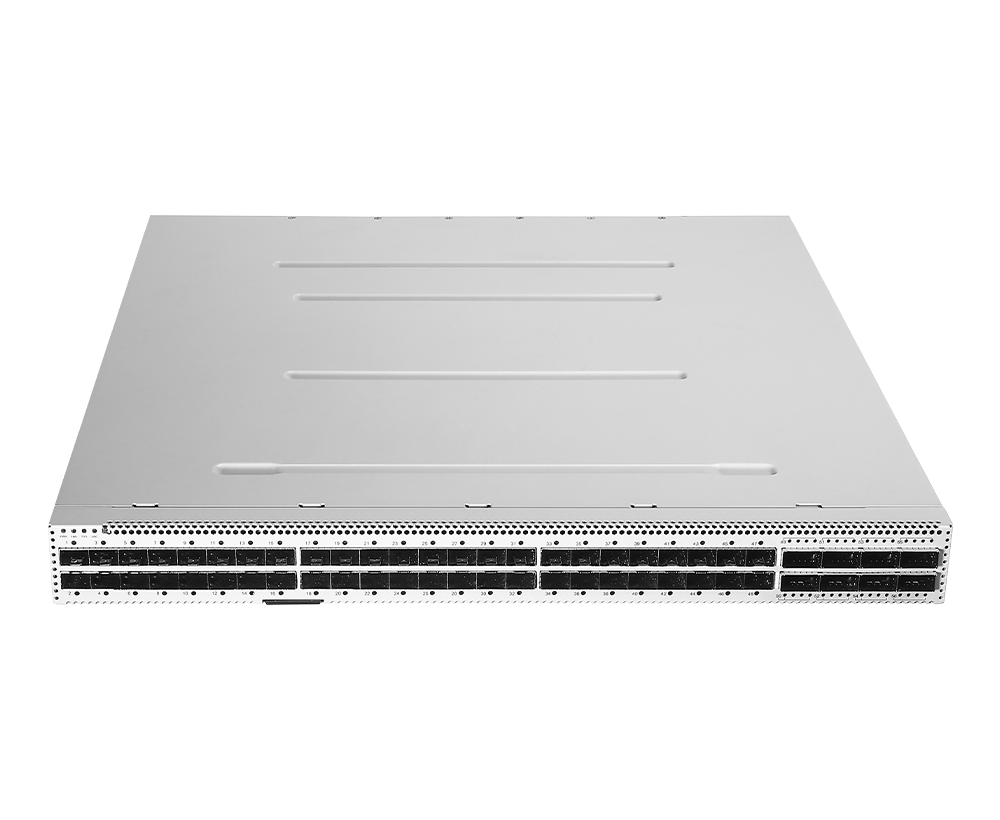

Equipped with 48 x 25G SFP28 and 8 x 100G QSFP28 ports, this compact 1RU switch delivers up to 2.0 Tbps (4.0 Tbps full duplex) of non-blocking switching capacity, ideal for high-density aggregation or core roles. Front-to-back airflow, 1+1 hot-swappable redundant power supplies, and N+1 hot-swappable fans ensure optimal thermal performance and reliability. Making it a perfect fit for micro data centers and space-constrained environments.

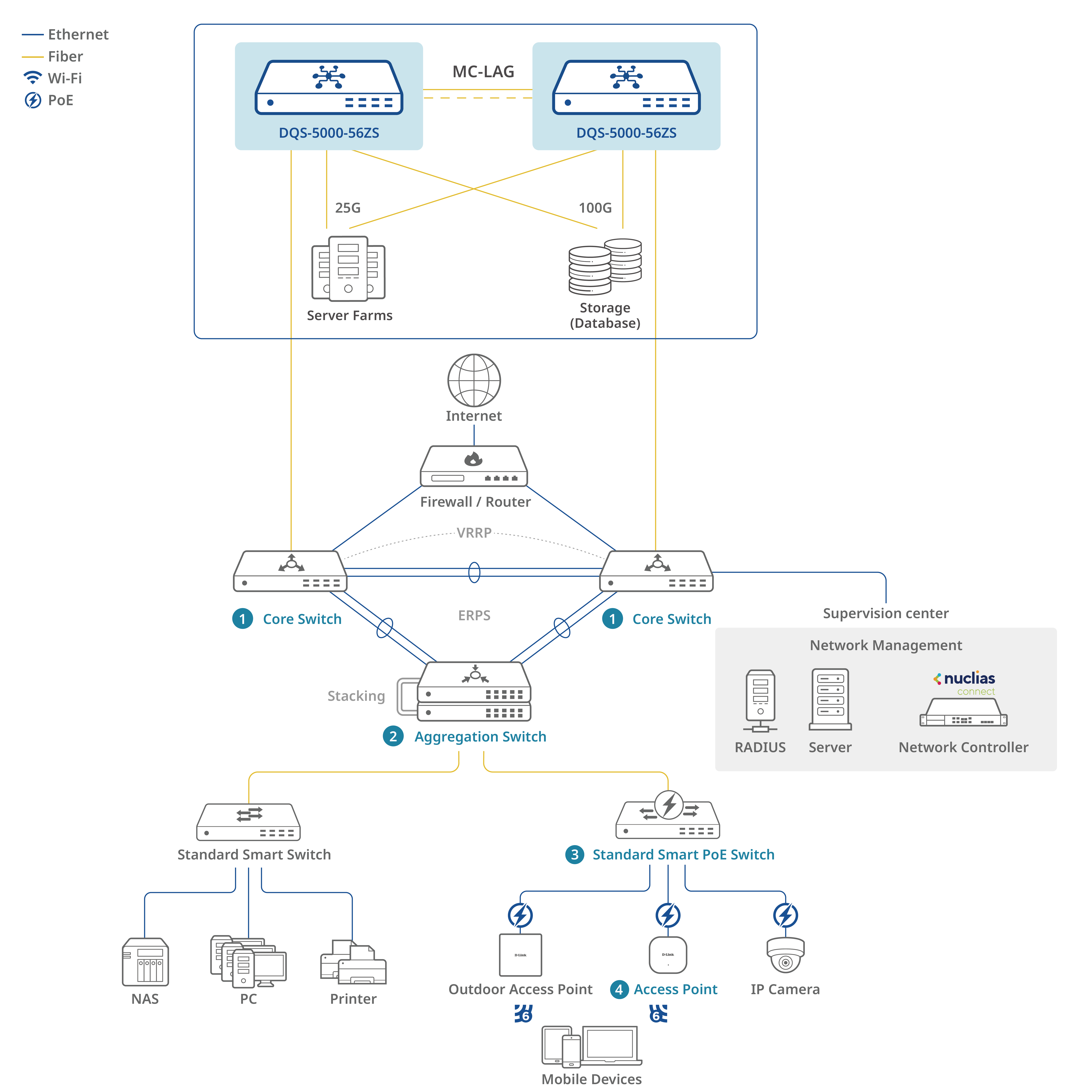

As enterprise micro data center networks become increasingly dynamic and data-intensive, soaring bandwidth demands are driving the need for high-density 25G and 100G Ethernet switching across both leaf and spine tiers to ensure seamless scalability, low latency, and optimized performance.
The DQS-5000-56ZS – Purpose-built for micro data centers, optimized for high-speed Layer 3 traffic with ultra-low latency in a compact design. It delivers the speed, scalability, and efficiency needed for agile, future-ready data centers, integrating seamlessly with Layer 3 topologies, overlay networks, and both virtualized and traditional architectures.
Traffic monitoring demands high-availability, high-performance network infrastructure. The DQS-5000-56ZS meets these needs with MC-LAG, hot-swappable PSU and fans, 25G downlinks for endpoint aggregation, and 100G uplinks for database and storage connectivity.
It ensures uninterrupted data transfer, precise data retrieval, and intelligent event-based traffic forwarding. This enables seamless connectivity across racks or sites, supporting multi-tenant environments and virtualized workloads with the following benefits :

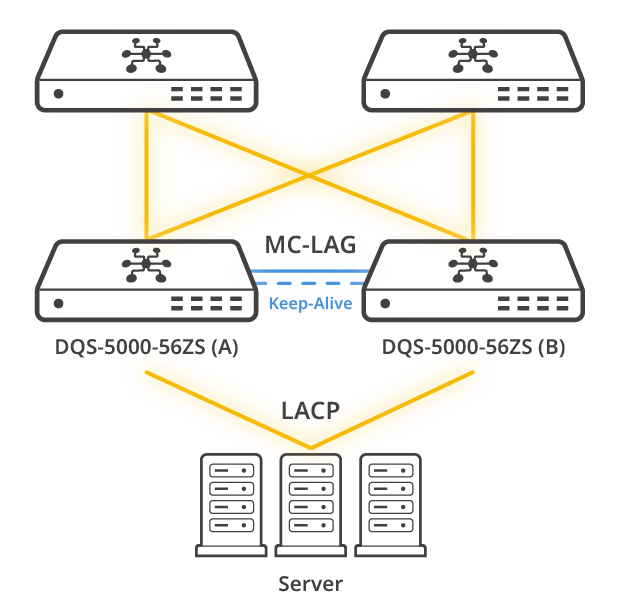

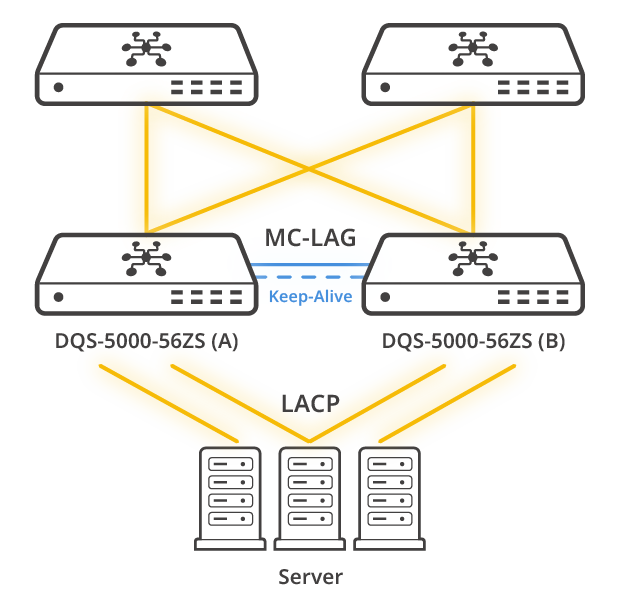

Multi-Chassis Link Aggregation Group (MC-LAG) is widely adopted in enterprise and data center networks to enhance network resiliency, bandwidth utilization, and seamless failover protection.
Unlike traditional LAG, MC-LAG allows devices to connect to two independent switches simultaneously, ensuring service continuity even if one switch becomes unavailable.
User benefits :
Learn more :
User benefits :
Learn more :
User benefits :
Learn more :
|
Interfaces
|
48 x 25G SFP28 8 x 100G QSFP28 |
|---|---|
|
Switch Capacity
|
2.0 Tbps (4.0 Tbps full duplex) |
|
Max. Packet Forwarding Rate
|
2380 Mpps |
|
Max Power Consumption
|
550W |
|
Dimensions
|
440 x 470 x 44 mm (17.32 x 18.50 x 1.73 in) |
|
Weight
|
9.7 kg |
|
Power Supply
|
CRPS, 1+1 Redundancy, Hot-Swappable |
|
FAN
|
5 (n+1) Redundancy, Hot-Swappable |
|
Operating Temperature
|
0°C - 40°C (32°F - 104°F) |
|
Operating Humidity
|
5% to 95% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
1 x 10/100/1000Base-T RJ-45 |
|
USB Port
|
1 x USB Type A |
