Easy to use web interface to access management features.
Segment your network into VLANs.
Get a snapshot of your security topology in an instant.
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

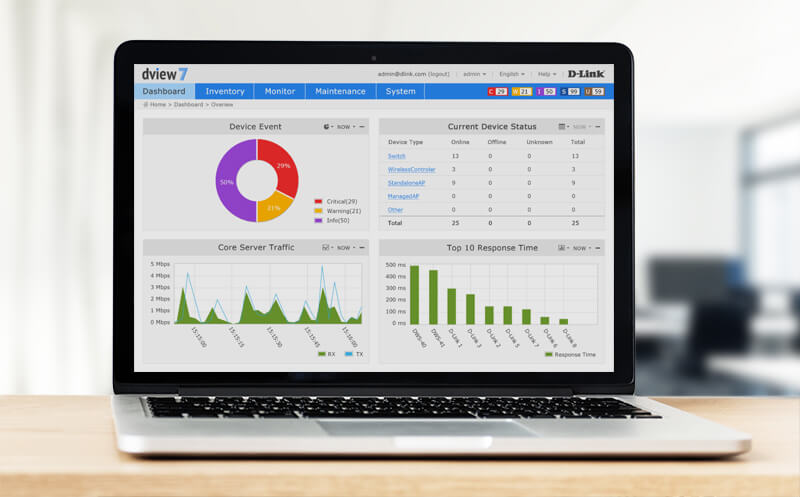

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
| Product |  DGS-1100-05V25-Port Gigabit Smart Managed Switch | DGS-1100-05PDV25-Port Gigabit PoE Smart Managed Switch and PoE Extender |  DGS-1100-08V28-Port Gigabit Smart Managed Switch |  DGS-1100-08PV28-Port Gigabit PoE Smart Managed Switch |  DGS-1100-16V216-Port Gigabit Smart Managed Switch |  DGS-1100-24V224-Port Gigabit Smart Managed Switch |  DGS-1100-24PV224-Port Gigabit PoE Smart Managed Switch |
|---|---|---|---|---|---|---|---|
| Interface |  | | | | 16 x 10/100/1000BASE-T ports | 24 x 10/100/1000BASE-T ports | 12 x 10/100/1000BASE-T PoE ports 12 x 10/100/1000BASE-T ports |
| Performance | |||||||
| Switching Capacity | | | | | | 48 Gbps | |
| Max. Packet Forwarding Rate | | | | | | 35.71 Mpps | |
| PoE | |||||||
| PoE Budget | | | | | | | 100 W (30 W max. per PoE port) |
|
Control
|
802.3x Flow |
|---|---|
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Store & Forwarding Forwading
|
Yes |
|
Comply with RoHS 6
|
Yes |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
Interfaces
|
8 x 1000Base-T Auto MDI/MDIX 8 x 10/100/1000 Mbps PoE |
|
DRAM Size
|
48K Bytes |
|
CPU Speed
|
62.5 MHz |
|
Flash Memory Size
|
2 MB |
|
Packet Buffer Size
|
1.5Mbits |
|
FAN
|
Fanless |
|
Jumbo Frame
|
9,216 Bytes |
|
MAC Address Table Size
|
4160 |
|
IGMP Snooping
|
Max 128 IGMP Snooping Groups |
|
Maximum Forwarding Rate
|
11.9Mpps |
|
Power Input
|
AC:100 ~ 240 V |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
|
Humidity
|
Operation 0%-90% RH Storage: 0% - 95% RH |
|
Operating Altitude
|
2000 m |
|
Standby Power Consumption
|
2.0 W |
|
Maximum Heat Dissipation
|
265.85 BTU/hr |
|
Acoustic
|
0 dB |
|
MTBF
|
786,841 hours |
|
VLAN
|
802.1Q VLAN Groups Port-based VLAN Voice VLAN Surveillance VLAN Asymmetric VLAN |
