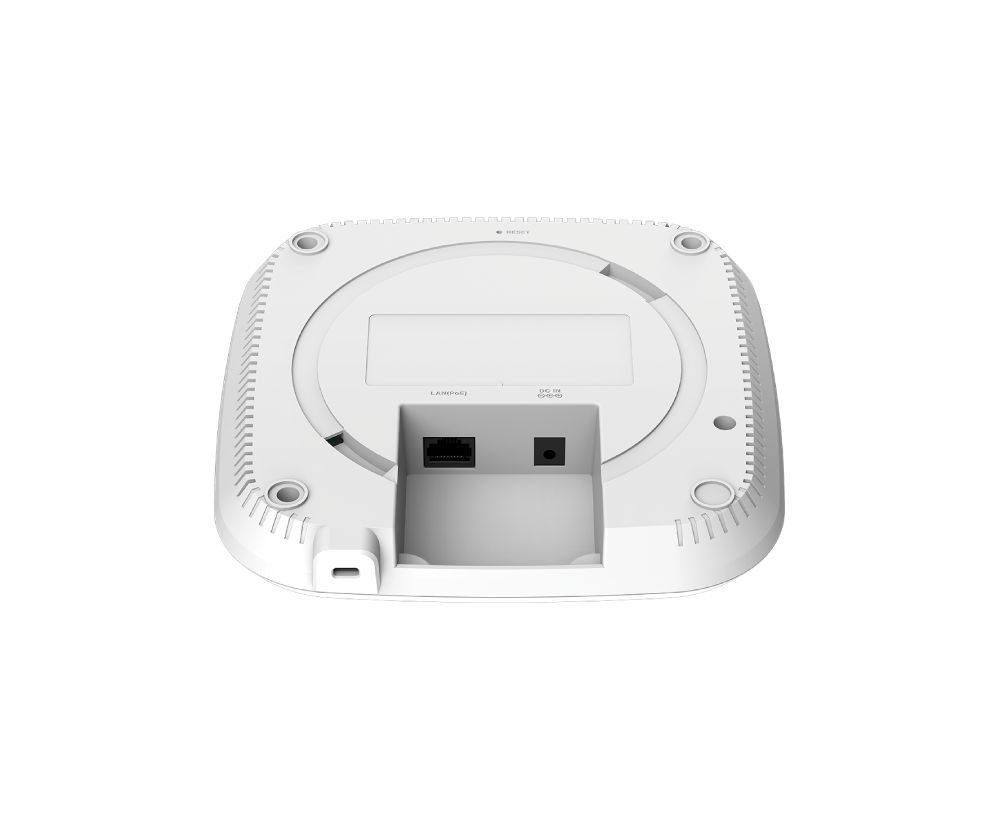

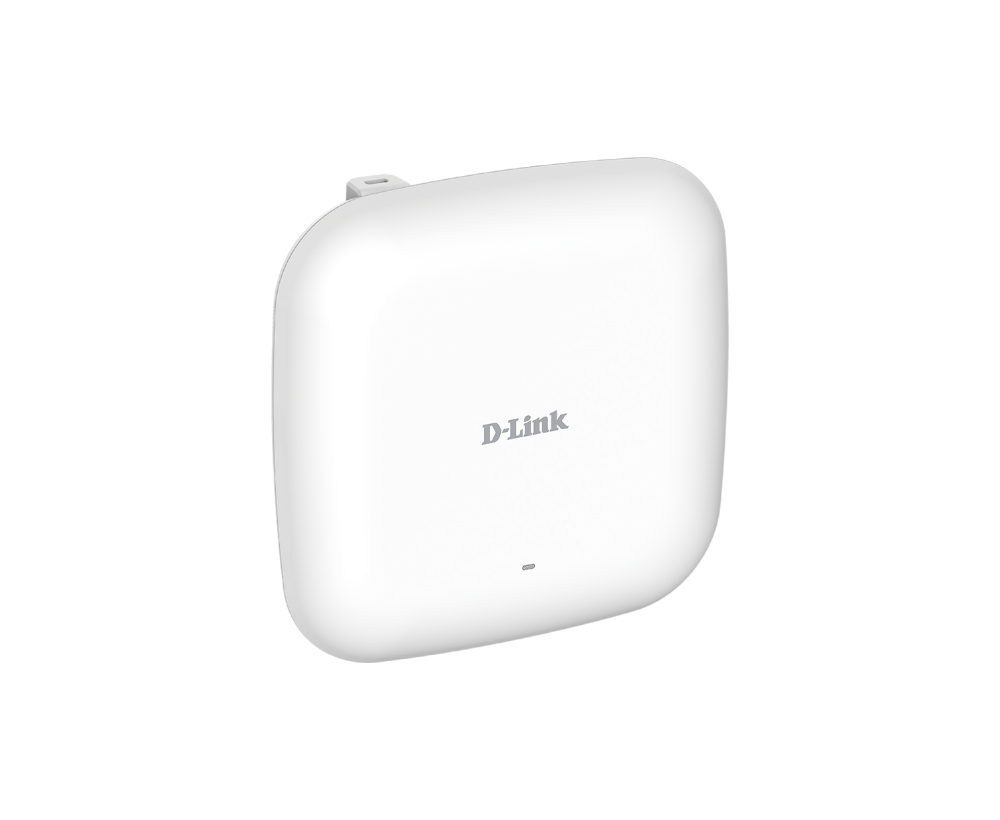

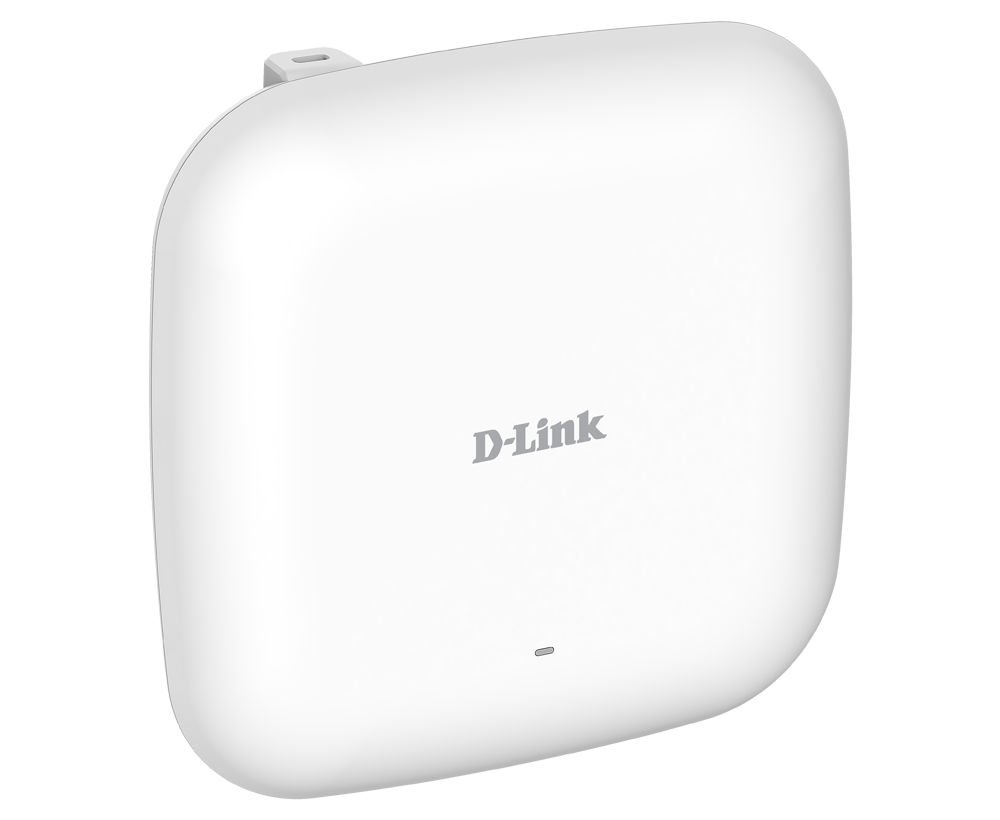

AX3000 Wi-Fi 6 Smart Access Point

DBR-X3000-AP

  • Product Status (A1_Datasheet_v1.00(WW)): Live
  • Dual-band Wi-Fi 6 speeds: up to 3 Gbps* for more smooth streaming, video calls, and connected devices

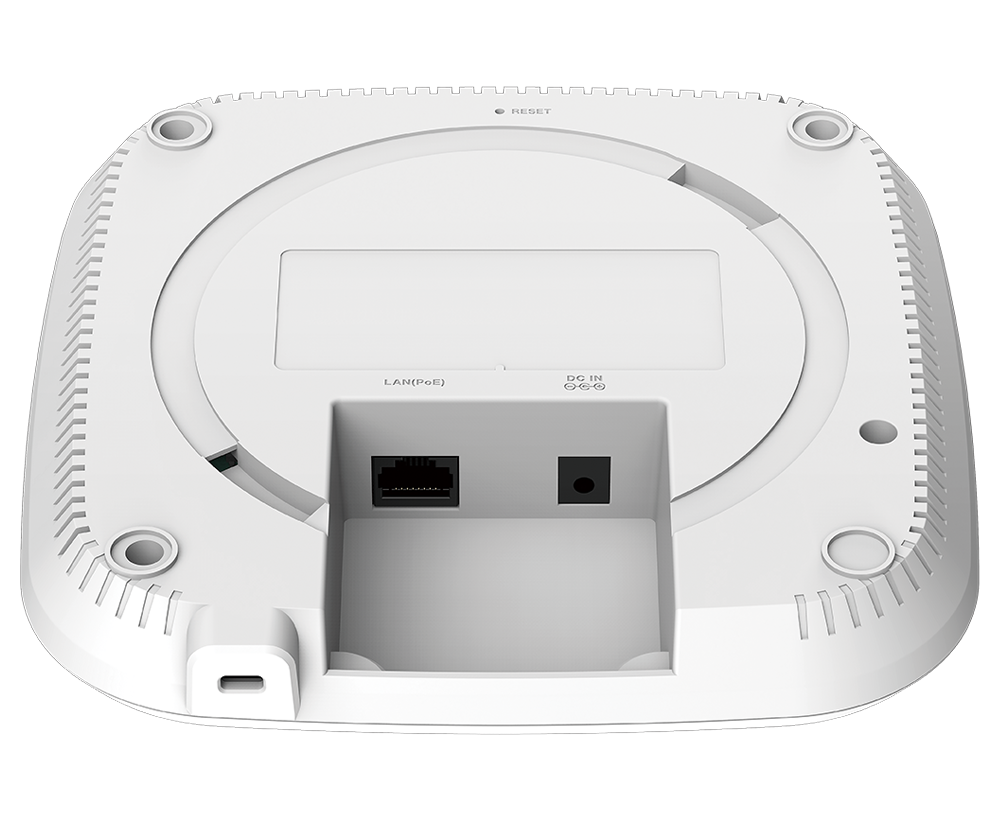

  • 1 x Gigabit PoE* LAN port (802.3af, up to 12.95W*) for power and data over a single Ethernet cable to simplify deployment

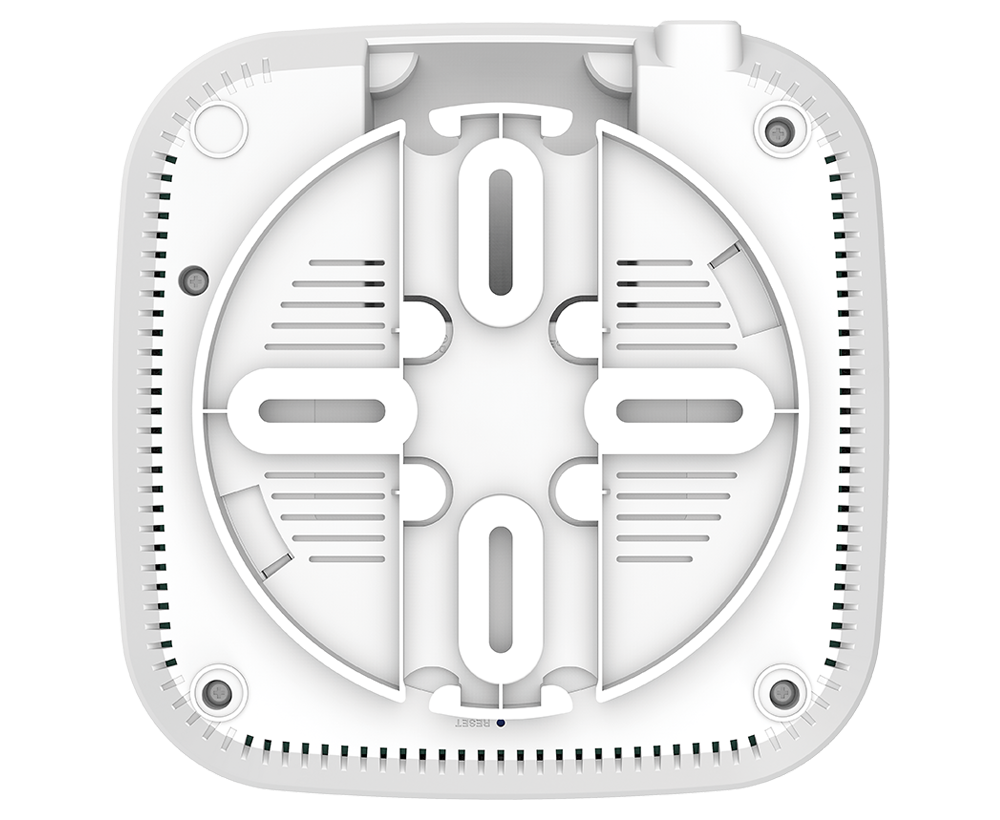

  • Wall and ceiling mount options: Compact design to fit different environments like offices, classrooms, or retail
  • Advanced wireless security with WPA3, VLAN tagging, and up to 7 SSIDs
  • Guest Wi-Fi (Guest Zone): Create up to 6 visitor networks that stay separate from your main Wi-Fi to help reduce security risks
  • Use standalone or manage centrally with DBR-600-P or DBR-700 Multi-Gig Business routers (sold separately)

Central Management with the D-Link DBR Multi-Gigabit Business Router Series  (sold separately)

  • Pair with the D-Link DBR-600-P or DBR-700 Multi-Gigabit business routers (sold separately) to centrally manage up to 10-15 D-link Smart Managed Access Points*, simplify setup, and monitor your Wi-Fi network from a single dashboard – no IT team and subscriptions required
  • Establish Mesh mode for wider coverage, keep Wi-Fi names/passwords consistent, see devices and signal health in real time, and push updates* network wide.
  • Customizable Guest Wi-Fi (Captive Portal): Set one login page (click-through, password/RADIUS, or local database), add your logo and terms once, and apply it across all managed DBR Smart Access Points
  • Business-ready backbone: Multi-WAN with intelligent failover, 2.5GbE* uplinks for higher bandwidth, built-in VPN (IPSec/WireGuard/OpenVPN), and firewall controls for enhanced security
  • NDAA/TAA: Follows NDAA/TAA for public sector and enterprise projects
  • Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty (North America) and over 39 years of networking experience

Setup Video

Download Data sheet

*Actual performance and speeds may vary and can be affected by service plan, network configuration, device/cable limitations, temperature, and other environmental conditions.
*DBR-600-P supports up to 10 DBR APs, PoE Support; DBR-700 supports up to 15 DBR APs, SFP Uplink



Where to buy

Wi-Fi 6 Access Point for More Seamless, Smarter Connectivity

The D-Link DBR-X3000-AP is an AX3000 Wi-Fi 6, PoE-powered smart access point that helps deliver fast, dependable wireless across classrooms, cafés, retail spaces, smart homes, and growing companies. One-cable installation (PoE) simplifies placement, while WPA3, VLAN tagging, and up to seven SSIDs let you separate staff, POS, IoT, and guests. Guest Wi-Fi keeps visitors off your main network to help reduce security risks, so everyday work, streaming, and video calls stay smooth and consistent. Use standalone or manage centrally with a D-Link DBR Multi-Gig Business Router (sold separately).

Central Management with the D-Link DBR Multi-Gig Business Routers (sold separately)

Pair with a D-Link DBR Multi-Gig Business Router to easily deploy more secure, high-speed connectivity with centralized management and built-in VPN. From one dashboard, discover and manage up to 10–15 DBR-X3000-AP Smart Access Points*, keep Wi-Fi names and passwords consistent, set one customized guest login across every AP, see devices and signal health in real time, and push security/firmware updates across the network - no extra licenses or subscriptions required.

You can also enable mesh with seamless roaming to extend coverage as people move, while the routers provide a resilient backbone with multi-WAN failover, 2.5GbE* uplinks for multi-gig internet, and firewall tools to help protect remote work and business data. Choose the DBR-600-P model when you want PoE on board to power APs, cameras, phones, and POS over existing cables; choose DBR-700 model when you need a 2.5GbE SFP* uplink and multi-gig LAN for flexible fiber and high-bandwidth connections across larger or multi-building sites.

*DBR-600-P provides PoE; DBR-700 includes a 2.5GbE SFP uplink (non-PoE). AP count is model-dependent (DBR-600P up to 10, DBR-700 up to 15). Actual performance may vary based on service plan, network design, cabling, and environment.



Wi-Fi 6 Ready

Provides high efficiency and low latency, offering nearly 4x the capacity of previous Wi-Fi standards

Seamless Coverage

Easily expand coverage with mesh nodes, eliminating dead zones for seamless connectivity

Flexible Installation

Supports PoE for easy deployment, with wall-mount and ceiling design options for space efficiency

Worry-free Public Network

WPA3 encryption enhances network security, making browsing safer even in public spaces

Exclusive Guest Wi-Fi

Offers dedicated, secure network access to visitors without affecting the performance of the main network

Easy Management

Integrated with DBR Series routers for real-time monitoring and effortless device management

Boosts Your Business with Advanced Wi‑Fi 6

Powered by Wi-Fi 6 and dual-band technology, the DBR-X3000-AP helps move data quickly and keep video calls smooth while serving many devices at the same time. MU-MIMO and OFDMA help increase capacity, supporting a more responsive experience in busy classrooms, cafés, retail spaces and growing companies.

Mbps*

Channels*

2.4GHz / 5GHz*

802.3at*

Multi-Gig Power.
Smarter Control.

Pair the D-Link DBR-X3000-AP Access Points  with a D-Link DBR Multi-Gig Business Router to easily deploy more secure, high-speed connectivity with centralized management and built-in VPN. From one dashboard, discover and manage up to 10–15 DBR-X3000-AP Smart Access Points*, keep Wi-Fi names and passwords consistent, set one customized guest login across every AP, see devices and signal health in real time, and push security/firmware updates across the network - No IT Team or subscriptions required.

You can also enable mesh with seamless roaming to extend coverage as people move, while the routers provide a resilient backbone with multi-WAN failover, 2.5GbE* uplinks for multi-gig internet, and firewall tools to help protect remote work and business data. Choose the DBR-600-P model when you want PoE on board to power APs, cameras, phones, and POS over existing cables; choose DBR-700 model when you need a 2.5GbE SFP* uplink and multi-gig LAN for flexible fiber and high-bandwidth connections across larger or multi-building sites.


Explore the DBR Multi-Gig Business Routers

Enterprise-Level Security, Without the Complexity

The D-Link DBR Multi-Gig Business Routers (sold separately) give small and midsize businesses centralized management and advanced protection without adding complexity. A built-in SPI firewall with IDS/IPS, URL filtering, and authentication features helps guard against unwanted traffic, while flexible VPN options (including IPsec, L2TP, PPTP, and WireGuard) use encryption to support safer remote connections and help protect sensitive business data. With multi-WAN failover, 2.5GbE* uplinks for multi-gig internet, and easy access point management from a single dashboard, the DBR series provides a strong, reliable backbone for daily operations.

Paired with the DBR-X3000-AP Access Points , you can deliver Wi-Fi 6 performance with WPA3 security, VLAN tagging, customizable guest networks, and centralized mesh management. Together, the DBR routers and DBR-X3000-AP bring high-speed connectivity, simple scaling, and professional guest Wi-Fi, managed your way, all in one place.

Quick to Deploy and Manage

Whether you’re running a classroom, supermarket, boutique villa resort, café, clinic, retail chain, or growing company, the DBR Multi-Gig Business Routers help you connect, enhance, and scale your network—without an IT department or subscription fees. Setting up and managing the DBR-X3000-AP is straightforward and especially when integrated with the D-Link DBR Multi-Gig router series. From one intuitive dashboard, you can centrally control all access points, monitor your network in real time, and troubleshoot with ease, freeing up resources so your team can focus on what matters most.

Related Products

Multi-Gig PoE+ Business Router
DBR-600-P
Find out more
Multi-Gig Business Router with SFP
DBR-700
Find out more

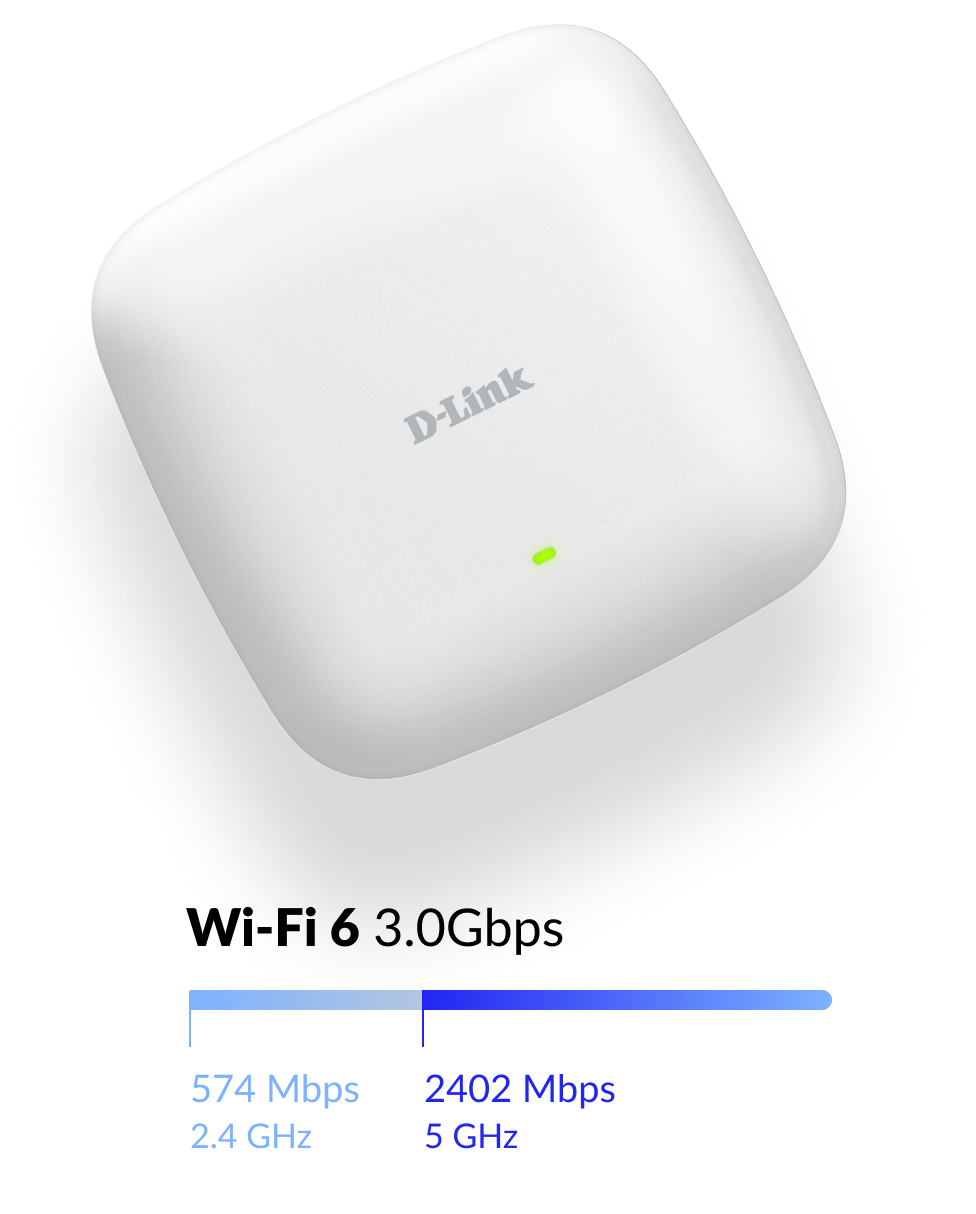

DBR-X300-AP | Wi‑Fi 6 performance that helps turbo boost your business

Wi-Fi 6.

Dual-band Wi-Fi 6 speeds up to 3 Gbps* help keep streaming, video calls, and everyday work moving. 1 × Gigabit PoE LAN (802.3af, up to 12.95W)* supports one-cable installs, and the compact wall/ceiling-mount design fits offices, classrooms, and retail. WPA3, VLAN tagging, and up to seven SSIDs support smarter segmentation, while Guest Wi-Fi (Guest Zone) lets you create visitor networks separate from your main Wi-Fi to help reduce security risks. Use standalone - or manage centrally with DBR-600P/DBR-700 Multi-Gig Business Routers (sold separately) for one-dashboard control.

Learn more about Wi‑Fi 6

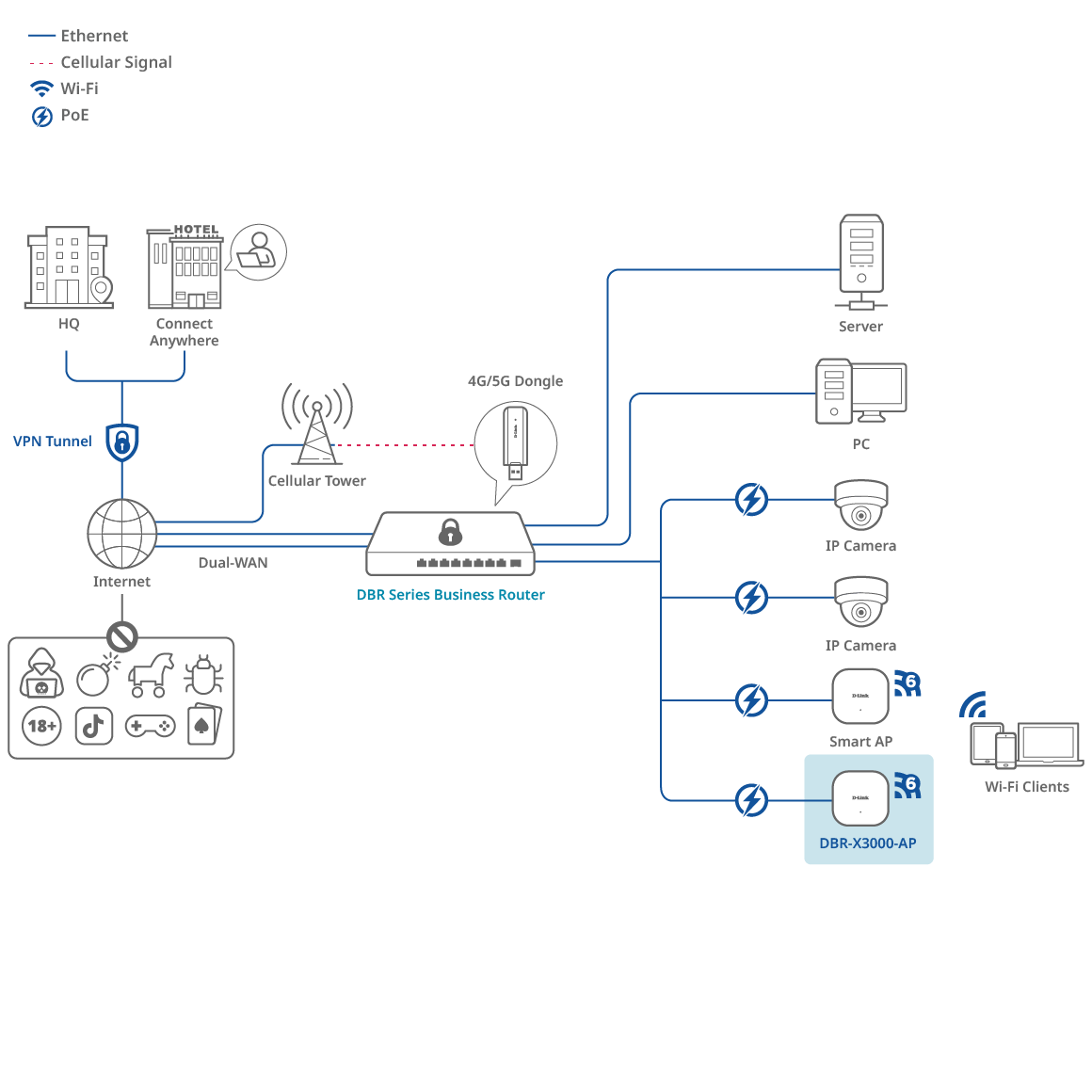

Connection Diagram

Discover the DBR-X3000-AP smart access point's capabilities through our detailed topology diagram.
Engineered for high performance, robust security, and efficient network management, D-Link’s Smart AP leverages Wi-Fi 6 dual-band technology with PoE support to deliver fast, reliable connectivity. The WPA3 Personal/Enterprise and Guest Wi-Fi feature isolates traffic to safeguard sensitive data, reducing security risks, while centralized management through D-Link business routers ensures effortless deployment and control. With advanced mesh technology, it enables flexible and rapid network expansion throughout a building. Designed for small to medium-sized businesses, the DBR-X3000-AP ensures smooth, high-performance internet access for multiple users and devices.

Applications

Small Office (Enterprise)

Hotel (Building)

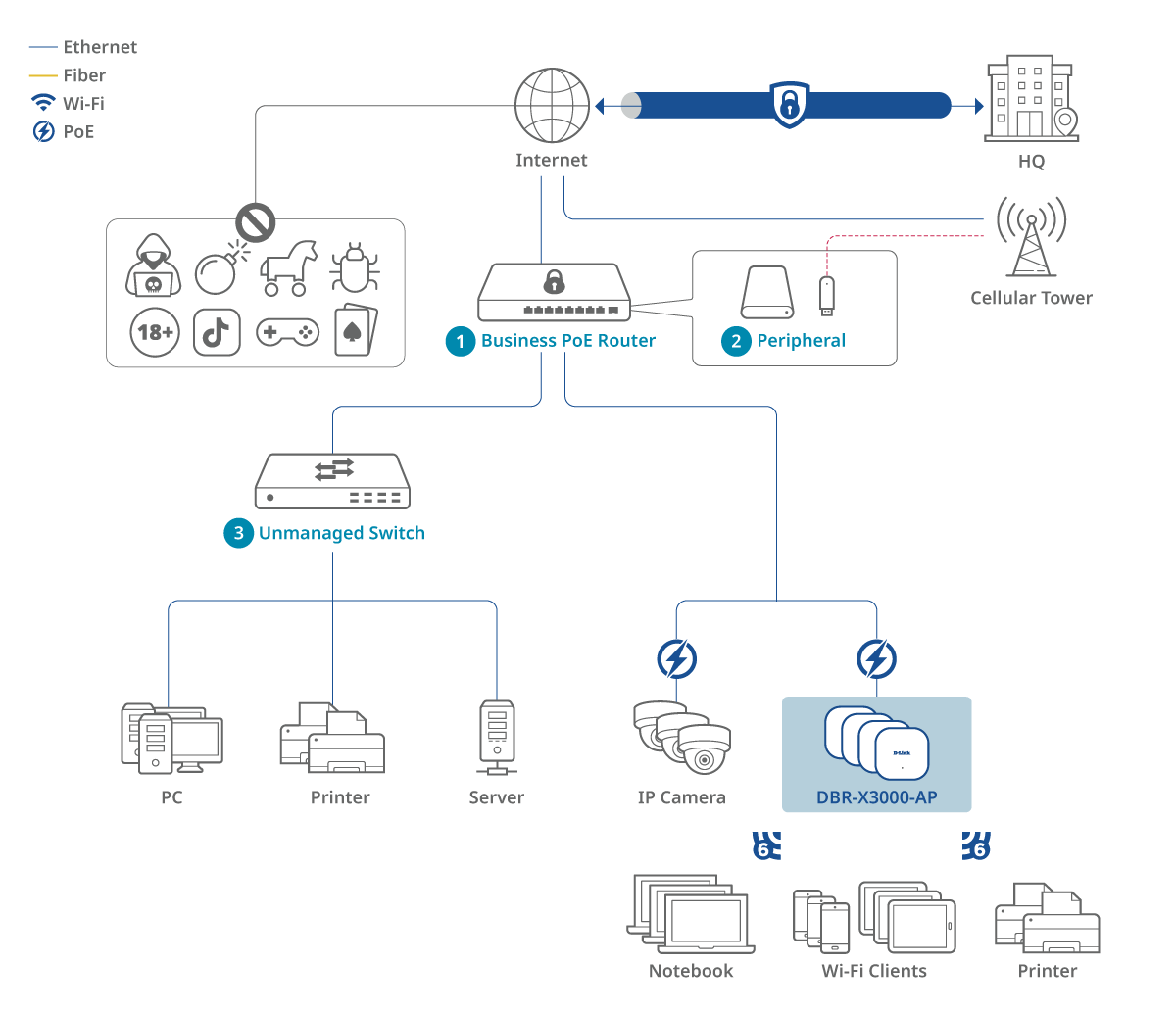

Small Office (Enterprise)

User benefits :

  • Wi-Fi 6 high-speed connectivity for enhanced productivity
  • Ensures secure remote access with robust protection
  • User-friendly web UI simplifies configuration and setup
  • Easily expands Wi-Fi coverage with multiple mesh nodes
  • Advanced Guest Wi-Fi for main network protection

Learn more :

  1. Business PoE Router : DBR-600-P
  2. Peripheral : D501 (Coming Soon)
  3. Unmanaged Switch : DMS-1016

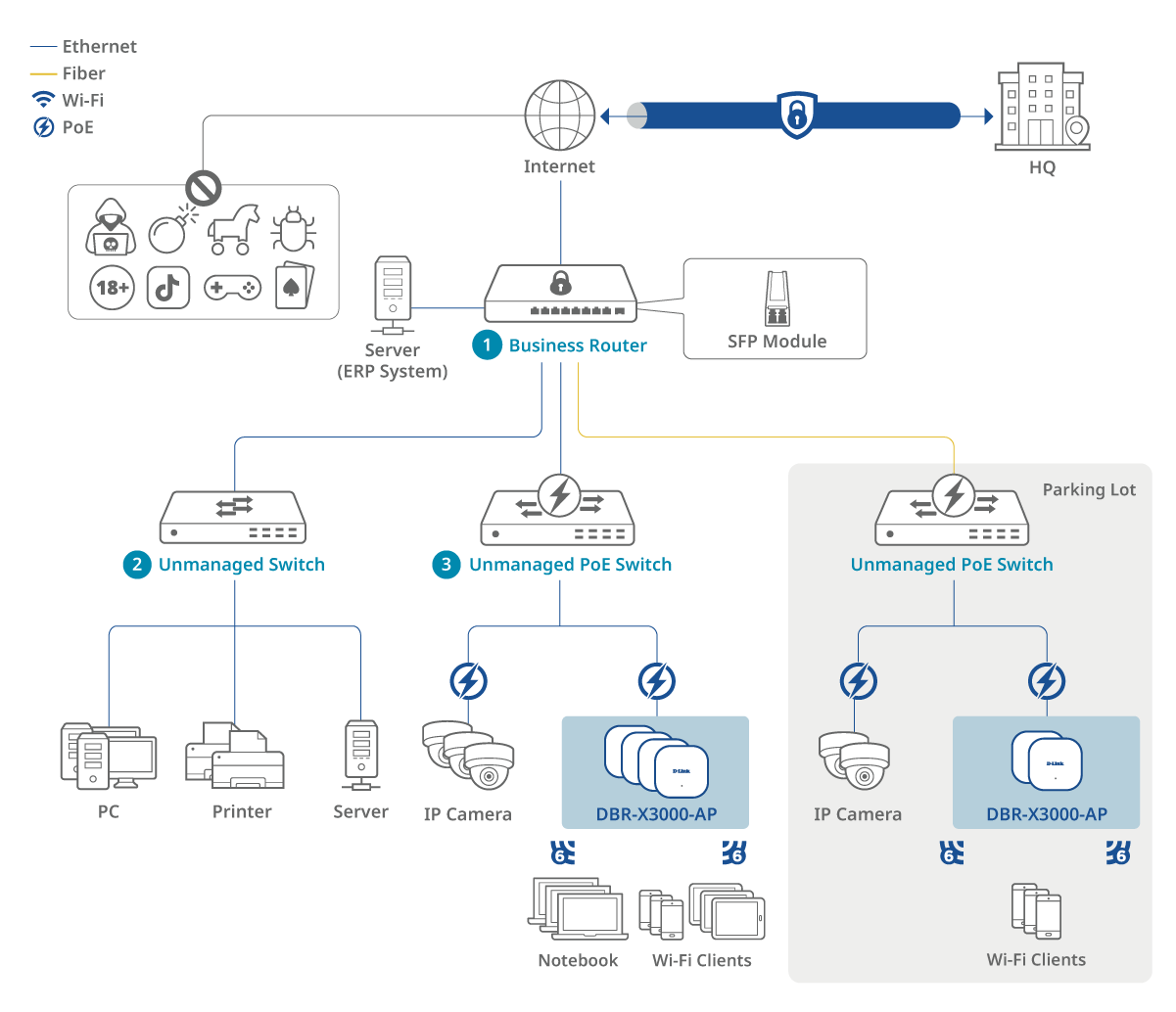

Hotel (Building)

User benefits :

  • 2.5G high-speed connectivity for efficient operations
  • Offers seamless coverage with advanced mesh technology
  • Enhanced security ensure a secure browsing experience
  • Captive portals control user access and enhance security
  • Manage and monitor access points through a central platform

Learn more :

  1. Business Router : DBR-700
  2. Unmanaged Switch : DMS-1024
  3. Unmanaged PoE Switch : DMS-108P

Specification

Wireless Standard
802.11ax Wi-Fi 6
Frequency band mode
2.4G,5G Dual-band simultaneous
Wireless Speed
2402 Mbps 5GHz
574 Mbps 2.4GHz
Antenna gain
3 dBi for 5GHz
4 dBi for 2.4GHz
MIMO
2.4G : 2T 2R
5G : 2T 3R
Interfaces
1 x Gigabit Ethernet LAN
PoE Standard
IEEE802.3at

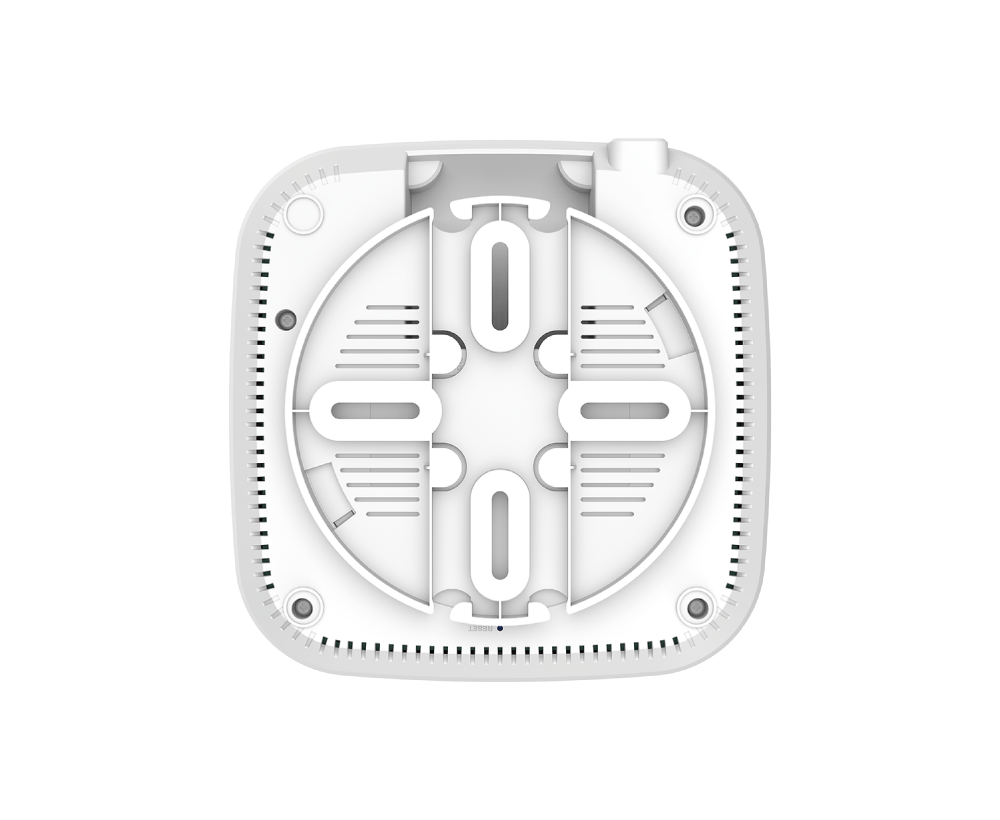

Mounting
Wall/Ceiling
Support Mode
AP, Extender Mode
Wi-Fi Security
WPA/WPA2/WPA3 Enterprise
WPA/WPA2/WPA3 Personal
Multiple SSID
Up to 7 per device
Guest Mode
Yes
Central Management
Managed by DBR-600-P/DBR-700
Captive Portal
Click Through, Local DB when managed by DBR-700 /DBR-600-P
Dimensions
170 x 170 x 28 mm
Operating Temperature
0 - 40 °C (32 - 104 °F)
Storage Temperature
-10˚C to 70˚C (-4˚F to 158˚F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
