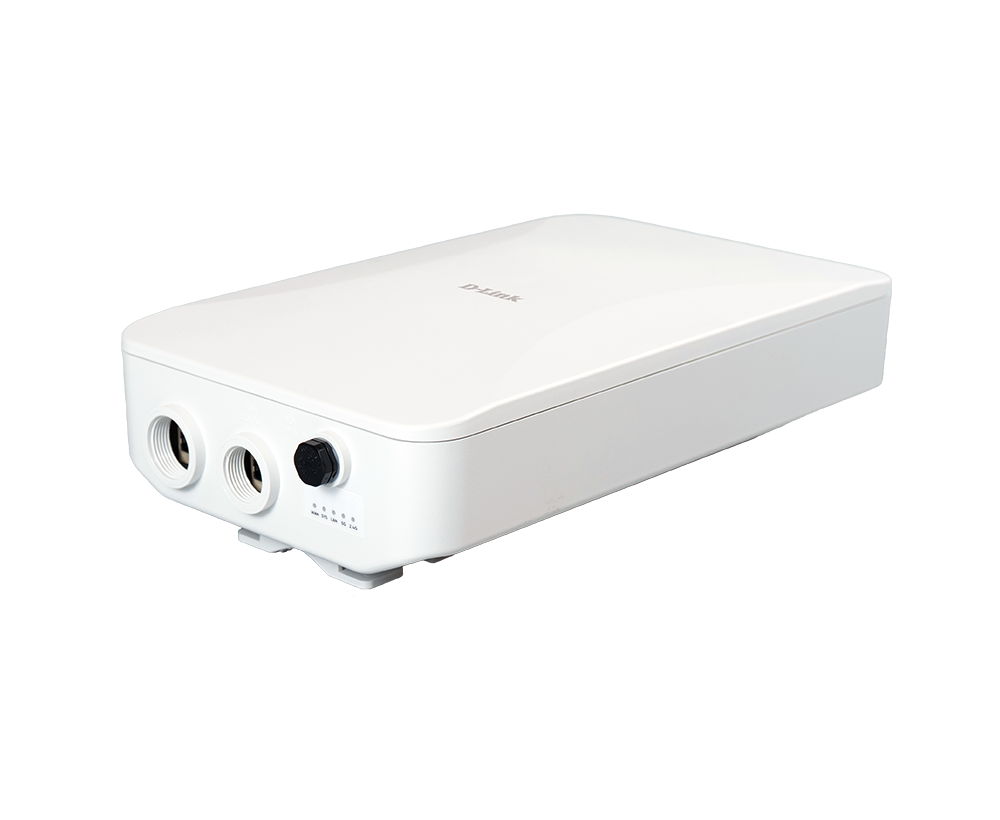

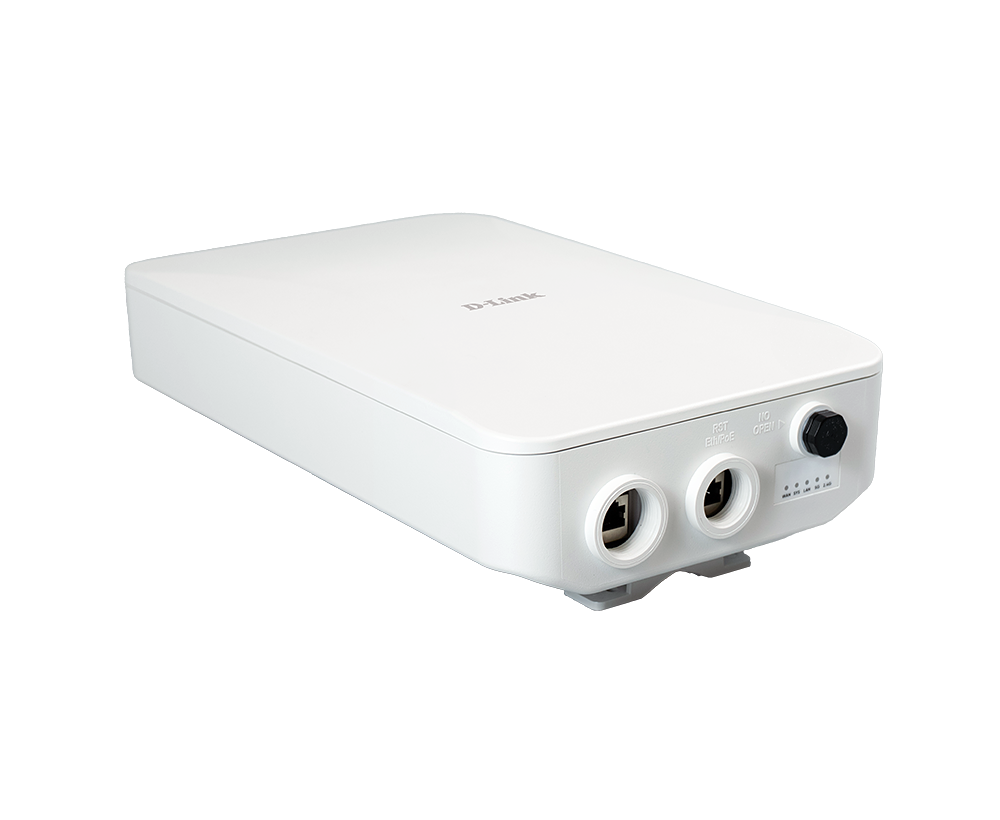

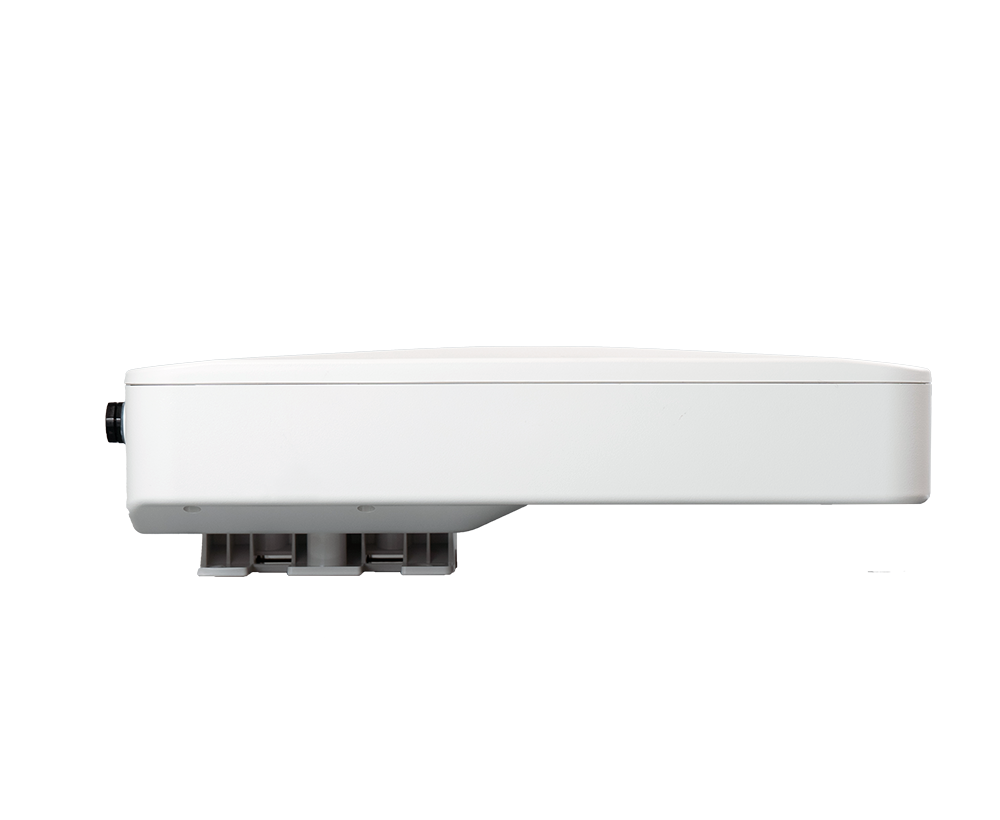

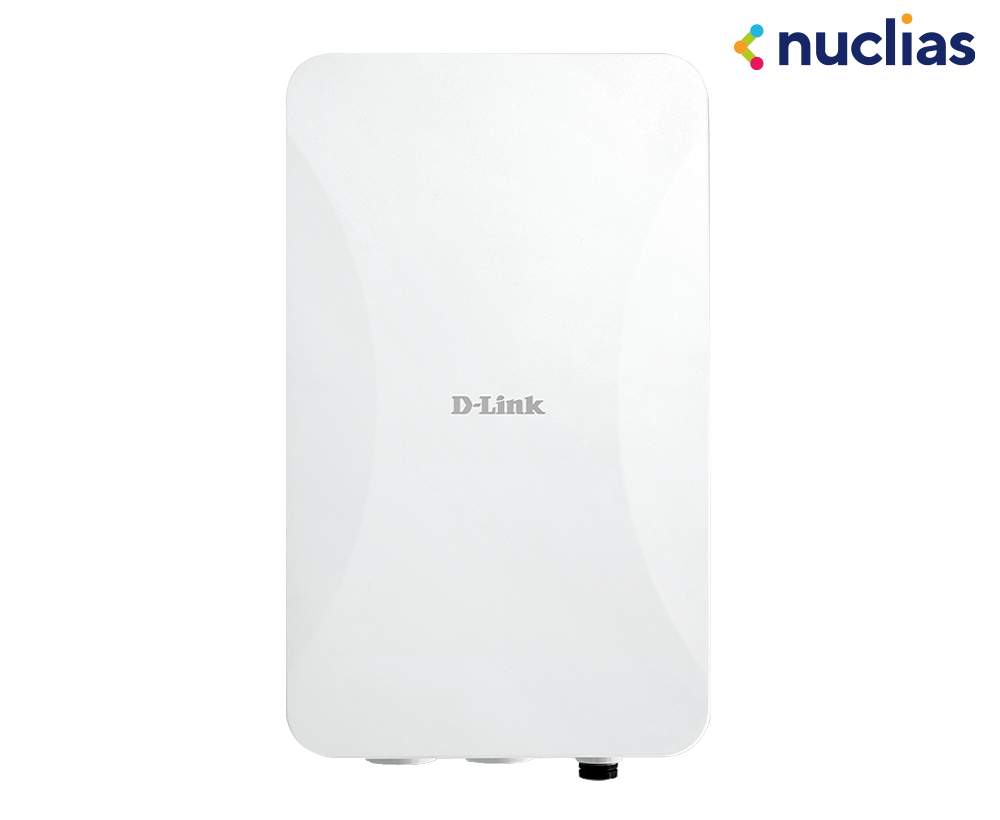

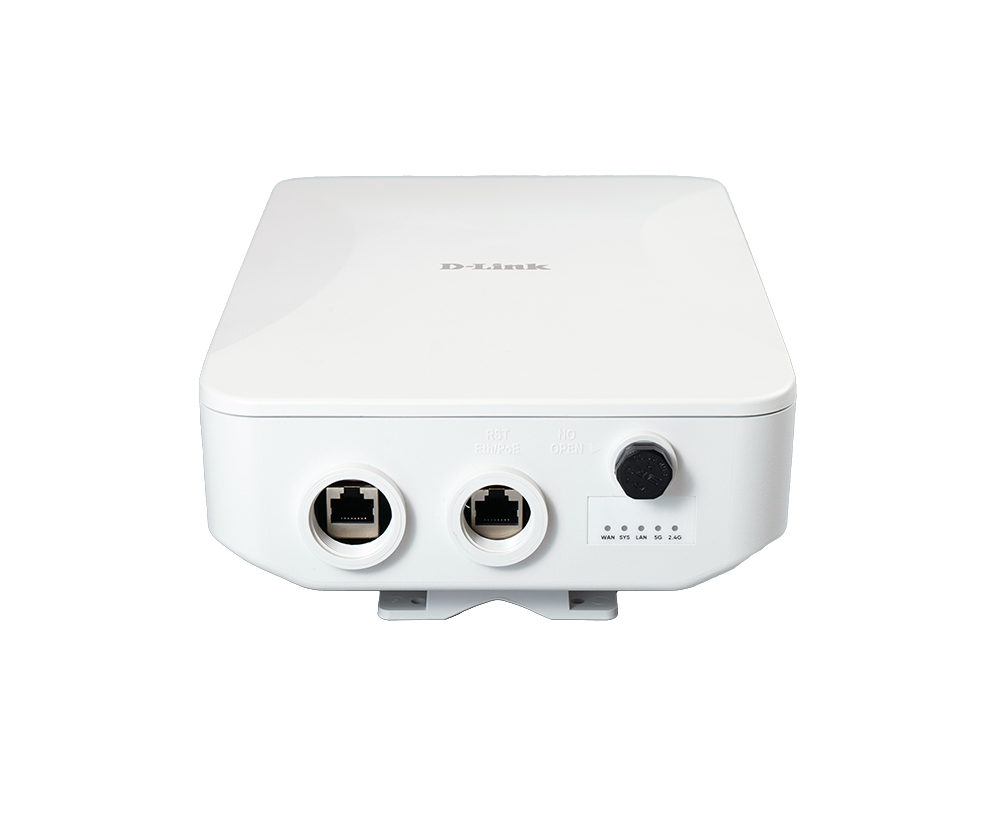

BE3600 Wi-Fi 7 Outdoor Access Point
DAP-E3620OU
- Product Status (Revision A): Live
- High-speed BE3600 dual-band Wi-Fi 7 connectivity
- OFDMA + MU-MIMO boosts multi-user efficiency
- 2.5GbE uplink eliminates wired bottlenecks
- Single-cable PoE+ deployment for faster installation
- Optimised RF design for stable outdoor coverage
- Enterprise-grade WPA3 security protection
- Traffic segmentation via SSID-to-VLAN mapping
- Rugged weather-resistant for harsh environments
- Centralised management through Nuclias Unity
- Easy management via Nuclias HW/SW controllers
Where to buy
User Benefits
Wi-Fi 7 Technology
Dual-band Wi-Fi 7 (802.11be), BE3600 class (2×2 + 2×2), delivering lower latency and higher efficiency for multi-user traffic
Rugged Outdoor Design
IP67-rated weatherproof design for reliable outdoor deployment and built for harsh environments with reduced maintenance
Customisable Captive Portal
Per-SSID captive portal support enables branded guest access, promotions, and flexible login workflow
VLAN per SSID
Each SSID to a dedicated VLAN for traffic segmentation, enabling simple separation of networks through policy-based control

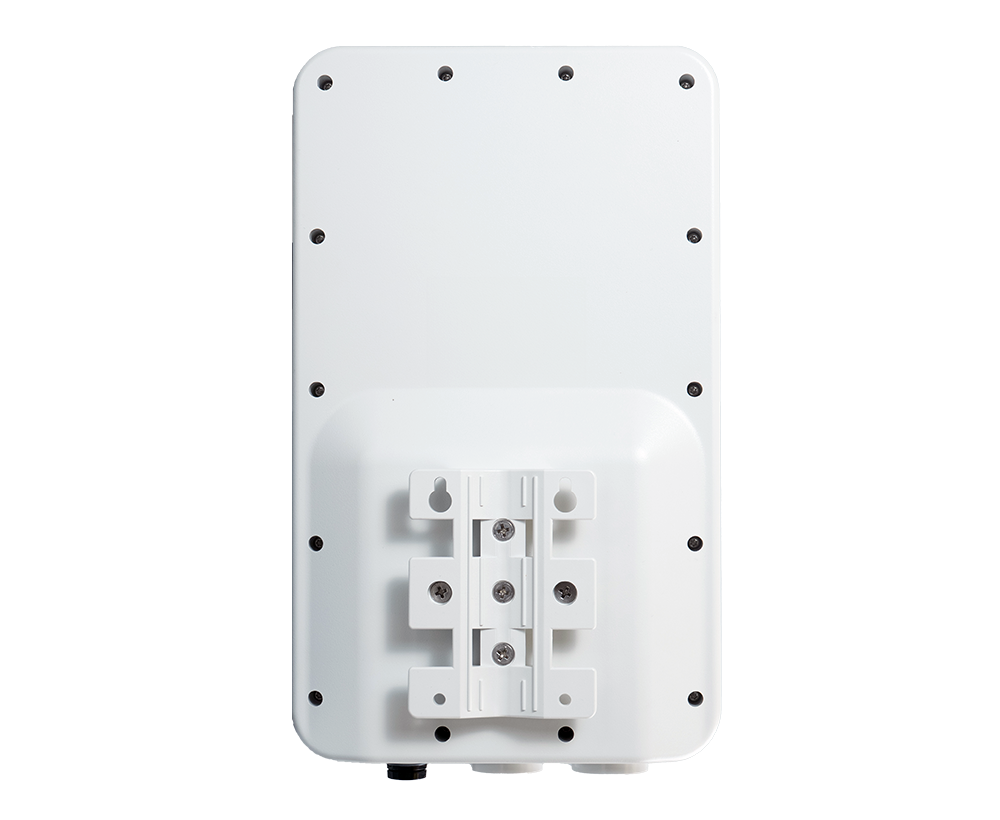

Protection and Mounting
Flexible mounting options combined with durable protection ensure reliable installation and long-term performance
Centralised Management
Centralised management through Nuclias Unity or Nuclias hardware/software controllers (DNH-1000, DNC-5000)
Faster Wireless,
Better Business Experiences
Better Business Experiences
- Experience next-generation dual-band Wi-Fi 7 (BE3600 class) built for modern business networks, delivering faster speeds, lower latency, and more reliable connectivity.

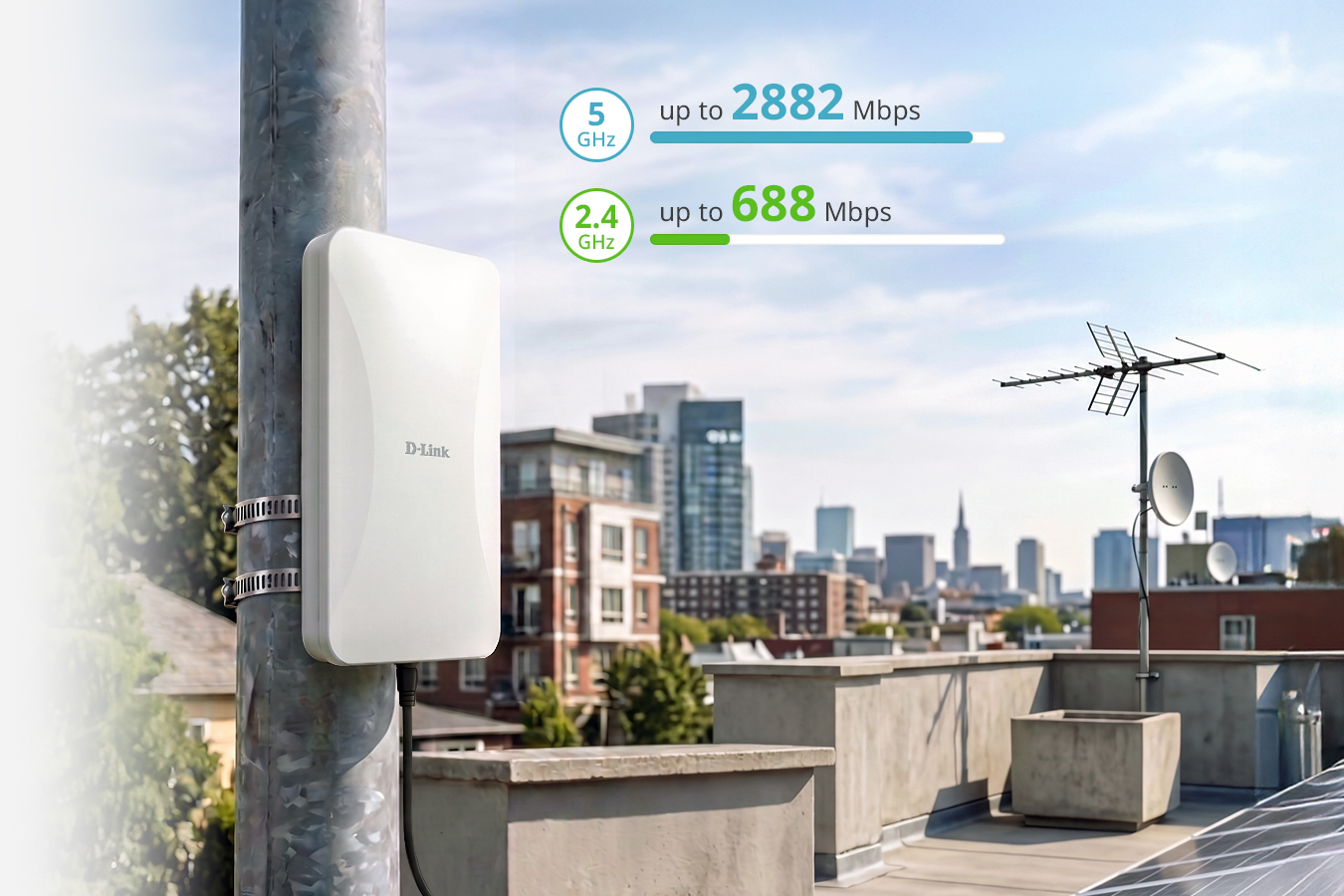

- With up to 5 GHz up to 2882 Mbps and 2.4 GHz up to 688 Mbps, businesses gain high-capacity performance for productivity, collaboration, and everyday wireless connectivity.
- Advanced 4K-QAM improves throughput and device capacity, while Multi-Link Operation (MLO) enhances responsiveness and reliability in busy environments.
- Designed for resort garden, school campus, public square and outdoor application,
it provides stable, scalable wireless performance for staff, guests, and connected
devices-helping improve productivity, user experience, and operational efficiency.
Outdoor Wi-Fi 7 That Braves the Elements
Engineered for harsh environments, the DAP-E3620OU delivers blazing Wi-Fi 7 (BE3600) speeds inside a fully weatherproof chassis built for year-round reliability. Its IP67-rated enclosure and wide temperature tolerance keep connections stable through pouring rain, scorching heat, and freezing cold. With a 2.5GbE PoE uplink, you can place it anywhere without worrying about power outlets—perfect for campuses, factories, public plazas, and outdoor dining areas.

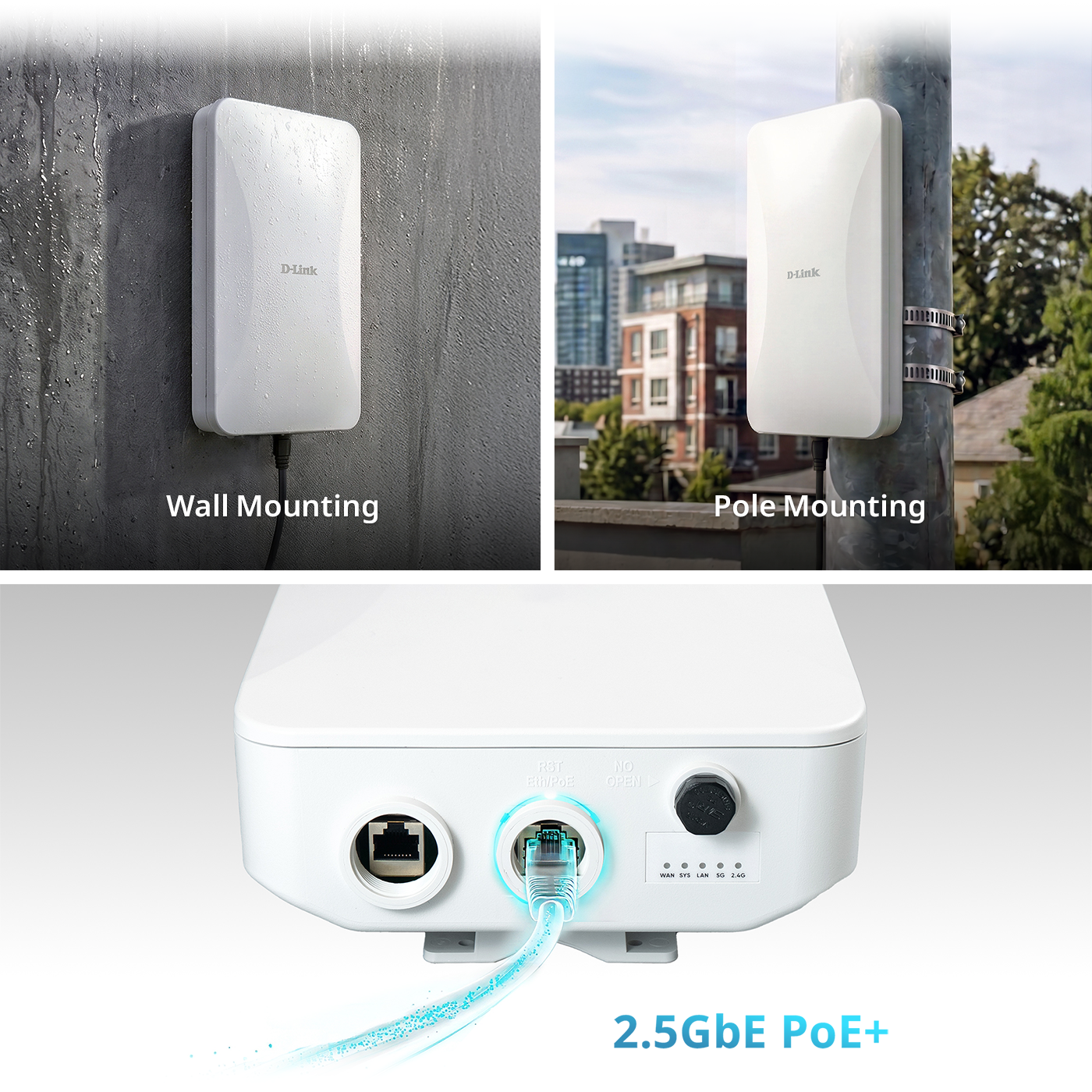

Easy Installation & High-Speed Deployment
The DAP-E3620OU features a single-cable 2.5GbE and PoE+ connection, delivering both power and high-speed data through one Ethernet cable. This simplifies installation, reduces cabling complexity, and enables more flexible device placement in outdoor environments where power access may be limited.
With high-speed 2.5GbE backhaul support, the wired network can fully support Wi-Fi 7 performance without bottlenecks, ensuring smooth connectivity for bandwidth-intensive applications and wireless deployments.

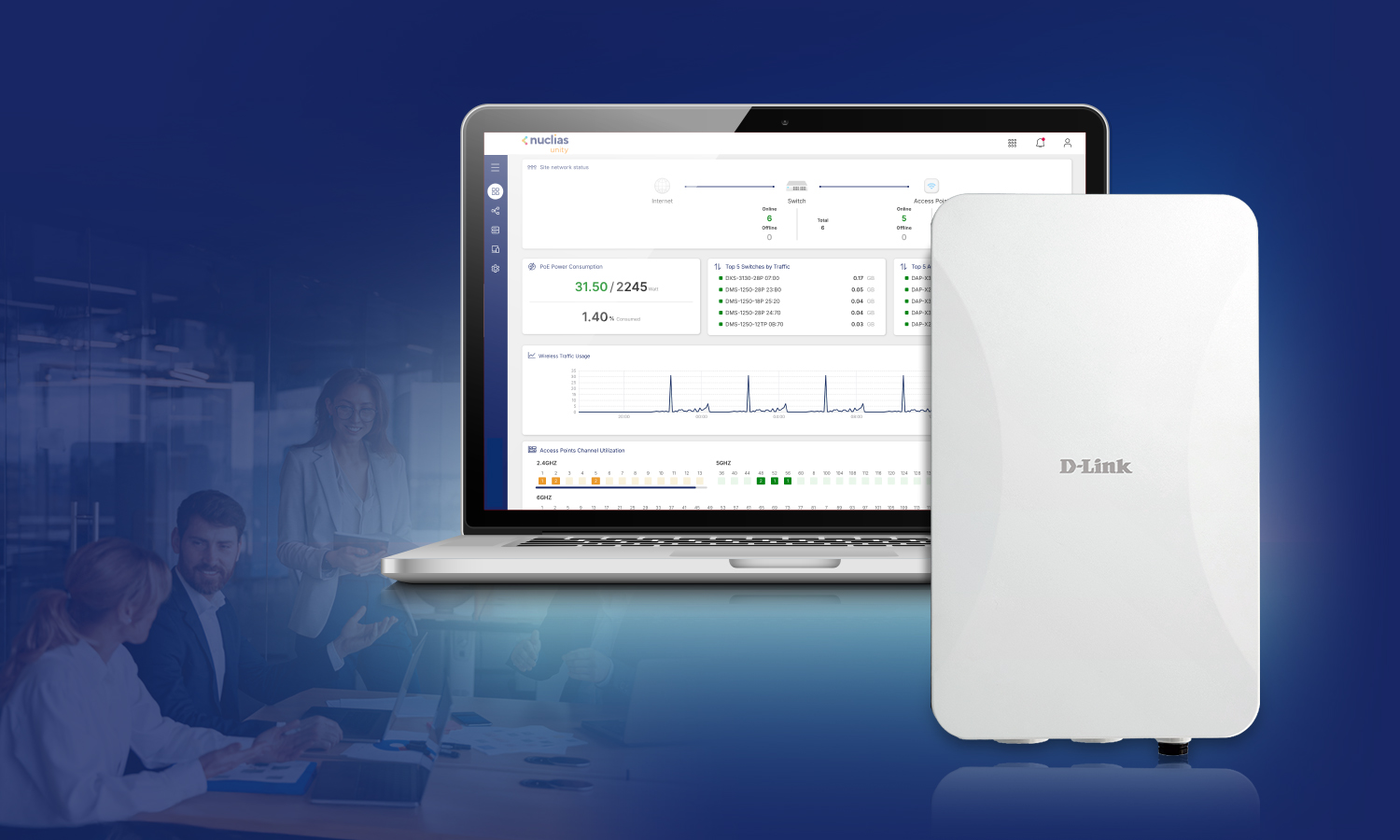

Simplified Centralised Network Management
- The DAP-E3620OU integrates seamlessly with D-Link Nuclias Unity and Nuclias hardware and software controllers, including the DNH-1000 and DNC-5000, to streamline Wi-Fi management for growing business networks.
- Through an intuitive dashboard, IT teams can quickly provision access points, enforce SSID and VLAN policies, deploy firmware updates, and monitor network health across sites. Centralised visibility and configuration simplify deployment, accelerate troubleshooting, and reduce routine maintenance, making it easy to scale from small installations to enterprise environments with consistent performance and security.
Related Products
BE9500 Wi-Fi 7 Ceiling Mount Access Point
DAP-E9560
BE3600 Wi-Fi 7 Ceiling Mount Access Point
DAP-E3620
SME (Enterprise)
User benefits :
- More stable connectivity for busy outdoor client areas
- 2.5GbE uplink helps avoid backhaul bottlenecks
- Single-cable PoE installation for faster rollout and cleaner cabling
- Rugged weatherproof design for year-round operation
- Strong security with WPA3 and SSID/VLAN segmentation
Learn more :
- Standard Smart Switch : DXS-1210-12SC
- Management Platform : Nuclias Unity or DNH-1000
- Standard Smart PoE Switch : DMS-1250-18P
- Standard Smart Switch : DGS-1250-28X
Access Point : DAP-E3620
Department Store (Business)
User benefits :
- Stable connectivity for staff handhelds and operational devices
- Sustains performance during peak hours and events
- Consistent coverage with optimised antennas for open spaces
- Secure guest access with captive portal and network isolation options
- Weatherproof build reduces downtime and maintenance
Learn more :
- Aggregation Switch : DXS-3130-32S
- Management Platform : Nuclias Unity or DNH-1000
- Standard Smart PoE Switch : DMS-1250-28P
- Standard Smart Switch : DGS-1250-52X
University (Education)
User benefits :
- Reliable performance in high-traffic zones between buildings
- Consistent outdoor Wi-Fi for students moving between buildings
- 2.5GbE uplink supports aggregated outdoor traffic demands
- Fast, flexible deployment with PoE and pole/wall mounting
- Secure access for students, faculty, and guests with WPA3 and VLAN policies
Learn more :
- Core Switch : DXS-3610-54S
- Management Platform : Nuclias Unity or Nuclias Hyper
- Aggregation Switch : DXS-3130-32S
- Standard Smart PoE Switch : DMS-1250-28P
- Access Point : DAP-E3620
Specs
|
Category
|
Outdoor |
|---|---|
|
Interfaces
|
1 x 2.5-Gigabit Ethernet PoE LAN port 1 x Gigabit Ethernet LAN port |
|
Antenna type
|
2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas |
|
Antenna gain
|
2.4 GHz: 3.5 dBi 5 GHz: 6 dBi |
|
Data Signal Rate
|
2.4 GHz: Up to 688 Mbps 5 GHz: Up to 2882 Mbps |
|
Indoor/outdoor
|
Outdoor |
|
IEEE Standard
|
IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/bz IEEE 802.3at PoE |
|
Operating Frequency
|
2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise SSID broadcast disable MAC address access control WEP 64/128-bit Enhanced Open Internal RADIUS server |
|
Network Management
|
Web Nuclias Unity Nuclias hardware and software controller SNMP |
|
Power Supply
|
IEEE 802.3at PoE |
|
Max. Power Consumption
|
17.04W |
|
Operating Temperature
|
-30˚ C to 55 ˚C (-22°F to 131°F) |
|
Storage Temperature
|
-40 to 70 °C (-40 to 158 °F) |
|
Operating Humidity
|
10% to 90% |
|
Storage Humidity
|
5% - 95% |
|
Dimensions
|
304 x 181 x 88 mm |
