Fibre Interface
Offers high performance with low latency and reliable long-distance fibre connectivity
Power over Ethernet
Delivers up to 30W per port with IEEE 802.3af/at PoE to power your devices
Dual Power Input
Dual power supply redundancy minimises downtime and boosts system reliability
Reliable Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Operations Administration and Maintenance (OAM)
Enables real-time performance monitoring, proactive maintenance, and simplified network management
Ethernet Ring Protection Switching (ERPS)
ERPS ensures fast recovery, reliable connectivity, and seamless network restoration
Efficient, Resilient, and Agile

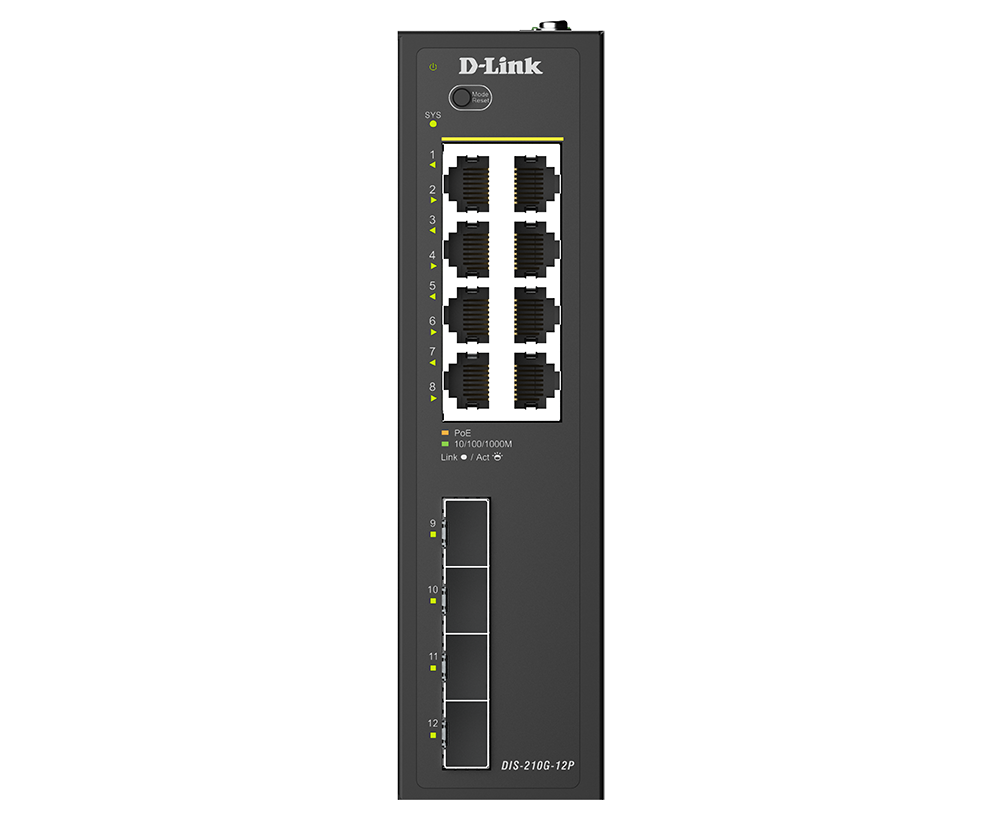

The DIS-210G-12P comes with four 1G SFP ports to extend transmission distances, enabling seamless aggregation of smaller networks into a unified system. With static routing support, it boosts performance and simplifies management. By streamlining routing and improving overall efficiency, it enhances network resilience, helping IT professionals deliver more reliable, high-quality services.
High Power with PoE+
The DIS-210G-12P is equipped with eight PoE ports compliant with IEEE 802.3af/at standards, delivering both data and power through a single Ethernet cable.
With a total power budget of up to 240W, each PoE port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.

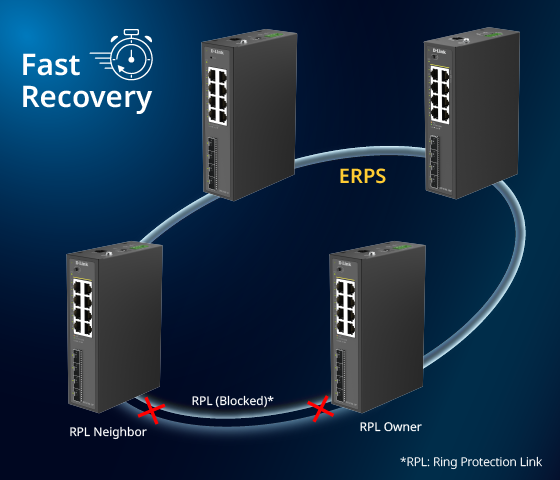

Fast Recovery, Continuous Service
The DIS-210G-12P combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimise downtime, and maintain a consistent, high-quality service experience.

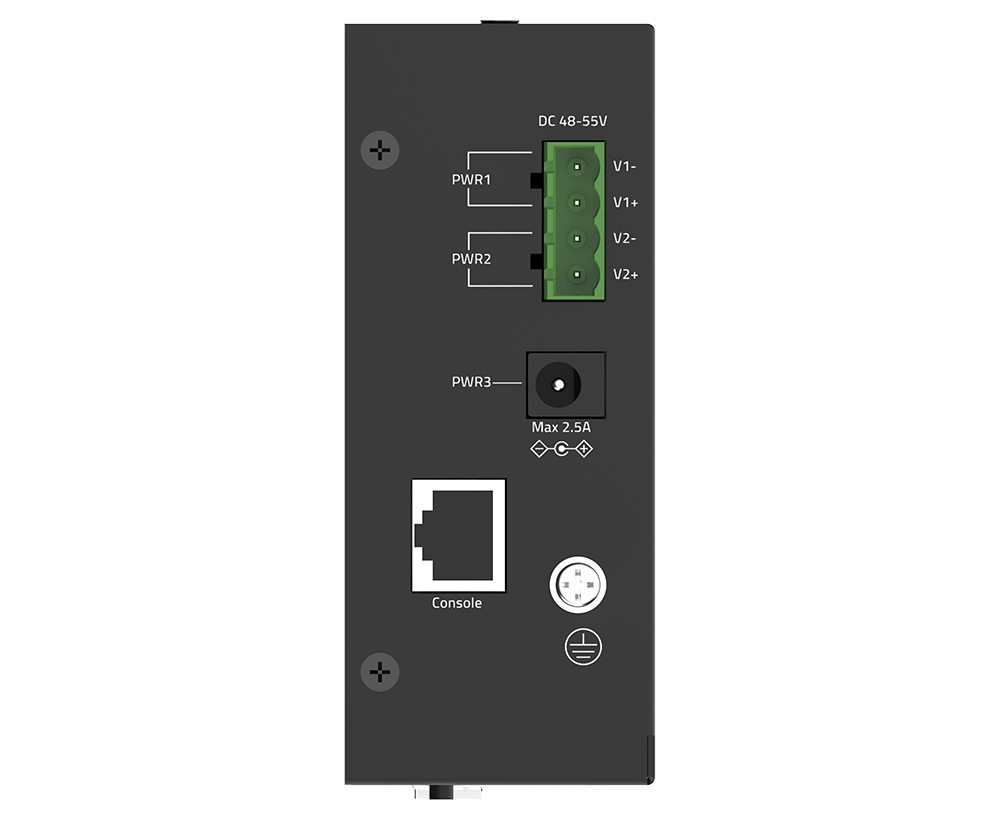

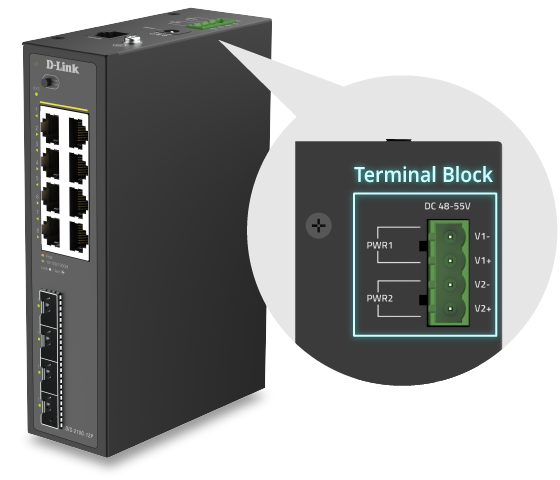

Uninterrupted Power Redundancy
The DIS-210G-12P supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimises shutdown risk and maintains network performance.
Redundancy
Power Supply
Overcurrent
Protection
Anti-Reverse
Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-210G-12P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

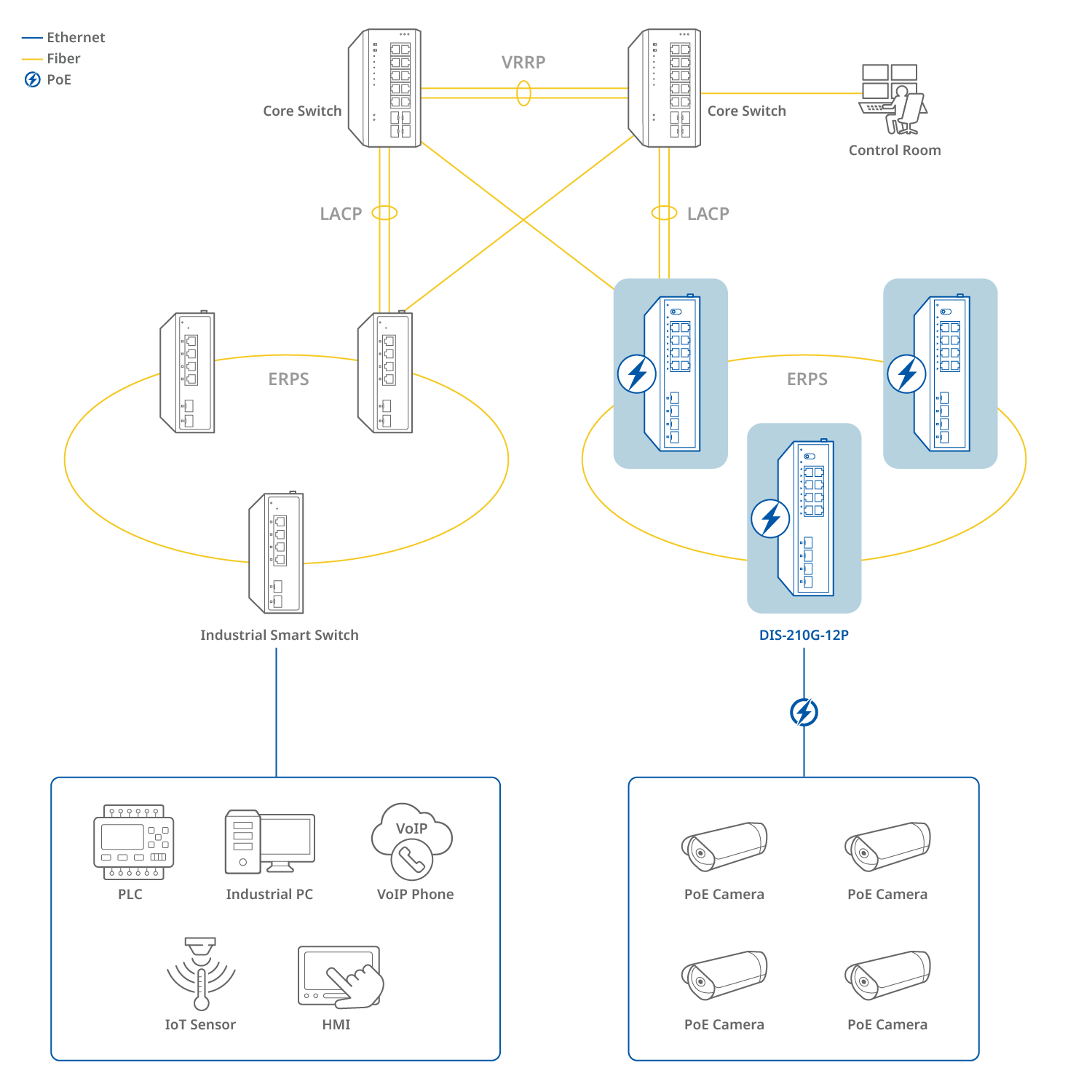

Connection Diagram
The DIS-210G-12P is an industrial smart switch equipped with eight 1G ports and four 1G SFP ports for network management and aggregation. With a total power budget of up to 240W, each port can supply up to 30W. The SFP ports support long-distance data transmission, rapid failover redundancy, and throughput aggregation. The DIS-210G-12P supports ERPS and static routing, which reduces latency, enables effective traffic control, and improves network scalability and efficiency.
Core Switch
Industrial Switch
Applications

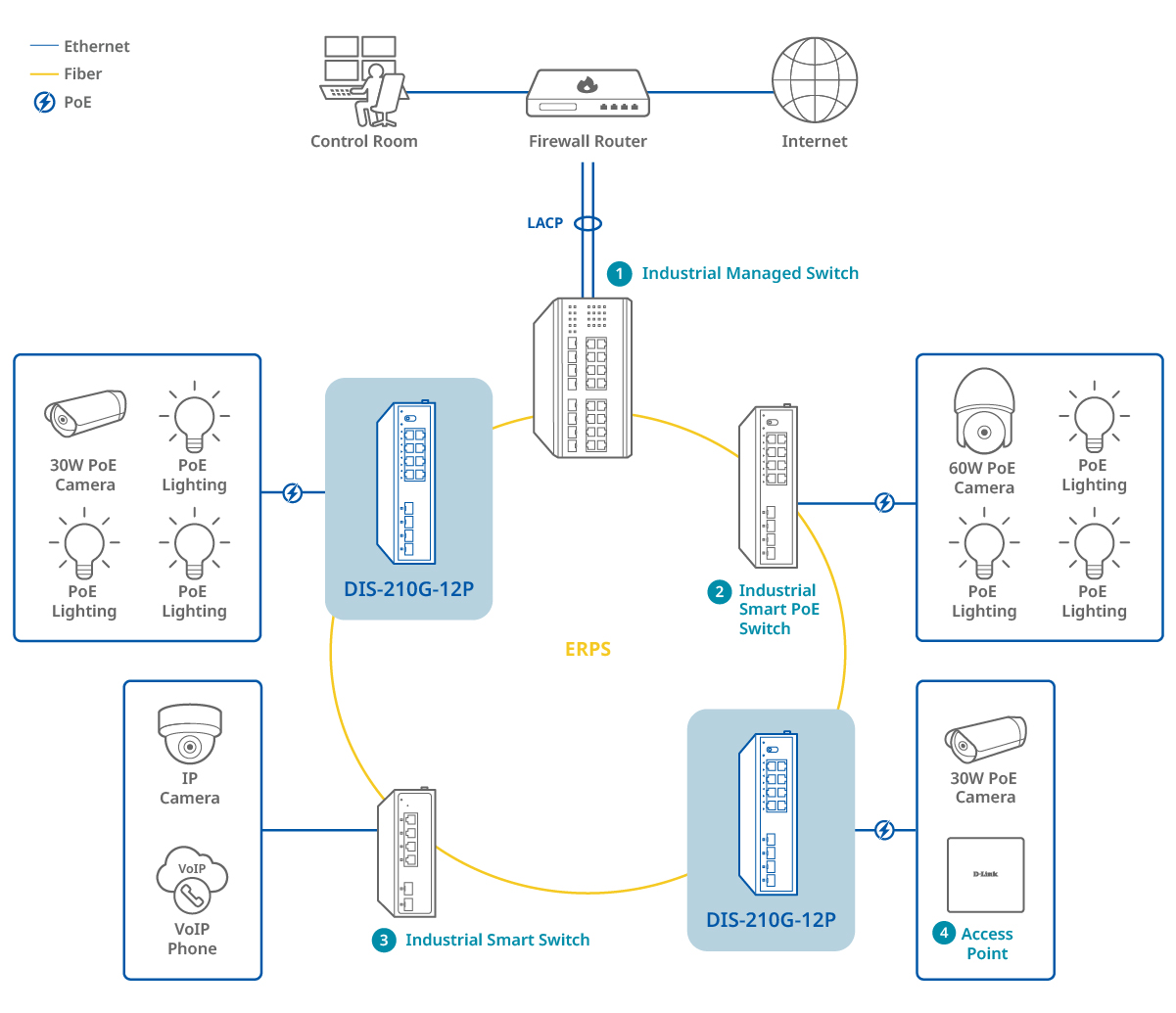

Industrial Automation
City Surveillance
Industrial Automation
User benefits :
Learn more :
- Industrial Managed Switch : DIS-310G-24X (Coming Soon)
- Industrial Smart PoE Switch : DIS-210G-12UP
- Industrial Smart Switch : DIS-210G-06
- Access Point : DAP-X3060
City Surveillance
User benefits :
Learn more :
- Industrial Managed Switch : DIS-310G-24X (Coming Soon)
- Industrial Smart Switch : DIS-210G-06
- Industrial Smart Switch : DIS-210G-12
- Access Point : DAP-X3060OU
