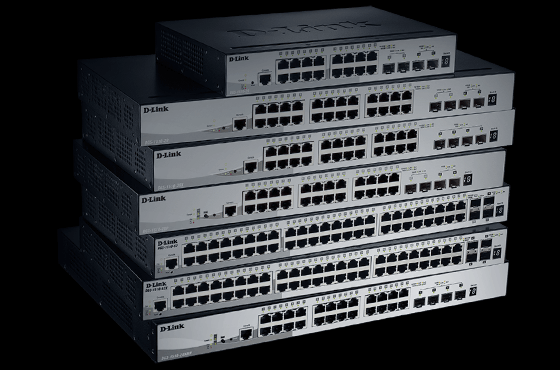

Stackable Smart Managed Gigabit Switches
DGS-1510 Series
- Product Status (Revision A): Live
- Layer 2 management and security with Layer 3 capabilities
- Industry Standard CLI, Console Port and Web UI
- 10G SFP+ Physical Stacking
- Static Routing and MSTP
- PoE options up to 740W power budget2
- Limited-Lifetime Warranty after registration
Where to buy
Industry Standard CLI with 10G SFP+ stacking
The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully-Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images, and multiple configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.

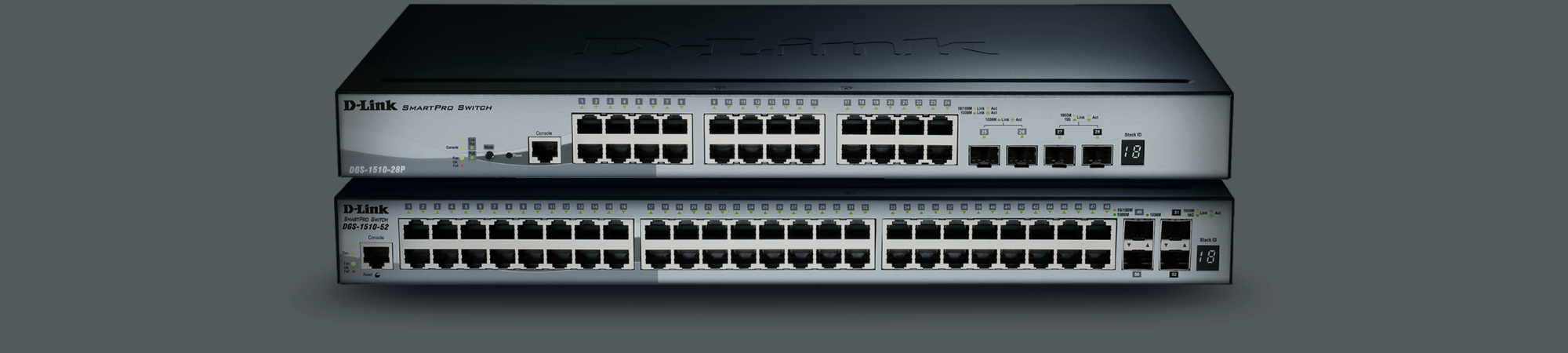

10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
PoE and PoE+, with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy-Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series feature a smart fan that adjusts fan-speed. With advanced silicon technology, the DGS-1510 saves up to 73% of energy compared to a normal switch.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
1. When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.
2. Power Budget of 740W is achieved when using an optional DPS-700 RPS redundant power supply on the DGS-1510-52XMP. Up to 30W per port.
DGS-1510 switch series
· 16 x 1000Base-T
· 2 x SFP
· 2 x 10G SFP+
· 24 x 1000Base-T
· 4 x 10G SFP+
· 24 x 1000Base-T 802.3af/802.3at PoE (193W PoE budget)
· 2 x 10G SFP+
· 2 x SFP
· 24 x 1000Base-T 802.3af/802.3at PoE (370W PoE budget)
· 4 x 10G SFP+
· 48 x 1000Base-T
· 4 x 10G SFP+
· 48 x 1000Base-T 802.3af/802.3at PoE (370W-740W2 PoE budget)
· 4 x 10G SFP+
Related Products
Specs
|
Layer
|
Layer 2 Layer 2+ |
|---|---|
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Number of ports
|
16 to 30 ports 48 to 54 ports |
|
Type of uplink ports
|
SFP 10GbE SFP+ |
|
Switching capacity
|
76 Gbps 92 Gbps 140 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 |
|
PoE power budget
|
See datasheet |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Desktop Rackmountable |
|
Housing
|
Metal |
|
Physical stacking
|
Up to 6 devices |
|
Virtual stacking (up to 32 devices)
|
Supported
|
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
GVRP Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
|
IPv6 Ready
|
Supported
|
|
Static route for IPv4/IPv6
|
IPv4 - 64 IPv6 - 32 |
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
64 Kbps minimum granularity |
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
Type
|
Smart managed |
|
Stacking
|
Physical Virtual |
