User Benefits​

Wi-Fi 7 Connectivity

Enables faster speeds, lower latency, and greater capacity for high-performance, future-ready networks

10G Ready for Wi-Fi 7

Equipped with 10G PoE and 2.5G ports, delivering wired backhaul and flexible uplink options to unleash the potential of Wi-Fi 7

Customizable Network Access

Supports Multi-SSID and Captive Portal for secure, customizable network access for different user groups

Flexible Installation Options

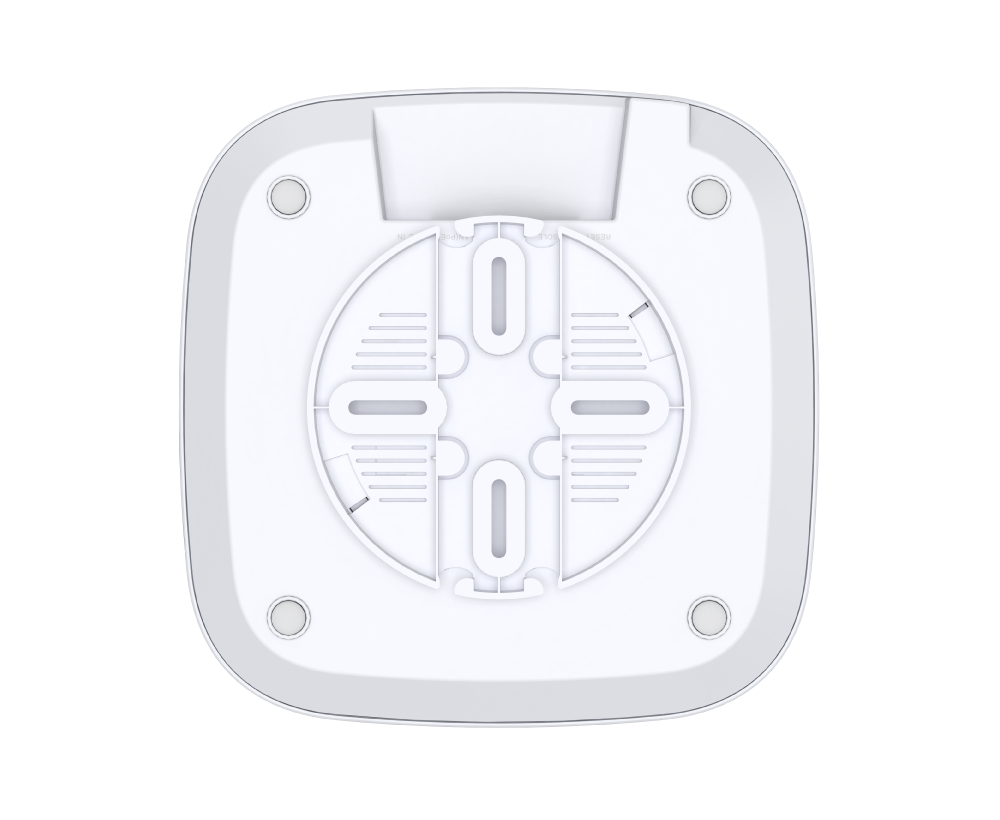

Supports PoE (802.3bt), USB-C, and comes with ceiling grid and wall/ceiling mounts for easy deployment in any environment

Smart Segmentation

Enhanced security with VLANs per SSID and MAC control for precise segmentation and restricted access

Centralized Management

Easily automate, monitor, and scale your network with centralized management via Nuclias Network Controller

Enhanced Performance for All Applications

Wi-Fi 7 will reduce interference and enhance the performance of your wireless network, making it suitable for various usage environments and applications, such as remote work, video conferencing, large file transfers, streaming media, AR/VR, and cloud service access.

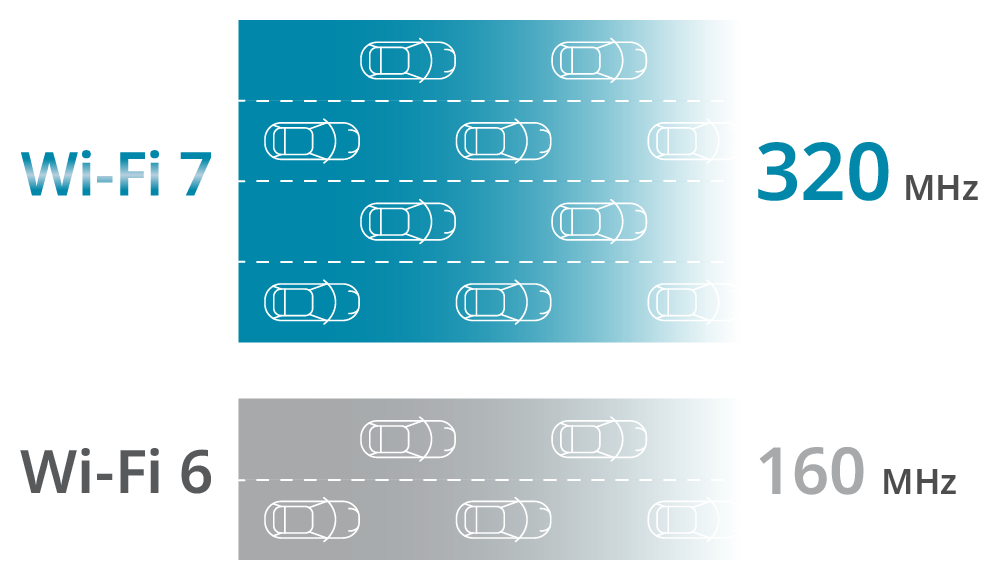

Double the bandwidth from 160 MHz to 320 MHz

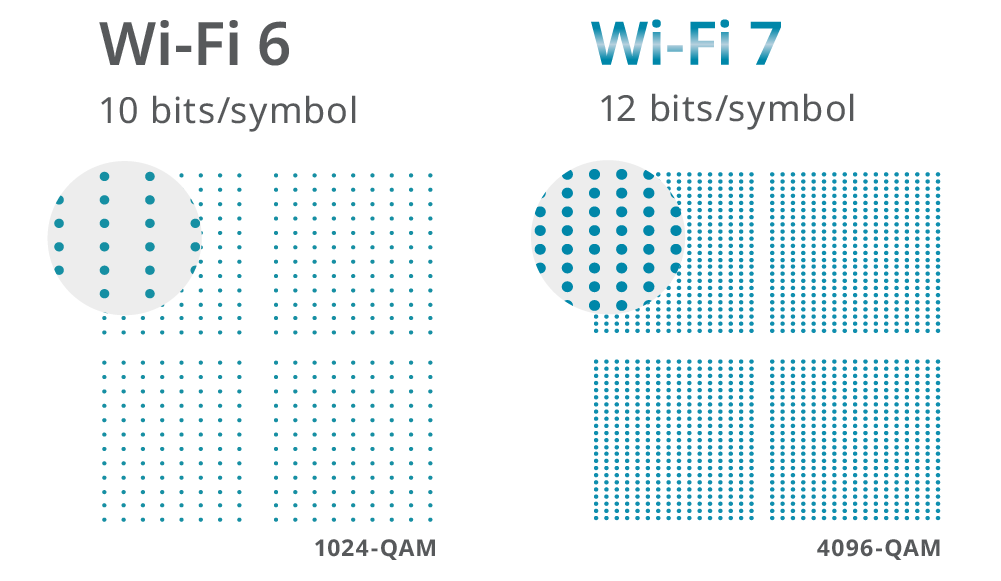

4096 QAM Modulation - 20 % data transmission increase than Wi-Fi 6

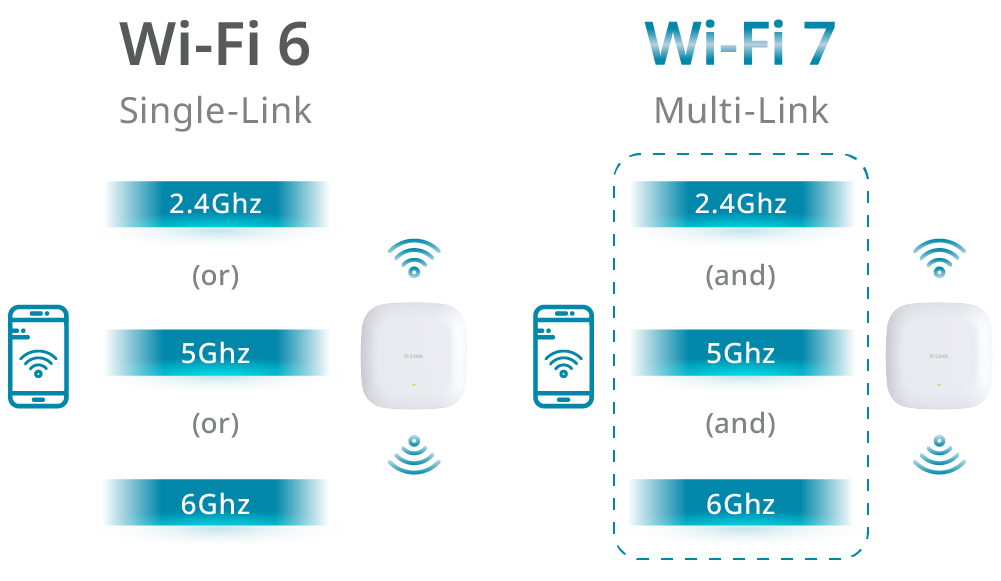

Multi-Link Operation (MLO) - Improves speed and stability

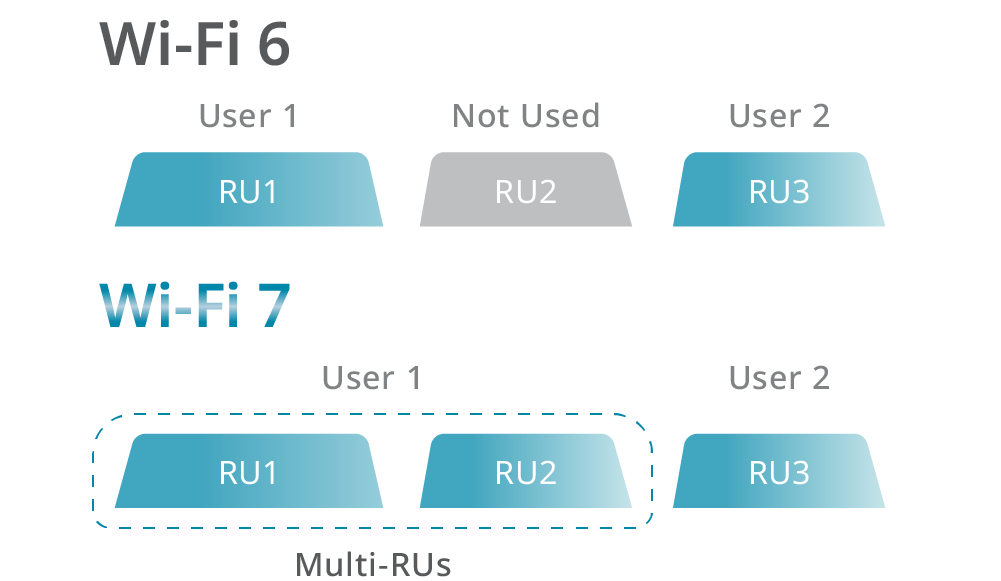

Multi-RUs and Puncturing – Channel bandwidth can be used more efficiently

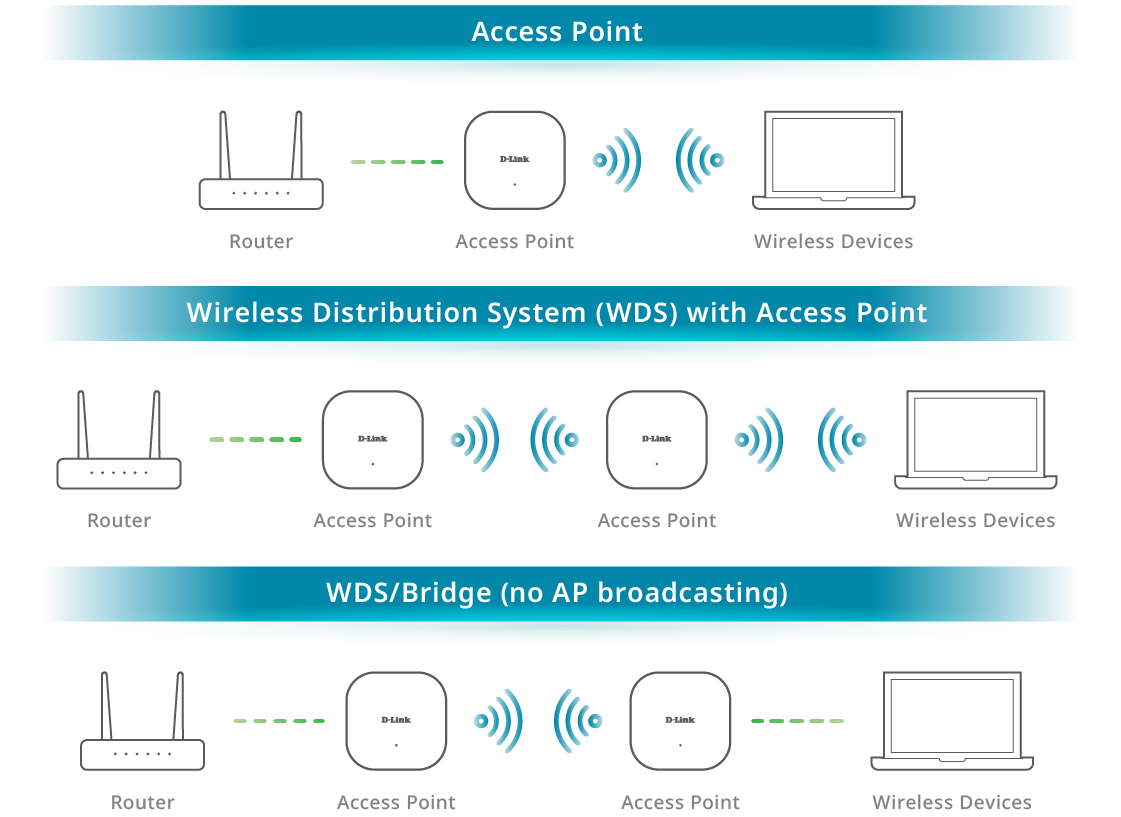

Multiple Operation Modes

The DAP-E9560 can be configured to fit the needs of your network and optimize performance.

．Access Point
．Wireless Distribution System (WDS) with Access Point
．WDS/Bridge (no AP broadcasting)

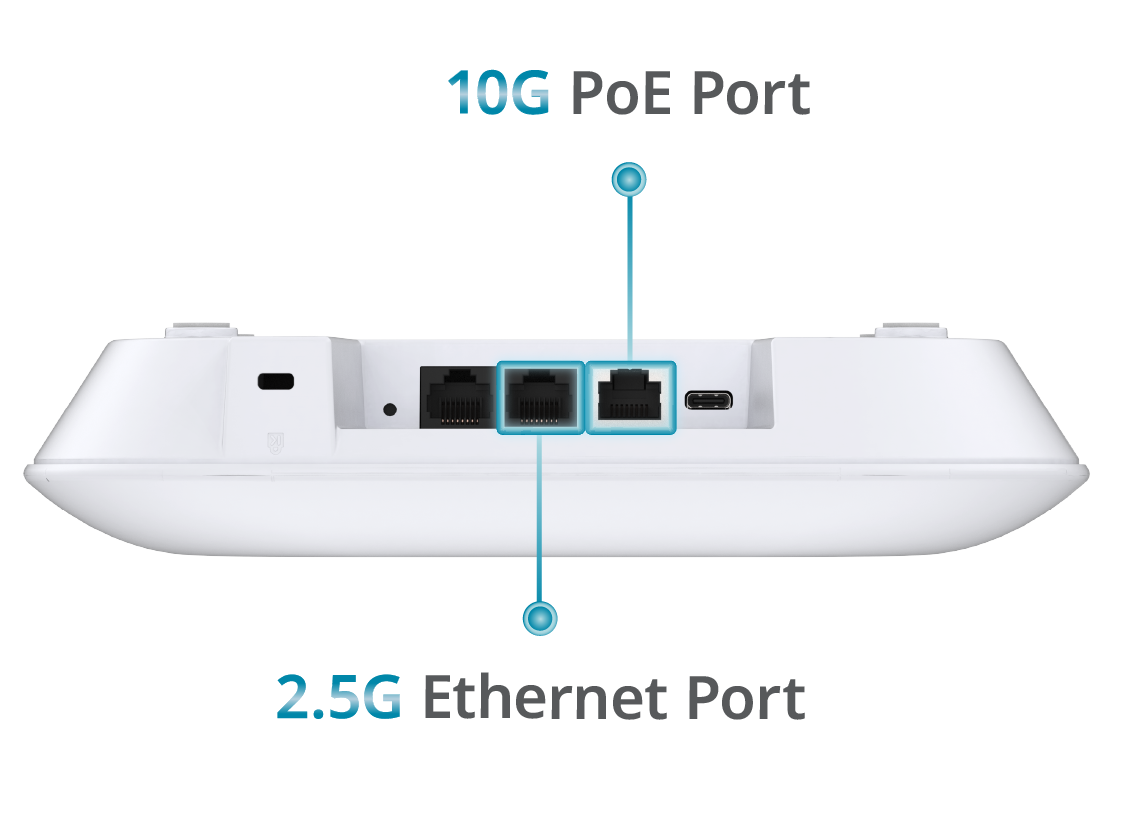

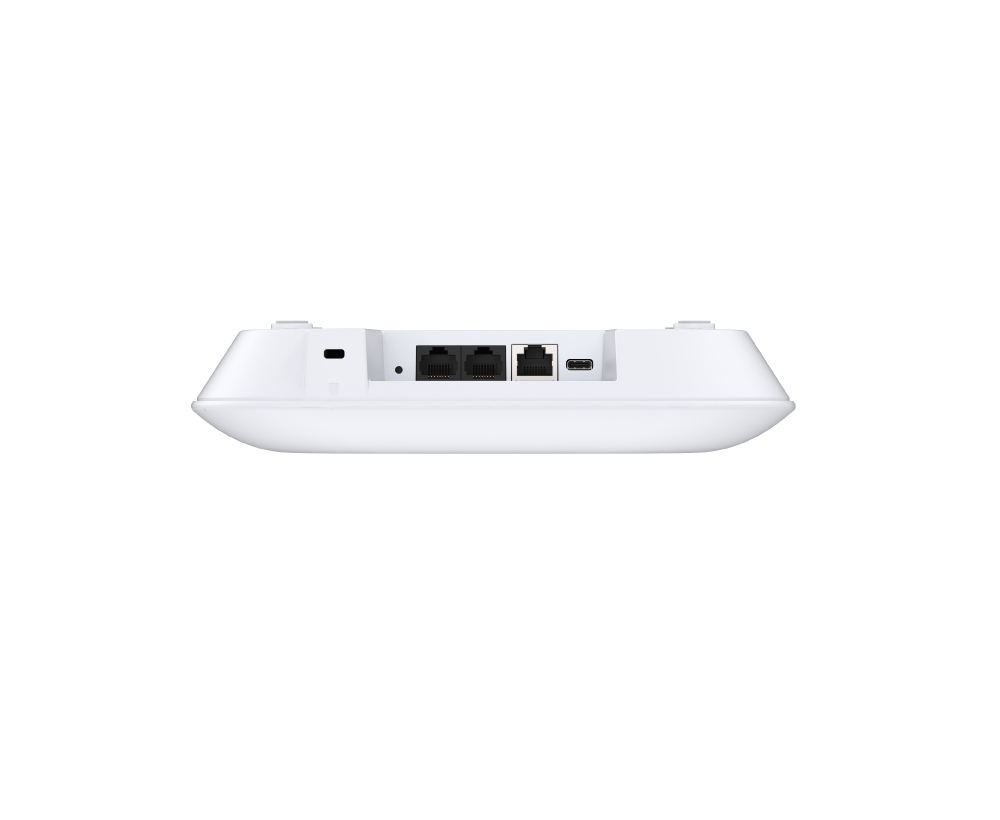

Optimized Wired Performance with 10G PoE and 2.5G Ports

Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.

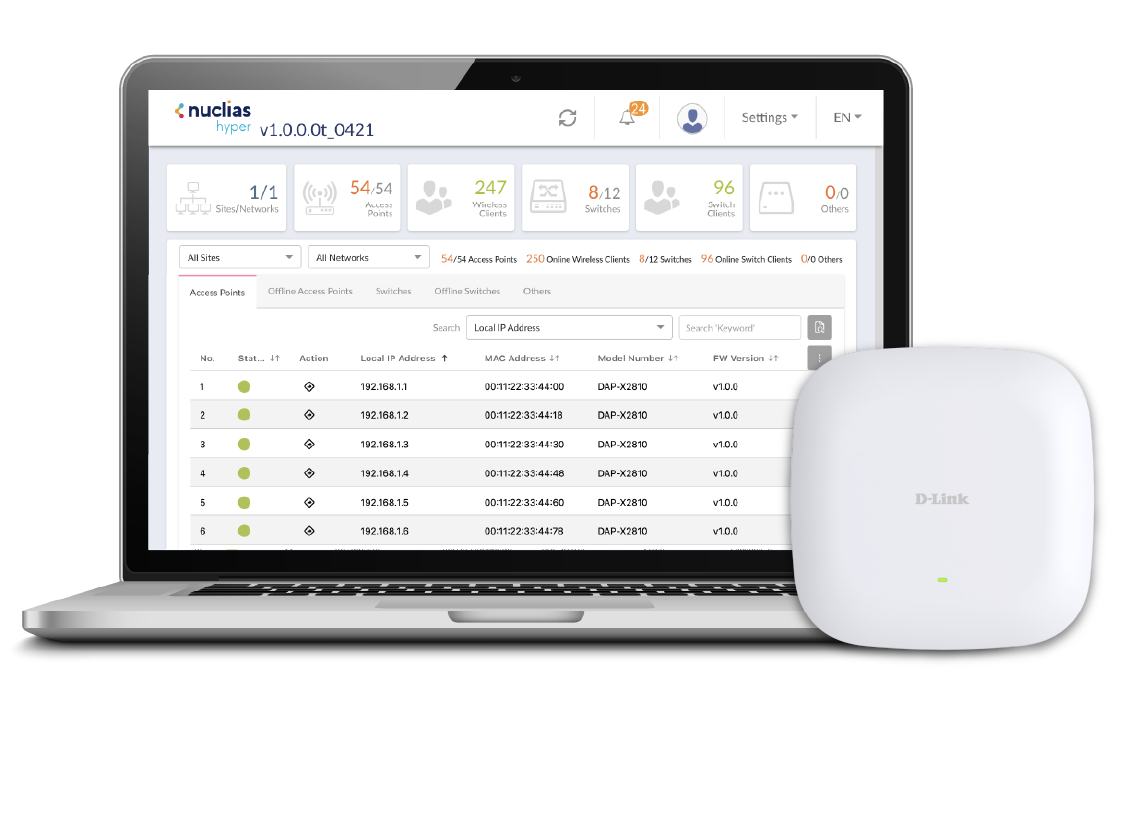

Centralized Network Control Made Simple

The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.

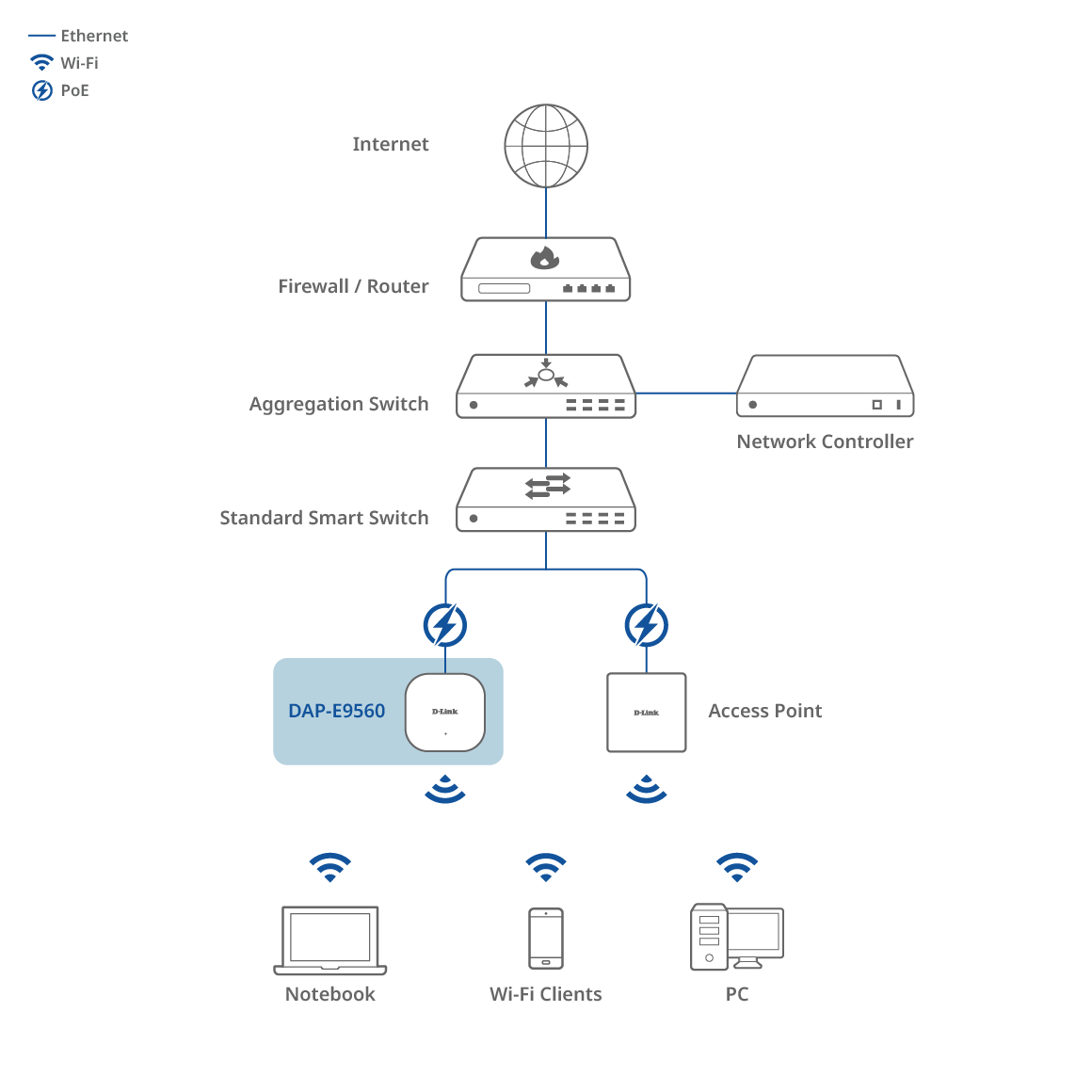

Connection Diagram

DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.

Business　　　　Router

Learn more

Aggregation Switch

Learn more

Network Controller

Learn more

Standard Smart Switch

Learn more

Access　　　　Point

Learn more

Applications

SME (Enterprise)

Learn More

Department Store (Business)

Learn More

Transnational University (Education)

Learn More

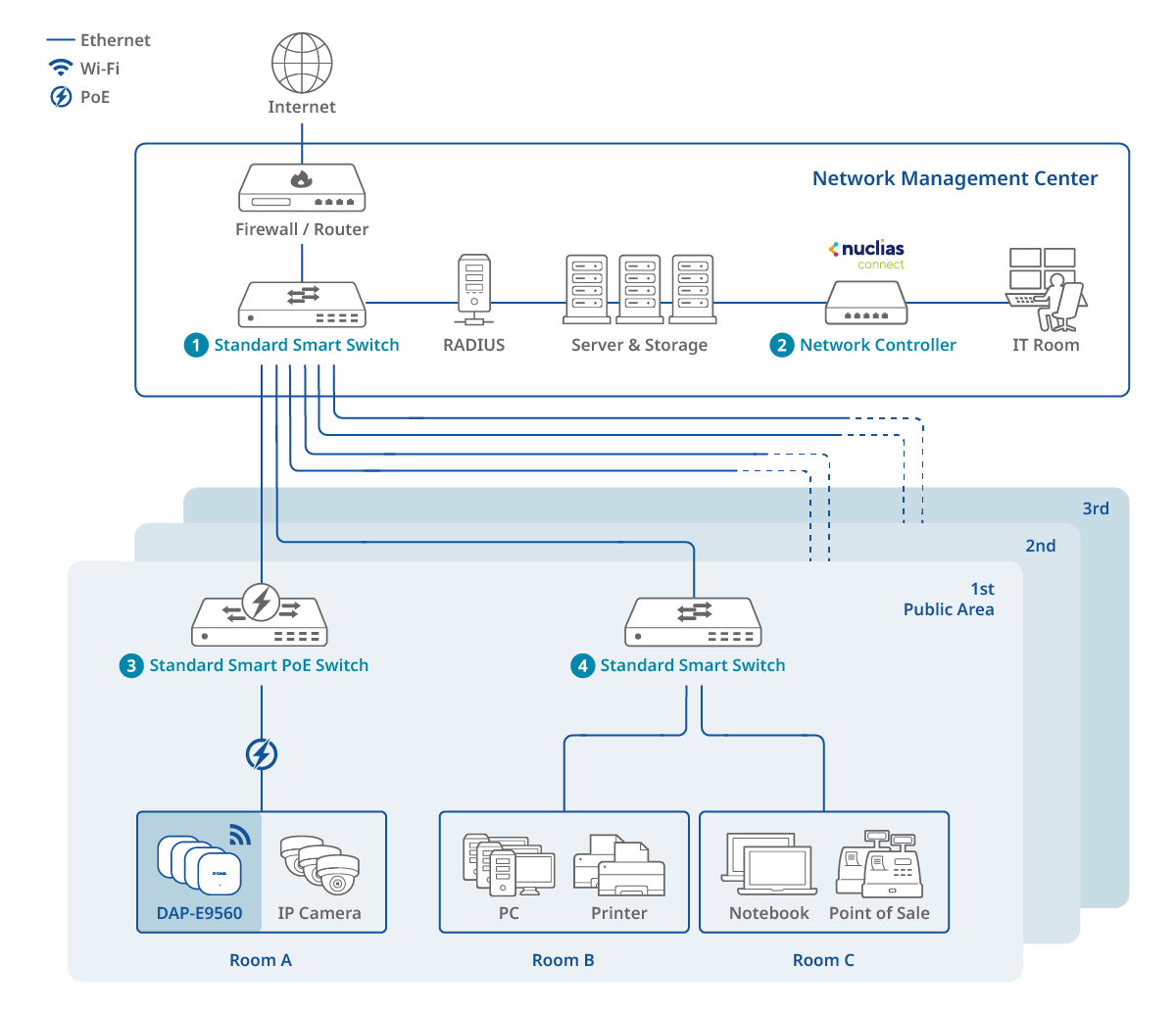

SME (Enterprise)

User benefits :

  • High-speed data for better productivity
  • Smooth video calls and collaboration
  • Stable performance for many devices
  • Fast roaming across floors
  • Enhanced your productivity
  • Secure access with WPA3 and VLANs

Learn more :

  1. Standard Smart Switch : DXS-1210-12SC
  2. Network Controller : DNH-1000
  3. Standard Smart PoE Switch : DXS-1250-28YP
  4. Standard Smart Switch : DMS-1250-18

　Department Store (Business)

User benefits :
  • High-bandwidth uplinks for fast, stable connections
  • Rapid fault recovery for reliable performance
  • Comprehensive security to protect critical data
  • Supports long-distance connectivity
  • VLAN and QoS to optimize the learning experience

Learn more :

  1. Aggregation Switch : DXS-3130-32S
  2. Network Controller : DNC-5000
  3. Standard Smart PoE Switch : DXS-1250-28YP
  4. Stackable Smart Switch : DGS-1530 Series

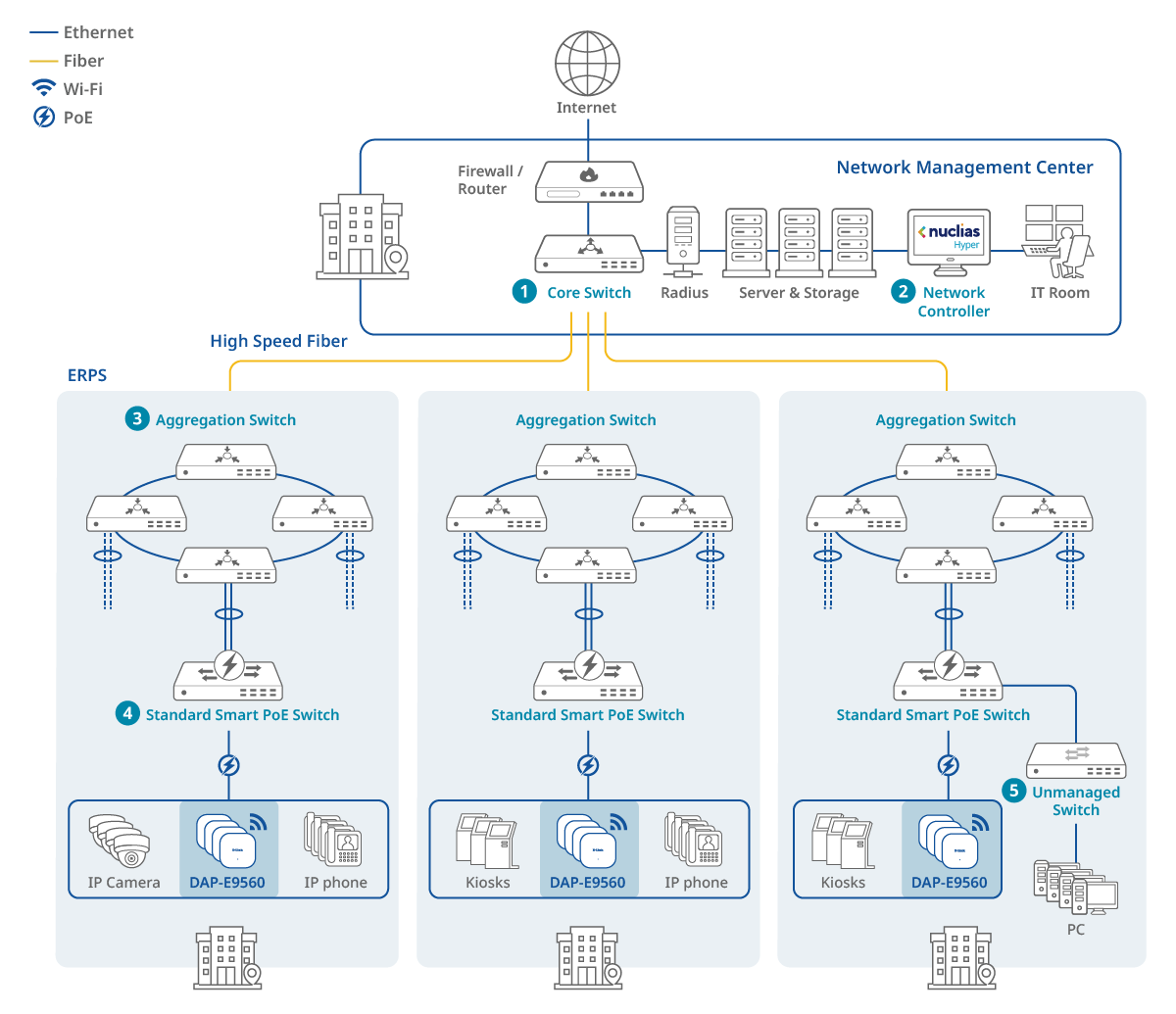

Transnational University (Education)

User benefits :
  • High-speed connectivity across campus
  • Reliable performance in high-density areas
  • Low latency for online learning and research
  • Fast roaming between buildings
  • Supports AR/VR and 4K applications
  • Secure access for all user groups

Learn more :

  1. Core Switch : DXS-3610-54S
  2. Network Controller : DNC-5000
  3. Aggregation Switch : DXS-3130-32S
  4. Standard Smart PoE Switch : DXS-1250-28YP
  5. Unmanaged Switch : DMS-1024
