More Capacity for More Devices
Faster Speed
Backwards Compatible
Reduction in Latency

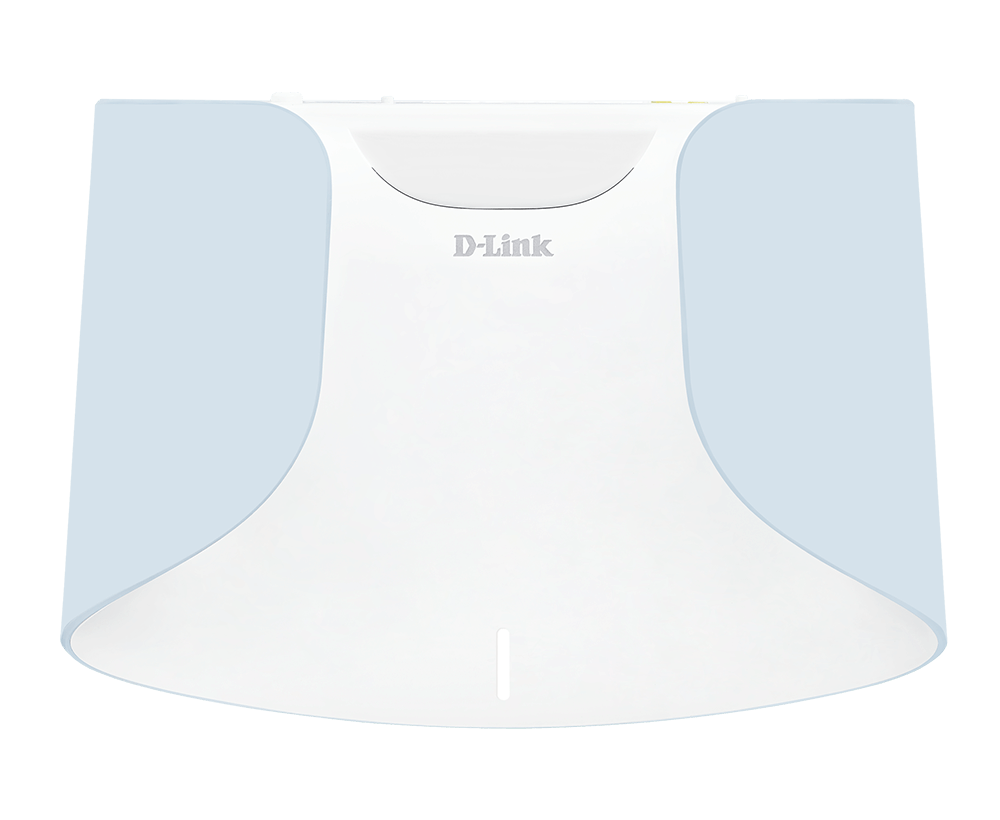

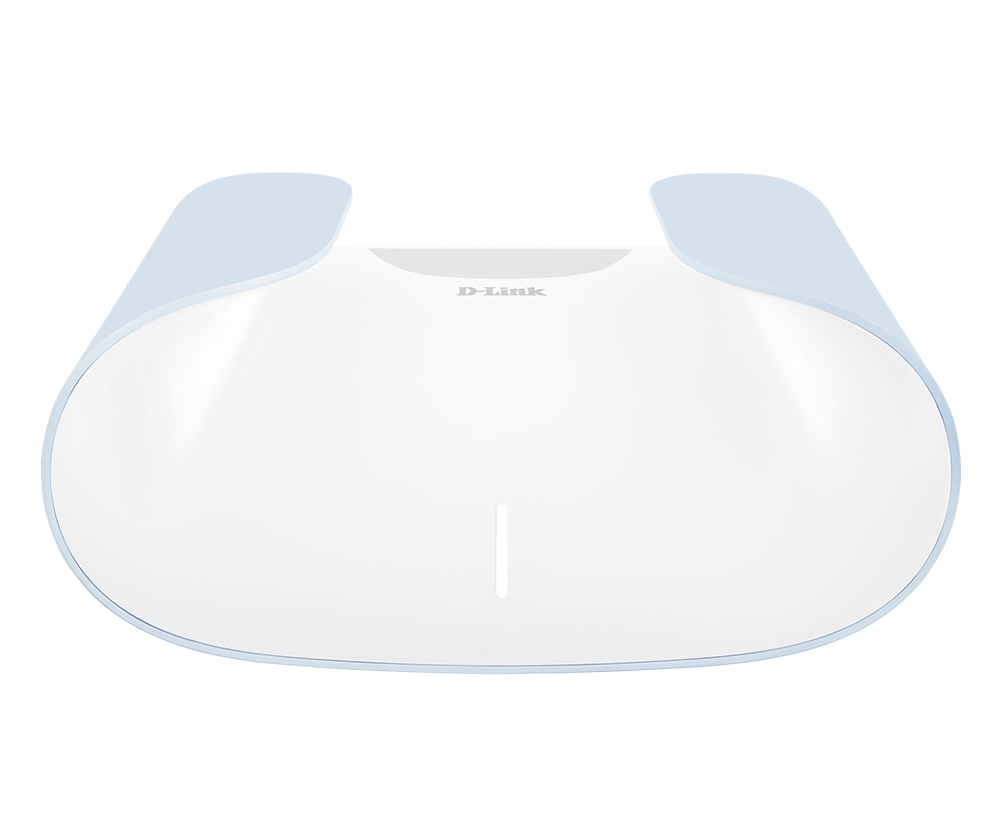

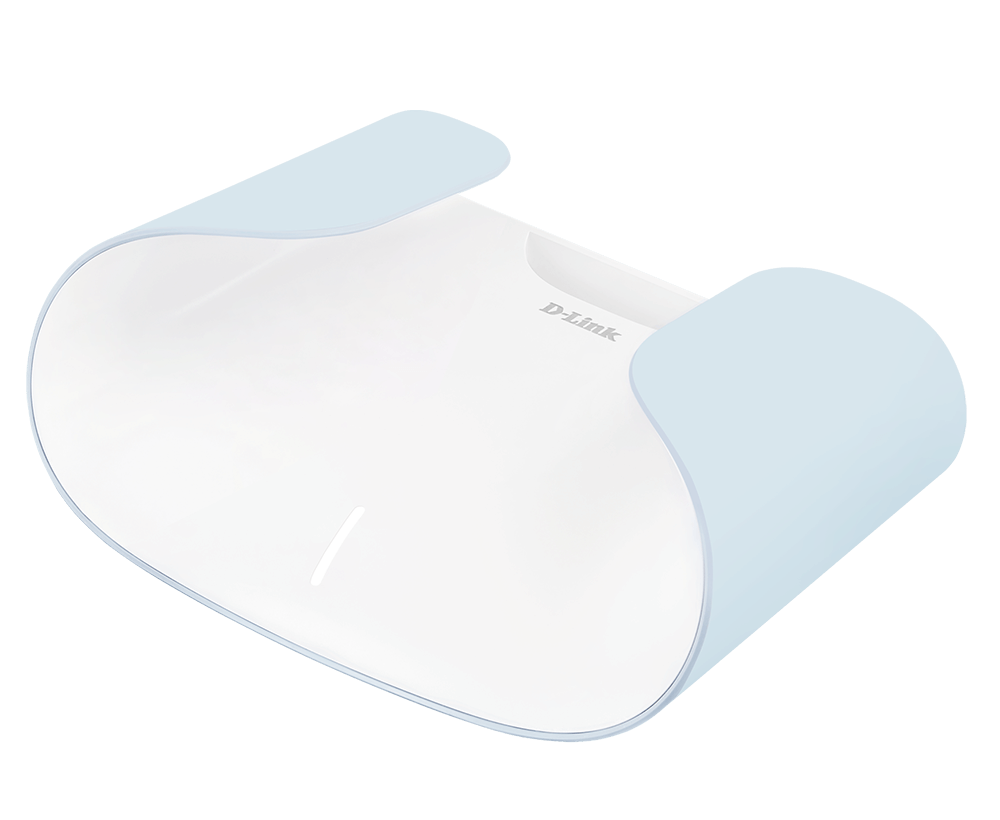

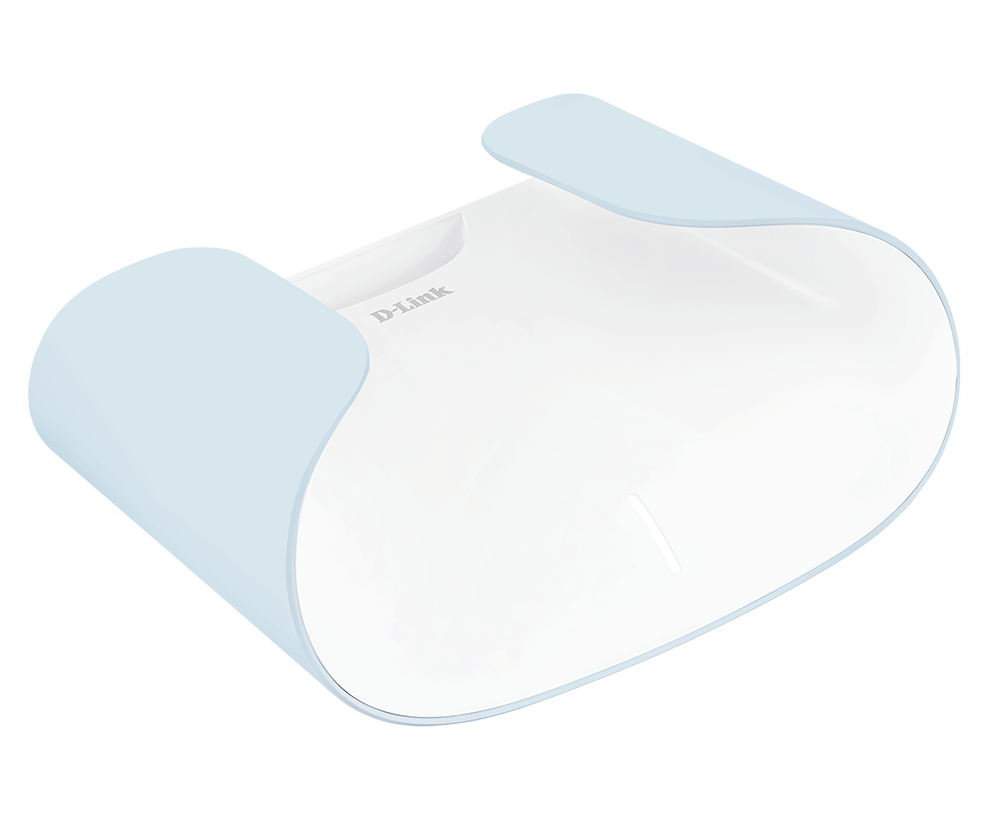

Experience superior Wi-Fi coverage from basement to backyard with the AQUILA PRO AI M60 Mesh Wi-Fi 6 Router. Ultra-strong Wi-Fi is pushed from the 8 built-in omnidirectional antennas to ensure 360° spherical Wi-Fi coverage, eliminating dead zones and covering every inch of your home. Need more coverage? AQUILA PRO AI is a grow-as-you-need Mesh solution, where you can add additional units to expand coverage and build a whole home Mesh system.
● 2.4 Ghz : Larger Coverage ● 5 Ghz : Faster Speed
Put an end to the hassle of remembering multiple usernames and passwords. Enjoy seamless Wi-Fi connectivity in your entire home with just one wireless network name (SSID). AQUILA PRO AI employees the 802.11 k/v standard for the seamless roaming, providing smooth and stable streaming and video calls as you navigate through your home.
Harnessing 160MHz channel bandwidth and 1024-QAM, the AQUILA PRO AI M60 can generate extreme dual-band speeds reaching up to 6 Gbps. Plus, the AI Traffic Optimizer* strategically manages your bandwidth, bolstering performance on bandwidth-intensive tasks such as 8K streaming, video conferencing, and gaming, even when running multiple devices simultaneously.
Don't waste time trying to figure out what's causing poor Wi-Fi quality - let the AI Wi-Fi Optimizer and AI Mesh Optimizer fix it. These tools constantly scan your surroundings for the best, interference-free channel and provide auto path optimization and self-healing capabilities for a stable, optimal connection. No more drops or slow speeds as you move around your home.
Utilize Advanced Parental Controls to help maintain control over your children's Internet usage according to your preferences. Easily set profiles and restrict website access and schedule when your kids can access the Internet. Equipped with WPA3 support, the M60 helps keep your home network more secure.
Enjoy the convenience and simplicity of hands-free voice control. You can activate or deactivate your guest Wi-Fi, verify your login details, and reset your Wi-Fi system, using just your voice with an Amazon Alexa or Google Assistant-enabled devices.

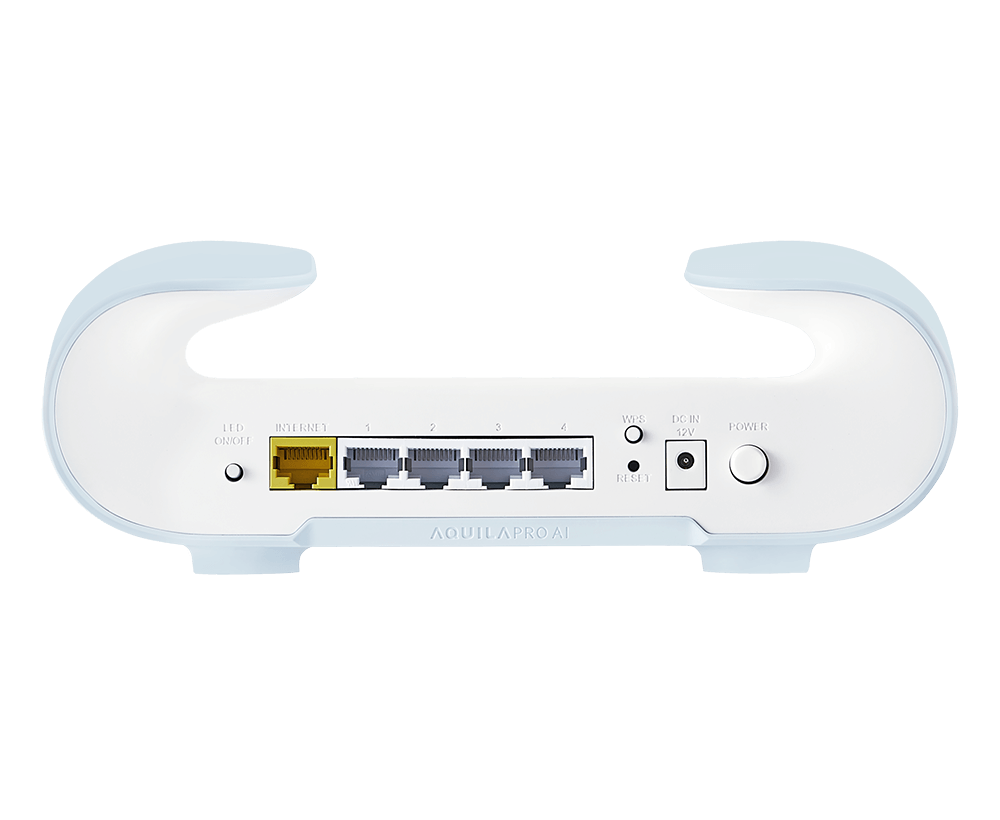

Take full advantage of your Gigabit or faster Internet connection with the 2.5 Gbps WAN port. 4 Gigabit LAN ports offer a fast and reliable connection for your favorite wired devices such as smart TVs, PCs, or game consoles.
Setup your Wi-Fi in just a few minutes. Simply download the AQUILA PRO AI app, plug your router into your modem and power source, then follow the app's on-screen instructions to enjoy whole home Wi-Fi in no time.
Experience hassle-free network management with the AQUILA PRO AI App. Let the AI Assistant effortlessly monitor your network's performance and recommend optimizations. Easily set up a guest Wi-Fi network to share with friends and family, activate Parental Controls to keep your kids safer online, and even schedule automatic Wi-Fi shut off at bedtime for a peaceful night's sleep.
|
Interfaces
|
4 x Gigabit Ethernet LAN port 1 x 2.5 Gigabit Ethernet WAN port 1 x WPS button 1 x reset button 1 x power connector 1 x power on/off button |
|---|---|
|
Wireless Standard
|
IEEE 802.11ax/ac/n/g/b/k/v/a/h IEEE 802.3u/ab |
|
Antenna
|
8 x internal dual band antennas |
|
Wi-Fi Data Rate
|
2.4 GHz Up to 1148 Mbps 5 GHz Up to 4804 Mbps |
|
Memory
|
128MB Flash 512MB RAM |
|
Maximum Power Consumption
|
21.17 W |
|
Firewall
|
DoS Stateful Packet Inspection Anti-spoofing Checking IP/MAC Address Filtering 1 x DMZ |
|
Security Protocol
|
WPA2 - Personal WPA2/WPA3 – Personal (WPS Not supported) WPA3 Only (WPS Not supported) WPA/WPA2-Personal |
|
Device Management
|
AQUILA PRO AI app (iOS and Android™) Web UI |
|
LED Status Indicators
|
Power/ Status |
|
Voice Assistant
|
Amazon Alexa Google Assistant |
|
Dimensions
|
226.8 x 163.8 x 79.7 mm (8.93 x 6.45 x 3.14 in) |
|
Weight
|
584 g (1.29 lbs) |
|
Power Input
|
12V 2.5A |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Certifications
|
CE FCC IC NCC |
