The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports, effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.
PoE+ ports provide a high power budget to fulfill the most business needs.
The innovative PoE functions can ensure uninterrupted power delivery to the power devices.
PoE switches simplify device installation by reducing cable usage and eliminating separate power supplies or outlets, unlike traditional switches.
Perpetual PoE provides an uninterrupted power supply to network devices, even during reboots or maintenance.
Fast PoE technology reduces the time it takes for devices to become operational after connecting to the network.
The PD-Alive feature is perfect for IP surveillance networks to monitor the status of connected powered devices and verify their activity.

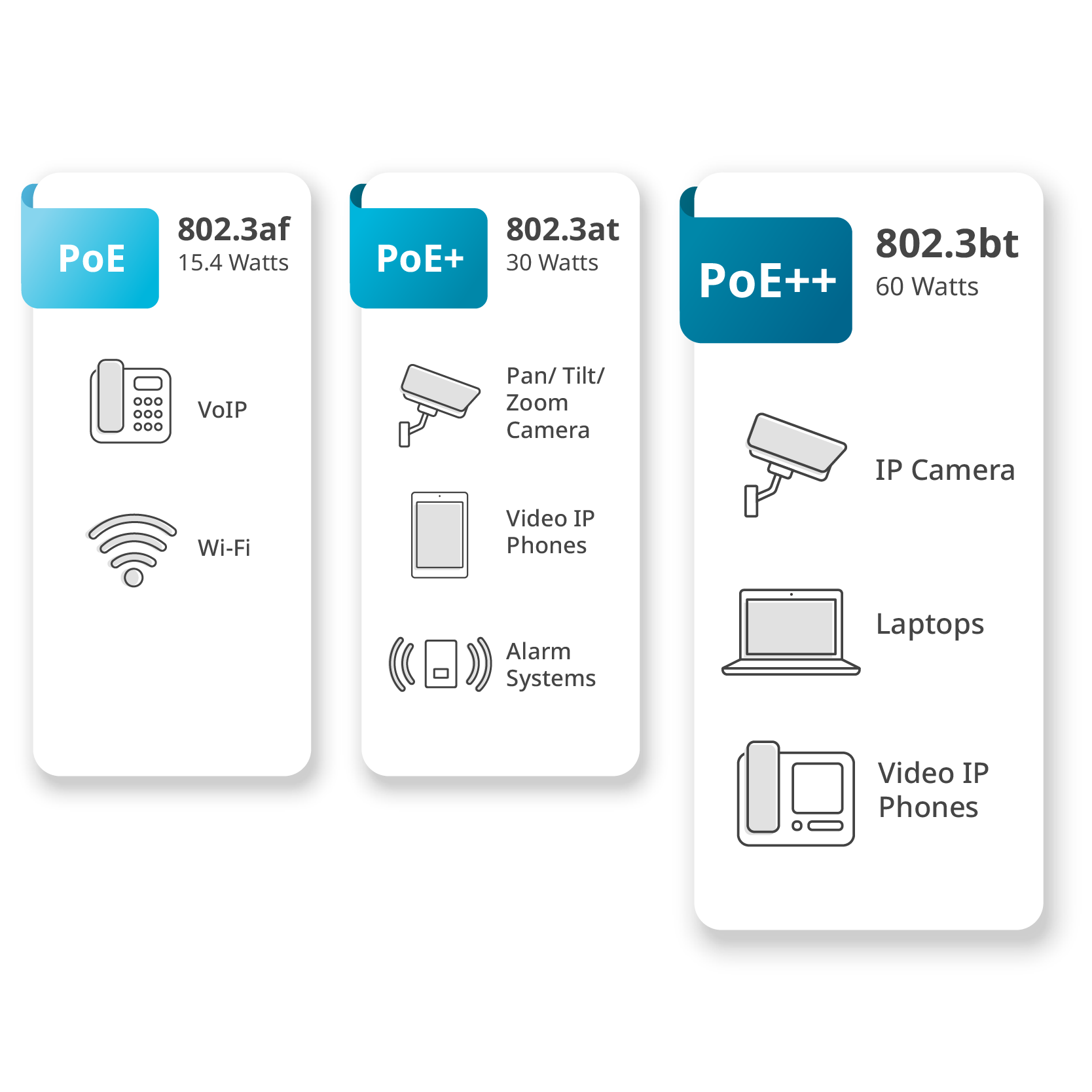

The DMS-1250-10SPL integrates with IEEE802.3bt, providing a significant 60W per port and a total budget of 120W. Recognized as PoE++, this technology represents a substantial advancement, not only increasing power capacity but also expanding possibilities for Ethernet-powered devices. This improvement is a valuable addition to modern networking and power delivery solutions.
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
The DMS-1250 Series switches offers a range of management tools to cater to users' diverse needs. D-Link Nuclias Controller (DNC) and D-Link Nuclias Hub (DNH) enable the discovery and management of multiple D-Link devices, providing access to configure settings efficiently. Furthermore, the DMS-1250 Series can be seamlessly managed through D-View 8, a comprehensive central network management system. SNMP functionality allows for centralized network asset management, remote configuration, and logging functions.

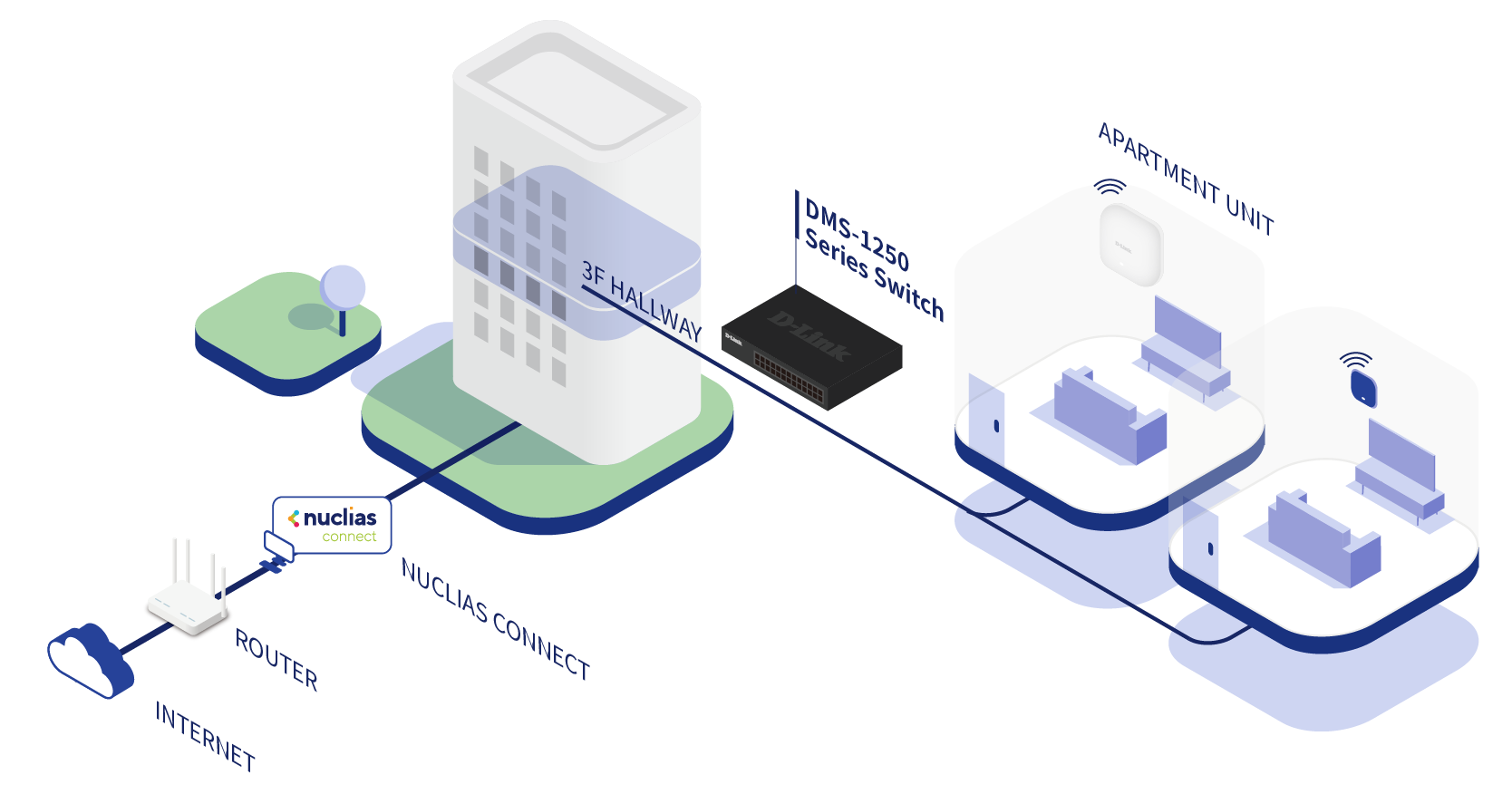

The DMS-1250 Series switches are versatile, suitable for SOHO, SMB, and MDU environments. They provide high-speed data transmission with 2.5GE and a crucial 10G speed uplink for external connectivity. This high-speed uplink ensures that the entire MDU can access external services without encountering data bottlenecks.Furthermore, they effectively implement IEEE 802.3at or IEEE 802.3bt in DMS-1250-10SP, 10SPL, and 12TP to enable devices to connect and receive power supply.
 DMS-1250-10S |  DMS-1250-10SPL |  DMS-1250-10SP |  DMS-1250-12TP | |
|---|---|---|---|---|
| Interface | 8 x 2.5GE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10GE
2 x 10GE SFP+ |
| Performance | ||||
| Switch Capacity | 80 Gbps | 80 Gbps | 80 Gbps | 120 Gbps |
| Max. Packet Forwarding Rate | 59.53 Mpps | 59.53 Mpps | 59.53 Mpps | 89.29 Gbps |
| PoE | ||||
| PoE Standard | N/A | IEEE802.3bt + IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| PoE Ports | N/A |
Port 1 ~ 2 (IEEE802.3bt) Port 3 ~ 8 (IEEE802.3af/at) | Port 1 ~ 8 | Port 1 ~ 8 |
| PoE Budget | N/A | 120 W | 240 W | 240 W |
| Technical Specification | ||||
| Surge Protection | ・IEEE61000-4-5 surge protection compliance ・6kV surge protection on all 2.5-Gigabit Ethernet ports | |||
| Maximum Power Consumption | 13.58 W | 147 W (PoE on) | 287.58 W (PoE on) | 289.74 W (PoE on) |
| Fan | Fanless | Fanless | 2 internal fans | 2 internal fans |
| Console Port | Yes | No | Yes | Yes |
| Power Supply Type | Internal | External | Internal | Internal |
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 Layer 2+ |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GbE SFP+ |
|
PoE options
|
802.3af 802.3at 802.3bt draft |
|
Number of PoE ports
|
8 |
|
PoE power budget
|
See datasheet |
|
Fanless
|
Supported
|
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Desktop Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
|
IP interfaces
|
8 |
|
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 64 |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
Encryption protocol supported
|
SSH |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
