Wireless N PoE Outdoor Access Point

DAP-3315

  • Product Status: End of Sale

There's a new version of this product:

Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points

DAP-3666

See Newer Product

There's a new version of this product:

DAP-3666

Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points

Overview

  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 internal antennas, MU-MIMO with beamforming
  • IP68 water, dust-proof, weather-resistant housing (-30 to 60°C)
  • 2x Gigabit LAN Ports (LAN 1 supports PoE)
  • Free Nuclias Connect network management software
See Newer Product

Overview

  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 internal antennas, MU-MIMO with beamforming
  • IP68 water, dust-proof, weather-resistant housing (-30 to 60°C)
  • 2x Gigabit LAN Ports (LAN 1 supports PoE)
  • Free Nuclias Connect network management software
See Newer Product
12dBi High Gain Directional Antenna

High power output to ensure your network’s wireless signal reaches distant locations.

Waterproof Design

IPx5-certified housing for waterproof protection.

Multiple Operational Modes

Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.

4kV Surge and 15kV ESD Protection

Protection against voltage spikes and breakdowns.

Flexible Mounting Options

Includes wall or pole mounting kits and PoE injector.

Supports up to 8 SSIDs

Logically divide the AP into several virtual access points all within a single hardware platform.

Security Features

Wireless encryption, along with support for multiple SSIDs and VLANs.

Build the Bridge to a Better Network

Built for outdoor use, its waterproof housing protects it from the elements, and its directional antenna excels in connecting separate networks that cannot be joined using cabling.

Point-to-point or Multi-point

Expand your current wireless network with a single wireless band with the furthest reach. Supports passive PoE to allow for easy and adaptable installation. Built-in 12 dBi sector antenna has a high power output to ensure wireless signal reaches farther, whether you want to connect additional wireless devices or bring connectivity over the air to networks separated by short distances.

Fits into Your Network

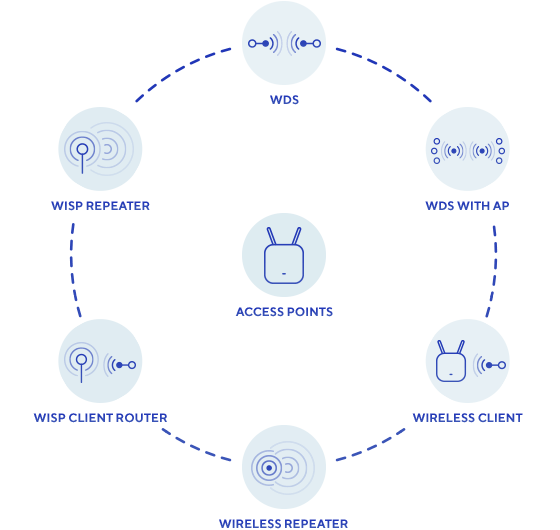

The DAP-3315 features multiple operation modes, allowing it to adapt to any situation:

In Wireless Distribution System (WDS) mode, it can expand current wireless coverage without the need for a wired backbone link.

Repeater
mode will extend current wireless coverage eliminating dead spots and weak signals. WISP mode functionality includes the ability to function as a client or repeater

As a wireless client, it can connect to an existing AP and expand the network physically with the two built-in Ethernet ports.

Using it as a standard wireless access point (AP) a wide range of wireless devices can connect to the DAP-3315.

Directional Antenna

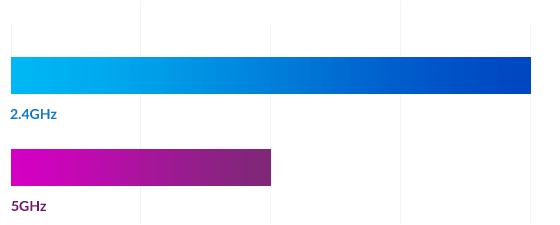

The built-in 12 dBi High Gain directional antenna utilises the far-reaching 2.4Ghz wireless band to ensure your wireless signal extends to distant locations.

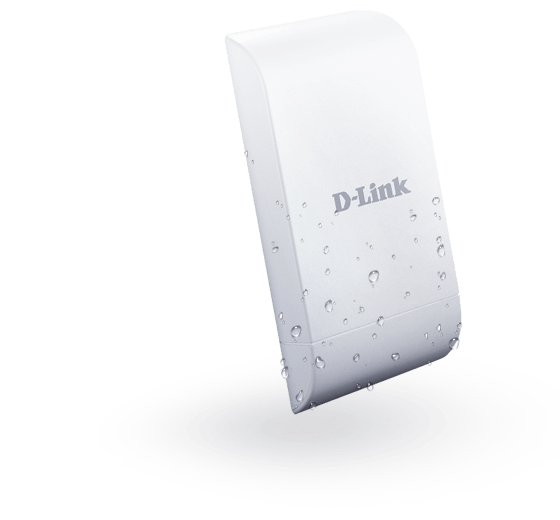

Outdoor Connectivity Made Simple

With its IPX5 waterproof housing that maintains your uptime during rainy weather1, and high power radio antenna, the DAP-3315 is ideal for providing wireless connectivity between two locations using 2.4Ghz wireless N connectivity. It even operates between -20 to 60 °C (-4 to 140 °F) temperature ranges.


Power Where You Need It Most

Its proprietary PoE (Power over Ethernet) design and included power injector makes it convenient to deploy - especially in places where a power supply is unreliable or power cables are not available.

More Controls Over Network Resources

Up to 8 SSIDs

Divide the access point into virtual access points, all within a single hardware platform. Deploy one single AP to support more than one application, like public Internet access, to keep costs down.

VLAN Tagging

It supports 802.1Q VLAN Tagging, which enables operations with multiple SSIDs to segment traffic to enhance network performance and security.

WLAN Partitioning

Ideal for wireless hotspot deployments. With station-to-station partitioning enabled, security is improved, since wireless users cannot peek at each other, the possibility for data theft is reduced.

This product is compatible with Nuclias Connect*

Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

*An upgrade to the latest product firmware is required.

Download

Dedikerad styrenhet för att hantera ditt nätverk.

Som tillval finns Nuclias Connect Hub (DNH-100), en effektiv styrenhet för maskinvaran som tillhandahåller en billig, underhållsfri och färdig lösning för konfiguration och hantering av ditt nätverk. Bara plugga in och slå på strömmen.



Läs mer

Vi är här för att hjälpa dig

Över 35 år inom nätverksbranschen

Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.

Det är enkelt att prata med oss

Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.

D-Link Begränsad Livstidsgaranti

Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.

Related Products

Nuclias Connect
DNC-100
Find out more
Nuclias Connect Hub
DNH-100
Find out more
Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points
DAP-3666
Find out more
Type
Infrastructure AP
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded sector antenna
Antenna gain
12 dBi for 2.4 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Fast Ethernet LAN
Indoor/outdoor
Outdoor
Type of housing
Plastic
IP rating
IPX5
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Wireless extender
Advanced features
802.11k/r Roaming
Maximum number of SSIDs
8
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
Management platform
Nuclias Connect
WEB
Supported
Syslog
Supported

1 IPX5 standard means the device is protected from low pressure jets of water from the top and the front directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weatherproof box when in severe weather environment.

This product was phased out on: 09/09/2023
This product's last date of support is on: 03/03/2029
Version Date Type File Size
Datasheet EN - PDF 0.35mb Download
Version Description Date Type File Size
Manual 1.02 RevA1 Product Manual 2021-10-27 - - Download
Manual 1.00 RevA1 Product Manual 2018-12-03 - - Download
Version Description Date Type File Size
QIG 1.00 Revision A1 Quick Installation Guide 2018-08-24 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.02 RevA1 Firmware 2020-05-22 - Download
FW 1.00 RevA1 Firmware 2019-01-09 - Download
Version Description Date
Nuclias Connect Free remote centralised network management software 2019-09-09 Download
Version Description Date
CE doc UKCA 1.01 RevA1 CE UKCA document 2022-12-28 Download
CE doc UKCA 1.00 Revision A1 CE document 2021-04-15 Download
CE doc 4.00 RevA1 CE document 2020-05-28 Download
CE doc 3.00 RevA1 CE document 2020-04-09 Download
CE doc 1.00 Revision a1 CE document 2018-11-09 Download
