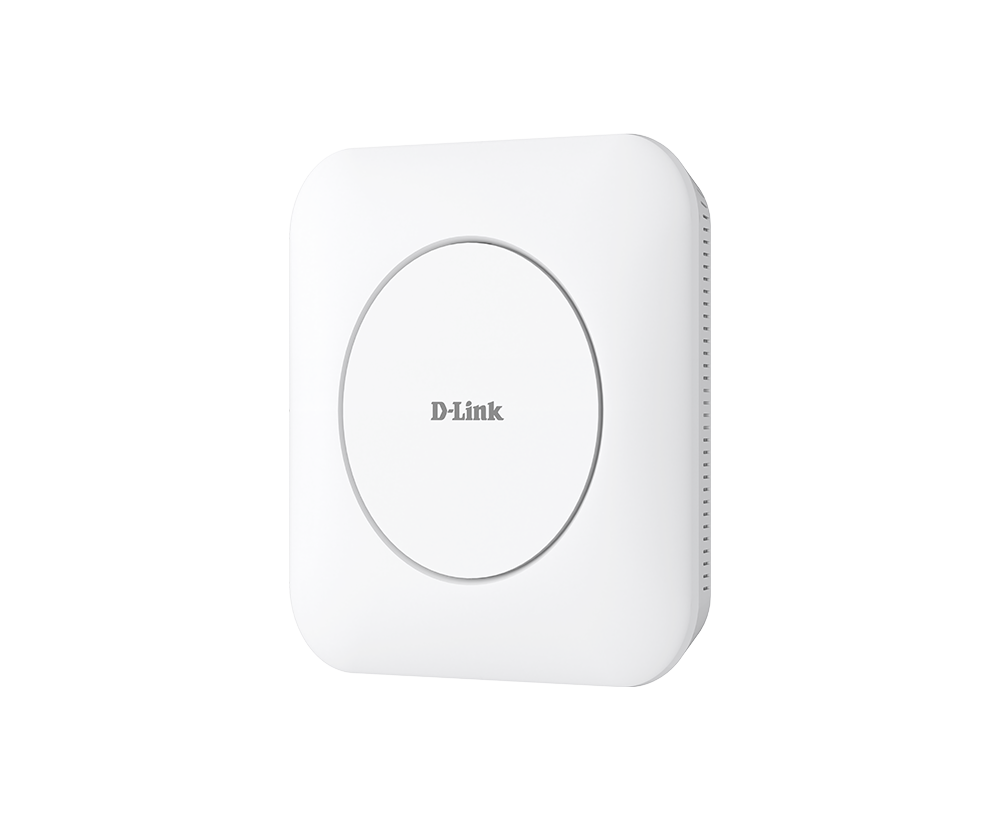

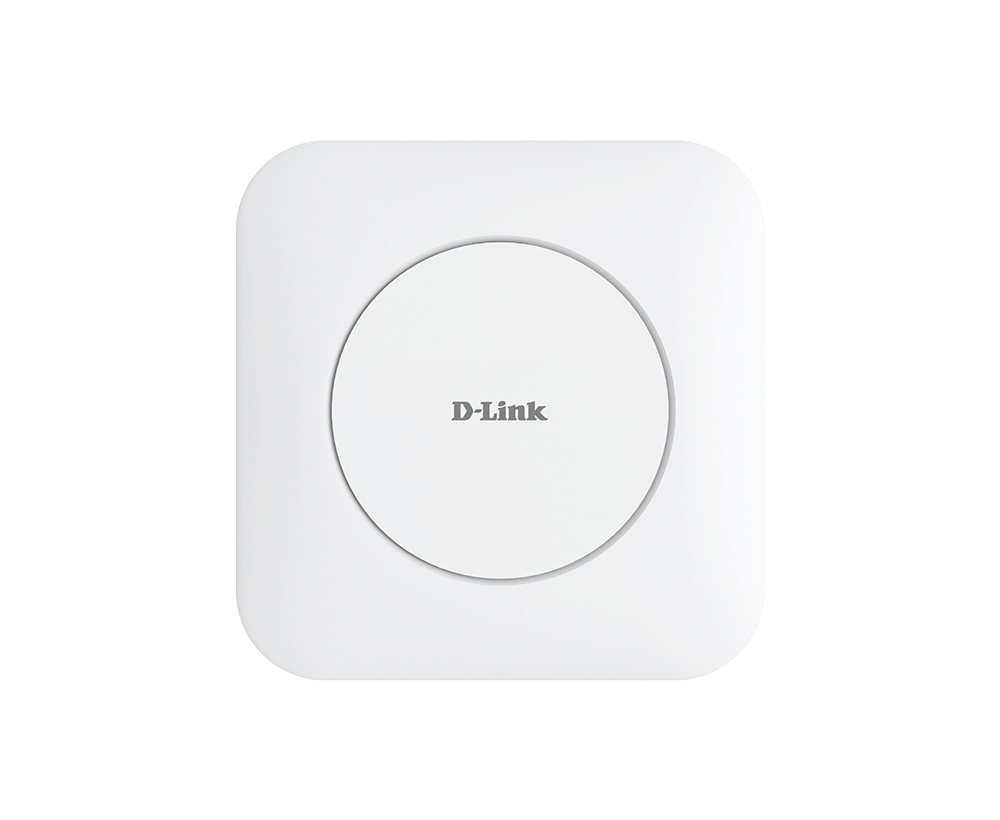

BE3600 Wi-Fi 7 Smart AP

DBR-E3600-AP

  • Product Status (A1 v1.00(WW)): Live
  • Wi-Fi 7 BE3600, up to 3.6 Gbps
  • 160 MHz dual-band on 2.4 GHz and 5 GHz
  • 1 x 2.5G PoE LAN plus 1 x GE LAN
  • 802.3at PoE enables flexible installation
  • WPA/WPA2/WPA3 Personal and Enterprise
  • Up to 7 SSIDs with VLAN tagging
  • Captive portal: Click-through, RADIUS, Local DB
  • Mesh enabled for extended wireless coverage
  • Managed by DBR-600-P or DBR-700

Download the datasheet.

Where to buy

BE3600 Wi-Fi 7 Performance and Centralized Control

The D-Link DBR-E3600-AP is a BE3600 Wi-Fi 7 Smart AP delivering up to 3.6 Gbps across the 2.4 GHz and 5 GHz bands. A 2.5G PoE LAN port and 802.3at input simplify deployment, while WPA/WPA2/WPA3 Personal and Enterprise protect wireless access. Managed by DBR-600-P or DBR-700, it supports SSID and VLAN configuration, captive portal, firmware upgrades, client monitoring, and mesh-enabled coverage.

Ultra-High-Speed Wi-Fi 7 Connectivity

Powered by IEEE 802.11be Wi-Fi 7, the DBR-E3600-AP delivers up to 3.6 Gbps across the 2.4 GHz and 5 GHz bands. 160 MHz channels help support faster downloads, lower latency, and stable performance for multiple simultaneous devices in business and high-traffic environments.

1000empty

Mesh-Enabled Wi-Fi Coverage

Mesh-enabled DBR-E3600-AP deployments extend wireless coverage across business environments. Centralized management through DBR-600-P or DBR-700 keeps SSID, security, VLAN, firmware, and client-monitoring settings consistent. Combined with Wi-Fi 7 dual-band connectivity, the system delivers stable, efficient service for users as coverage expands.

Advanced Wi-Fi Security and Guest Access

The DBR-E3600-AP supports WPA/WPA2/WPA3 Personal and Enterprise, providing robust encryption for business and public networks.

WPA3 helps protect against unauthorized access and safeguard sensitive data. For guest access, the captive portal supports Click-through, RADIUS, and Local DB authentication, giving administrators flexible control over how users connect.

Centralized Management with Real-Time Insight

The DBR-E3600-AP is managed by DBR-600-P or DBR-700 through a centralized dashboard. Administrators can configure SSIDs and VLAN tags, manage WPA/WPA2/WPA3 security and captive portal settings, upgrade firmware, and monitor client IP/MAC, status, and statistics. This unified view simplifies daily operations and provides real-time network insight.

Related Products

Business PoE Router
DBR-600-P
Find out more
Business Router
DBR-700
Find out more
AX3000 Wi-Fi 6 Smart Access Point
DBR-X3000-AP
Find out more

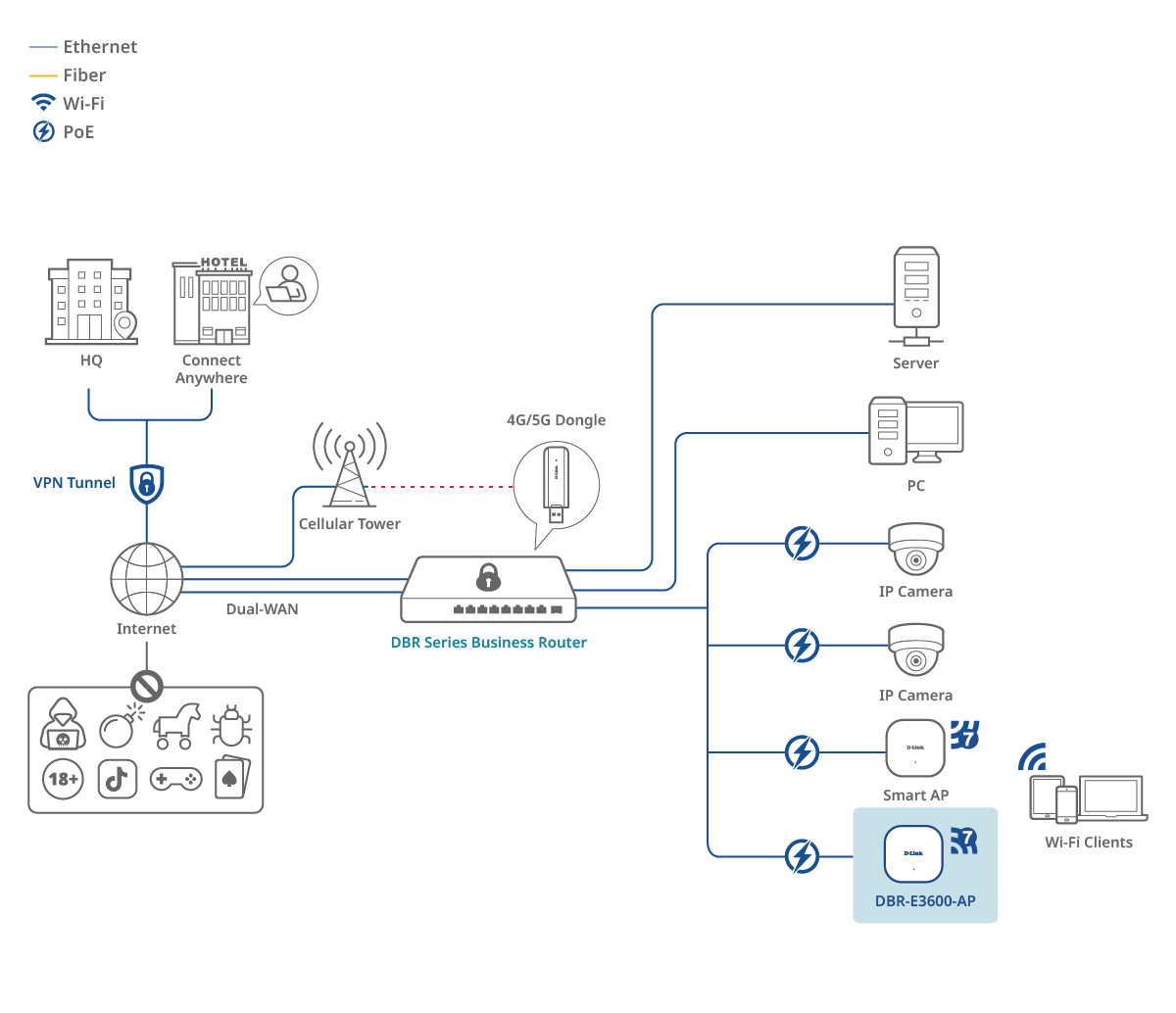

Connection Diagram

Discover the DBR-E3600-AP through the connection diagram. Built on IEEE 802.11be Wi-Fi 7, it delivers dual-band BE3600 performance up to 3.6 Gbps with 160 MHz channels. The 2.5G PoE LAN interface and 802.3at input simplify deployment, while WPA/WPA2/WPA3 Personal and Enterprise, captive portal, and centralized management through DBR-600-P or DBR-700 support secure, efficient operation. Mesh-enabled coverage and real-time client monitoring make it suitable for business networks with growing wireless demands.

Applications

Small Office ( Business )

Learn More

Hotel ( Building )

Learn More

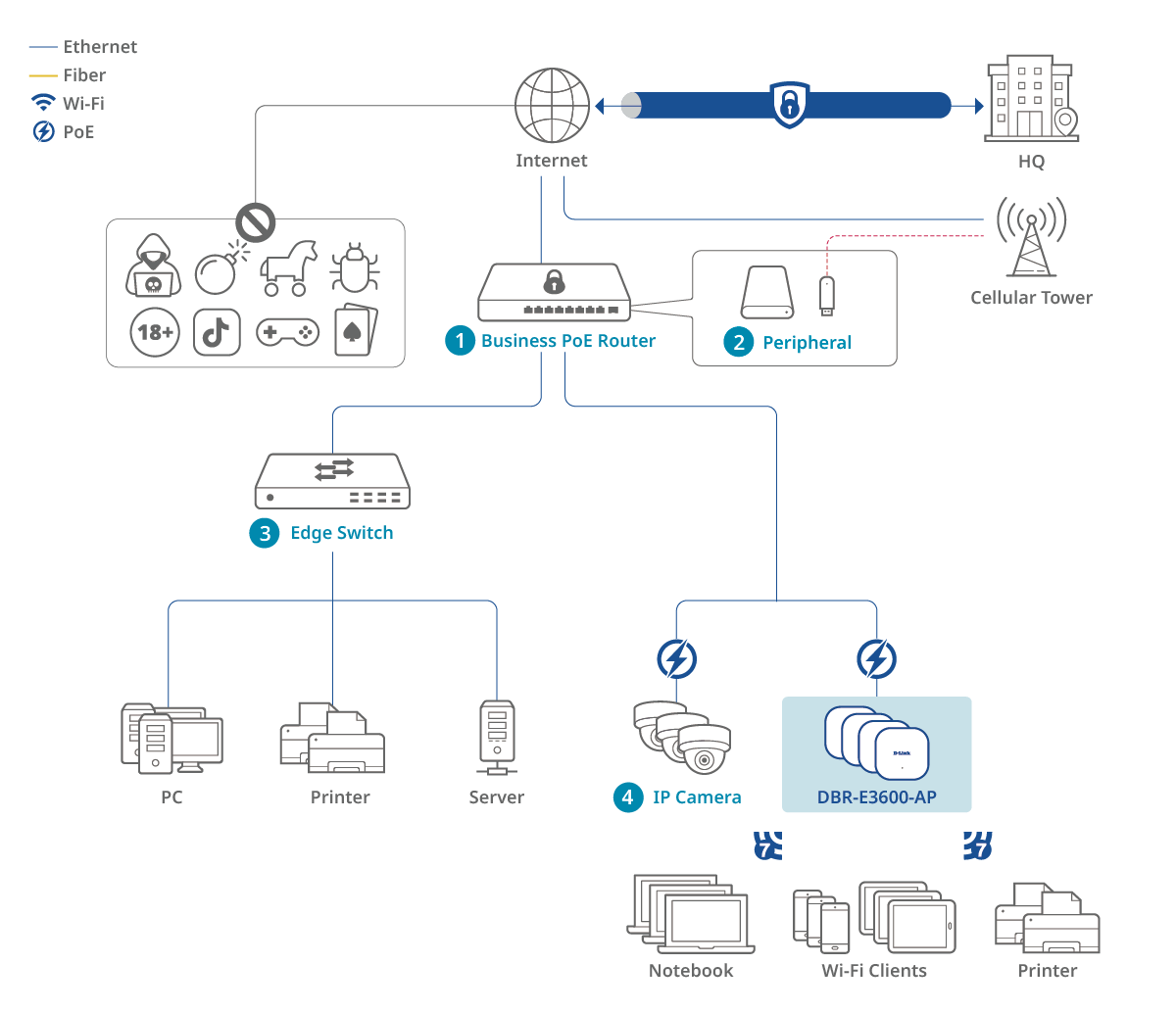

Small Office ( Business )

User benefits :

  • BE3600 Wi-Fi 7 connectivity up to 3.6 Gbps
  • WPA/WPA2/WPA3 Personal and Enterprise security
  • Mesh-enabled coverage supports scalable deployments
  • 2.5G PoE simplifies installation with one cable
  • Captive portal supports controlled guest access

Learn more :

  1. Business PoE Router : DBR-600-P
  2. Peripheral : D501
  3. Edge Switch : DMS-1016
  4. IP Camera : BCB-P01

　Hotel ( Building )

User benefits :
  • BE3600 Wi-Fi 7 connectivity up to 3.6 Gbps
  • 2.5G PoE supports efficient, flexible deployment
  • Mesh-enabled coverage for expanding business spaces
  • WPA/WPA2/WPA3 and captive portal security
  • Central management via DBR-700 or DBR-600-P

Learn more :

  1. Business Router : DBR-700
  2. Edge Switch : DMS-1024
  3. PoE Switch : DMS-108P
  4. IP Camera : BCD-P01

Specification

Download the datasheet.

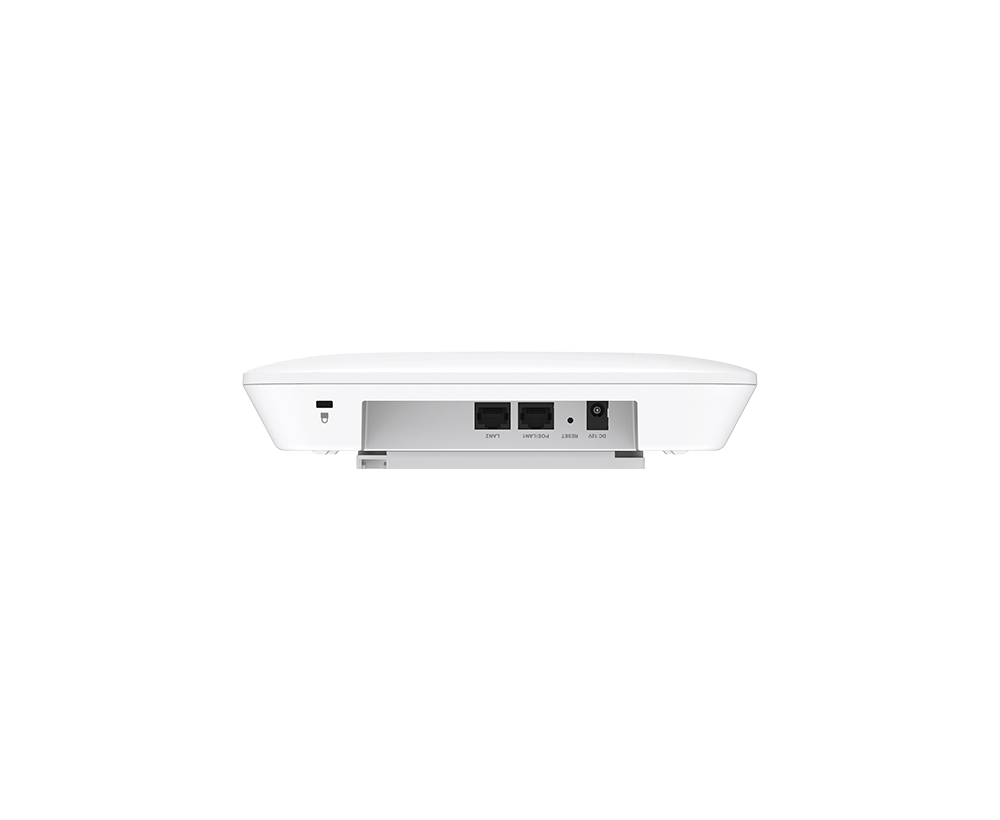

Interfaces
・1 x 2.5G LAN PoE
・1 x GE LAN
・1 x power connector / reset button
Wireless Standard
IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
MIMO
・2.4 GHz: 2T2R
・5 GHz: 2T3R
Data Rate
2.4 GHz: up to 688 Mbps
5 GHz: up to 2882 Mbps
Wi-Fi Security
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Operation Frequencies
・2.4-2.483 GHz
・5.15-5.35 / 5.47-5.85 GHz
Maximum SSIDs
7
Mesh
Enabled
Captive Portal
Click-through / RADIUS / Local DB
Power Supply
12V/1.5A; max. consumption 18W
Central Management
Managed by DBR-600-P/DBR-700
Dimensions
225 x 220 x 42 mm
Operating Temperature
5°C - 40°C (32°F - 104°F)
Storage Temperature
-10°C - 70°C (14°F - 158°F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Certifications
CE, EN18031

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
