Wireless N PoE Outdoor Access Point
DAP-3315
- Product Status: End of Sale
12dBi High Gain Directional Antenna
High power output to ensure your network’s wireless signal reaches distant locations.
Waterproof Design
IPx5-certified housing for waterproof protection.
Multiple Operational Modes
Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.
4kV Surge and 15kV ESD Protection
Protection against voltage spikes and breakdowns.
Flexible Mounting Options
Includes wall or pole mounting kits and PoE injector.
Supports up to 8 SSIDs
Logically divide the AP into several virtual access points all within a single hardware platform.
Security Features
Wireless encryption, along with support for multiple SSIDs and VLANs.

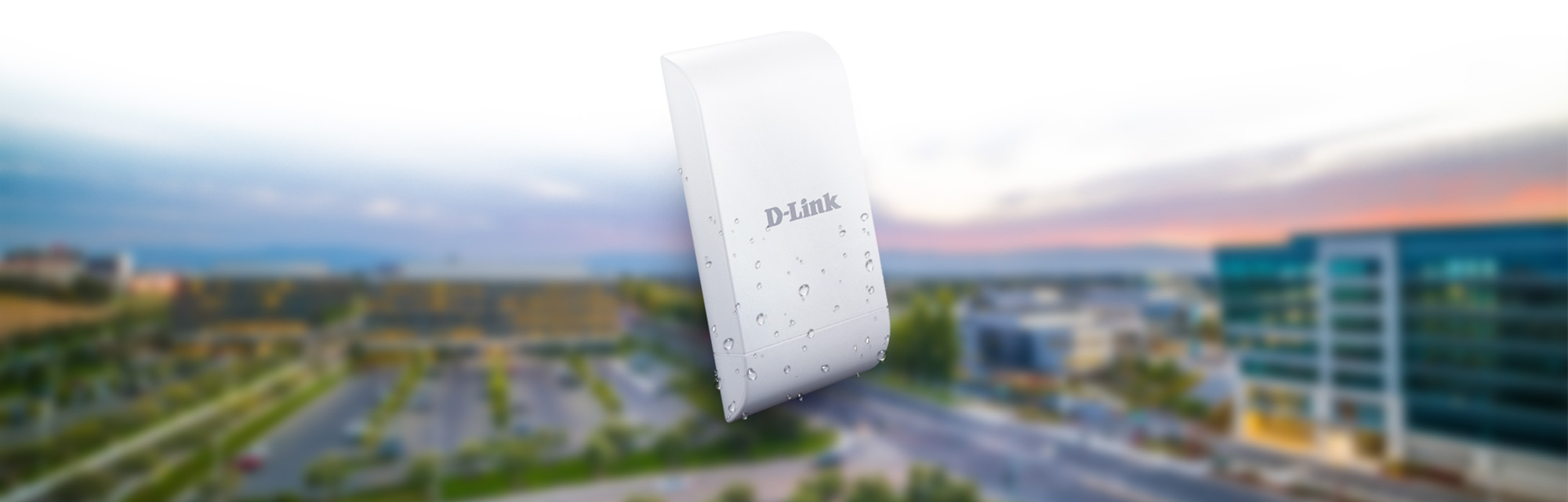

Build the Bridge to a Better Network
Built for outdoor use, its waterproof housing protects it from the elements, and its directional antenna excels in connecting separate networks that cannot be joined using cabling.
Point-to-point or Multi-point
Expand your current wireless network with a single wireless band with the furthest reach. Supports passive PoE to allow for easy and adaptable installation. Built-in 12 dBi sector antenna has a high power output to ensure wireless signal reaches farther, whether you want to connect additional wireless devices or bring connectivity over the air to networks separated by short distances.

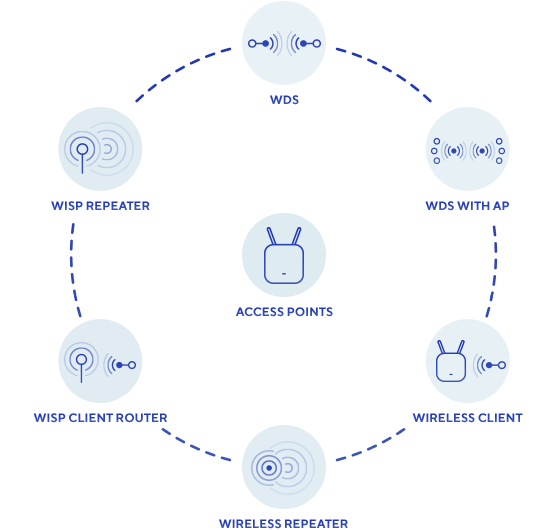

Fits into Your Network
The DAP-3315 features multiple operation modes, allowing it to adapt to any situation:
In Wireless Distribution System (WDS) mode, it can expand current wireless coverage without the need for a wired backbone link.
Repeater mode will extend current wireless coverage eliminating dead spots and weak signals. WISP mode functionality includes the ability to function as a client or repeater
As a wireless client, it can connect to an existing AP and expand the network physically with the two built-in Ethernet ports.
Using it as a standard wireless access point (AP) a wide range of wireless devices can connect to the DAP-3315.
Directional Antenna
The built-in 12 dBi High Gain directional antenna utilises the far-reaching 2.4Ghz wireless band to ensure your wireless signal extends to distant locations.

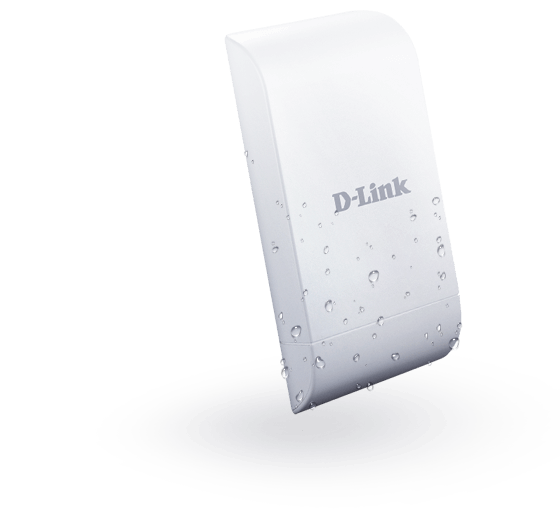

Outdoor Connectivity Made Simple
With its IPX5 waterproof housing that maintains your uptime during rainy weather1, and high power radio antenna, the DAP-3315 is ideal for providing wireless connectivity between two locations using 2.4Ghz wireless N connectivity. It even operates between -20 to 60 °C (-4 to 140 °F) temperature ranges.
Power Where You Need It Most
Its proprietary PoE (Power over Ethernet) design and included power injector makes it convenient to deploy - especially in places where a power supply is unreliable or power cables are not available.
More Controls Over Network Resources
Up to 8 SSIDs
Divide the access point into virtual access points, all within a single hardware platform. Deploy one single AP to support more than one application, like public Internet access, to keep costs down.
VLAN Tagging
It supports 802.1Q VLAN Tagging, which enables operations with multiple SSIDs to segment traffic to enhance network performance and security.
WLAN Partitioning
Ideal for wireless hotspot deployments. With station-to-station partitioning enabled, security is improved, since wireless users cannot peek at each other, the possibility for data theft is reduced.
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
Related Products
Specification
|
Type
|
Infrastructure AP Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Single-band |
|
Wireless speed
|
300 Mbps 2.4 GHz |
|
Antenna type
|
Embedded sector antenna |
|
Antenna gain
|
12 dBi for 2.4 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Fast Ethernet LAN |
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Plastic |
|
IP rating
|
IPX5 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client Wireless extender |
|
Advanced features
|
802.11k/r Roaming |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
Syslog
|
Supported
|
1 IPX5 standard means the device is protected from low pressure jets of water from the top and the front directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weatherproof box when in severe weather environment.
