Gigabit Smart Managed Switches
DGS-1100 Series
- Product Status (V2 Revision A - 5-8 ports): Live
- Free centralised management with Nuclias Connect
- Simple Layer 2 Management
- Web-based User Interface
- PoE options up to 370W power budget
- Limited-Lifetime Warranty after registration
Where to buy
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
DGS-1100V2 Smart switch series
· 5 x 1000Base-T
· Fanless
· PoE Powered
· 3 x 1000Base-T
· 2 x 1000Base-T PoE
· Power Budget: 18W with 802.3at / 8W with 802.3af input power
· Fanless
· 8 x 1000Base-T
· Fanless
· 8 x 1000Base-T 802.3at PoE
· 64W PoE budget
· Fanless
· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 130W PoE budget

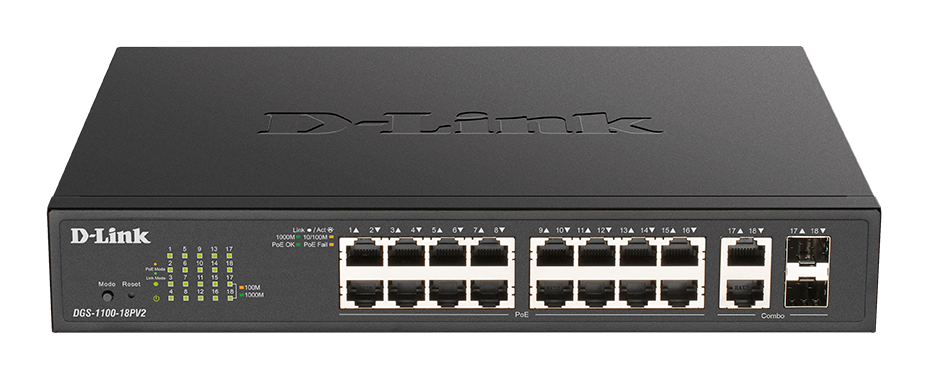

· 16 x 1000Base-T
· Fanless
· 24 x 1000Base-T
· Fanless
· 12 x 1000Base-T
· 12 x 1000Base-T 802.3af/802.3at PoE
· 100W PoE budget

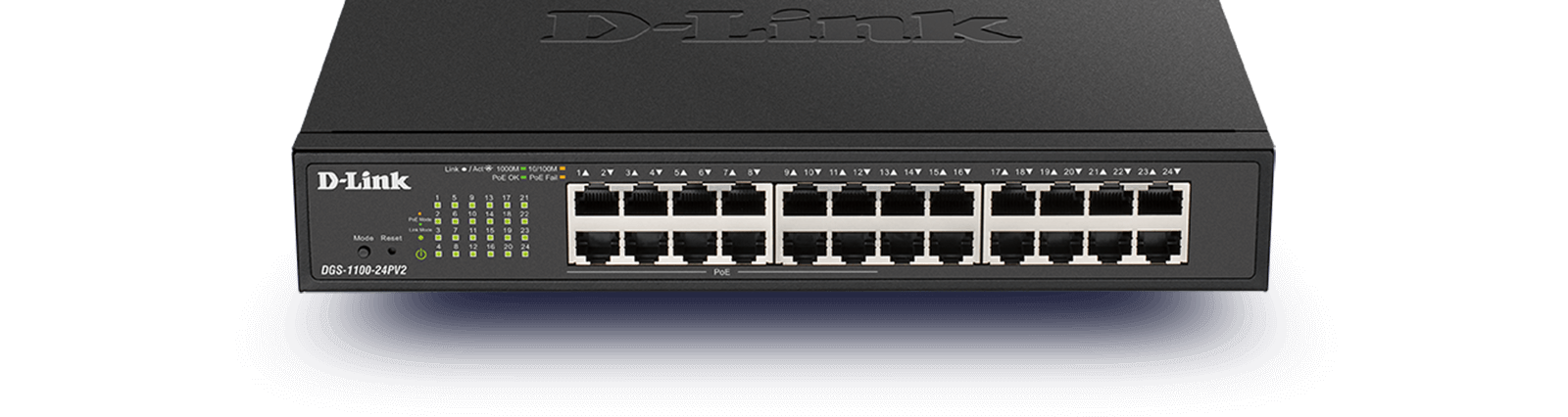

· 24 x 1000Base-T 802.3af/802.3at PoE
· 2 x Combo
· 370W PoE budget
Related Products
Specs
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
16 to 30 ports 5 to 14 ports |
|
Layer
|
Layer 2 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Type of uplink ports
|
Combo 1000BASE-T/SFP SFP |
|
Switching capacity
|
16 Gbps 20 Gbps 32 Gbps 36 Gbps 48 Gbps 52 Gbps |
|
Powered by PoE
|
Supported
|
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 8 |
|
PoE power budget
|
See datasheet See datasheet See datasheet |
|
Fanless
|
Supported
|
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Desktop Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K 8K |
|
Spanning Tree Protocol
|
802.1D STP 802.1w RSTP |
|
Link aggregation
|
802.3ad Static trunk |
|
VLAN group (max static)
|
128 32 |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
|
Number of QoS queues per port
|
4 |
|
Bandwidth control
|
8 Kbps minimum granularity |
|
Encryption protocol supported
|
SSL (v1/v2/v3) |
