10G Smart Managed Switches

DXS-3130 Series

  • Product Status (Revision A): Live
  • Support 10G for downlink ports
  • Support 25G SFP+ for uplink ports
  • Support IEEE 802.3af/at/bt to power PoE devices
  • 6kV surge protection on all 10G access ports
  • Support 802.3ad LACP for Link Aggregation
  • Support Static Routing
  • Support Loopback Detection
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller

Download de datasheet.

Alle Verkooppunten
10 Gbps Ports

10 Gbps ports accelerate data transmission speeds, meeting higher bandwidth demands and boosting network performance

25G Uplink

25G uplink ports deliver ultra-fast server connectivity, ensuring seamless scalability and optimized network performance​

Management UI

Equipped with an RJ-45 console, full CLI, multilingual web GUI, and Nuclias Network Controller for efficient device management

High-Power PoE

Delivers IEEE 802.3bt per port with 470W total power, supporting demanding devices like digital signage and Wi-Fi 7

Digital Signatures

D-Link implements digital signatures to protect firmware and software, ensuring integrity and trusted source verification

Advanced Networking Features

Q-in-Q VLAN extension, time-based ACLs for dynamic control, and DHCP Relay with Option 82 for flexible management

DXS-1250 Series Comparison

Compare Products DXS-1250-28YP

 Ports

 24 x 10GE
 4 x 25G SFP28

 PoEPoE++, with 470W Power Budget
Learn More

Gerelateerde Producten

Gigabit Smart+ Switches met Glasvezelpoorten
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Meer lezen
DGS 1250 Gigabit Smart Managed Switches with 10G Uplinks
DGS-1250-28X, DGS-1250-28XMP, DGS-1250-52X, DGS-1250-52XMP
Meer lezen
2.5G Layer 2 Standaard Smart Switches
DMS-1250-10S, DMS-1250-10SP, DMS-1250-10SPL, DMS-1250-12, DMS-1250-12TP, DMS-1250-18, DMS-1250-18P, DMS-1250-28, DMS-1250-28P
Meer lezen

　

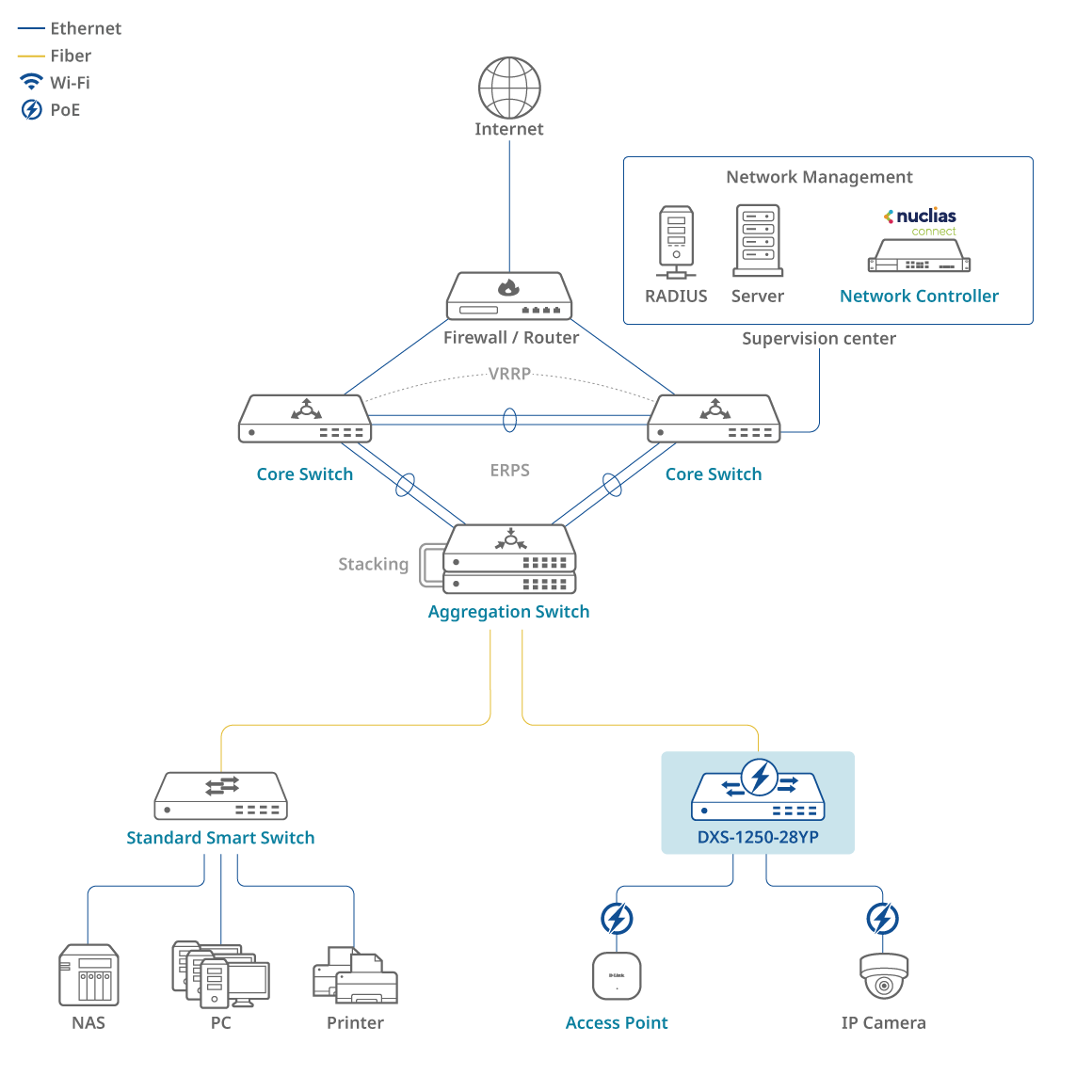

Connection Diagram

Network Controller

Ontdek meer

Aggregatie Switch

Ontdek meer

Standaard Smart Switch :

Ontdek meer

Access Point

Ontdek meer

Applications

Enterprise

  • Hoge bandbreedte voor workloads
  • Verhoog de netwerkefficiëntie
  • Verbeterde beveiliging en compliance
  • Sterkere netwerksegmentatie

Onderwijs

  • Snelheid die leren bevordert
  • Schaalbaarheid voor toekomstige groei
  • Naadloze integratie
  • Verbeterde beveiliging

Business

  • Hoge Bandbreedte Capaciteit
  • Gegarandeerde Hoge Beschikbaarheid
  • Vereenvoudigd Network Management
  • Kosten-efficiëntie

Gebouw

  • Prestaties op vol vermogen
  • Verbeterd de netwerkstabiliteit
  • Verbeterd de beveiliging
  • Biedt schaalbaarheid

DXS-1250 Series Specification


Compare Products

DXS-1250-28YP

Interface

 24 x 10GE PoE
 4 x 25G SFP28

Performance
Switch Capacity 680 Gbps

Max. Packet Forwarding Rate

 505.92 Mpps
PoE
PoE StandardIEEE 802.3af/at/bt
PoE Ports Port 1 ~ 24
PoE Budget 470W
Technical Specification
Surge Protection 6kV
Maximum Power Consumption 630.92W (PoE on)
Fan 2 Internal Fans
Console Port Yes
Power Supply Type
 Internal
Learn More

Support

Versie Datum Type Bestandsgrootte
Datasheet - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Product Manual Web UI and CLI Manual 4/07/2025 - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Hardware Installation Guide

Hardware Installation Guide

 4/07/2025 - - Download
Versie Beschrijving Datum Type
FW DXS-3130-28P Firmware 4/07/2025 - Download
MIB DXS-3130-28P MIB 4/07/2025 - Download
Versie Beschrijving Datum
CE DoC DXS-3130-28P CE Declaration of Conformity 4/07/2025 Download
